KERONG Smart Remote Control Electronic Access Control Board for Locker Lock Parcel Lock
- Category: >>>
- Supplier: Shenzhen Kerong Electronic Technology Co. Limited
Share on (62435724765):
Product Overview
Description
KERONG Smart Remote Control Electronic Access Control Board for Locker Lock Parcel Lock
Product Description
Product Name | KR-BU |
Factory | KERONG |
Definition | Electronic rotary latch controller |
Function | Receive commands to control lock and feedback status |
Dimension | L200*W140*H15mm |
Material | PCB (Printed Circuit Board) |
Dimension of protect shell | L210*W150*H35mm |
Material of protect shell | ABS |
Micro processor module | STM8S103K3T6 QFP32(P0.8mmBS7*7mm) |
Connector model | RJ45, 8P8C |
Working voltage | 12V~24V |
Stand-by power consumption | 60mA |
Dynamic power consumption | 200mA~3000mA |
Reaction time | Less than 1s |
Working temperature | -25℃ ~ +65℃ |
Working humidity | 10% ~ 90%RH |
Working life | 500000 times |
Certification | CE; ISO9001; RoHS;IAF |
OEM | Accepted |
Product Show
Product features：
1. For network communication. Transfer TCP/IP commands (from PC) to 485 format (to CU).
2. Open developed, you can design software completely as you want.
3. Support networking.
4. Can co-work with computer, pad, Raspberry Pi.
5. Works well on IOS, Windows and Linux.
6. Suit for multiple application: parcel delivery locker, public storage locker etc.
7. High quality modules, working stably.
8. Working temperature: -25℃~65℃.
9. With protect box, anti-dust.
2. Open developed, you can design software completely as you want.
3. Support networking.
4. Can co-work with computer, pad, Raspberry Pi.
5. Works well on IOS, Windows and Linux.
6. Suit for multiple application: parcel delivery locker, public storage locker etc.
7. High quality modules, working stably.
8. Working temperature: -25℃~65℃.
9. With protect box, anti-dust.

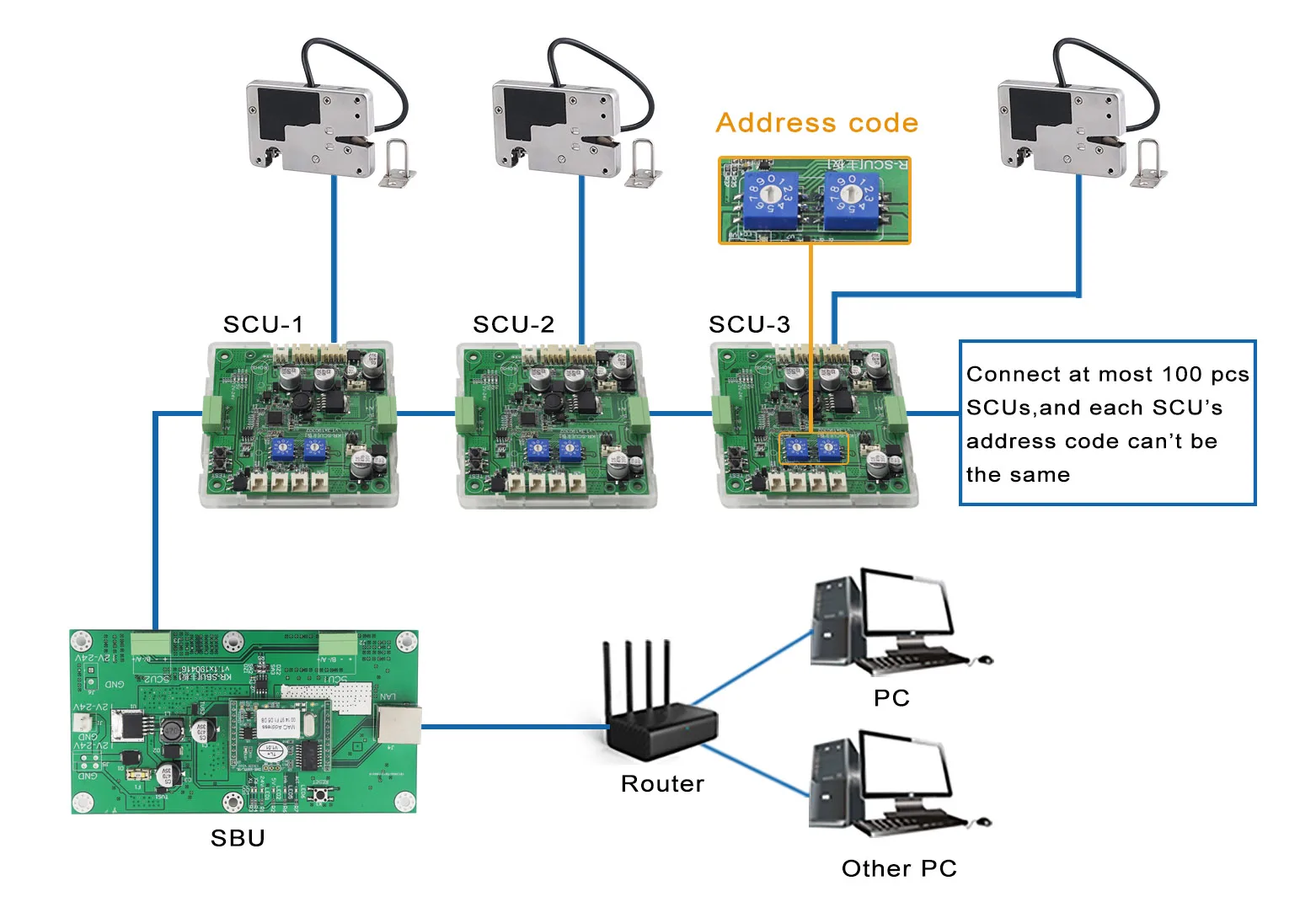

PC: With PC:software to manage all parts.
Router: Providing internet.
SBU: Basic unit. For network communication. And transfer TCP/IP commands (from PC) to 485 format (to CU).
SCU: Control unit. Receiving commands from BU/ PC and sending commands to locks. Get feedback from locks and send to SBU/PC.
Lock: With lock tongue detection. Unlock when received commands from SCU. Send lock condition (locked or not) to SCU.
Router: Providing internet.
SBU: Basic unit. For network communication. And transfer TCP/IP commands (from PC) to 485 format (to CU).
SCU: Control unit. Receiving commands from BU/ PC and sending commands to locks. Get feedback from locks and send to SBU/PC.
Lock: With lock tongue detection. Unlock when received commands from SCU. Send lock condition (locked or not) to SCU.
