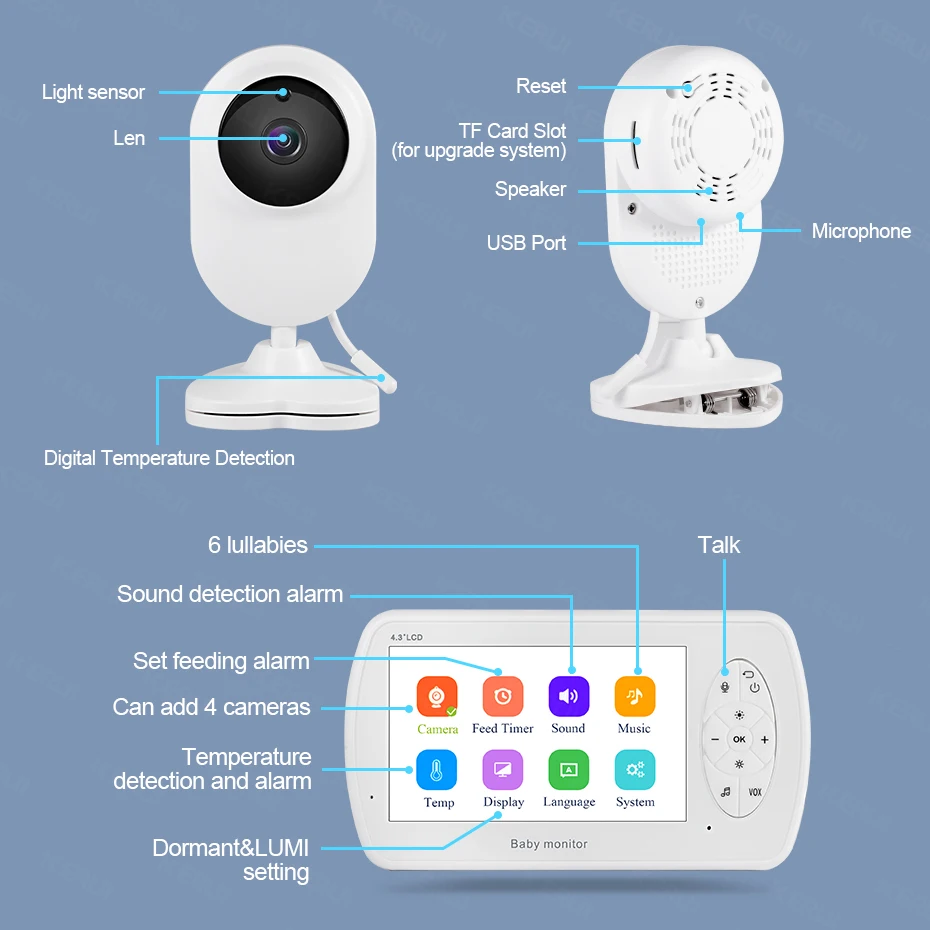

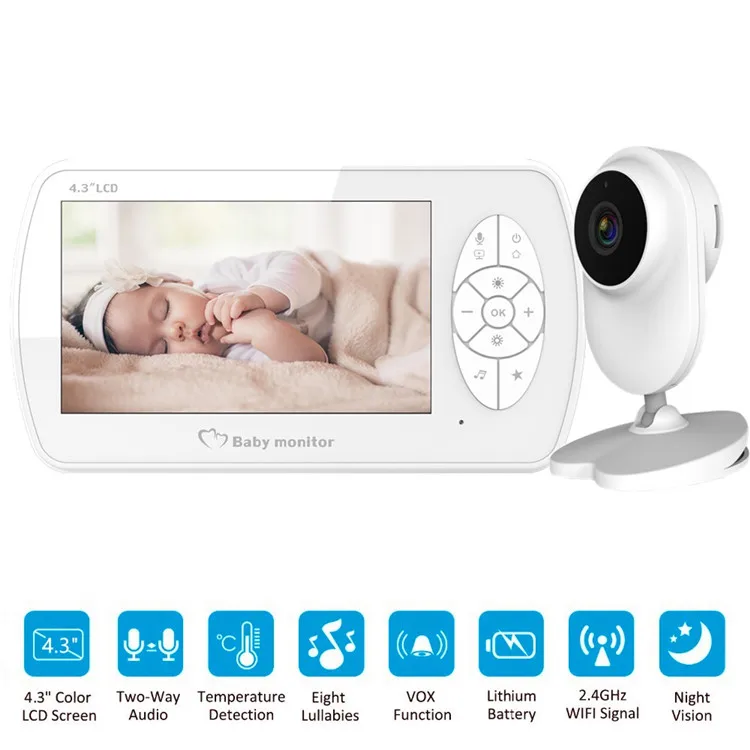

Key feature:
product has VOX function,Point-to-point transmission of images
*support max 128g sd card
*Day&Night Real-time voice monitoring,Talkback;
* Support max 4 cameras and one key switch;
* Lullaby Music Play;Baby Crying Detection Alarm (VOX)
* Real-time temperature detection,Alarm clock function;
* Feader Timer;

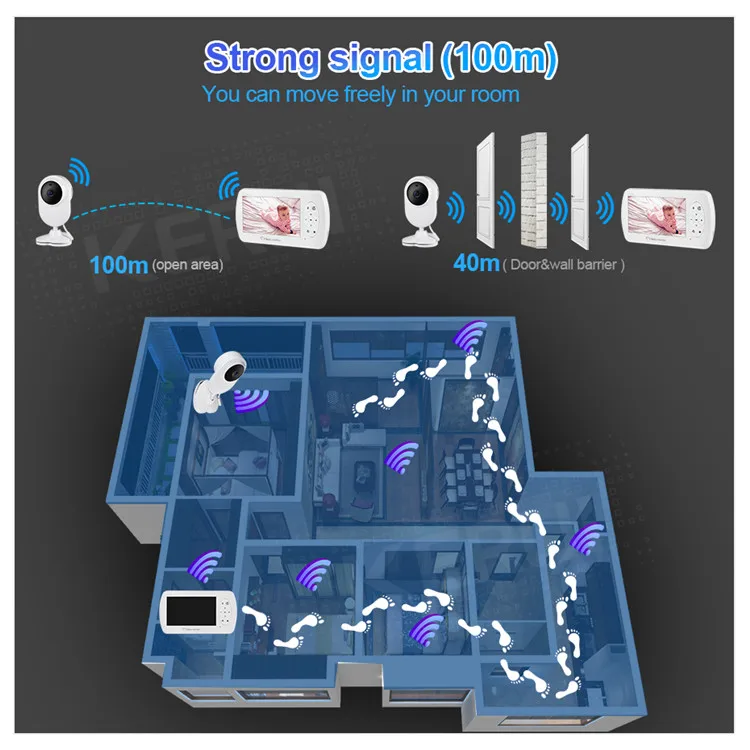

* transmission distance:100m;
* Power Supply:DC 5V 2A,;
* working temperature:-10℃~ +50℃;humidity:85%RH
* LCD size:4.3’’(big screen);Battery capacity:2000 mAh
* Resolution for Camera : 1080P,which is much better image quality than other baby monitors
Package:
* 1080P Video camera X 1
* 4.3"LCD Receiver X 1
* DC 5V 1.5A Power adapter X2
* 1 m power cord X2
* User Manual X1
* Screw bag X1
| Specification parameter | ||
| project | parameter | |
| Transmission frequency | WIFI 2.4GHz | |
| antenna | Built-in concealment | |
| transmission distance | 100m | |
| working temperature | -10℃~ +50℃/ +14 ~ +122F | |
| Storage temperature | -20℃~ +60℃/ -4 ~ +140F | |
| Working humidity | 85%RH | |
| Video camera | Main Chip | XM530AI,Dual-core 32-bit DSP |
| sensor | SC2235E 1/3" Progressive Scan Sensor | |
| Image Pixel | MAX 1920*1080 | |
| Low illumination | Color: 0.1Lux,F1.2; B/W: 0.01Lux,F1.2 | |
| Consumption | <3W | |
| Power Supply | DC 5V 2A | |
| size | 61*62*117 mm | |
| Weight | 0.08 kg | |
| Receiver | Main Chip | XM630FX ,Dual-core 32-bit DSP |
| Material of LCD Screen | TFT | |

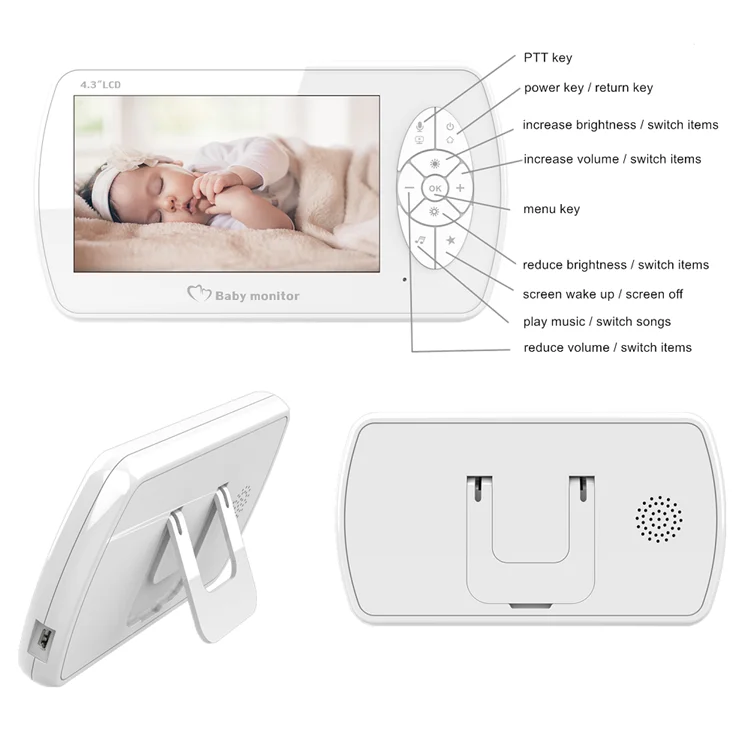

| LCD screen size | 4.3" | |
| Resolution | 480×272 | |
| effective area | 95.04mm(W)×53.856mm(H) | |
| Pixel spacing | 0.198mm(H)×0.198mm(W) | |

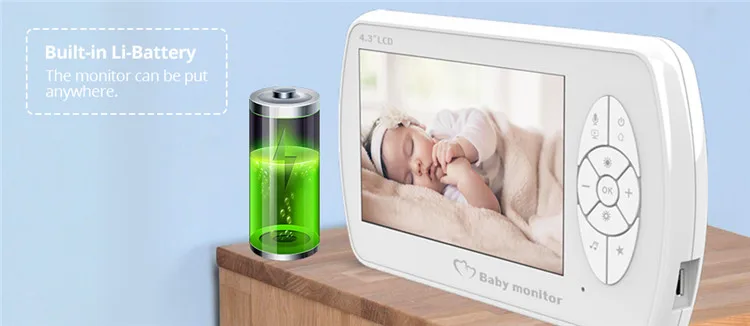

| Built-in lithium battery | 1200 mAh | |
| Power Supply | DC 5V 2A | |
| size | 156*86*16 mm | |
| Weight | 0.12 kg | |

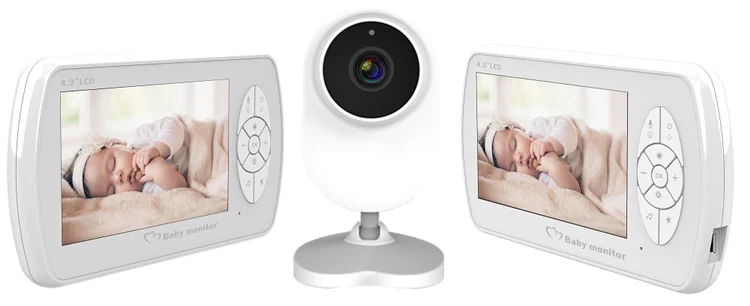

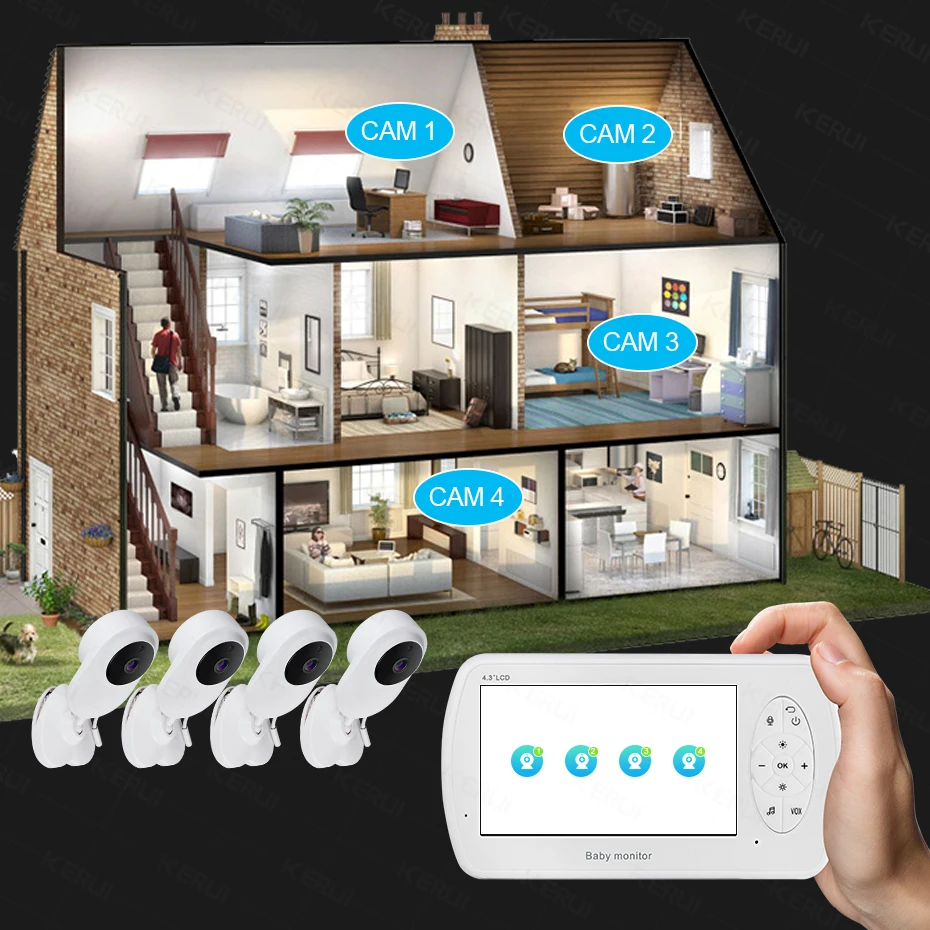

Can Add More Cameras
This monitor can add up to 4 cameras of the same model, but you need to switch them one by one to see them.





What is our advantage ?
1. Our price is factory direct price, that is why the prices more competitive than other shops.
2. About 8 years experience in security products’ manufacturing and trading.
3. We have a strong engineer team that can modify firmware as customer request.
4. We can supply OEM service such as print new logo, custom new apps, new Firmware and so on
5. We make sure quality first , test 3 times for every devices before shipping out.

What can we offer for OEM service?
1. Printing your logo on products
2.Custom giftbox ,labels,etc
3.Custom softwares:APP,UI and so on.
Any more question please feel free to send us an inquiry NOW !
