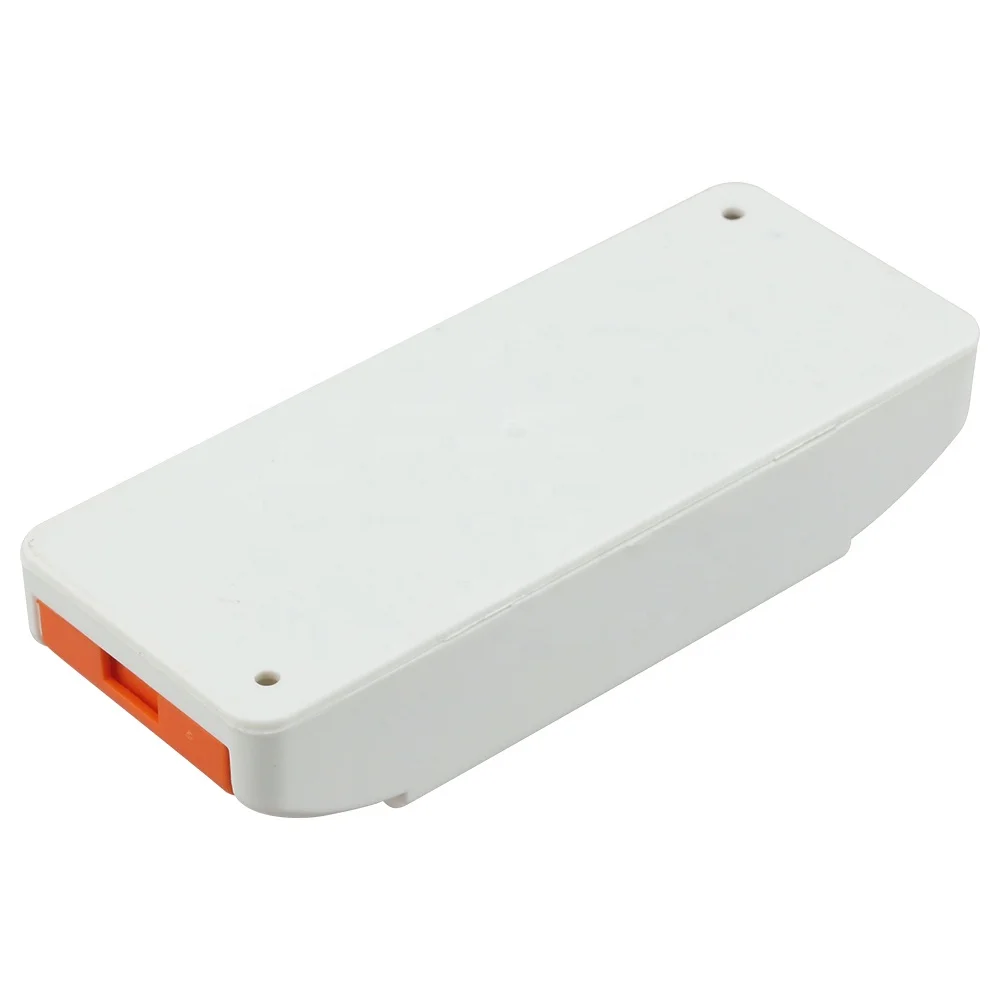

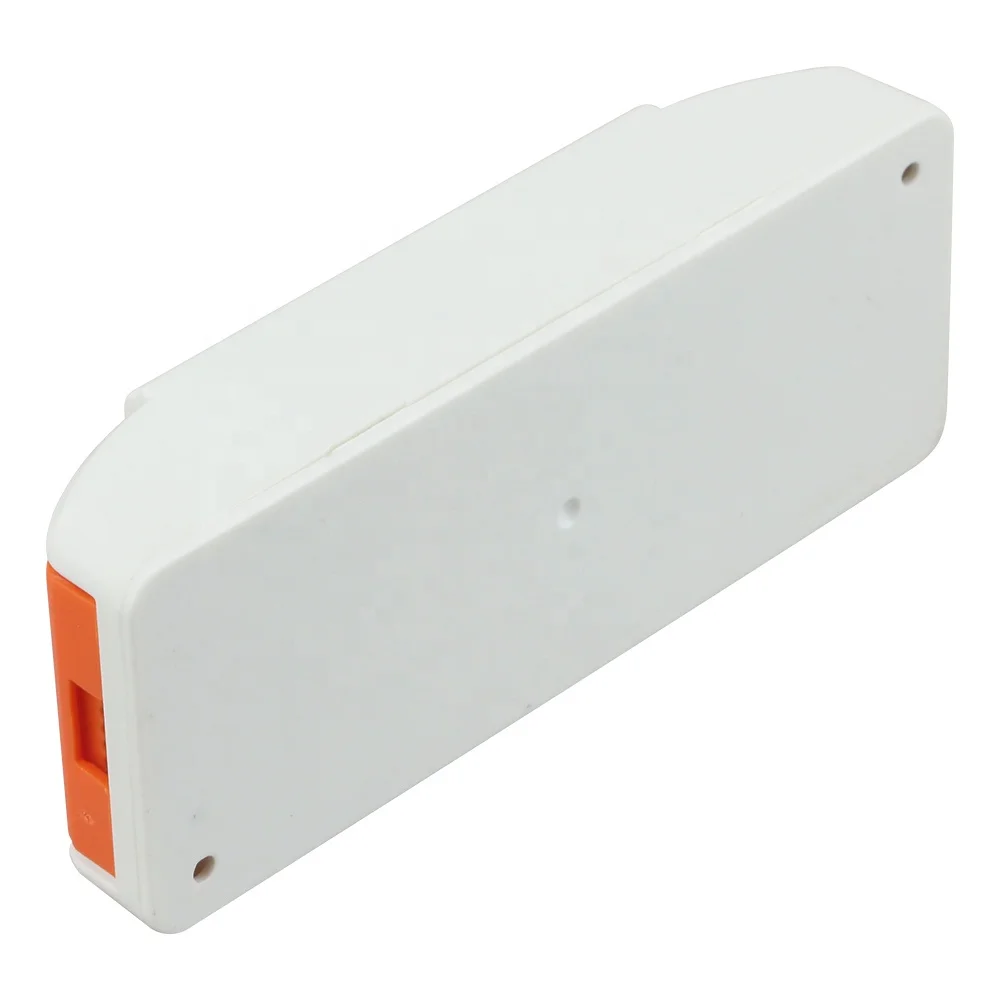

Guangzhou Short circuit and overload protection electronic transformer for halogen lamp
- Category: >>>
- Supplier: Guangzhou Kindom Opto-Electronic Co. Ltd.
Share on (62436218876):
Product Overview
Description
Product Description
Specification
Product name | Halogen Electronic Transformer |
Model | Halogen transformer 60W-B |
Input | 220-265VAC 50/60Hz |
Output | AC11.5V |
Wattage | Max Power:10~60W |
Application | panel lights, line lights, track lights, ceiling lamps, Other lamps that meet the output parameters, etc. |

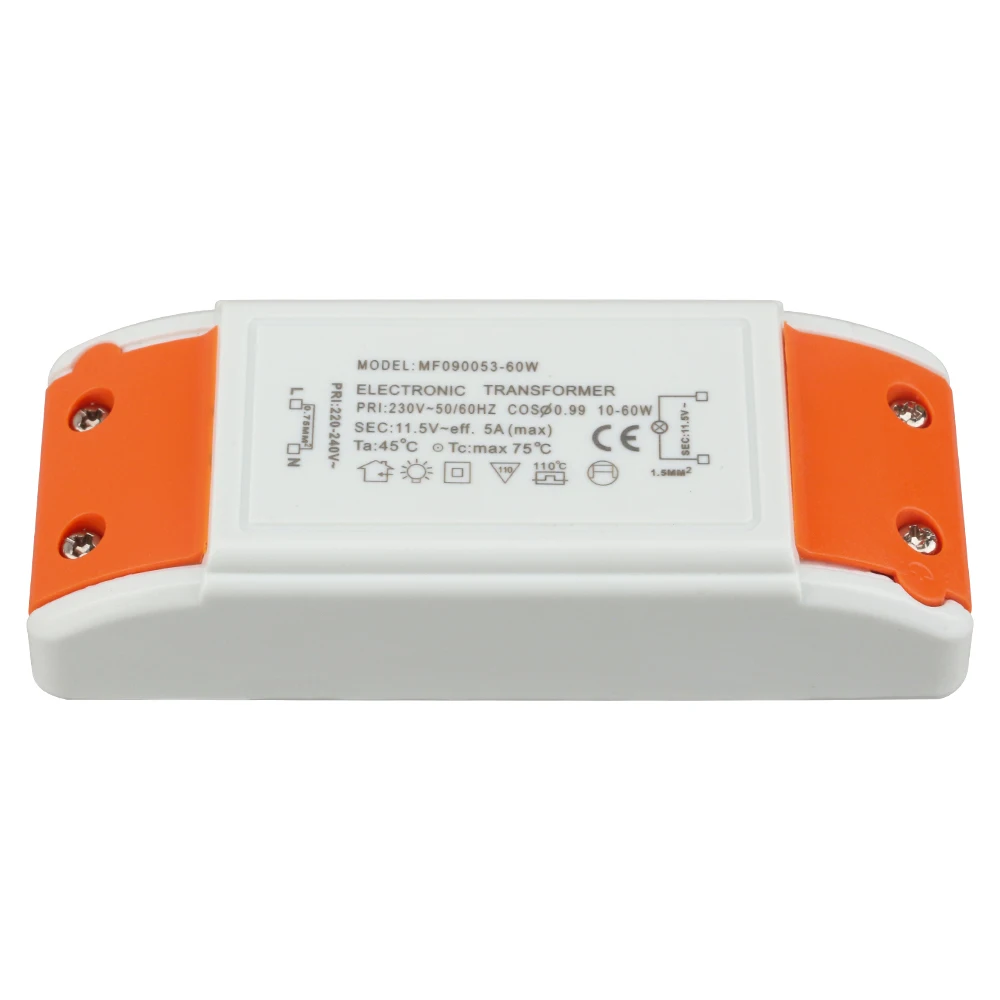

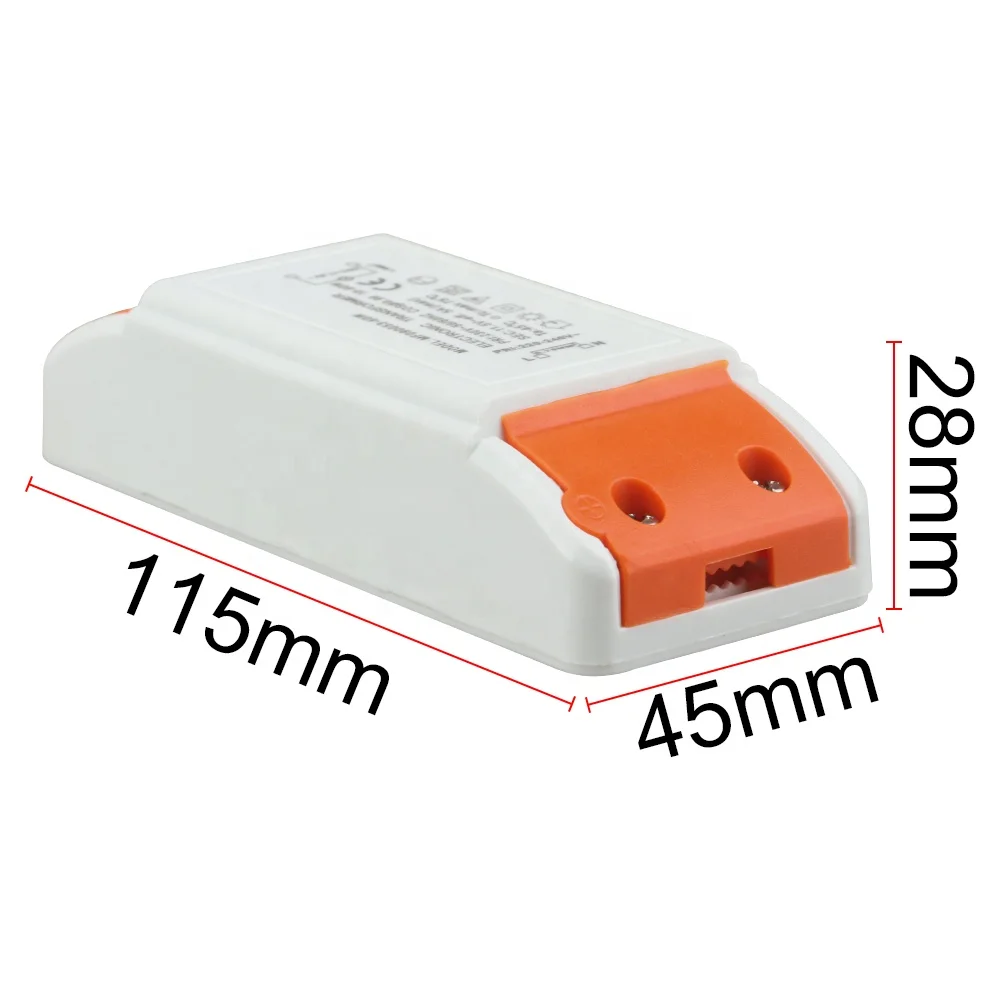

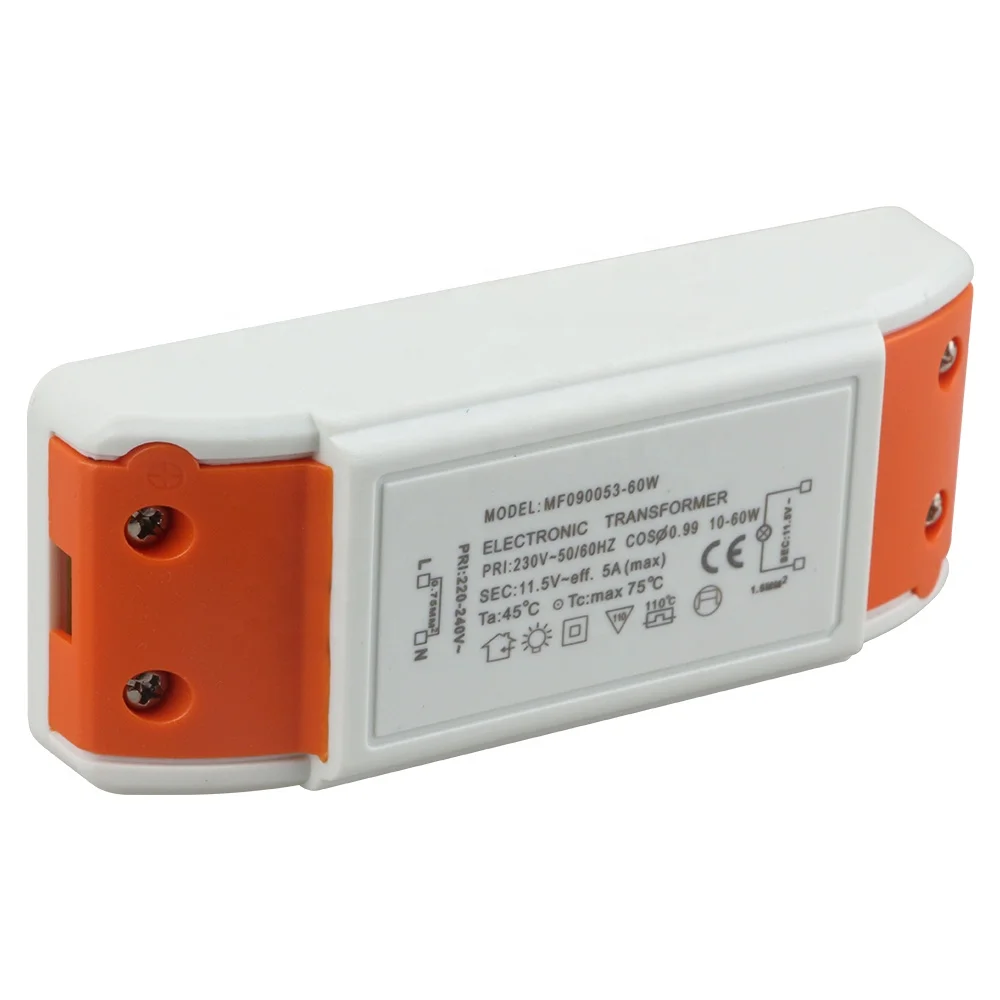

Detailed Images
1. Instructions for using:
3.1 When using this product, please distinguish the input end and output end of the product first, PRI is the AC input end, ACL is connected to the live line, ACN is connected to the zero line; SEC is the DC output end, LED+ and LED- are respectively connected to the positive and negative poles of the LED lamp ; DA1 and DA2 are connected to the DALI signal line, and there is no need to distinguish between positive and negative.
3.2 This product is a high-voltage high-power LED lamp controller. Please cut off the AC mains before installation. Connect the wiring as shown below, first connect the LED+ and LED-line, then connect the DA1 and DA2 signal lines, and finally connect the ACL and ACN lines.
3.1 When using this product, please distinguish the input end and output end of the product first, PRI is the AC input end, ACL is connected to the live line, ACN is connected to the zero line; SEC is the DC output end, LED+ and LED- are respectively connected to the positive and negative poles of the LED lamp ; DA1 and DA2 are connected to the DALI signal line, and there is no need to distinguish between positive and negative.
3.2 This product is a high-voltage high-power LED lamp controller. Please cut off the AC mains before installation. Connect the wiring as shown below, first connect the LED+ and LED-line, then connect the DA1 and DA2 signal lines, and finally connect the ACL and ACN lines.
2.Common faults and treatment methods:
4.1 If the LED light does not work, please cut off the AC Power and check:
a．There is no contact failure at the output terminal;
b．Whether the positive and negative terminals of the output are reversed；
c．There is no contact at the input end，
d. Whether the LED line and the DALI signal line are reversed, after excluding the above faults,pls continue the next step:
4.2 LED lights is working，However, the brightness is abnormal (the LED light is flashing, too bright or too dark), or the light cannot be dimmed. Please cut off the AC input immediately and check whether the output LEDs meet the output parameters of the product (the LED lamp power is too small or too large) , DALI system parameters are set correctly.
4.1 If the LED light does not work, please cut off the AC Power and check:
a．There is no contact failure at the output terminal;
b．Whether the positive and negative terminals of the output are reversed；
c．There is no contact at the input end，
d. Whether the LED line and the DALI signal line are reversed, after excluding the above faults,pls continue the next step:
4.2 LED lights is working，However, the brightness is abnormal (the LED light is flashing, too bright or too dark), or the light cannot be dimmed. Please cut off the AC input immediately and check whether the output LEDs meet the output parameters of the product (the LED lamp power is too small or too large) , DALI system parameters are set correctly.
