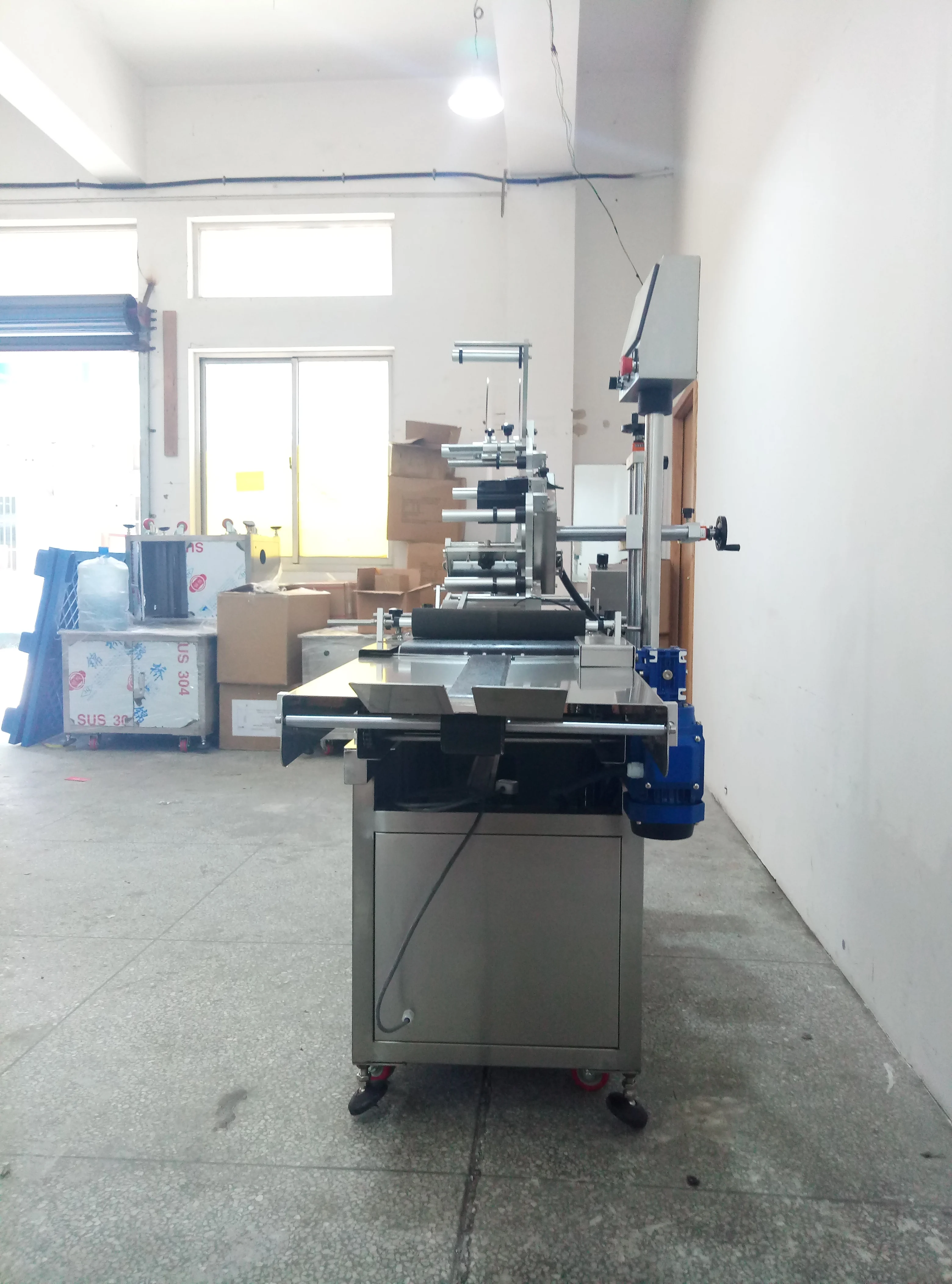

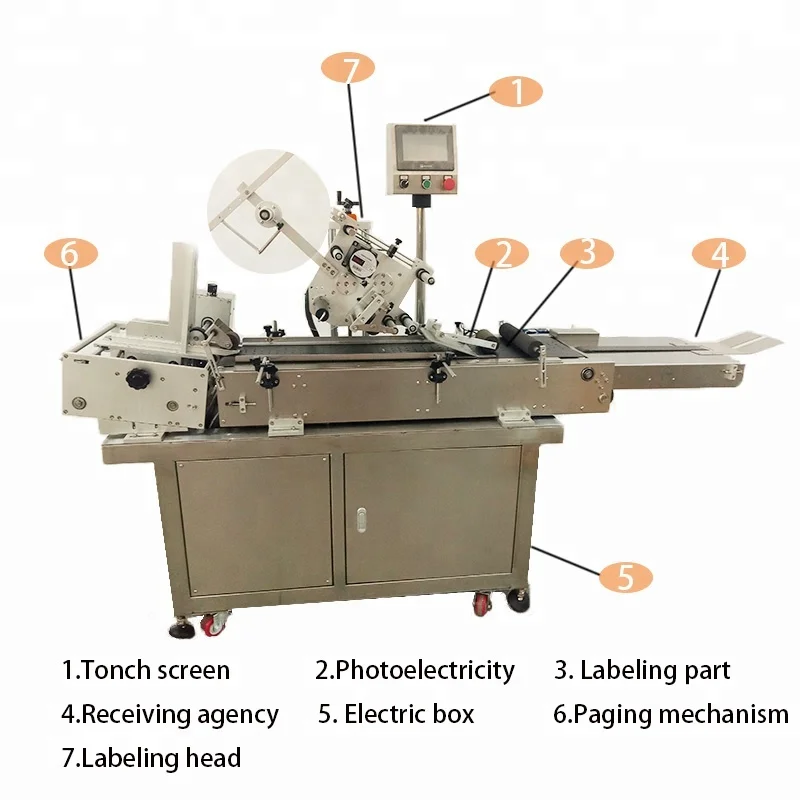

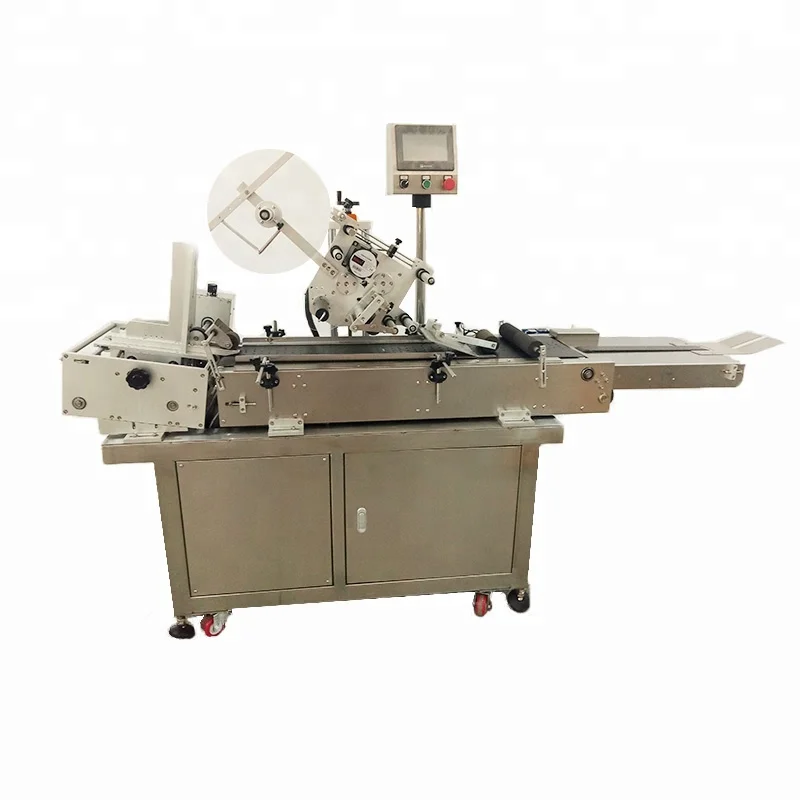

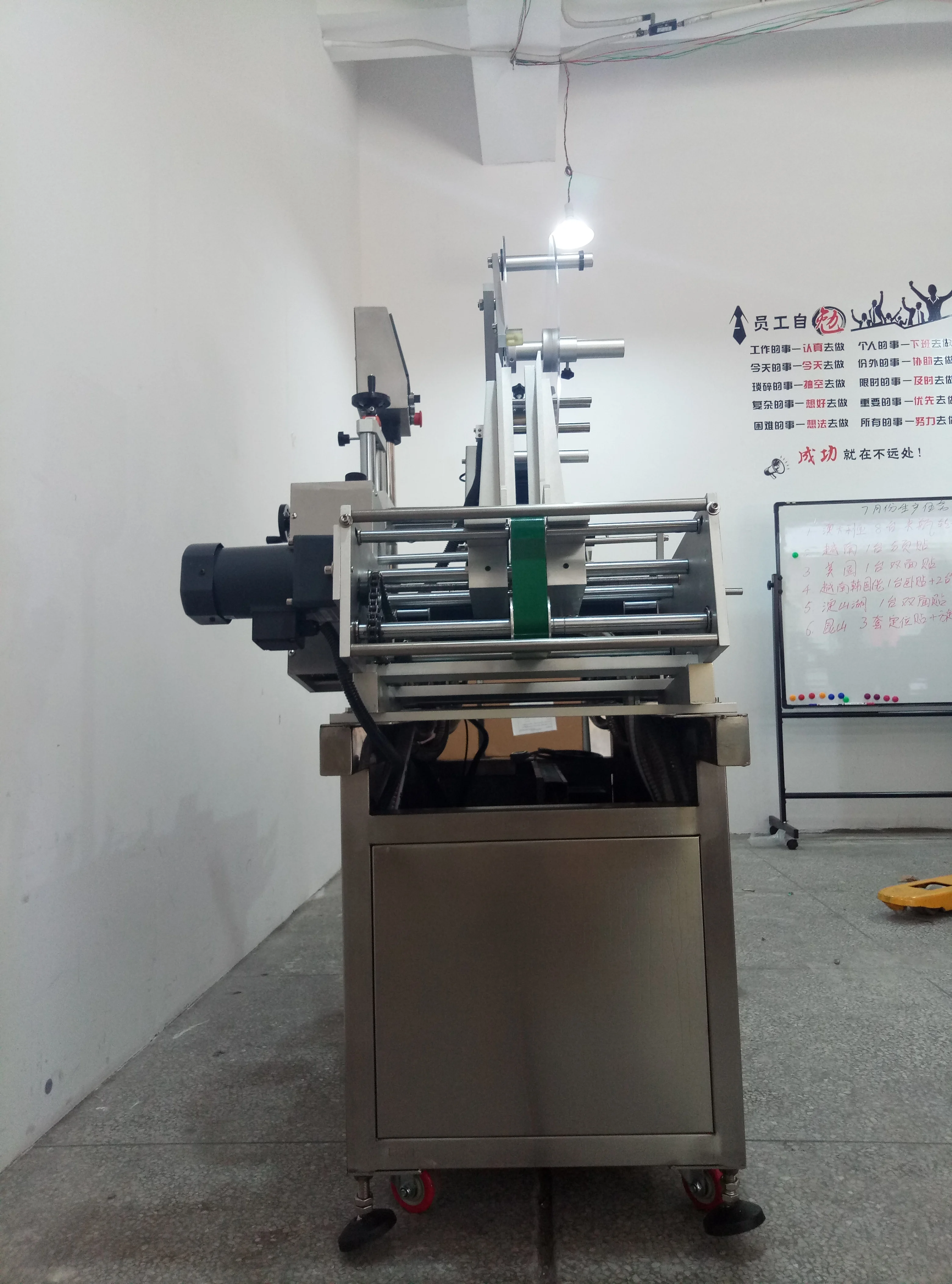

clothing hang tag labeling machine
faster, more stable labeling
Describe:
1. Used bag, satchel, tag, card, paper with different sizes paging and labeling.

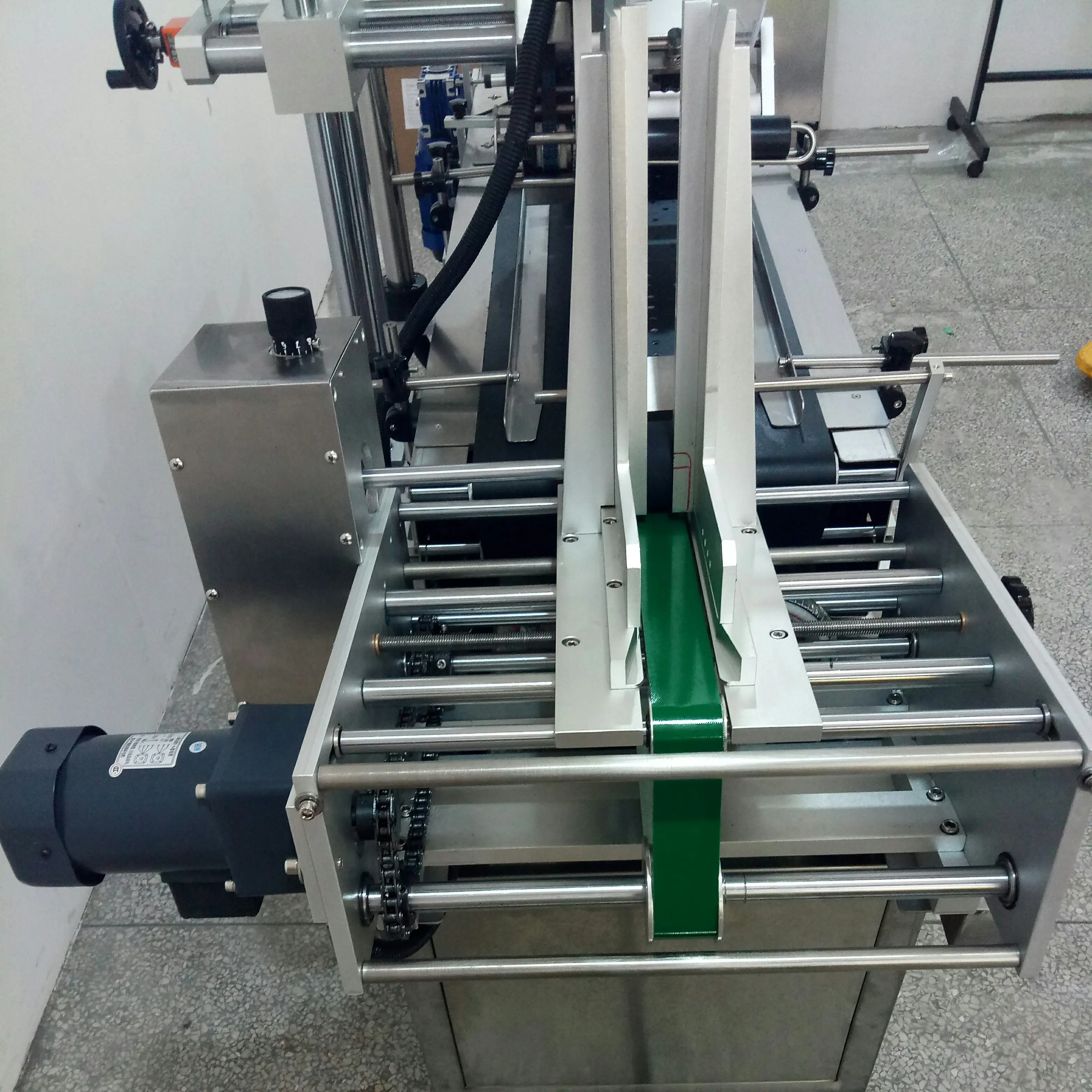

2. The vacuum conveyor belt takes materials onto it automatically avoiding material translocation. It can separate pages stably and accurately;
3. The whole machine adopts mature PLC control system to ensure the stable running in high speed;
4. Operation is simple, practical and efficient with the use of touch screen for operation system;
5.Labeling is performed smoothly with no creases with the use of elastic cotton idler wheel;
6.Automatic photoelectric detection functions including cancelling labeling without objects there and stopping running or raising an alarm without labels to use to avoid omitting or wasting labels.
Technical Parameter:
| Label width | 5-310mm |
| Label length | 5-500mm |
| Labeling speed | 20-100pcs/min |
| Labeling accuracy | ±1mm |
| Power supply | 1200W , 220V,50Hz/60Hz |
| Label reel inner diameter | 76mm |
| Label reel outer diameter | 300mm |
| Machine weight | 250kg |
| Machine size(L×W×H) | 2500×900×1700mm |
Control system | Japanese Mitsubishi PLC |
| NO. | Name | Unit | Brand |
| 1 | PLC control system | 1set | Mitsubushi (Japan) |
| 2 | stepper motor | 1set | KINCO (Germany) |
| 3 | stepper motor driver | 1set | KINCO (Germany) |
| 4 | Frequency changers | 1set | DANFOSS(Denmark) |
| 5 | Photoelectricity | 1set | KEYENCE (Japan) |
| 6 | labels photoelectric sensor | 1set | FOTEK(Taiwan) |
| 7 | Touches screen | 1set | WEINVIEW (Taiwan) |
| 8 | Bearings | 1set | Japan |
| 9 | Stainless steel material | 1set | 304SS |
| 10 | Aluminium alloy
| 1set | Surface anode gush arenaceous technology |
