Product Overview
Description
Product Description
1- SHANGCHAI water-cooled turbocharged diesel engine with the cold starting system.
2--Torque converter and power gearshift transmission are applied on four wheels.
3- The high wear life teeth are arranged specially, two scraper bars and two wire cutters on four compaction wheels will avoid the wire wrap-around and keep the wheel clean.
4- Hydraulic system is driven by a piston pump with load sensing system, provides smooth and light control,high efficiency and energy economy.
5- The crucial spots are maintained regularly by the central lubrication system. The disinfector spray device is equipped to guard against mosquito.
6- The Roll-Over Protective Structure (ROPS) as an integral part of the frame, service brakes on the front and rear axles and central parking brake will guarantee most reliable safety.

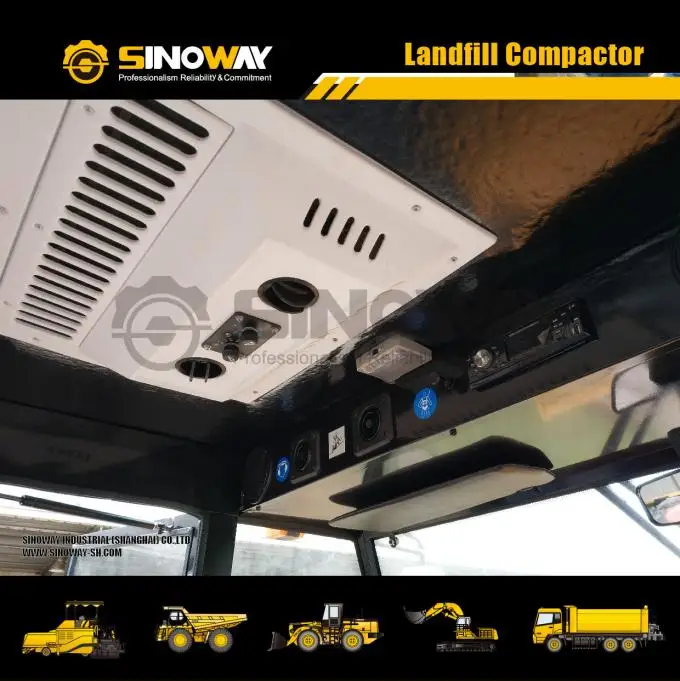

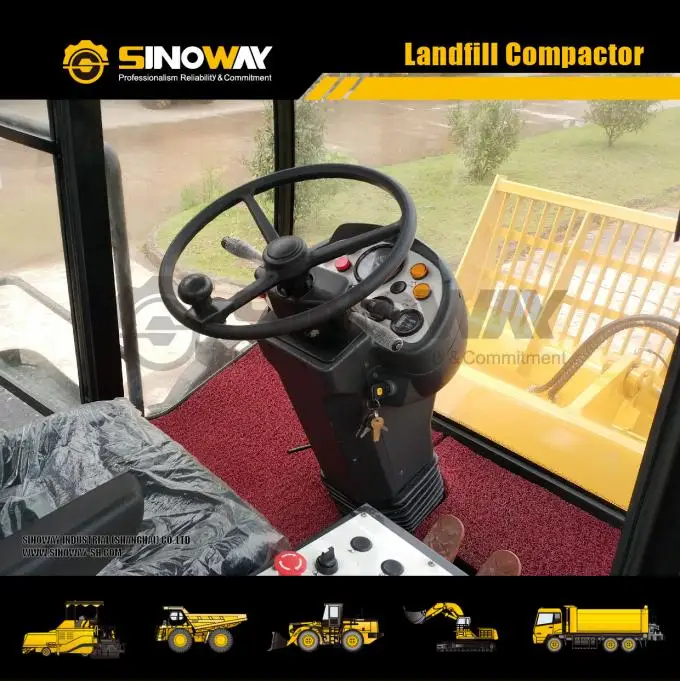

7- Turnover driver's cabin, engine hood with three windows at dual sides, access step and protective ladder in both sides make main components accessible.
8- Infrared vehicle video monitor system and backup buzzer are greatly convenient for driver's travel and working with more safe in increased rear view.
2--Torque converter and power gearshift transmission are applied on four wheels.
3- The high wear life teeth are arranged specially, two scraper bars and two wire cutters on four compaction wheels will avoid the wire wrap-around and keep the wheel clean.
4- Hydraulic system is driven by a piston pump with load sensing system, provides smooth and light control,high efficiency and energy economy.
5- The crucial spots are maintained regularly by the central lubrication system. The disinfector spray device is equipped to guard against mosquito.
6- The Roll-Over Protective Structure (ROPS) as an integral part of the frame, service brakes on the front and rear axles and central parking brake will guarantee most reliable safety.
7- Turnover driver's cabin, engine hood with three windows at dual sides, access step and protective ladder in both sides make main components accessible.
8- Infrared vehicle video monitor system and backup buzzer are greatly convenient for driver's travel and working with more safe in increased rear view.

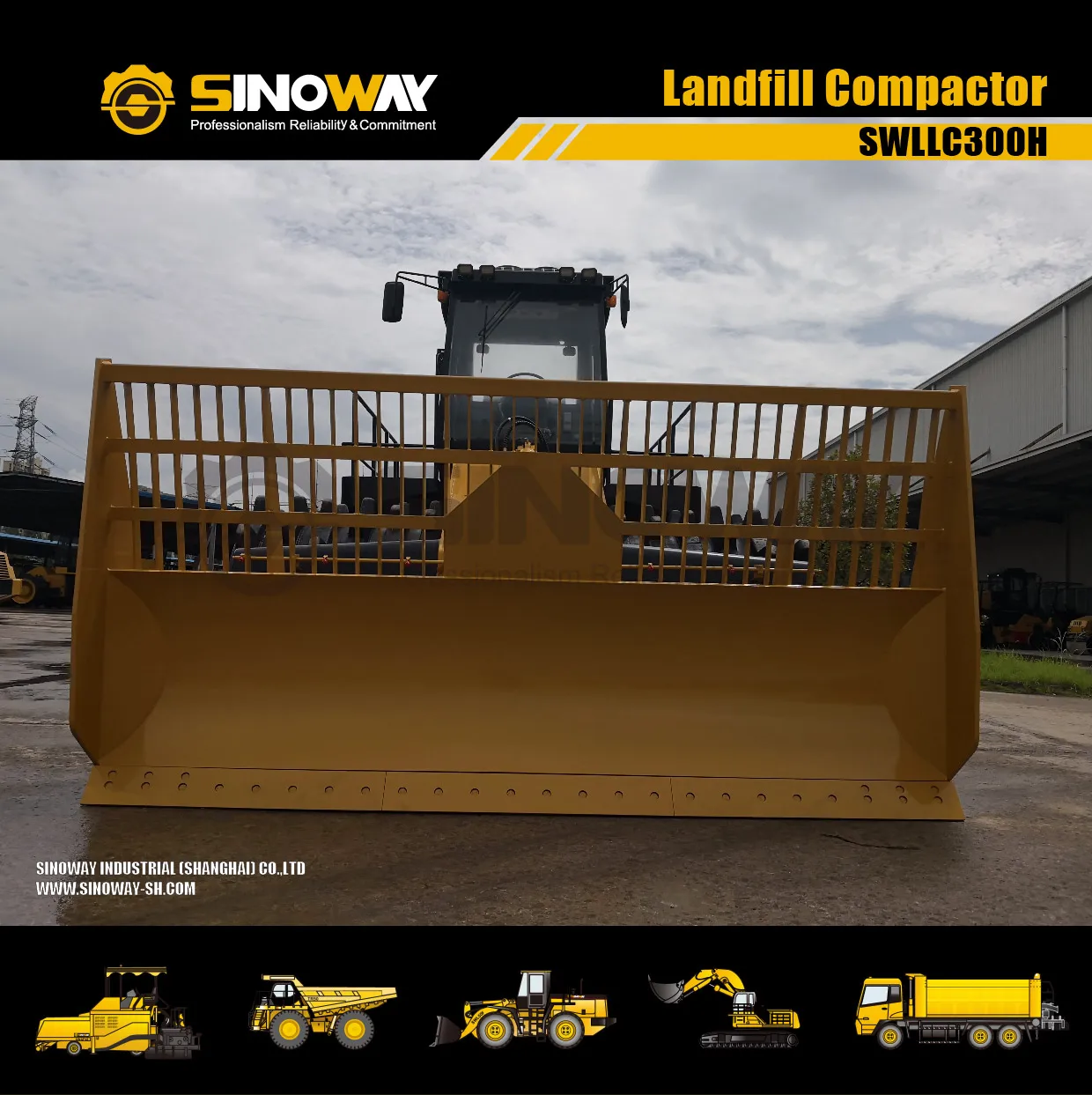

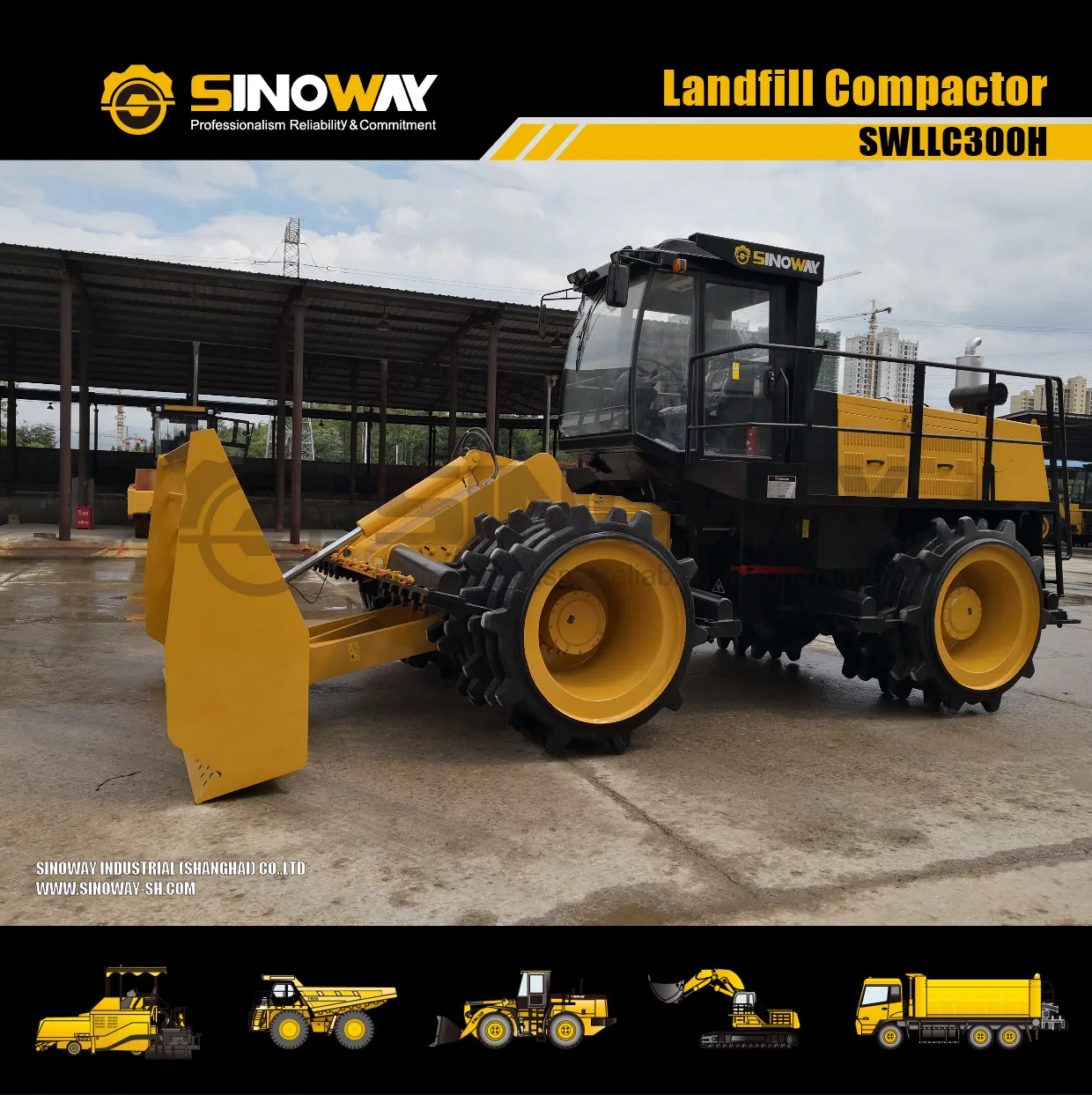

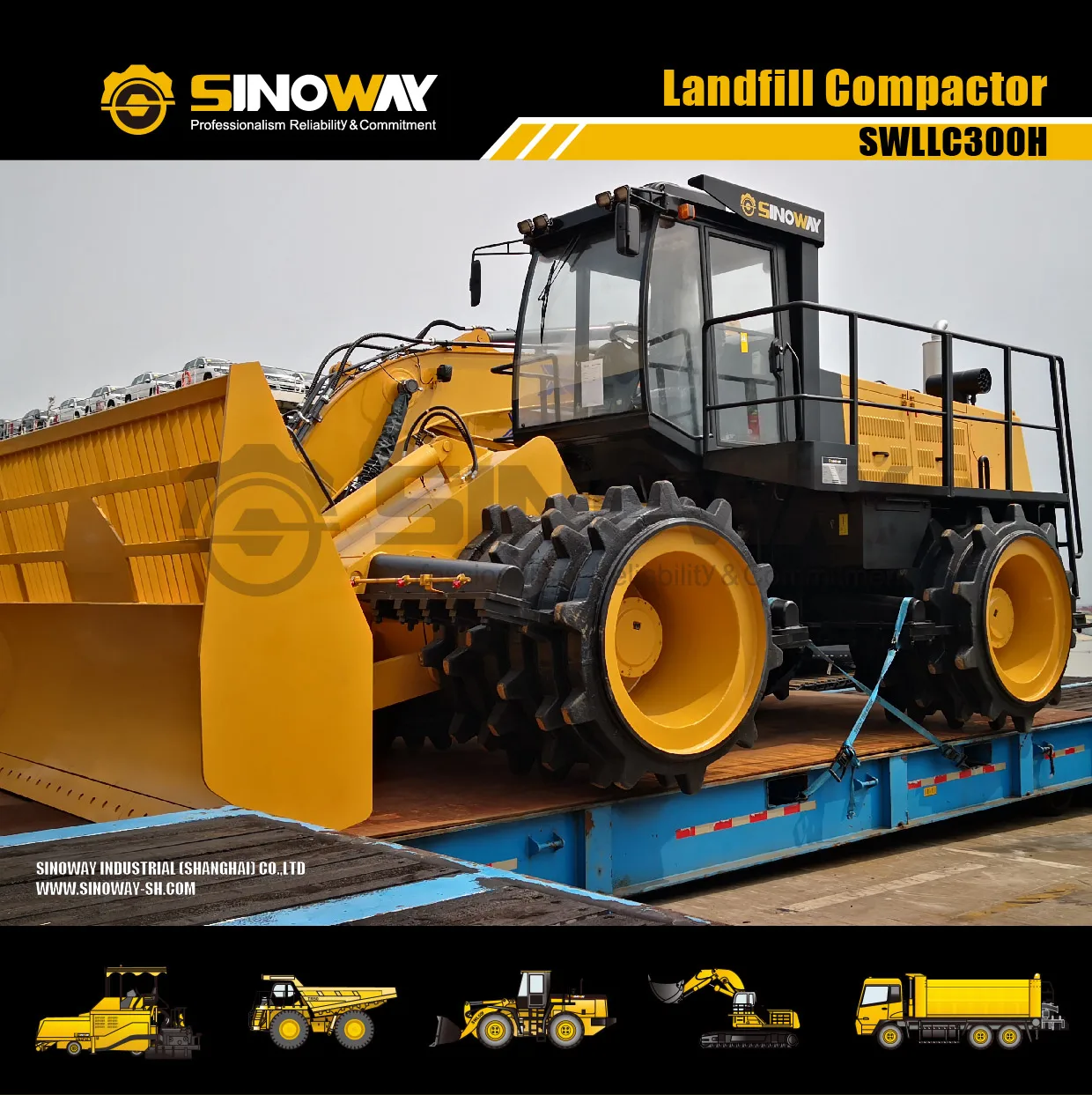

Product Show
Product Paramenters
Weight | ||
Operating mass | 23000kg | |
Front axle load | 11000kg | |
Rear axle load | 12000kg | |
Dimension | ||
Length | 7355mm | |
Width (dozer blade) | 3000mm | |
Width (at front wheel) | 2910mm | |
Width (at rear wheel) | 2705mm | |
Height | 3600mm | |
Compacting width | 2910mm | |
Dozer blade reach | 1010mm | |
Wheel | ||
Wheel base | 3350mm | |
Ground clearance | 435mm | |
Wheel width (front / rear) | 1040/835mm | |
Wheel diameter (front/rear, including teeth) | 1500/1500mm | |
Wheel diameter (front/rear, without teeth) | 1220/1220mm | |
Teeth No. per wheel (front / rear) | 50/40 | |
Engine | ||
Brand of engine | Shangchai | |
Type of engine | SC8D200 | |
Rated power | 147kw | |
Rated speed | 2300rpm | |
Electric system | 24V | |
Drive system | 4 x 4 | |
Travelling speed I (front / rear) | 4.2km/h | |
Travelling speed II (front / rear) | 10km/h | |
Travelling speed III (front / rear) | 5.8km/h (reverse) | |
Max. gradient capacity | 100% | |
Dozer Blade | ||
Height | 1650mm | |
Width | 3000mm | |
Lifting height | 1000mm | |
Depth | 150mm | |
Brake System | ||
Service brake | Air - over - oil | |
Parking / emergency brake | Mechanical | |
Steering System | ||
Type | hydraulic | |
Steering angle | ±40° | |
Transverse swing angle | ±15° | |
Min. steering radius at the front wheel | 6150mm | |
Capacity | ||
Oil tank | 400L | |
Hydraulic oil tank | 236L | |
