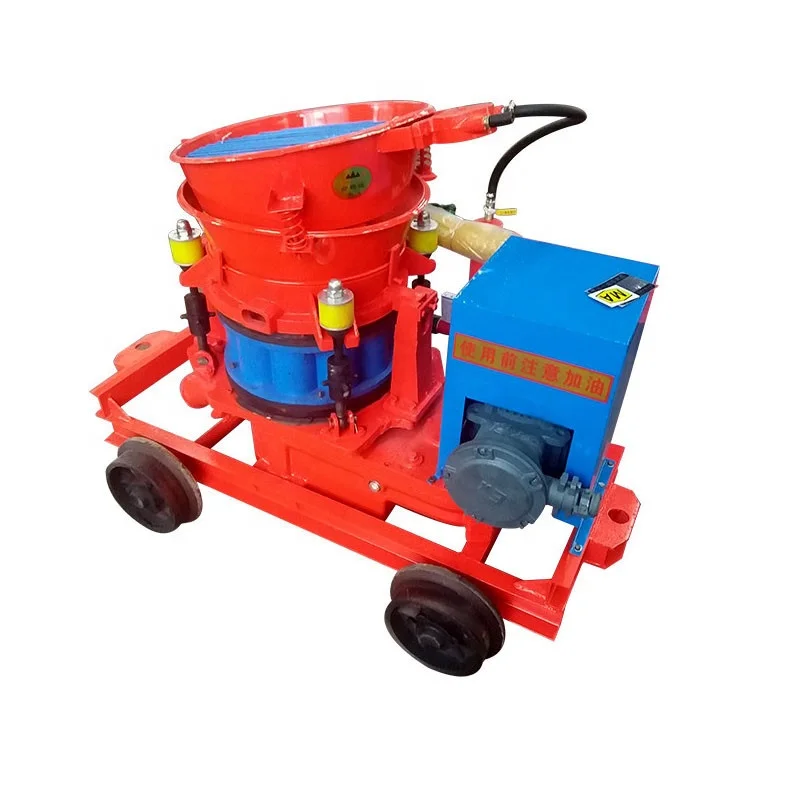

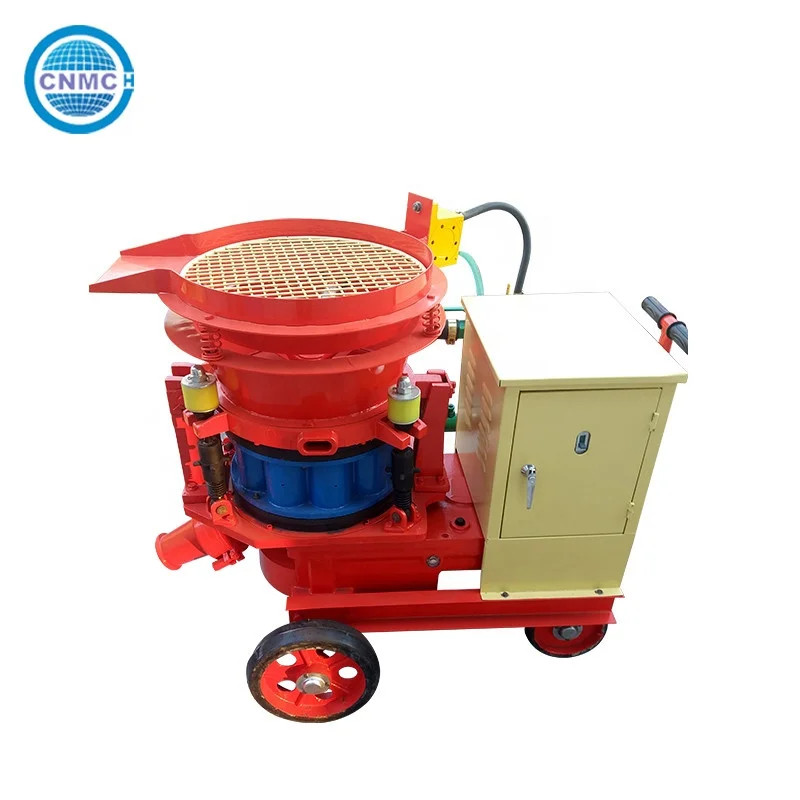

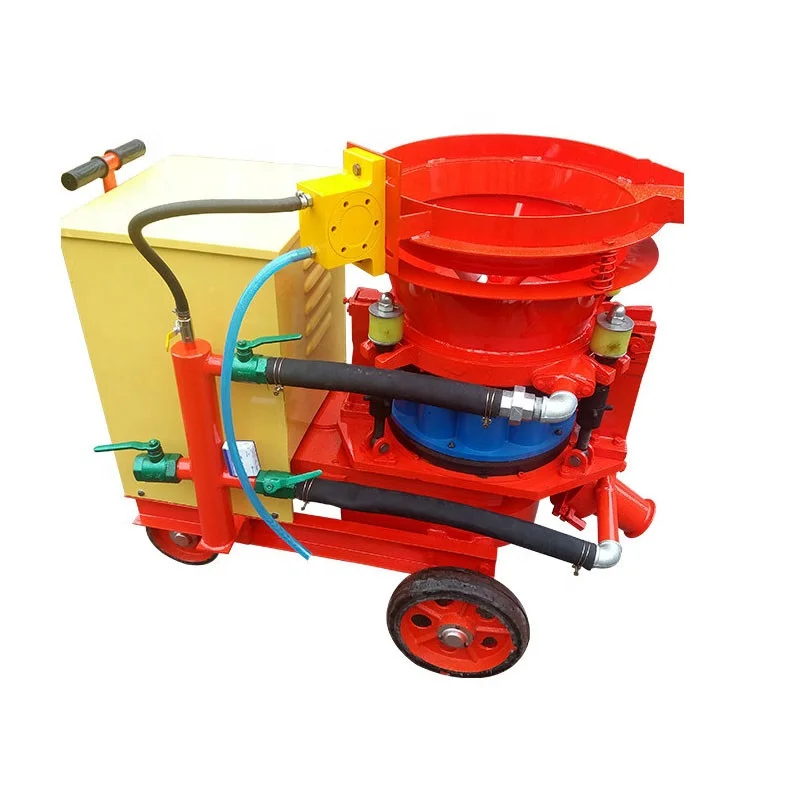

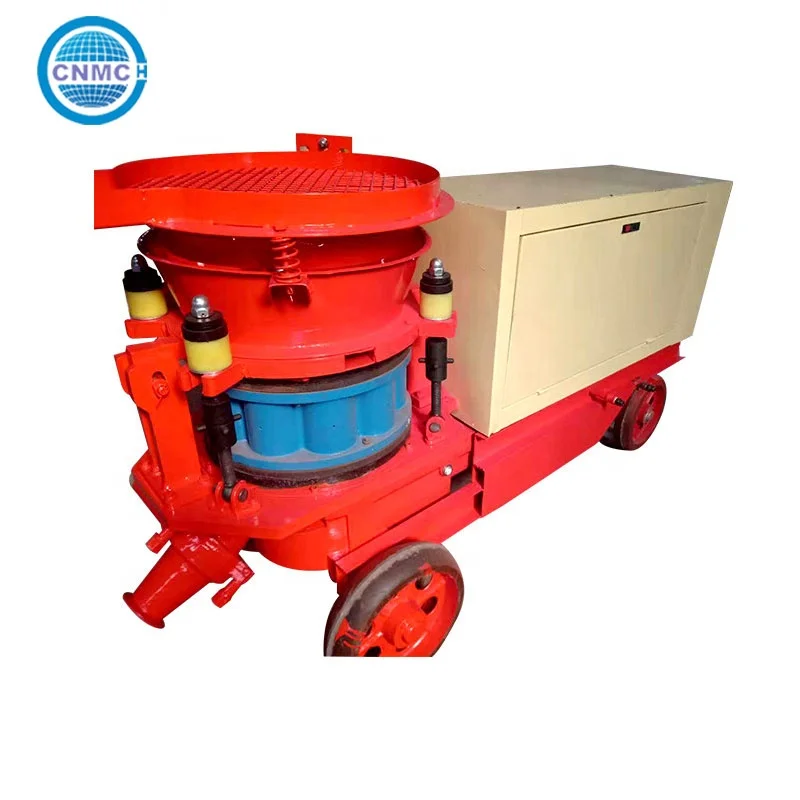

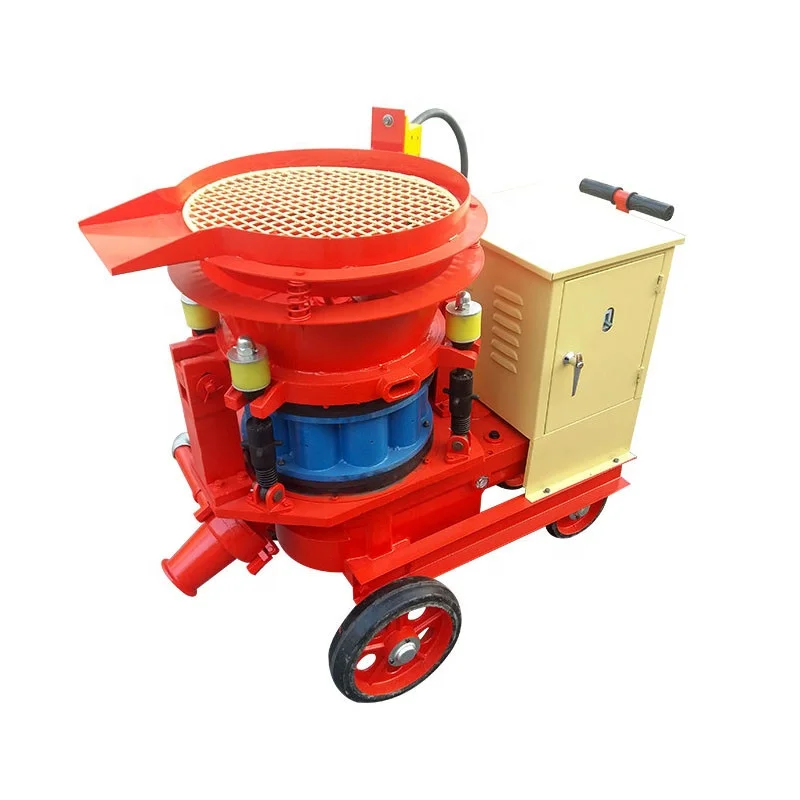

Горячая Распродажа туннель применение электрического типа PZ 6 Сухой Торкрет машина
- Category: Shotcrete Machine >>>
- Supplier: Jining China Machinery Import And Export Co. Ltd.
Share on (62437015922):
Product Overview
Description
Product Description
1.CNPZ series shotcrete machine can be used to spray dry and half wet Concrete Material over more than 20 years research ,nearly 100% good feedback from old customers .Our mian market is :Southeast Asian countries (Indonesia, Thailand, Philippines, myanmar, India and so on)and African markets.Our annual sale for PZ series over 500 sets
2.Advanced technology, rational structure, stable performance and long service life,only we can use 7.5kw motor for our PZ-6 ,to solve the over-heating problem.

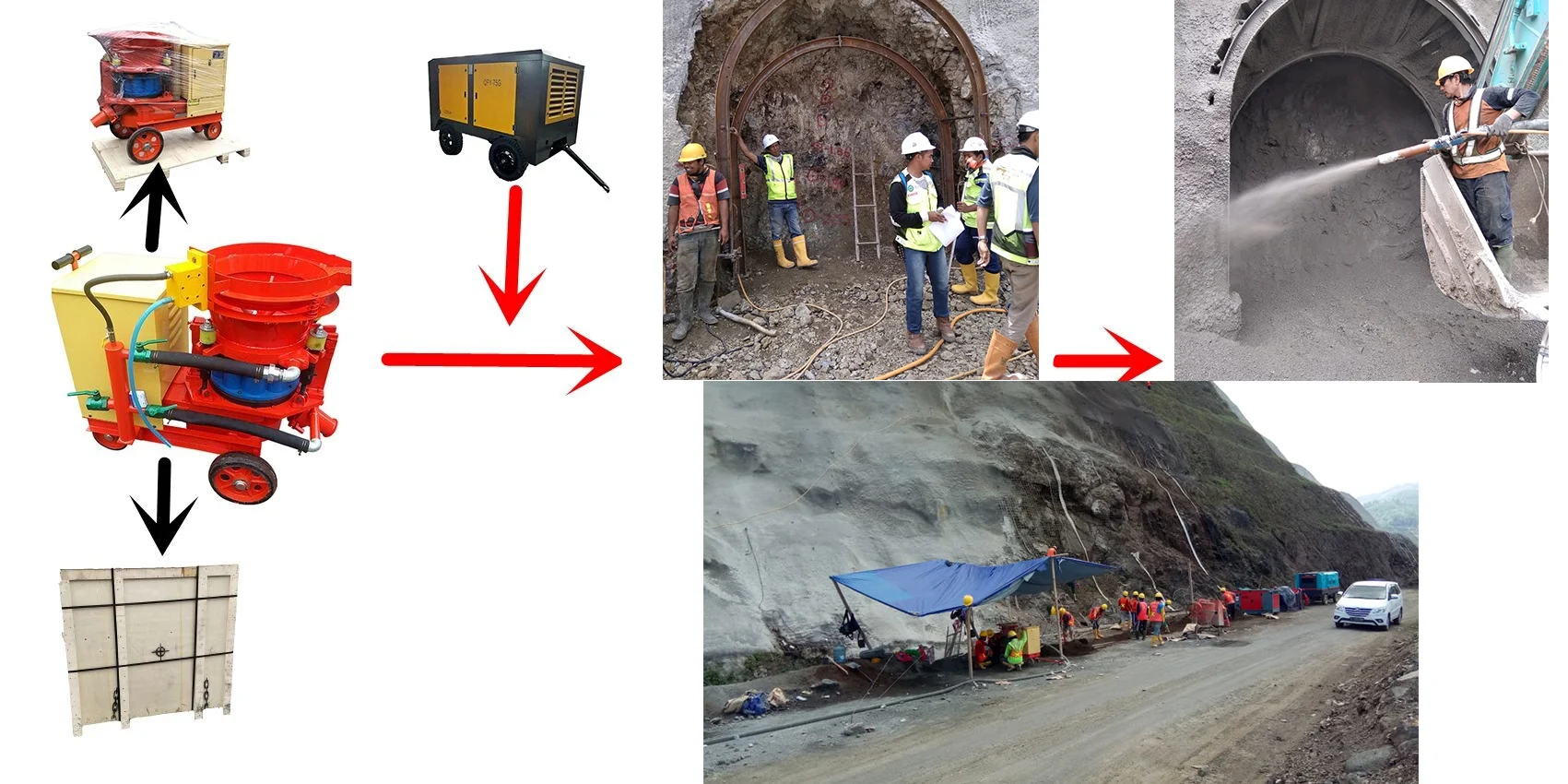

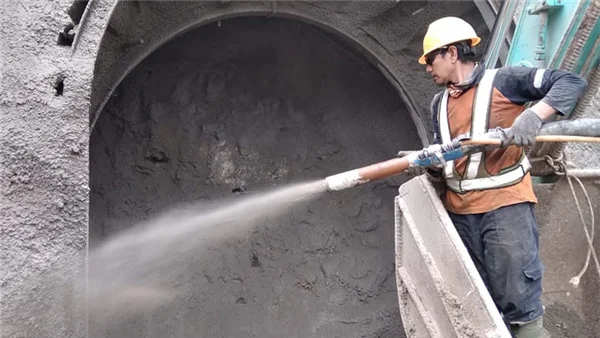

3.CNPZ series shotcrete machine is widely used for concrete spraying operation in the tunnel,
culvert, subway, hydroelectric works, underground works and high-methane laneway of coal mine.
CN-PZ Series (electric motor)
Model | PZ-3 | PZ-6 | PZ-9 |
Output | 2~3 m3/h | 6-7m3/h | 9-10m3/h |
Max.conveying dist. | 200 m | 200 m | 100 m |
Water cement ratio | < 0.4 | < 0.4 | < 0.35 |
Max.aggregate size | 15 mm | 20 mm | 20 mm |
Hose inner diameter | φ42/51 mm | φ51 mm | Φ57 mm |
Operating air pressure | 0.2-0.6 Mpa | 0.2-0.6 Mpa | 0.2-0.6 Mpa |
Air consumption | 5-6 m3/min | 7-8 m3/min | 9-10 m3/min |
Motor power | 3 KW | 7.5 KW | 7.5 KW |
Dimensions | 1400×780×1020mm | 1600×800×1300mm | 1700×900×1350mm |
Weight | 350kg | 650kg | 850kg |
CNPZ Series (diesel engine)
Model | PZ-3D | PZ-6D | PZ-9D |
Output | 2~3 m3/h | 6~7 m3/h | 9~10m3/h |
Max.conveying dist. | 200 m | 200 m | 100 m |
Water cement ratio | < 0.4 | < 0.4 | < 0.35 |
Max.aggregate size | 15 mm | 15 mm | 20 mm |
Hose inner diameter | φ42/51 mm | φ51 mm | Φ57 mm |
Operating air pressure | 0.2-0.6 Mpa | 0.2-0.6 Mpa | 0.2-0.6 Mpa |
Air consumption | 5-6 m3/min | 7-8 m3/min | 9-10 m3/min |
Motor power | 6.9 KW (10hp) | 13 KW (18hp) | 16.2 KW (22hp) |
Dimensions | 2200×780×1020mm | 2400×850×1200mm | 2650×850×1350mm |
Weight | 600kg | 880kg | 950kg |
Detailed Images

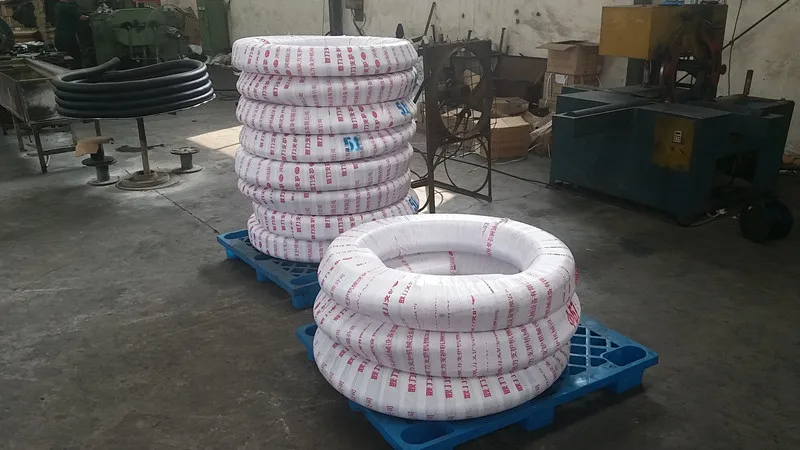

Packing&Shipping
Company Introduction
Established In 1953,shandong China Transport Industrial Co., Ltd(cnts/cnmc),registered Capital Of 106.2 Million Rmb,formerly Known As "the Seventh Transport Equipment Company Which Directly Under The Ministry Of Housing And Urban-rural Development Of The P.r.c", Set Up Shandong Industrial Equipment Company Jining Branch In 1958(state-owned Enterprises,mohurd);growed Up To Shandong Industrial Second Transport Equipment Manufacturing Company In 1989 ;together With The Partner Established Shandong Deer.az Co. Ltd. Engaged In Real Estate, Machinery Manufacturing;change The Enterprise Into Shandong China Transport Industria Group In 2010;Established Jining China Machinery Imp&exp Co., Ltd. Jining Shenghong Textiles Co., Ltd and first overseas branch: PT. China DEER.AZ Engineering Indonesia In 2016.famous Large-scale comprehensive group., Involved In Engineering Installation, Real Estate, Machinery Manufacturing, Textile Clothing, As Well As All Import And Export Business.
Group Project
Exhibition
Contact Us
FAQ
1.How is the quality of your products?
We have been approved of ISO,and always produce our products strictly according to national and international standards.We do strict inspection in every production stage.
2.What about your price?
We always supply the products with competitive price, we believe this is the way to establishe long-term business relationship with customers
3.What payment terms do you accept?
We accept L/C,T/T .
4.What about the order lead time?
We have our own factories and big productivity,the order lead time is in 7 days for a 20ft.
We have been approved of ISO,and always produce our products strictly according to national and international standards.We do strict inspection in every production stage.
2.What about your price?
We always supply the products with competitive price, we believe this is the way to establishe long-term business relationship with customers
3.What payment terms do you accept?
We accept L/C,T/T .
4.What about the order lead time?
We have our own factories and big productivity,the order lead time is in 7 days for a 20ft.
