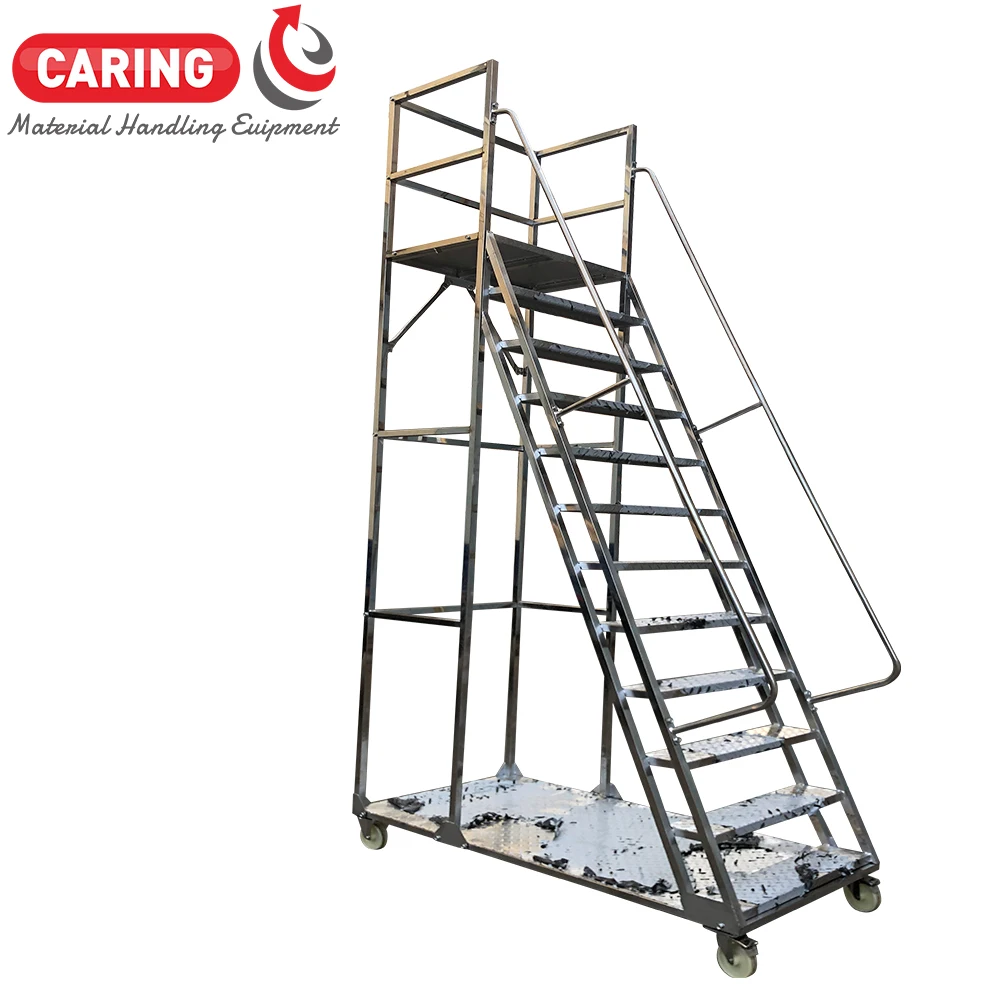

Warehouse Steel Safety Rolling Mobile Platform Ladder with Handrails

Product Overview

Description

Warehouse Steel Safety Rolling Mobile Platform Ladder with Handrails



Ladder trolley is specially designed for high place and frequently picking shelve equipment. The ladders are designed with double brake system to prevent accidental free-rolling, for optimum employee safety. Available in four ready-made height versions to suit customer needs.





Model: CA-DGCseries

Material:  Steel

Surface: powder coating or zinc plated

Platform height: 0.7m,0.9m,1m,1.3m,1.5m,1.6m,1.8m,2.5m.

Capacity: 80-500kg

Color: Blue, grey and Pantone color

Wheels: 4'-5' PU wheels or according to your requirement

Logo: can be printed

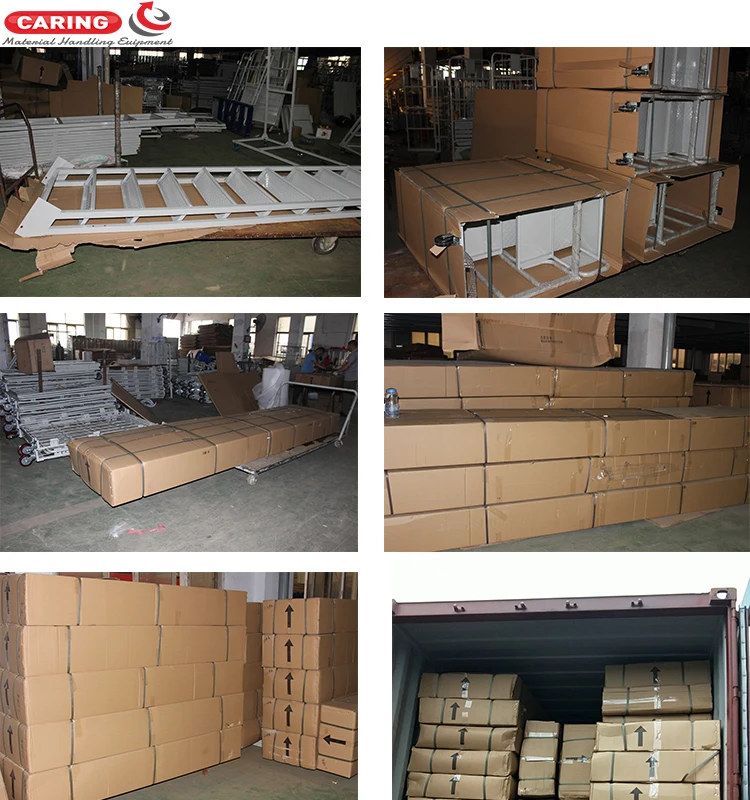

Package: In cartons



MOQ: 50 pieces

Delivery: 10-15 days

CUSTOMIZE SIZE, COLOR ARE AVALIABLE









Model NO.	Descripition				Loading capacity	Package

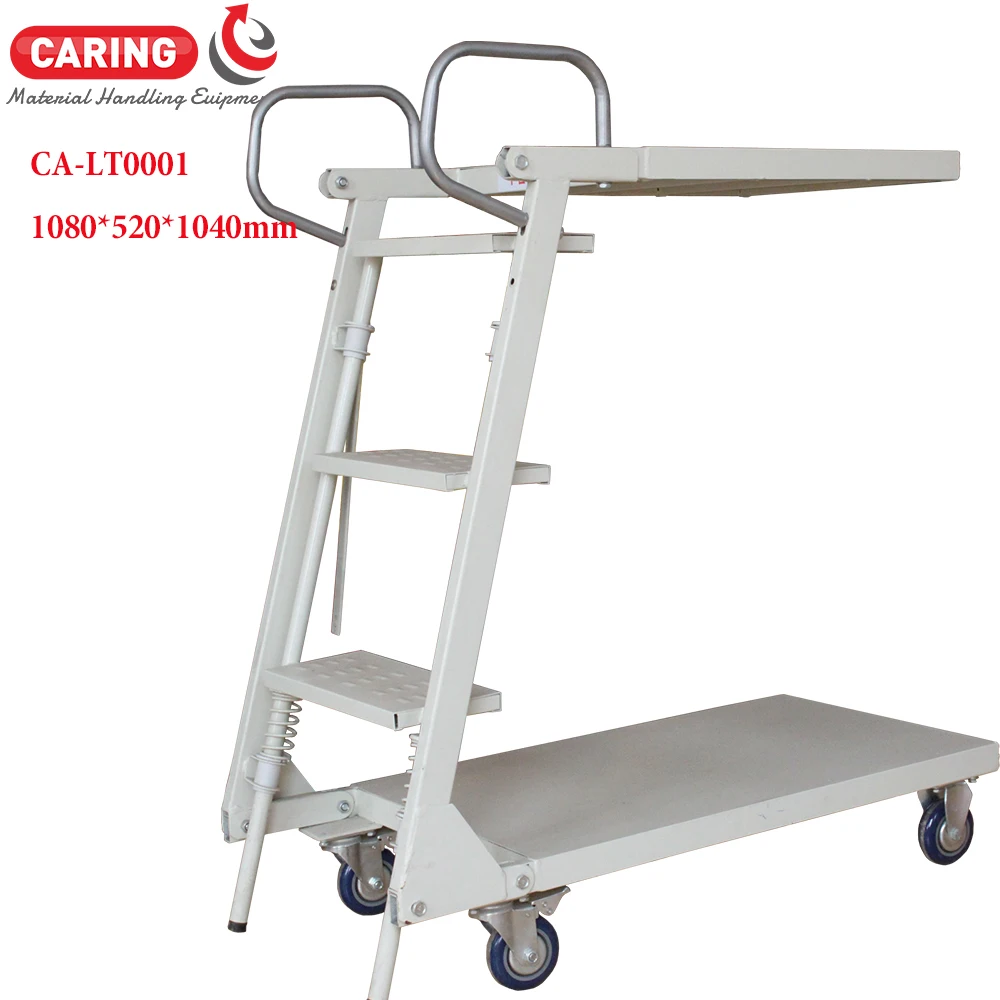

CA-LT01	1.Dimension:1080*520*1040mm				Base loading capacity:100kgs Top loading capacity:80kgs	Carton size:1060*550*260mm G.W.:=29KGS
CA-LT02	1.Dimension: 1000*600*1500mm 2.Overall height:1500mm 3.Platform Height: 1000mm 4.Loading capacity:200KGS				Loading 200kgs	Carton size: 1600*600*100mm G.W.=dis-assemble26.5KGS G.W.=assemble23.5KGS

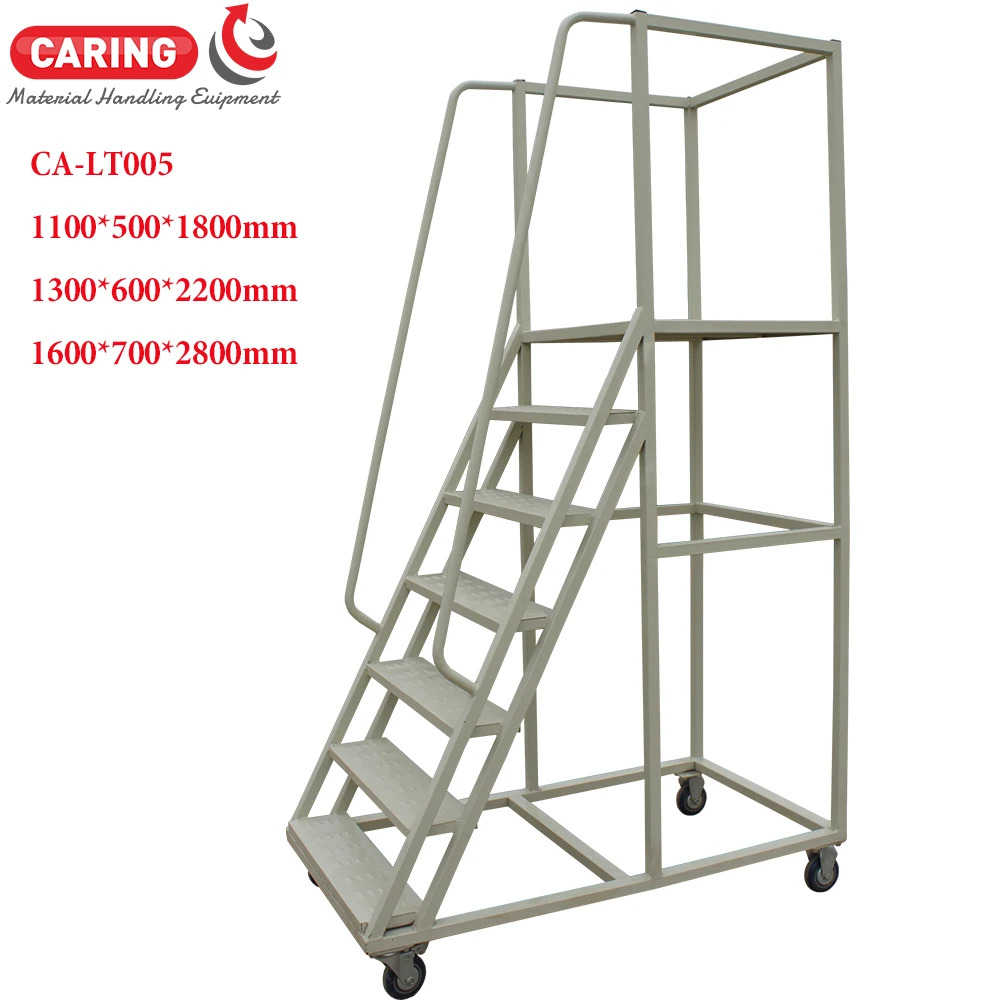

CA-LT03	(1)1100*500*1800  (platform height 1300mm ) (2)1300*600*2200 (platform height 1500mm) (3)1600*700*2800(platform height 2000mm) (4)2000*800*3300(platform height 2.5m) (5)1300*600*2300(platform height 1.6m) (6)1600*700*2600(platform height 1.8m)				Loading 200kgs	(1)G.W.=42KGS  (2)G.W.=52KGS  (3)G.W.=72KGS (4) G.W.=90KGS (5)G.W.=53.16KGS(1.6m) (6)G.W.=64.20KGS(1.8m)

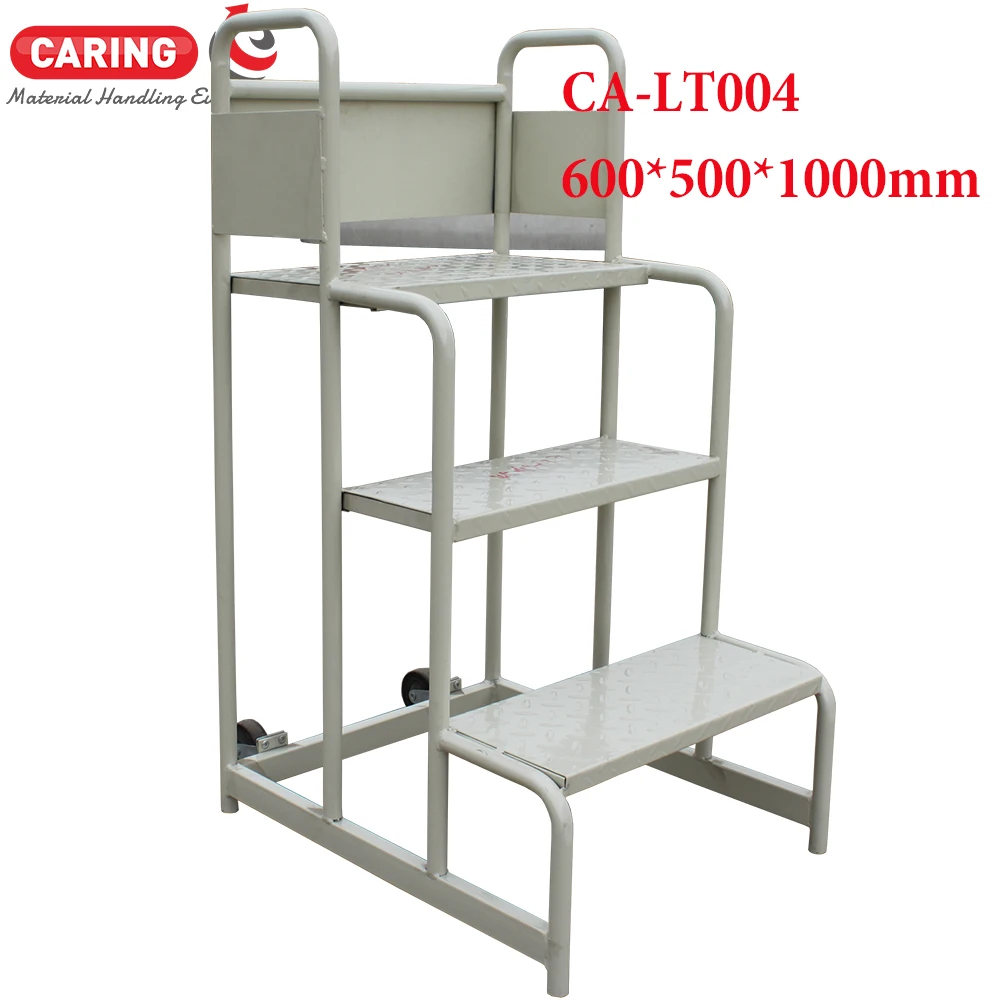

CA-LT04	(1)600*500*1000mm (platform height 700mm) (2)700*590*1200mm(platform height 900mm)				Loading 100kgs	(1)G.W.= 15.80KGS (2) G.W.=17.56KGS
CA-LT05	420*400*850mm(platform height 500mm)					G.W.=7,44KGS
CA-LT06	1250*600*2000mm					G.W.=50KGS
CA-LT07	(1)1200*600*2380 mm (platform height 1600mm)  (2)1300*900*2380mm(platform height 1600)					Carton size:1640*760*200mm  Carton size: 1645*960*200mm (1)G.W.=58KGS (2)G.W.=68KGS
