workholding QM Series Machine vise manufacturer with or without swivel base for milling or drilling machine

Product Overview

Description

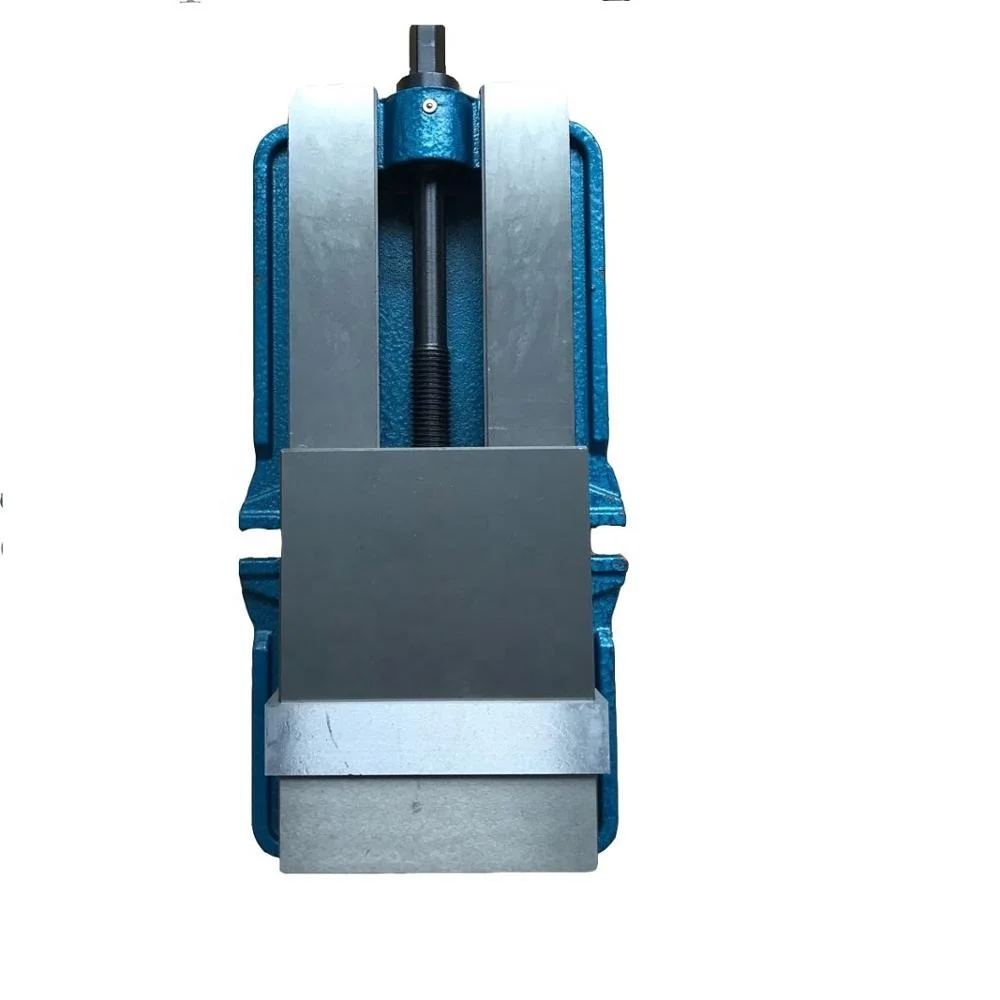

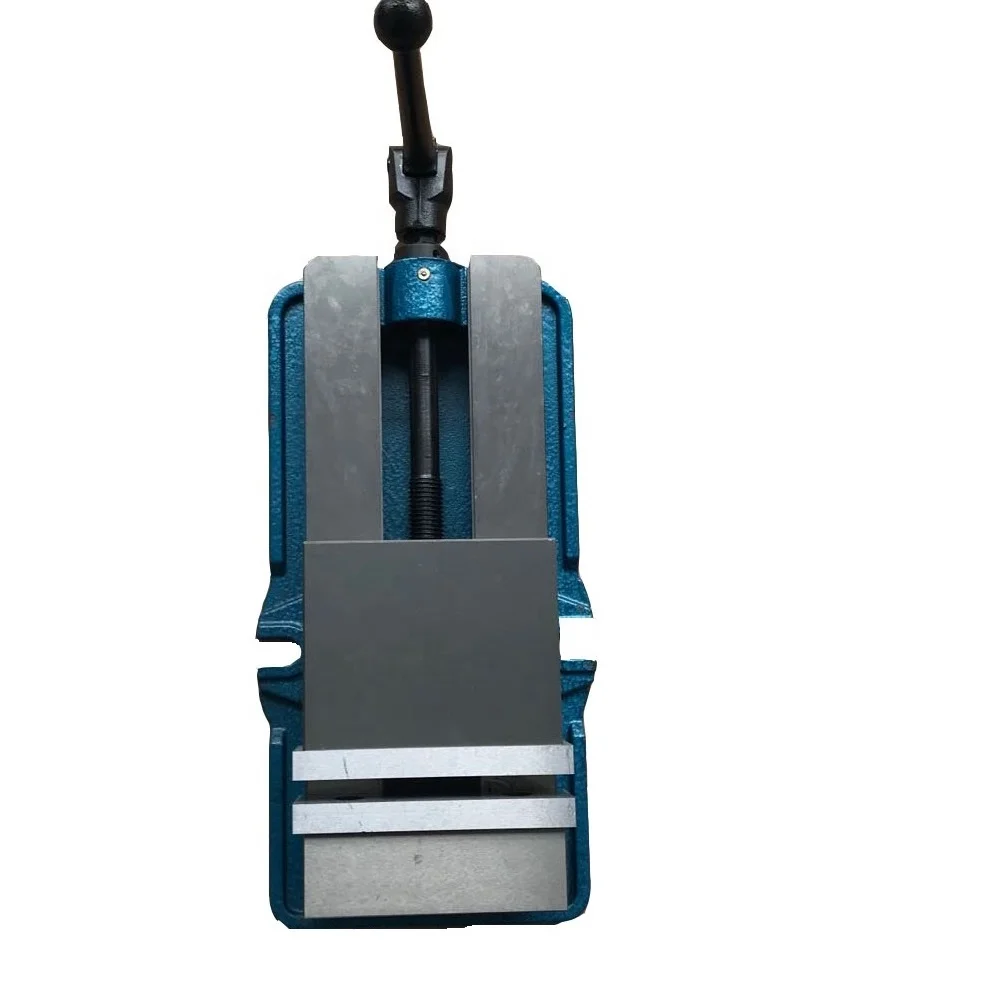

workholding QM Series Machine Vise with or without swivel base for milling or drilling machine



1)It is one main attachments for milling,drilling machine. It is particularly suitable for the finishing of precision parts.

2)The accuracy of vice(parallelism and squareness) is 0.025mm/100mm.
3)The specail segment in the movalbe jaw forces the vertical pressure donward when the horizontal pressure works,so that the jaw does not lift the workpiece.
4)These units can be ordered separately or with swivel base.
5)Four positions allow extra capacity to change opening of jaw.











Fixed type parameter(without swivel base)

model no.	Width of Jaw(mm)	Height of Jaw(mm)	Total height(mm)	Max opening(mm)	G/N. Weight(Kg)
QM16100	100	32	95	100	14/13
QM16125	125	40	102	125	18/17
QM16160	160	45	127	160	26/25
QM16160L	160	45	127	200	28/27
QM16200	200	50	158	220	41/40
QM16250	265	70	175	290	96/88





Swivel type parameter( with swivel base)

Model	Width of Jaw(mm)	Height of Jaw(mm)	total height(mm)	Max opening(mm)	G/N Weight(kg)
QM16100	100	32	124	100	17/16
QM16125	125	40	132	125	22/21
QM16160	160	45	157	160	35/34
QM16160L	160	45	157	200	37/36
QM16200	200	50	198	220	51/50
