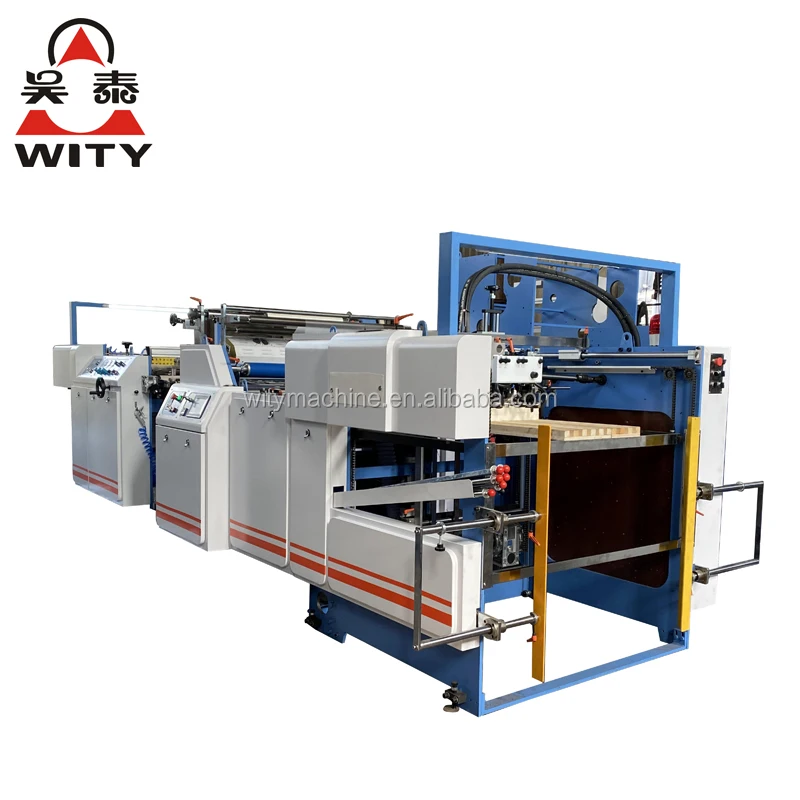

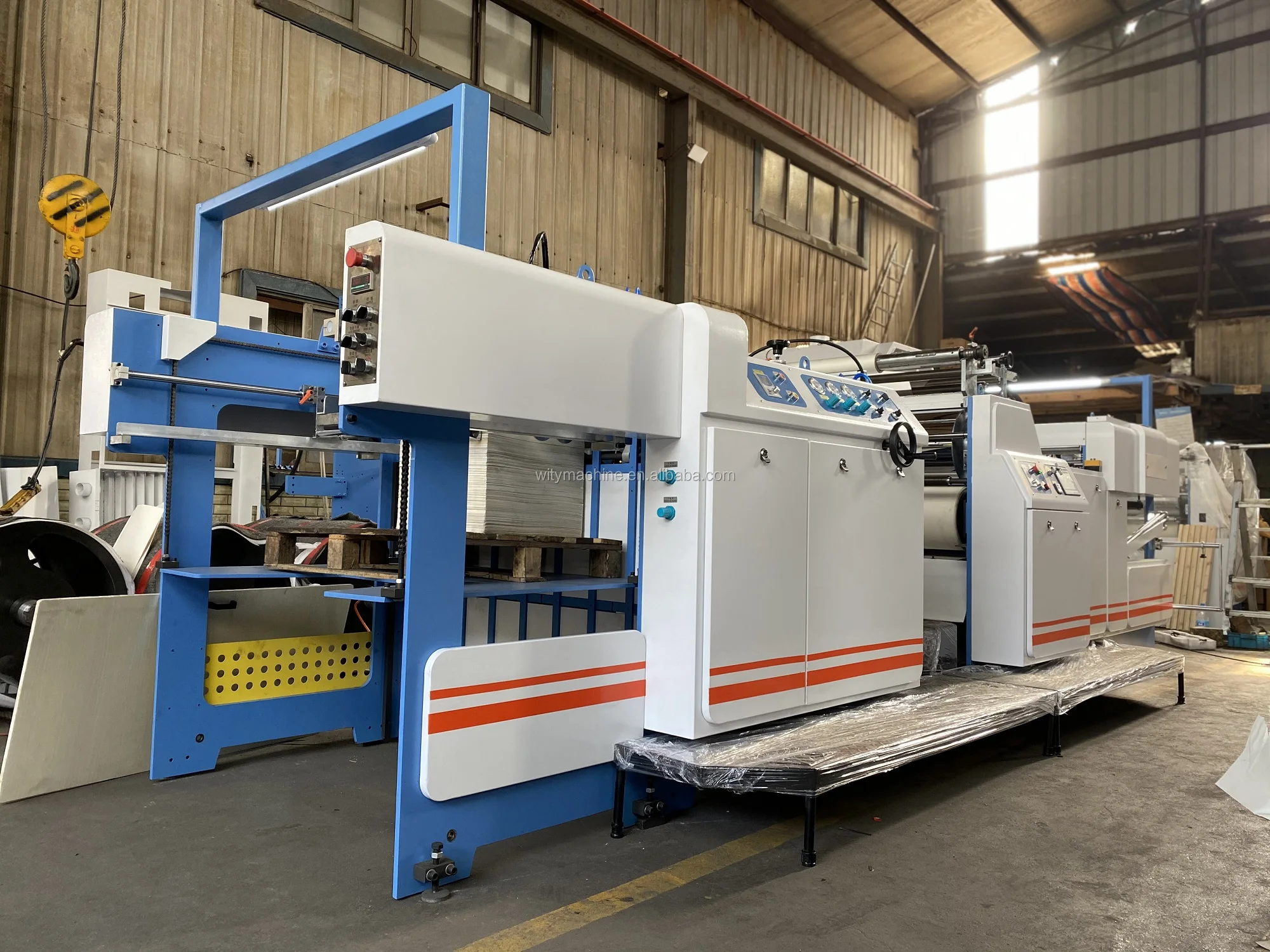

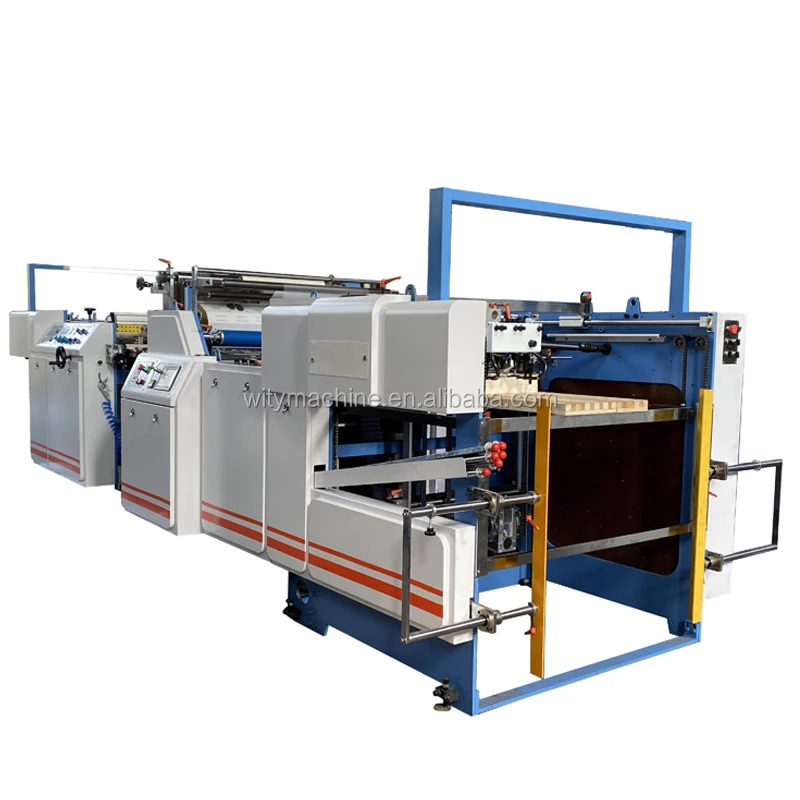

ZFM-1100 Automatic Glueless(Thermal) Laminating Machine
This machine has the advantages of compact structure, smooth operation, ultra high precision, convenient operation and maintenance, etc. It is suitable for pre-coated film and glue-less film as a multifunctional machine. It can be used for postcards, posters, books, information books, color box packaging, handbags, etc.
Specification
Model | ZFM-1100 |
Maximum paper size | 1050*800mm |
Minimum paper size | 320*270mm |
Paper thickness | 80~400gsm |
Mechanical speed | 5-50m/min |
Laminating temperature | 60-140℃ |
Laminating pressure | 0-13mpa |
Motor power | 3.7kw |
Heating power | 15kw |
Overall dimension | 4700*2050*1850mm |
Machine weight | 4000kg |
Feature

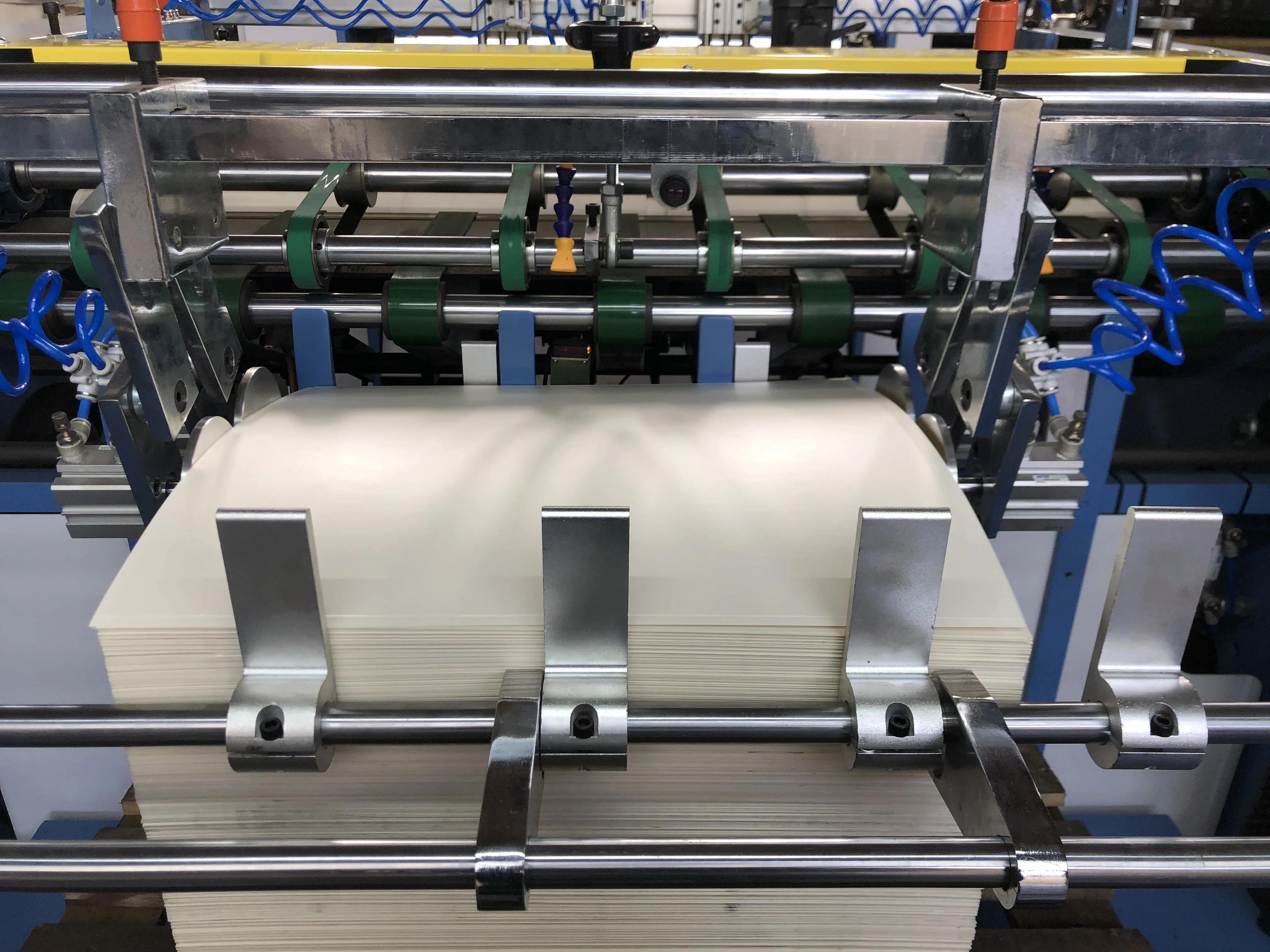

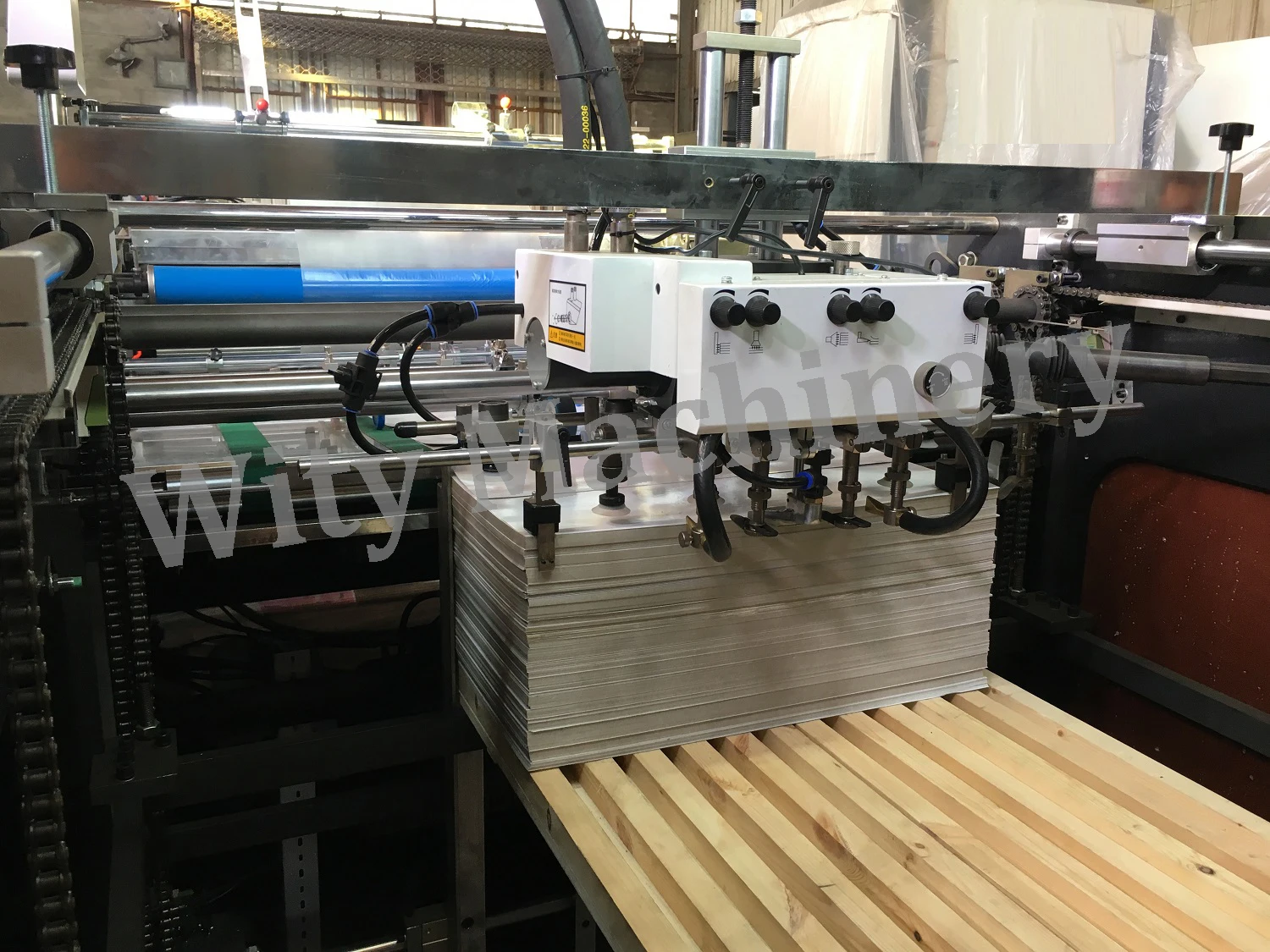

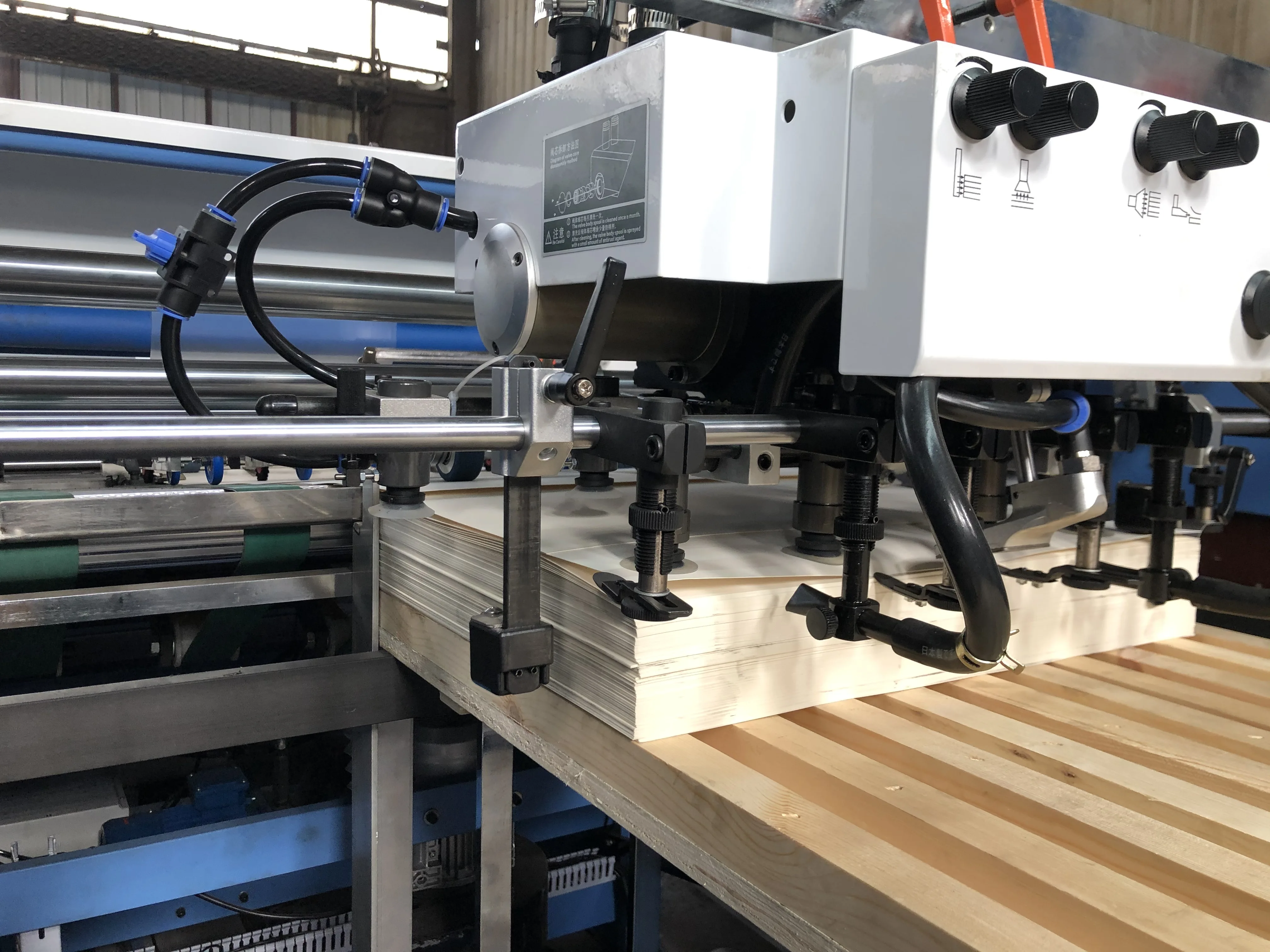

1)Automatic paper feeder with oil free type vacuum pump suction system.
2)Automatic paper feeding system with sensor detect function, automatic stop when paper lacking or breaking.

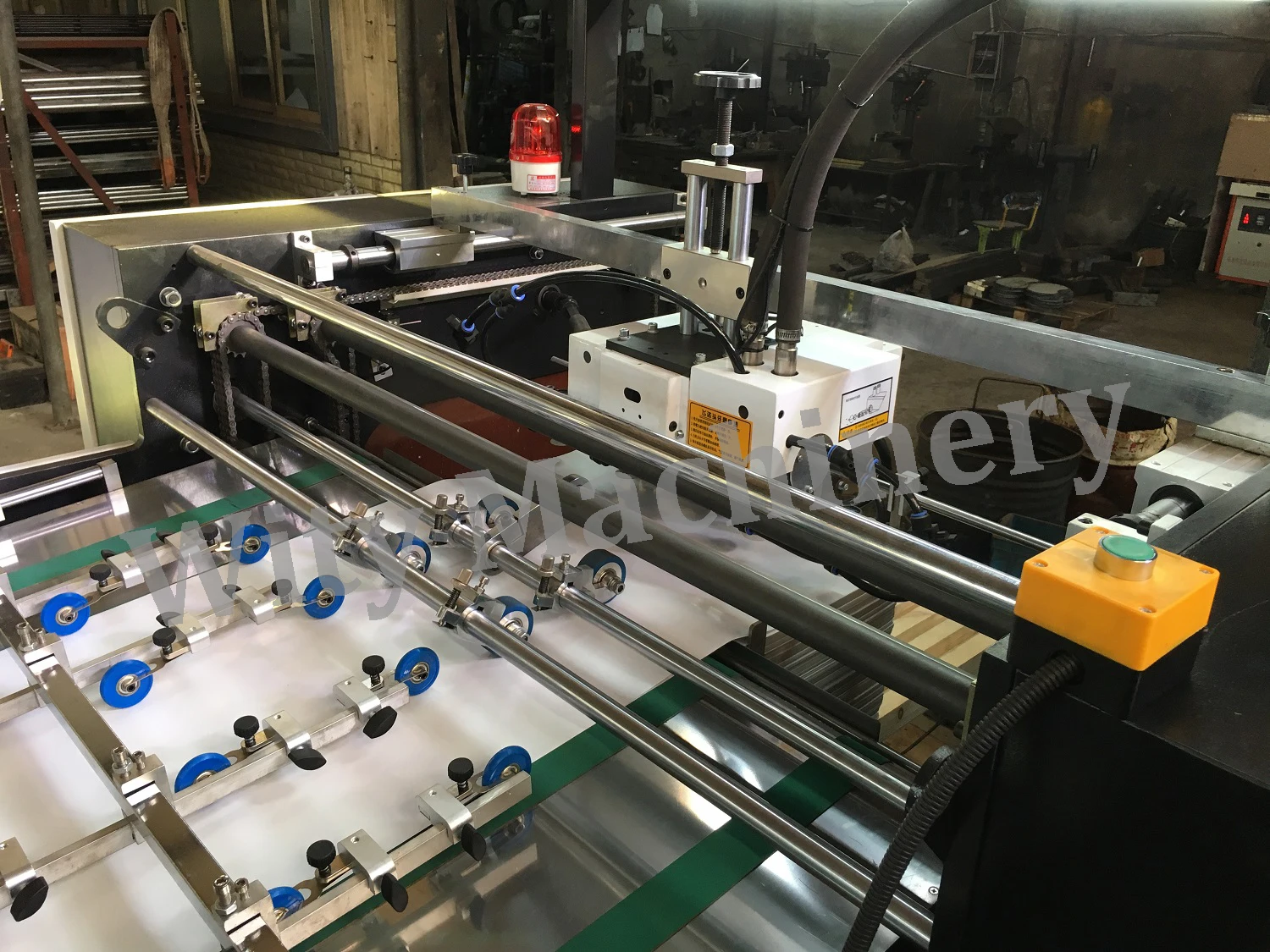

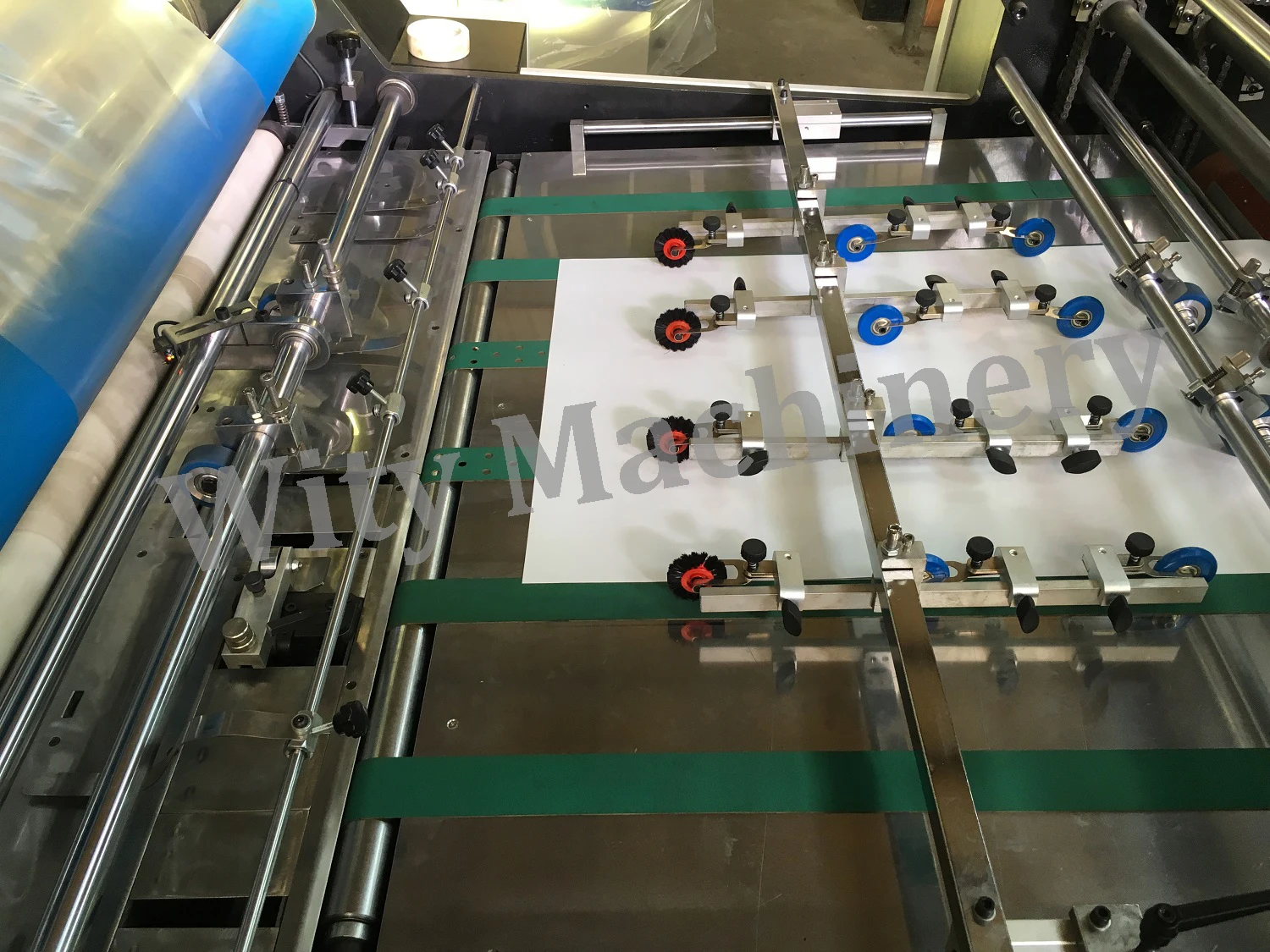

3)Paper conveyor table adopts suction feeding style with front lay and side guide, ensure paper feeding and overlapping smooth and neat.
4)Heat conduction oil phased heating method ensure uniform and stable lamination temperature.

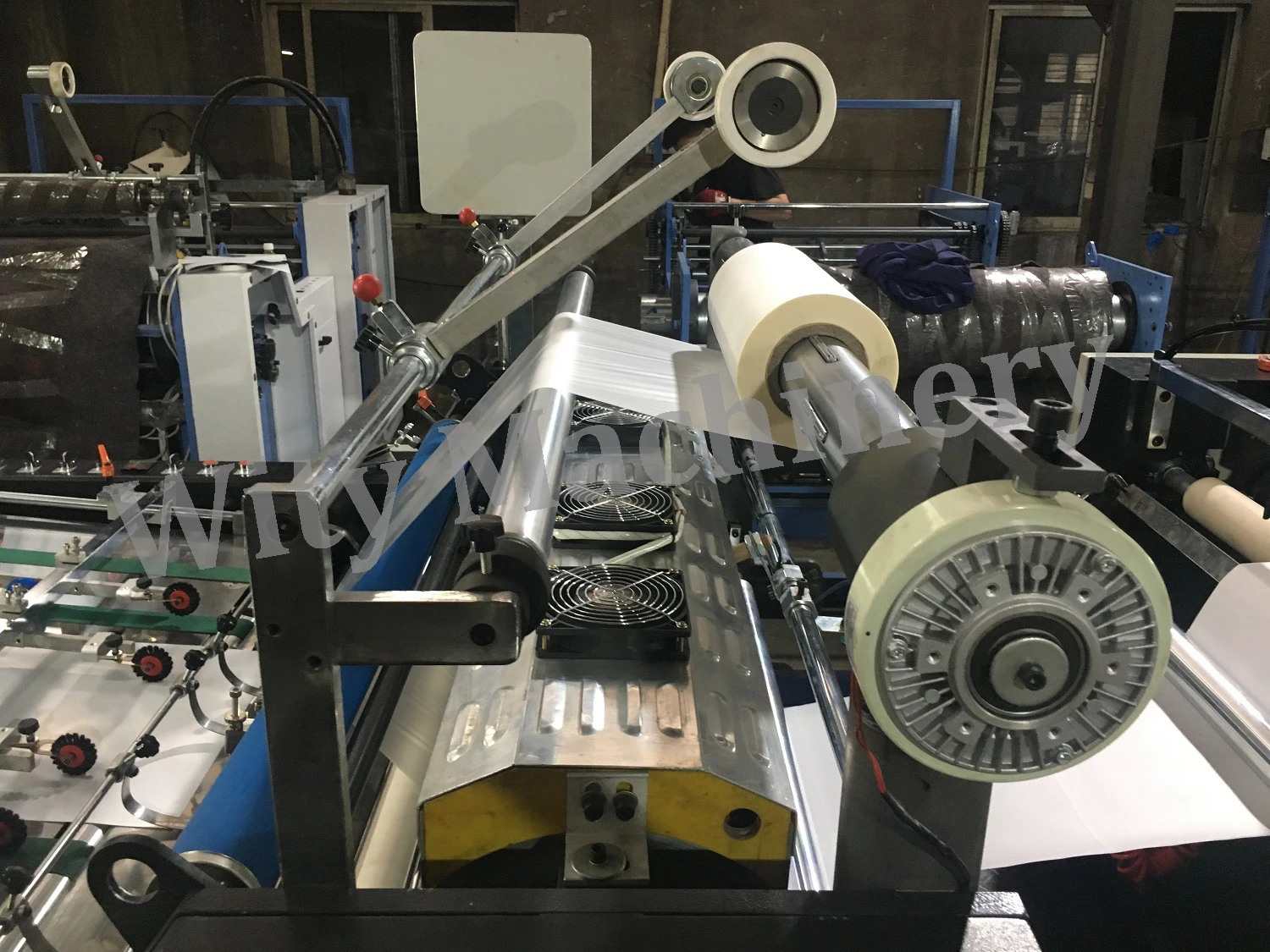

5)Equipped with film slitting and punching device.
6)Main pressing rubber roller use high-temperature resistance material.
7)Automatic hydraulic system provide stable lamiantion pressure, the pressure can be regulated according request.
8)Paper collected by vibrate table collector and air shaft rewinder. The laminated paper can be collected after seperating or rewinding directly. (*Option: automatic paper collector is available)
2)Automatic paper feeding system with sensor detect function, automatic stop when paper lacking or breaking.
3)Paper conveyor table adopts suction feeding style with front lay and side guide, ensure paper feeding and overlapping smooth and neat.
4)Heat conduction oil phased heating method ensure uniform and stable lamination temperature.
5)Equipped with film slitting and punching device.
6)Main pressing rubber roller use high-temperature resistance material.
7)Automatic hydraulic system provide stable lamiantion pressure, the pressure can be regulated according request.
8)Paper collected by vibrate table collector and air shaft rewinder. The laminated paper can be collected after seperating or rewinding directly. (*Option: automatic paper collector is available)

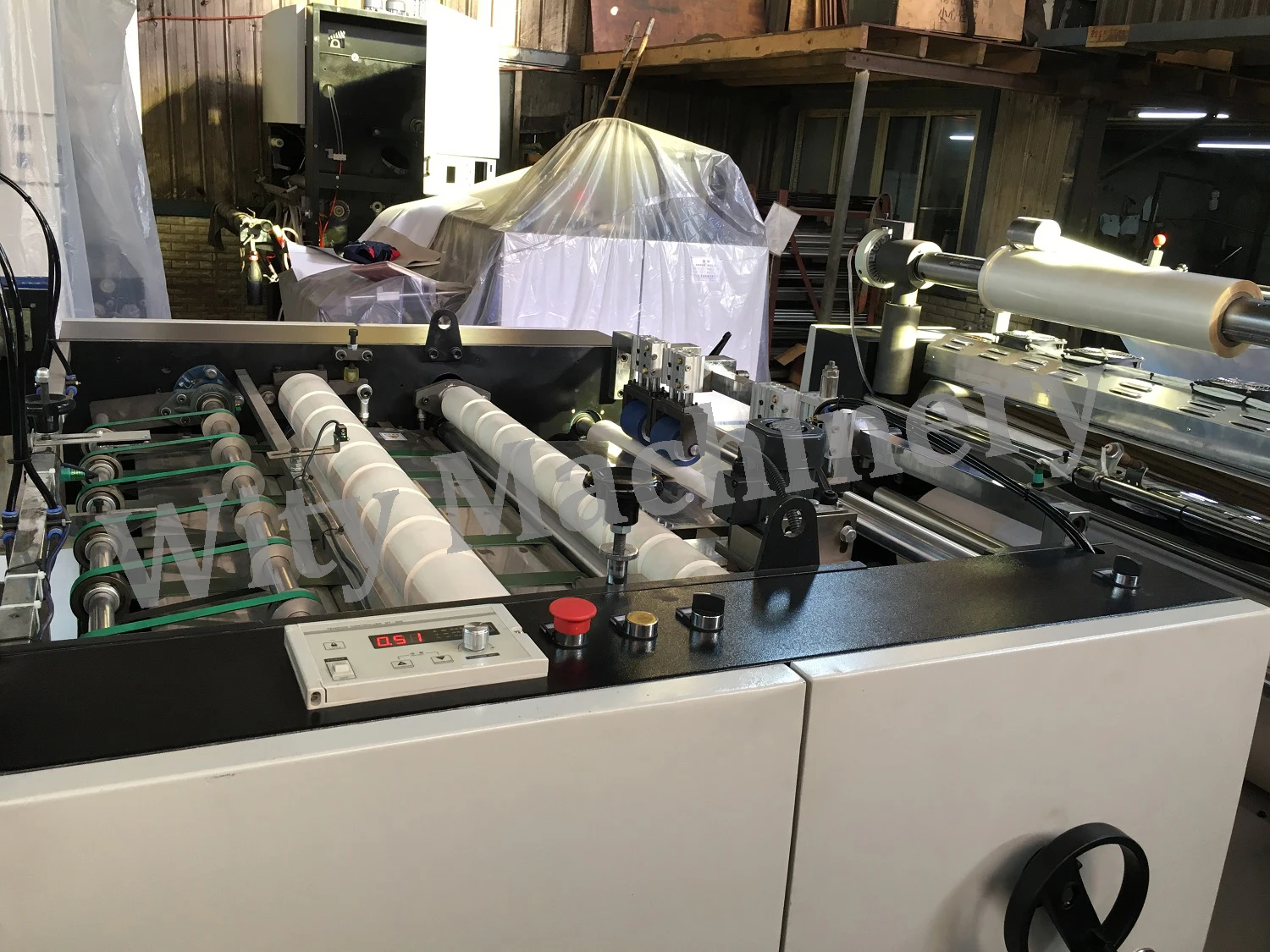

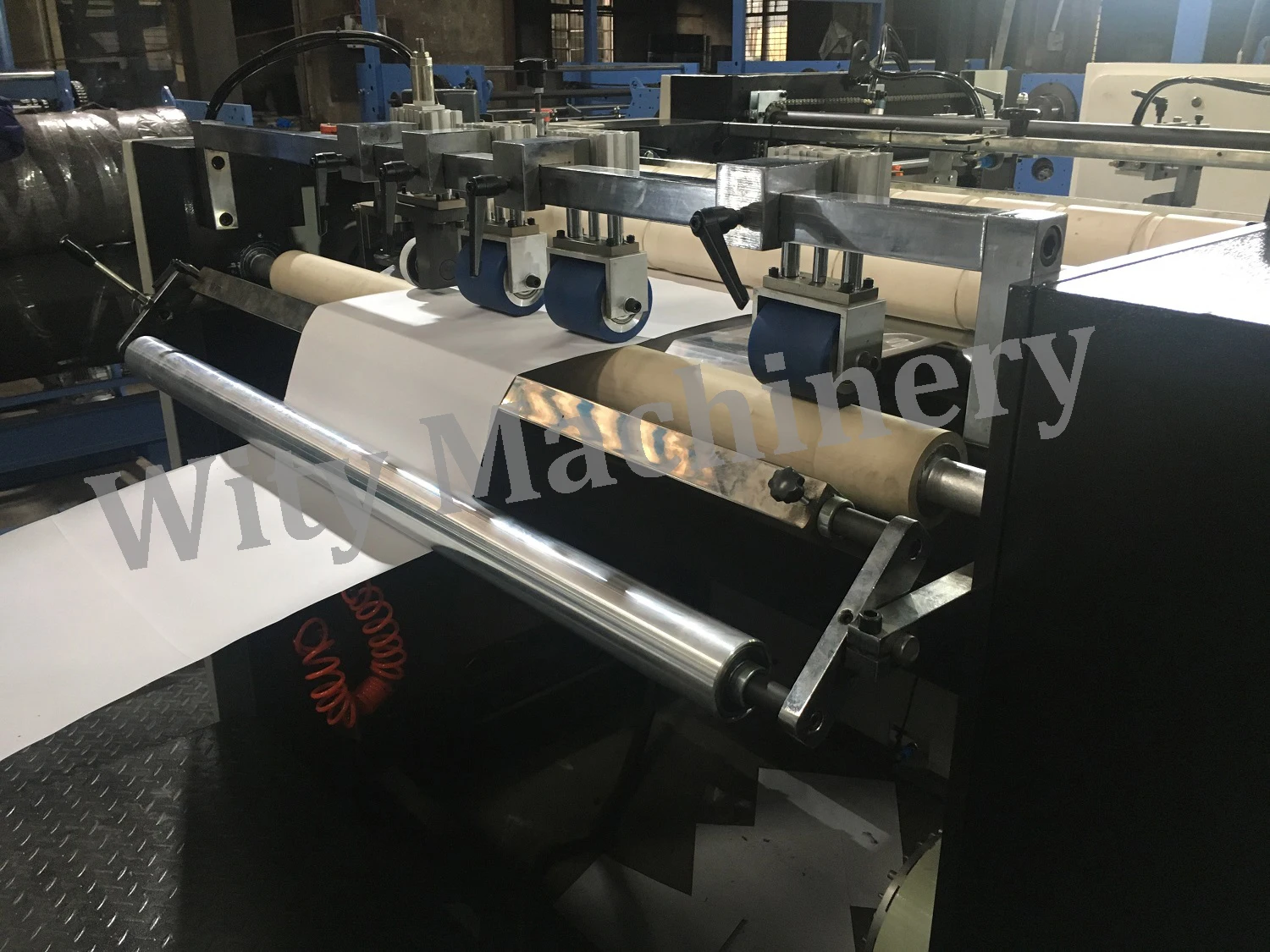

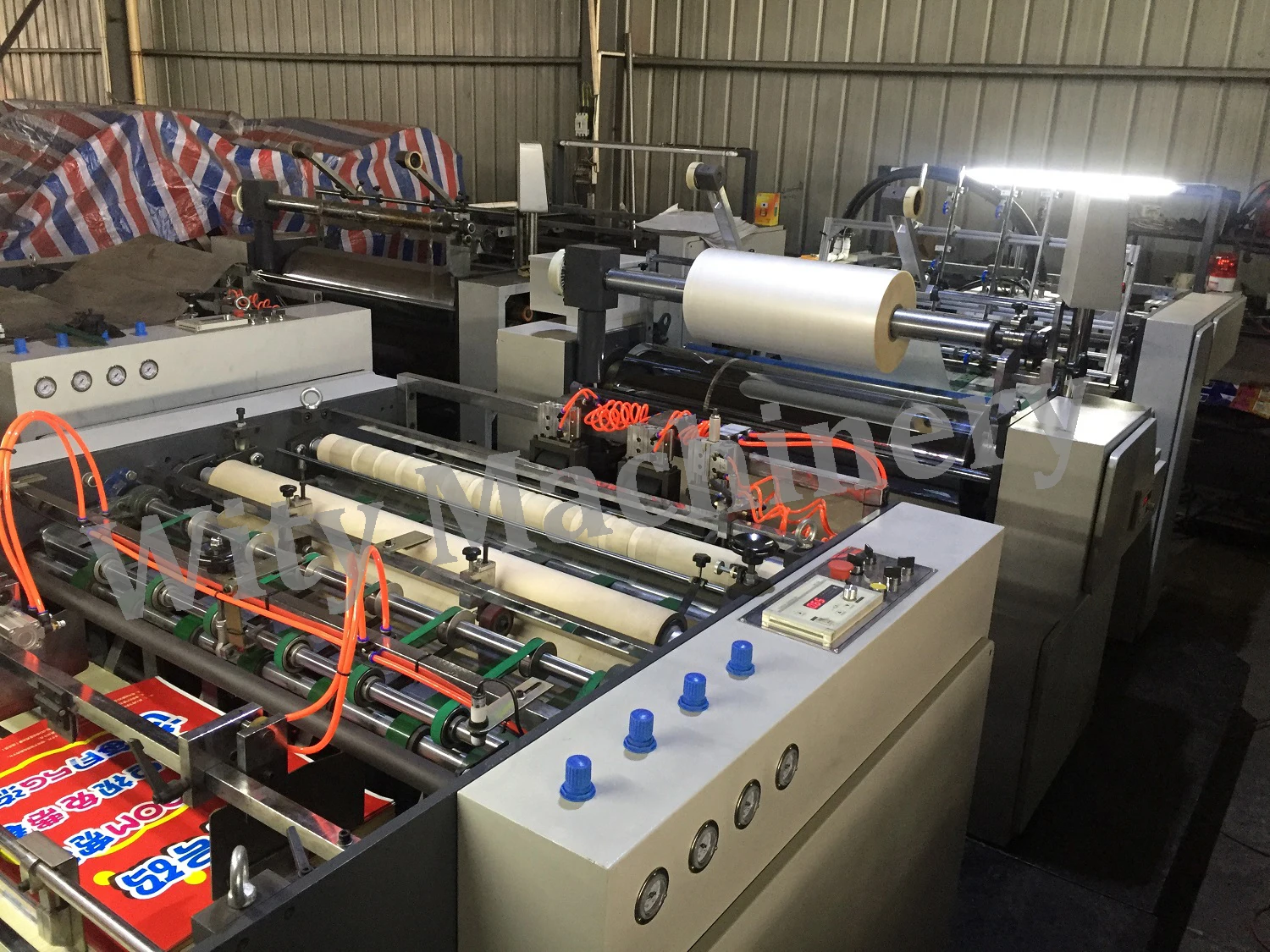

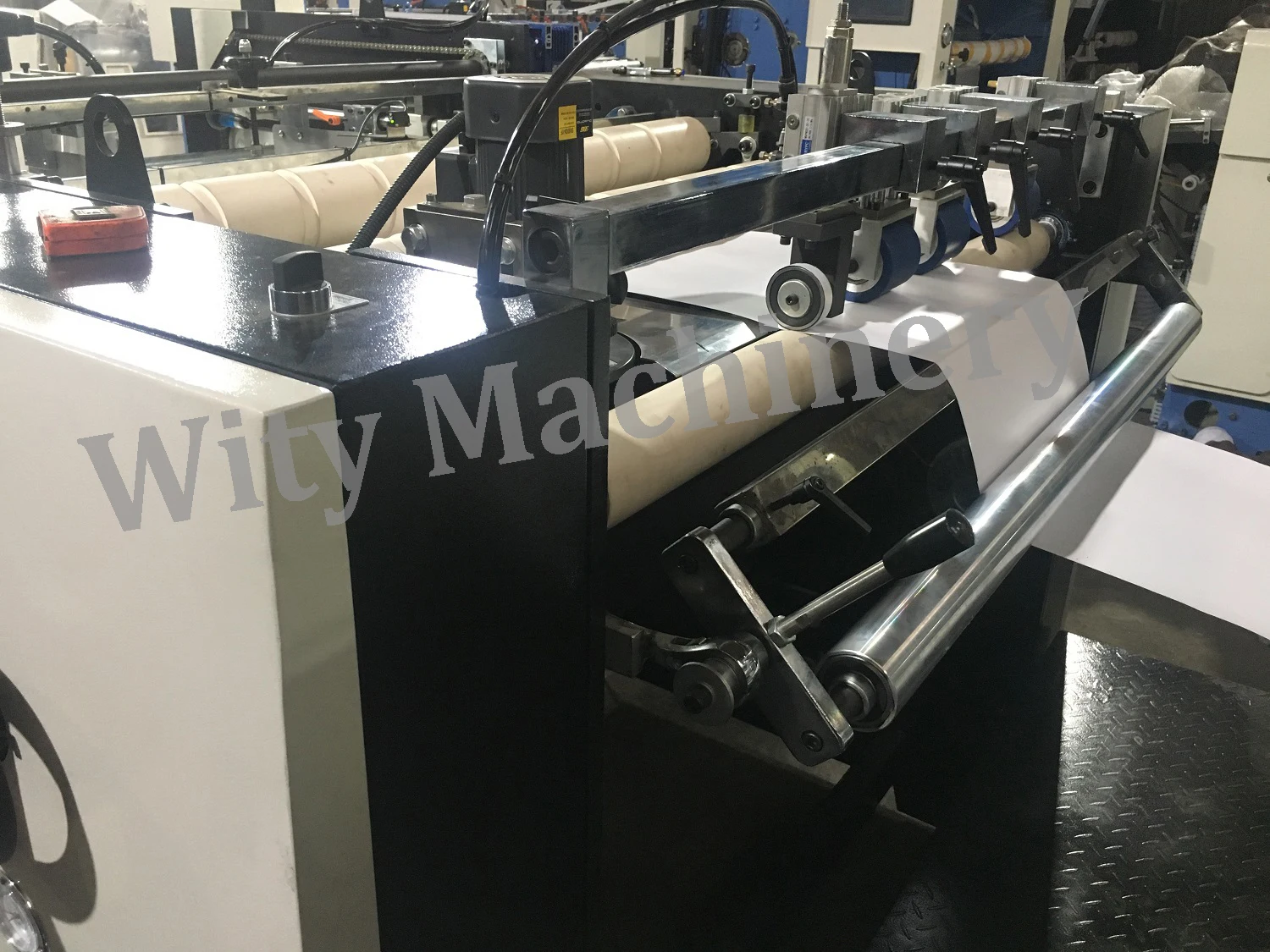

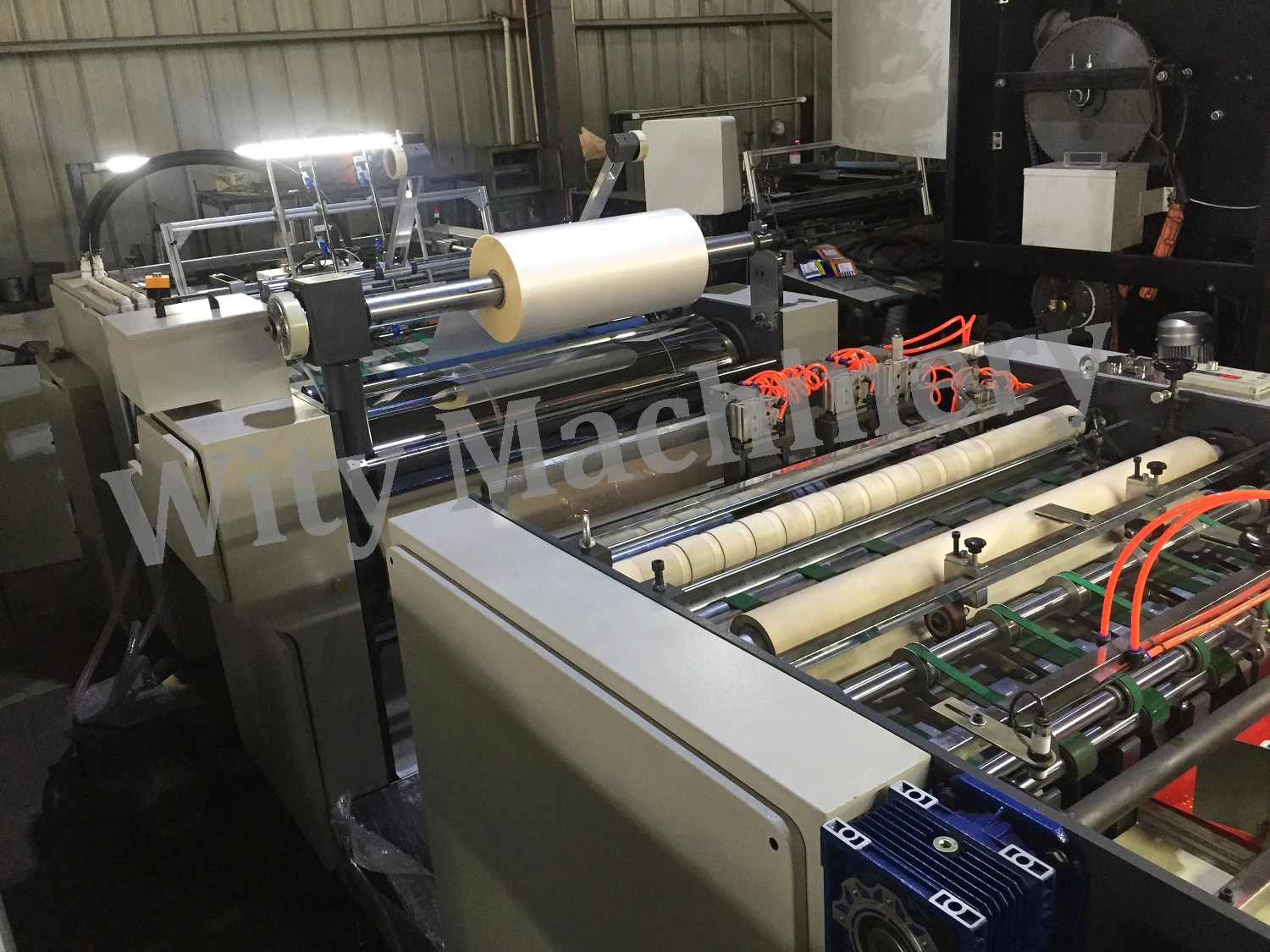

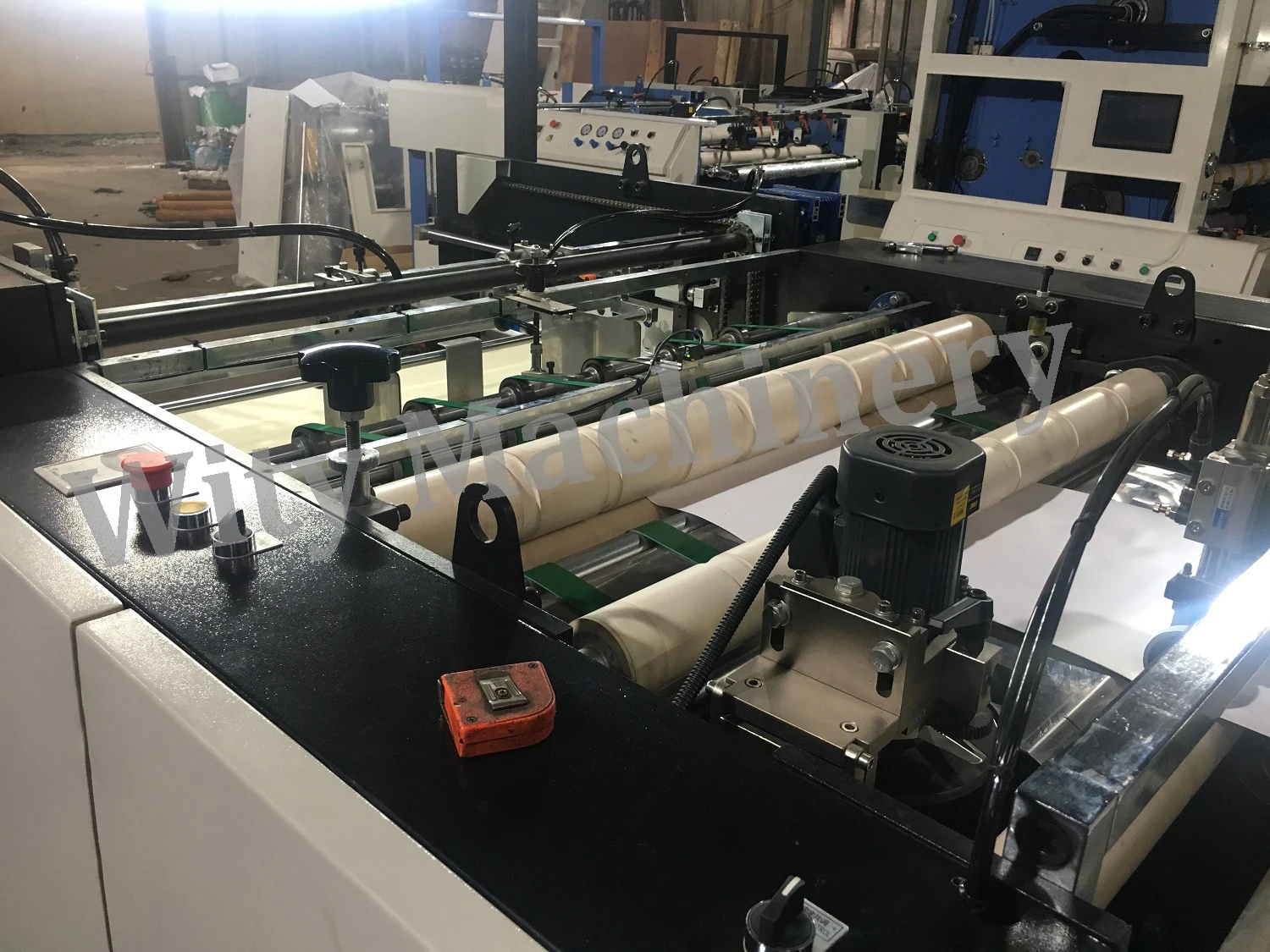

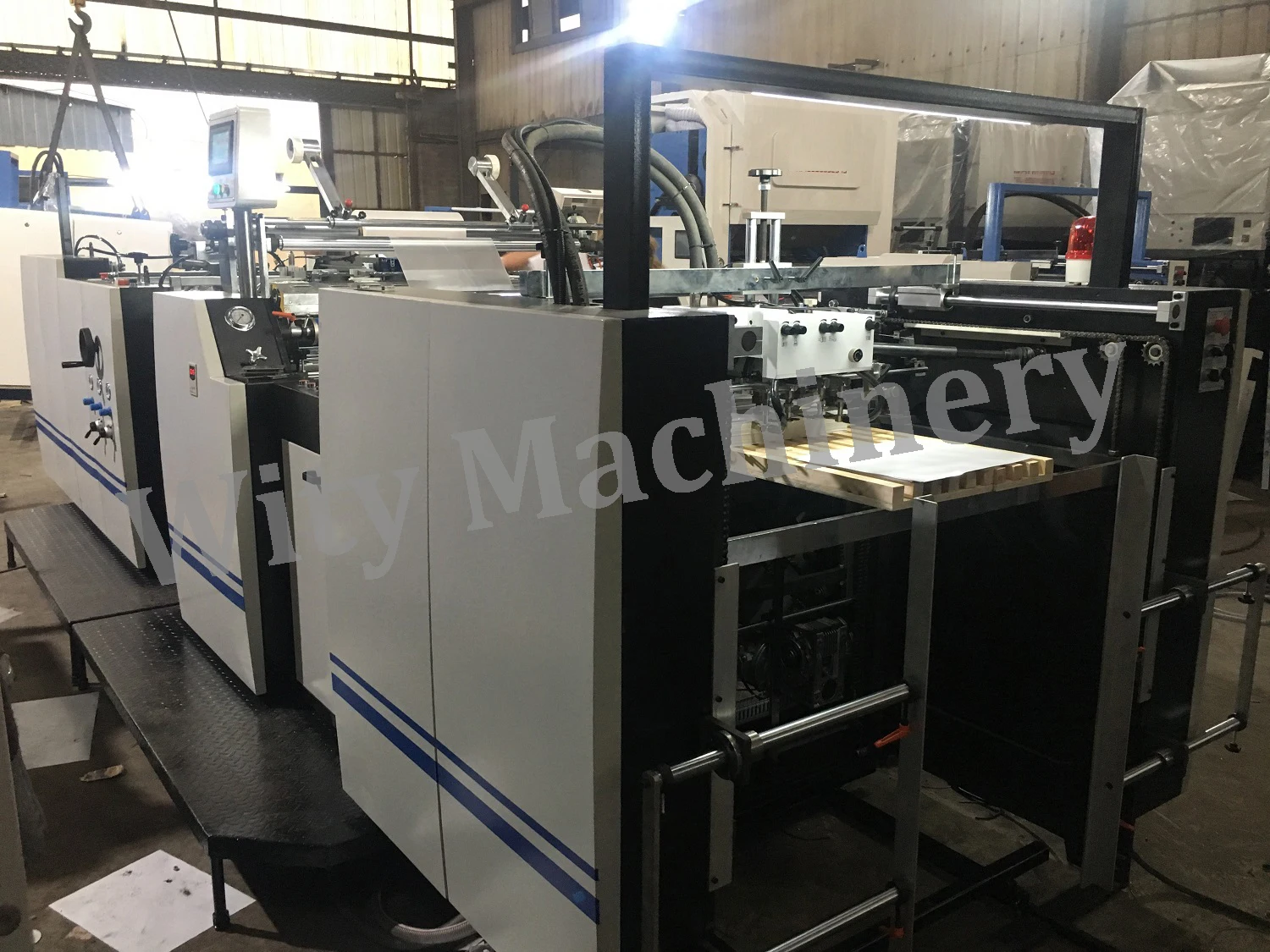

Details Images
