Electrical Wood Drying Machine For Hardwood Drying High Frequency Wood Vacuum Dryer HFVD120-SA



Product Description:



Electrical Wood Drying Machine For Hardwood Drying High Frequency Wood Vacuum Dryer HFVD120-SA  is a kind of drying machine with low temperature in vacuum situation, smaller but much faster than the conventional kilns. It is suitable for all kinds of wood, from veneer/lamina/board to thick lumber, even heavy timber with large dimension. For thin piece like veneer or floor board lamina, high frequency vacuum wood drying not only offers short drying cycle but also eliminates the problem of curve or shrink. For thick and hard wood, like Merbau,Mahogany,etc. HF wood dryer brings good drying quality with uniform moisture content, free of split or spark both on surface or inside of wood, short drying time will meet the customer's demand for production.



1. High Frequency Vacuum Wood Drying Principle High frequency electric field is as the main power for heating, it acts on the wood uniformly. The intensity of the heating depends directly on the moisture content of the wood and the electric field, while the moisture movement depends on the permeability of the wood and internal pressure gradient. In vacuum situation, the boiling point of water is decreased with decreasing pressure. The movement of water through wood increase leading to shorter drying time than at atmospheric pressure.

2. Character of SAGA High Frequency Vacuum Wood Dryer

A. SAGA OFFER ONE BUTTON CONTROL TECHNOLOGY Full automatic drying program within PLC control system for different type of wood, the worker don’t need to know too much knowledge about wood drying cook the wood perfect.

B. PRECISE AND RELIABLE MONITORING SYSTEM High precision and stable monitoring spare will always guide on the machine both for warranty of good drying quality or safety of personal and machine.

C. WELL SELECT SPARE PARTS We choose high grade stable spare parts which is tested for long time for the machine to make it stable running and problem free.

D. LOGICAL AND SAFE DESIGN With more than 10 years of experienced engineer, the customer can expect a more logical and humanistic machine that very easy to use, stable running and help a lot in production.





3. Technical Parameter



Model No.		HFVD120-SA
Overal Size	Kiln	9300*2400*2300 mm
	High frequency generator	1250*1200*2050 mm
	Cooling system	1500*1150*2000 mm
	Control table	700*400*1200 mm
Total Weight		11 Ton
Kiln	Thickness	12 mm
	Inside diameter	1900 mm
	Max. piling dimension	1300*1300*8000 mm
	Max. piling volume	13 cubic meters
HF Generator	Input power	70 KVA
	Output power	50 KW
Frequency		6.78 MHz
Main Spare Parts		Schneider/Siemens/Omron, etc.
Protection		Overload protection/Wind cooling pressure detection/Filament 2 stage starts/Lose phase protection
Turning Mode		Variable vacuum capacitor
Temperature		45-70 ℃
Temperature Testing		Fiber optical temperature sensor
Moisture Testing		Weighing system (PATENT)
Cooling System		Stainless steel condenser with stainless steel water-ring vacuum pump
Cooling Type		Force wind cooling
Cooling in Kiln		Condensation system
Drying Mode		Full automatic
Hydraulic Cylinders		6 Tons x 4 PCS (of stainless steel cylinders) from Taiwan-COMPASS
Vacuum Pump	Material	Stainless steel
	Power	11 KW
Piling Way		Manual
Feeder Type		Automatic
Kiln Door		Ears Door (more safe and powerful)
Weighing System		Weighing sensors under the kiln (weighing wood everytime)
Control System		Full-auto PLC touch screen
Vacuum Range		-0.07- -0.09 Mpa

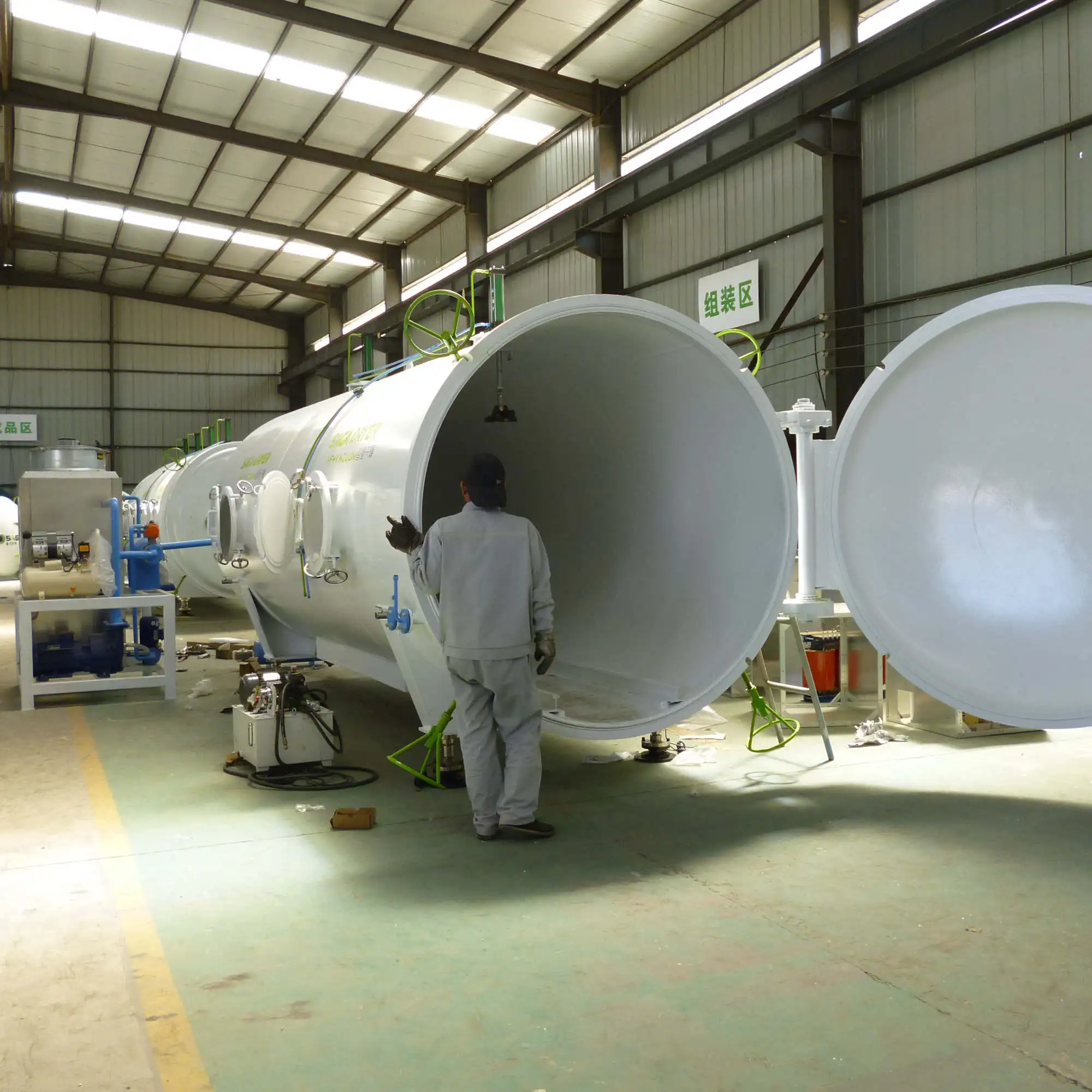

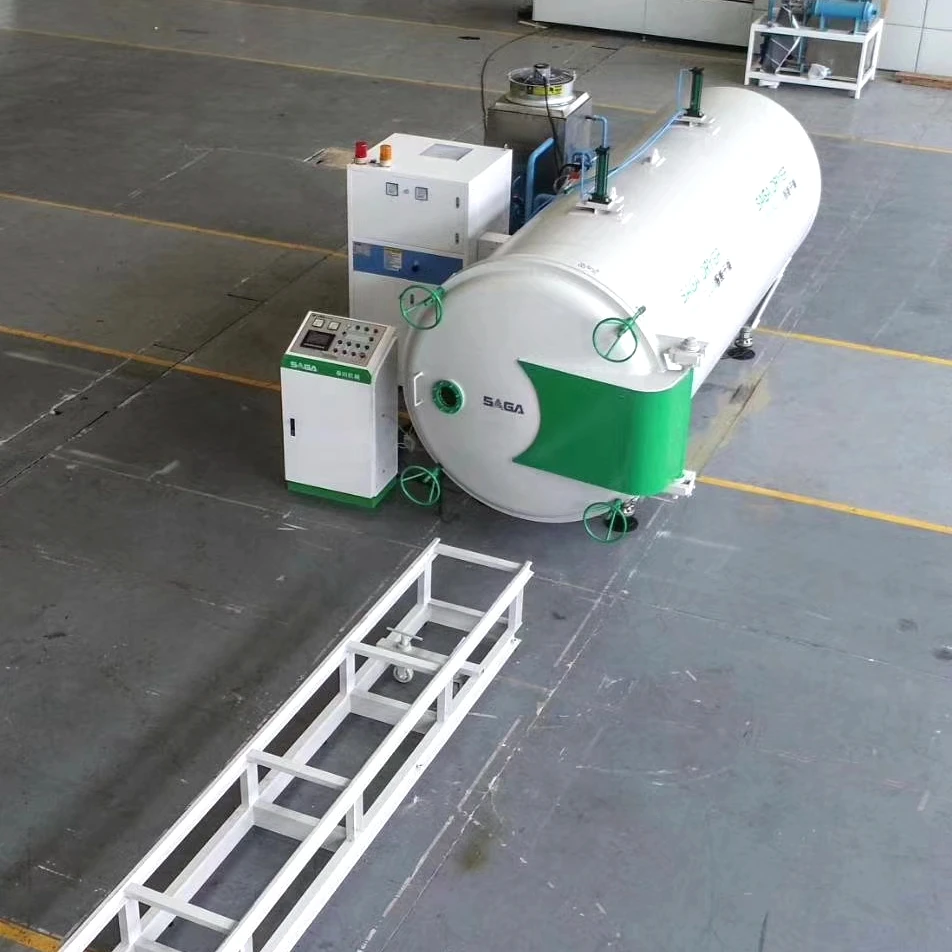

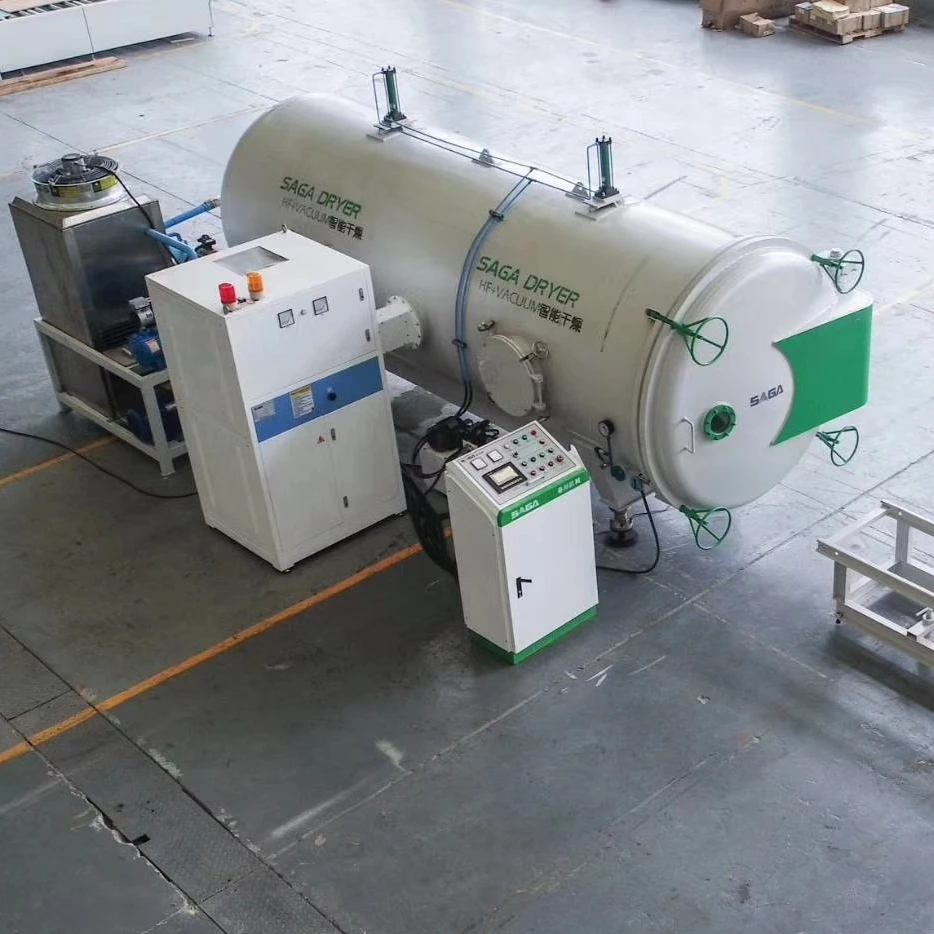

Detailed Pics:

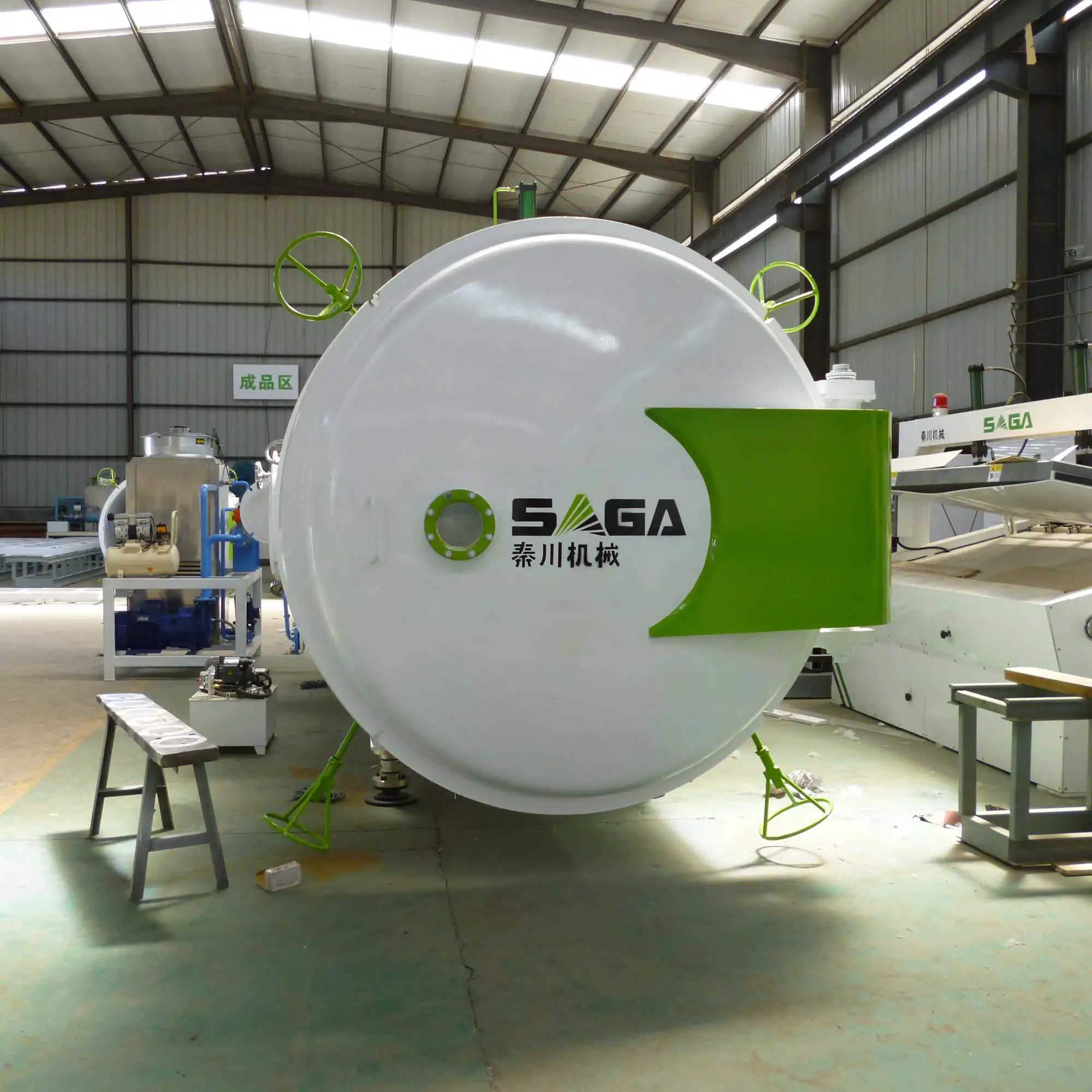

Door Fixing Way Different from Other Suppliers:

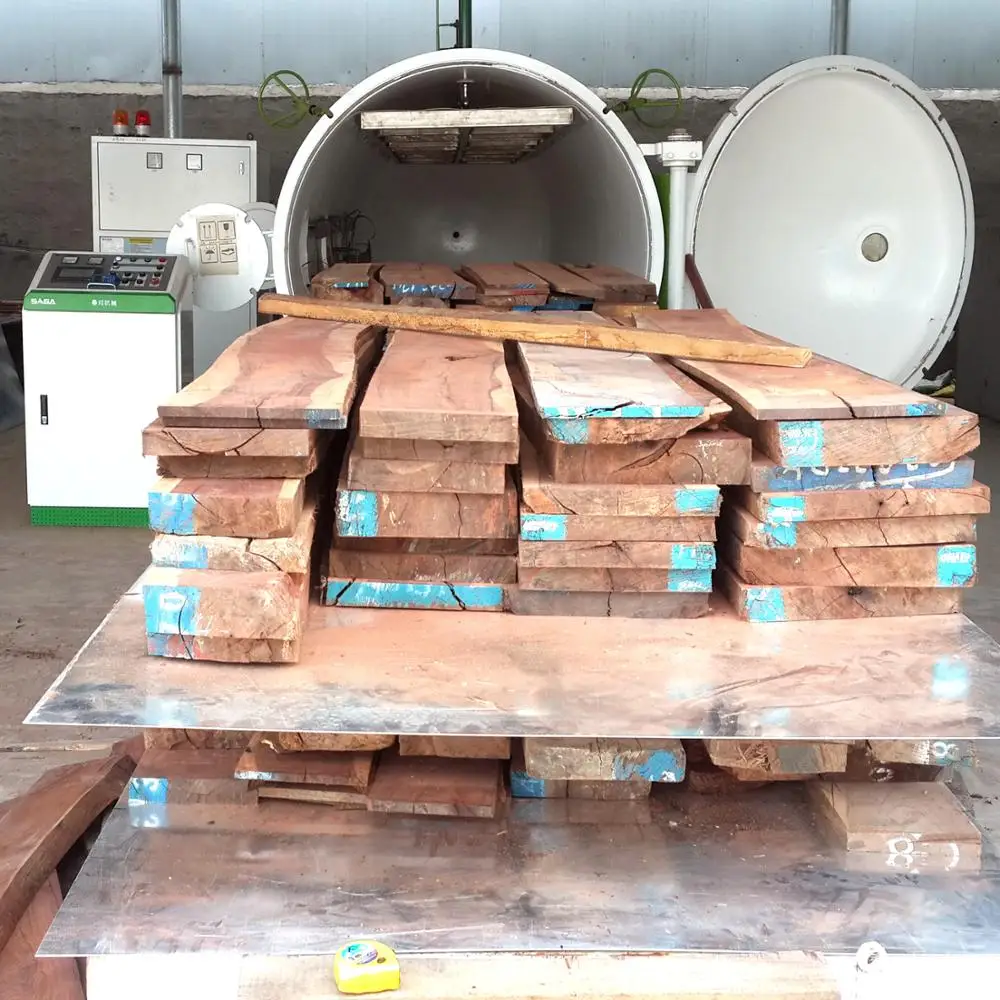

Wood Drying Cases:





All Existing Models of HF Vacuum Wood Drying Machines:



Model No.	Max. Wood Piling Volume	Max. Wood Piling Dimension	HF Input Power	HF Output Power
HFVD30-SA	3 cbm	1x1x3 m	40 KW	30 KW
HFVD45-SA	4.5 cbm	1x1x4.5 m	40 KW	30 KW
HFVD60-SA	6 cbm	1x1x6 m	70 KW	50 KW
HFVD80-SA	8 cbm	1x1x8 m	70 KW	50 KW
HFVD100-SA	10 cbm	1.3x1.3x6 m	70 KW	50 KW
HFVD120-SA	13 cbm	1.3x1.3x8 m	70 KW	50 KW



Packing:





Transport:





About Saga Machinery:





Shijiazhuang Saga Machinery Co., Ltd. specializes in developing, designing and producing smart series high frequency woodworking machinery. Our products cover high frequency vacuum wood dryer, edge gluing machine, wood curving machine, wood frame assembly machine and high frequency generator, etc.



Saga’s senior engineers, production manager, sale group and persons for after-sale service have more-than-15-year professional experience in high frequency machine industry. The energetic and passionate staff and the highly-efficient and innovative team of Saga are hoping to cooperate with you.
