CCTV camera monitor traffic lighting pole with painting
- Category: >>>
- Supplier: Jiangsu Feihua Lighting Co. Ltd.
Share on (62437370445):
Product Overview
Description
Product Description
Product name | Traffic signal light pole | ||||
Height | From 3 m to 35 m | ||||
Hot dip galvanizing meets Chinese standard GB / T 13912-2002 or American standard ASTM A123 or AS / NZS 4680:2006,color polyester power or any other standard by client required. | |||||
Shape | Conical, octagonal, square, cylinder | ||||
Lamp power | 20 W- 400 W (HPS/MH) / 220V (+-10%) /50Hz | ||||
Material | Usually Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52 | ||||
Spare Parts | Parts for connection or installation | ||||
Thickness | 1 mm to 30 mm | ||||
Welding standard | AWS D1.1， both internal and external welding | ||||
Minimum yield strength | 235mpa | ||||
Minimum ultimate tensile strength | 490mpa | ||||
Max ultimate tensile strength | 620 mpa | ||||
Joint of Poles | Insert mode,inner flange mode,face to face joint mode | ||||
Wind resistant grade | 36.9m/s | ||||
Design basis | CECS236:2008 | ||||
Basic wind pressure | 0.65KN/m | ||||
Weld grade | The section weld is a secondary weld and the fillet weld is a secondary weld | ||||

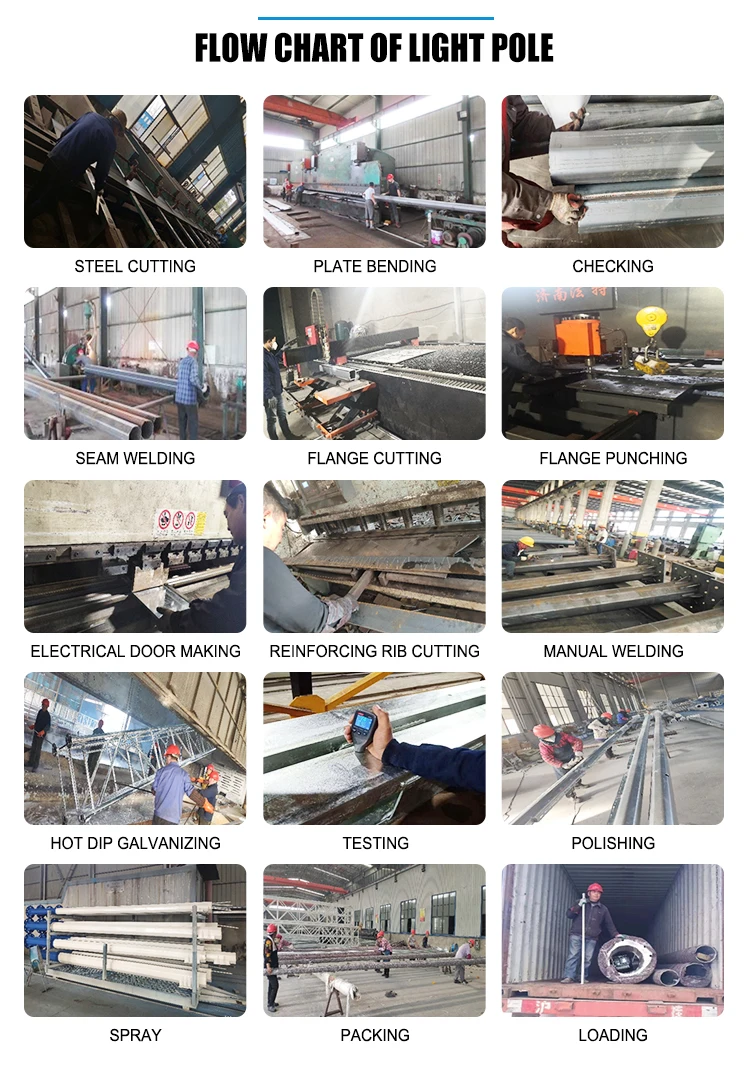

Raw material test → Steel plate cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange cutting →Flange punching→Calibration → Reinforcing rib cutting→ Welding(reinforcing rib and flange)→ Galvanization or powder coating ,painting →polishing→Recalibration →Thread →Packages | |||||

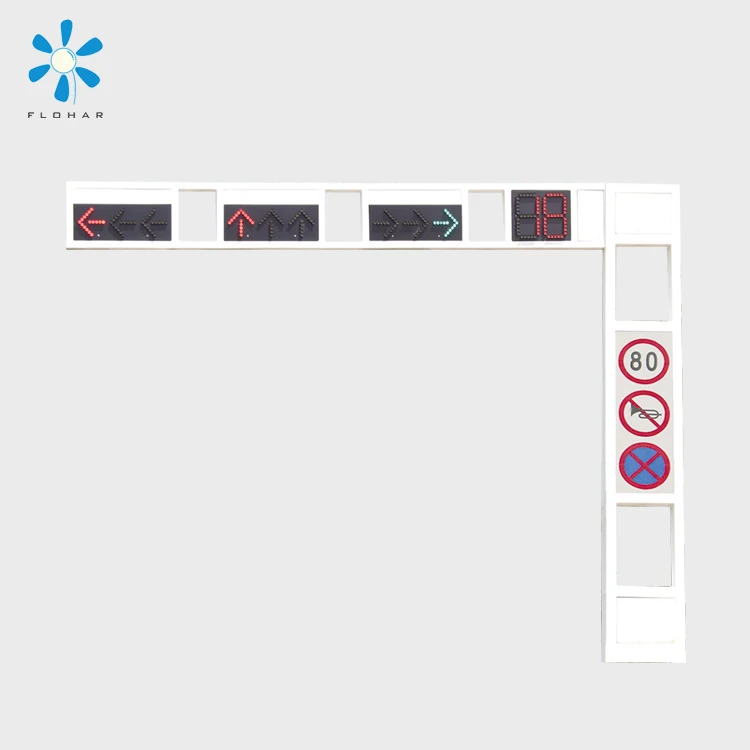

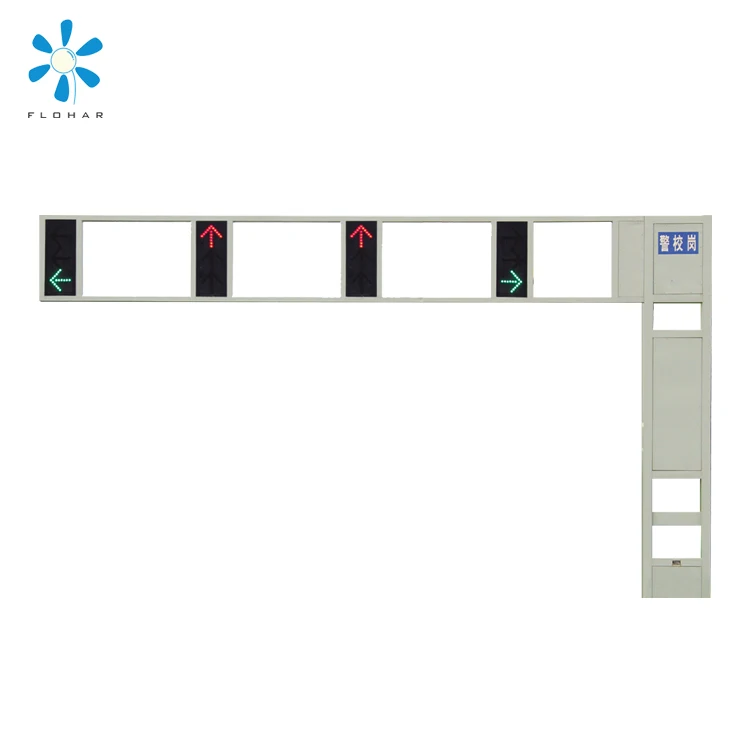

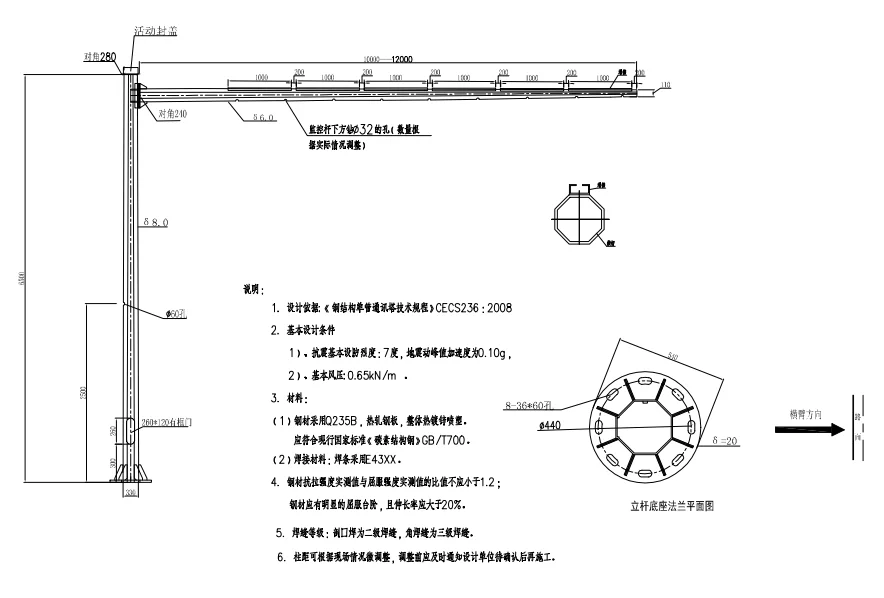

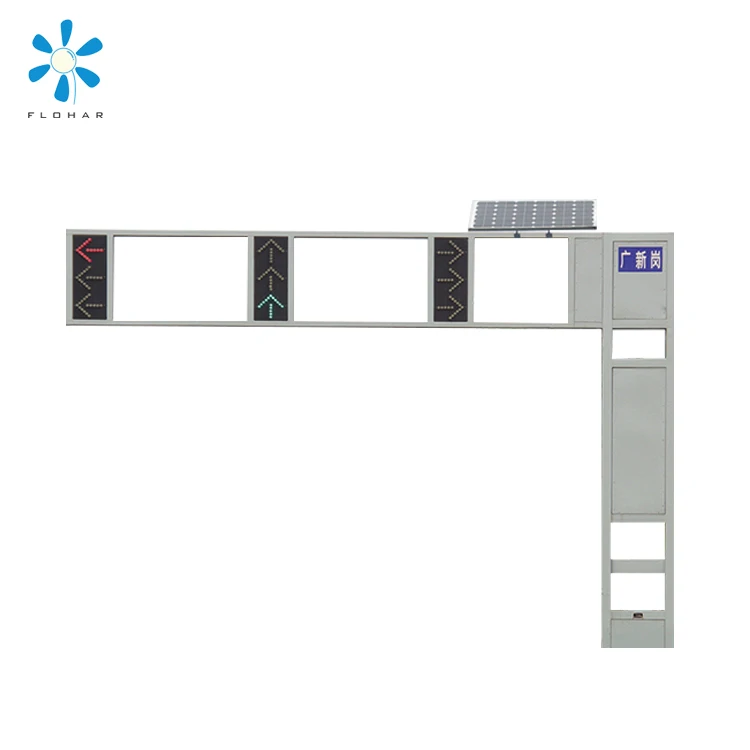

Integrated frame type traffic light pole
Main pole structure | rectangle | ||||||
Height | 7000-7500mm | ||||||
Arm length | 6000mm ~ 14000mm | ||||||
Main pole | 150 * 250mm square pipe, wall thickness 5mm ~ 10mm | ||||||
Cross bar | hot dip galvanized or spray plastic, color optional | ||||||
Lamp face diameter | Ø400mm orØ 500mm | ||||||
Chroma | red (620-625) green (504-508) yellow (590-595) | ||||||
Working voltage | 187v-253v, 50Hz | ||||||
Rated power | single lamp < 20W | ||||||
Service life of light source | > 50000 hrs | ||||||
Ambient temperature | -40~+ 80℃ | ||||||
Protection grade | IP54 | ||||||

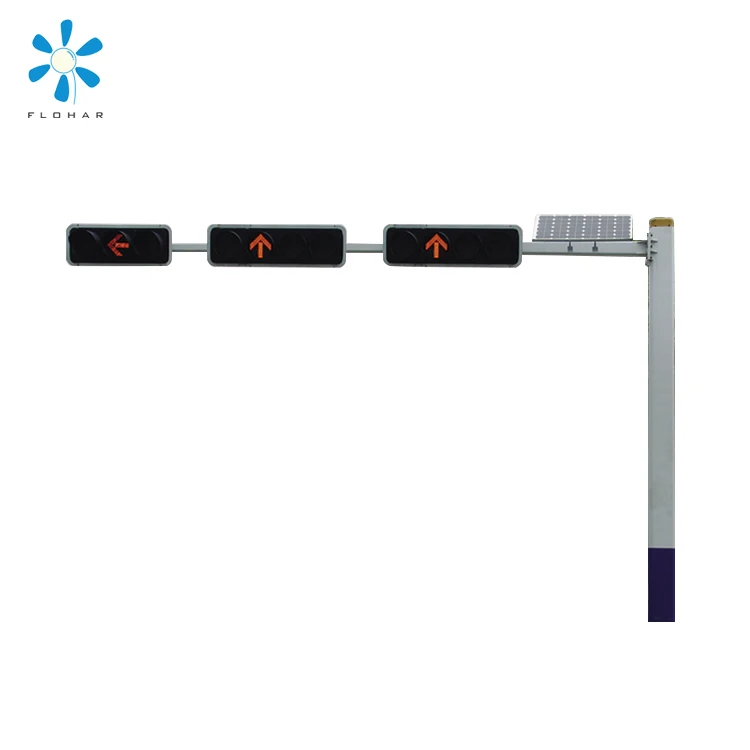

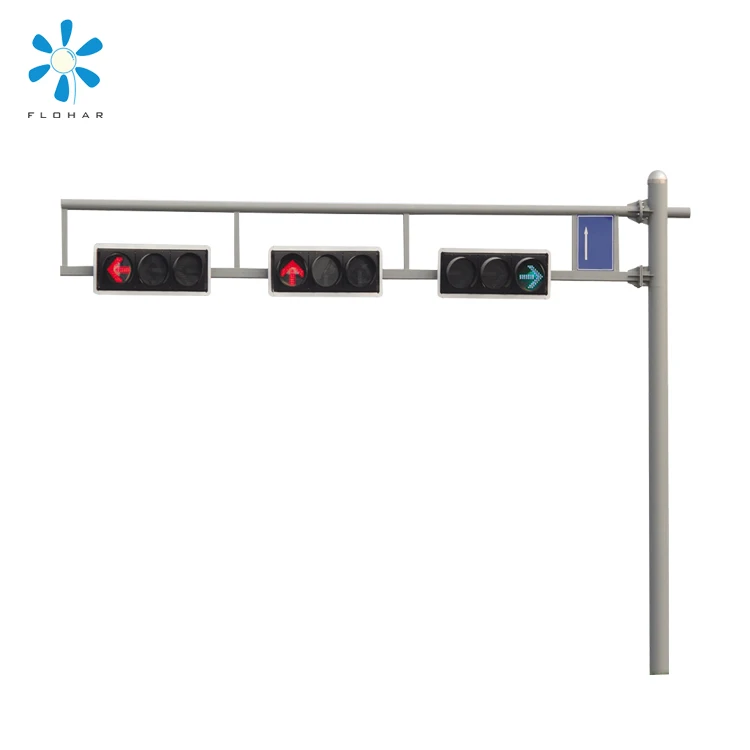

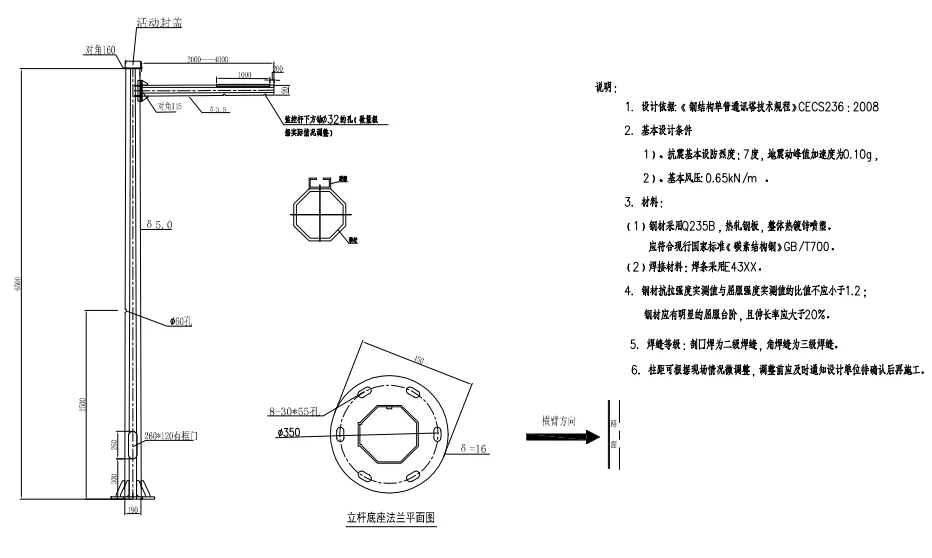

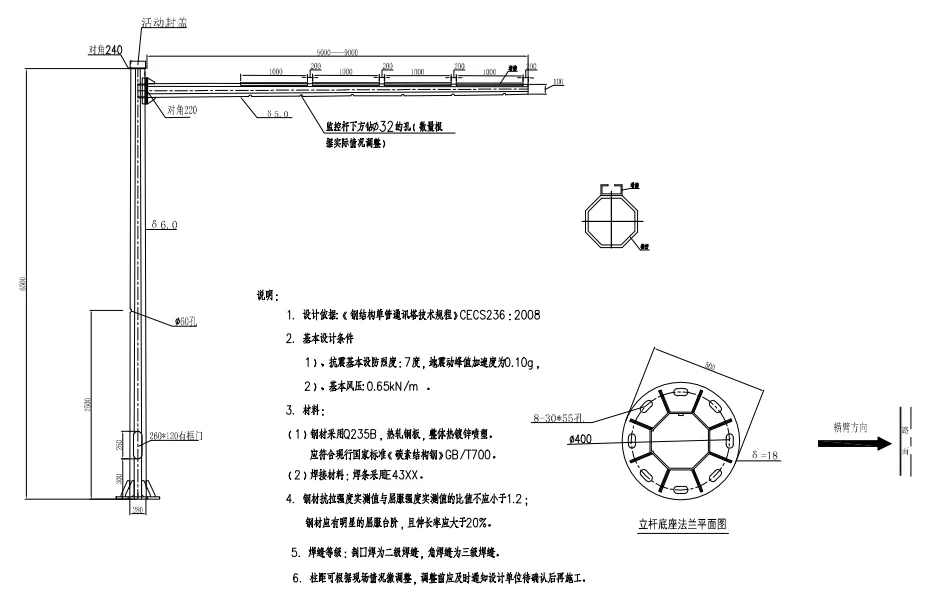

Cantilever traffic light pole
Main pole structure | cylindrical | ||||||
Height | 6800mm | ||||||
Arm length | 5000 ~ 14000mm | ||||||
Wall thickness of main pole | 5-10 mm | ||||||
Wall thickness of cross bar | 4- 8mm | ||||||
Surface treatment | hot dip galvanized or spray plastic, color optional | ||||||
Lamp face diameter | Ø300mm or Ø400mm | ||||||
Chroma | red (620-625) green (504-508) yellow (590-595) | ||||||
Working voltage | 187 ~ 253v, 50Hz | ||||||
Rated power | single lamp < 20W | ||||||
Service life of light source | > 50000 hrs | ||||||
Ambient temperature | -40~+ 80℃ | ||||||
Protection grade | IP54 | ||||||

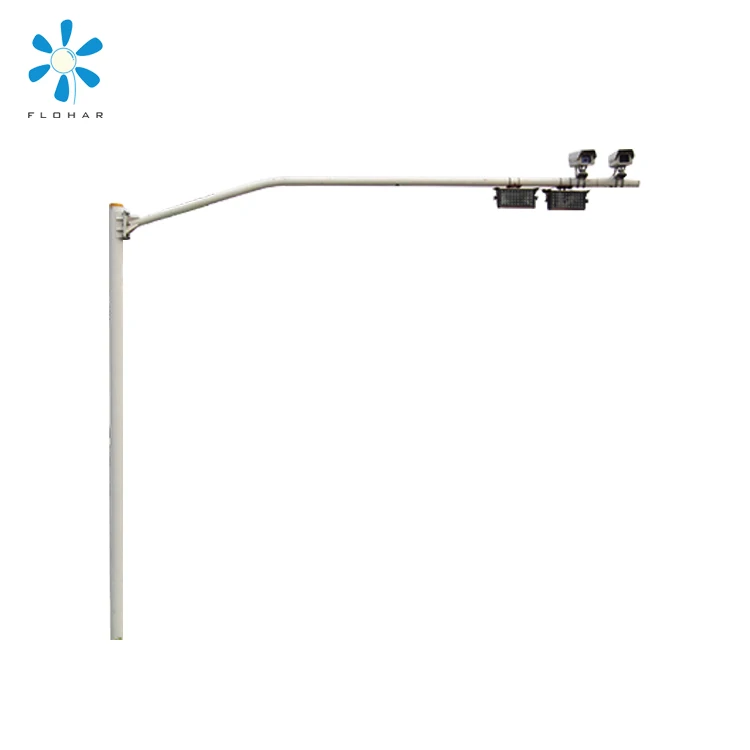

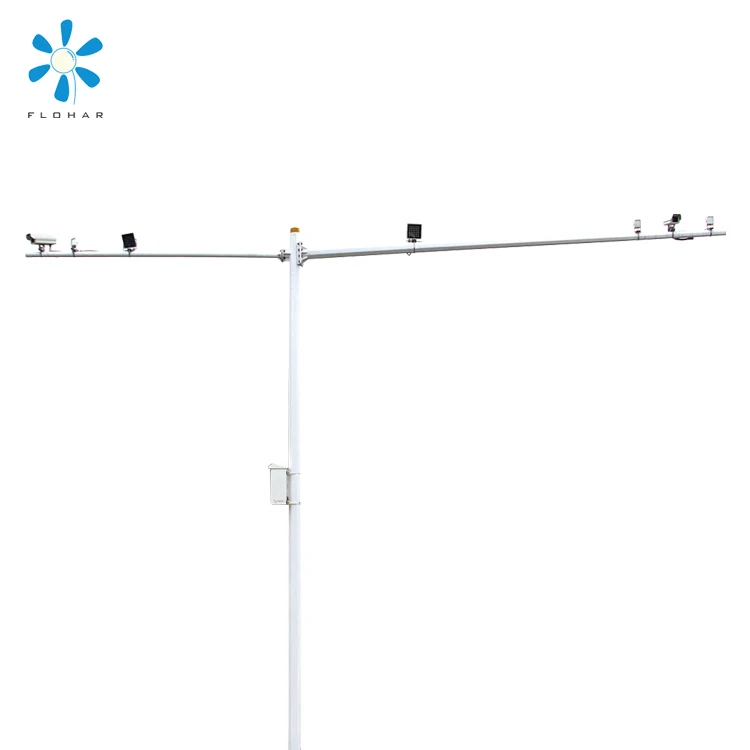

CCTV Pole

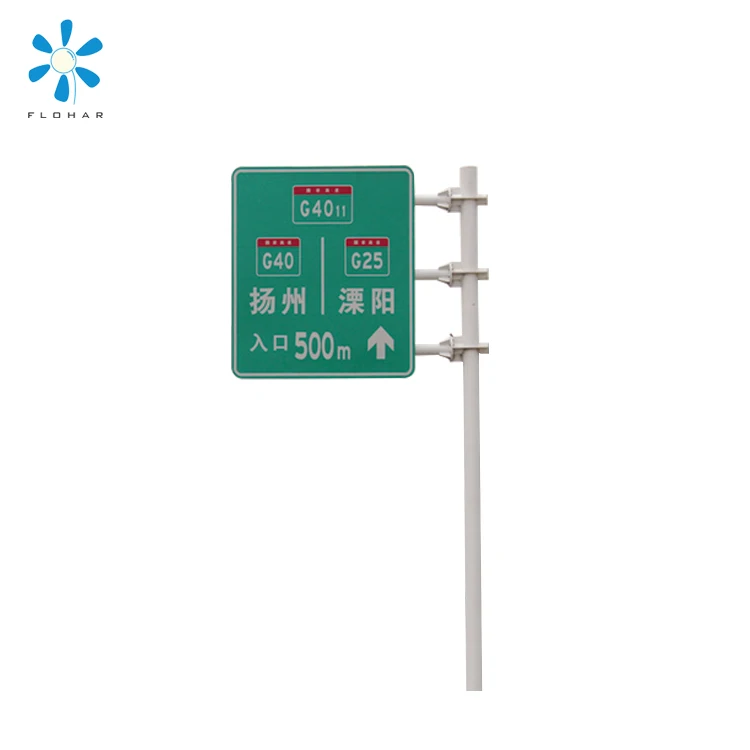

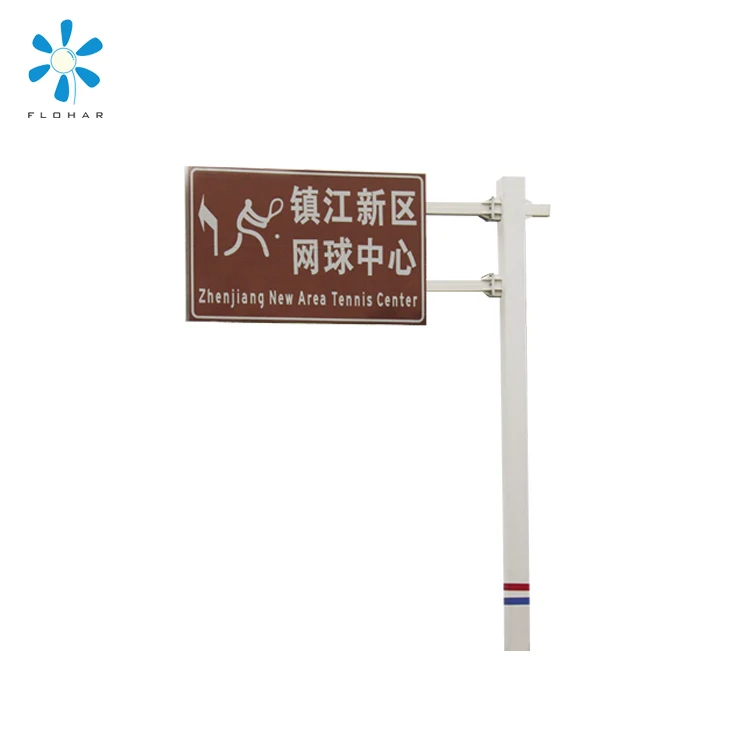

Traffic sign pole

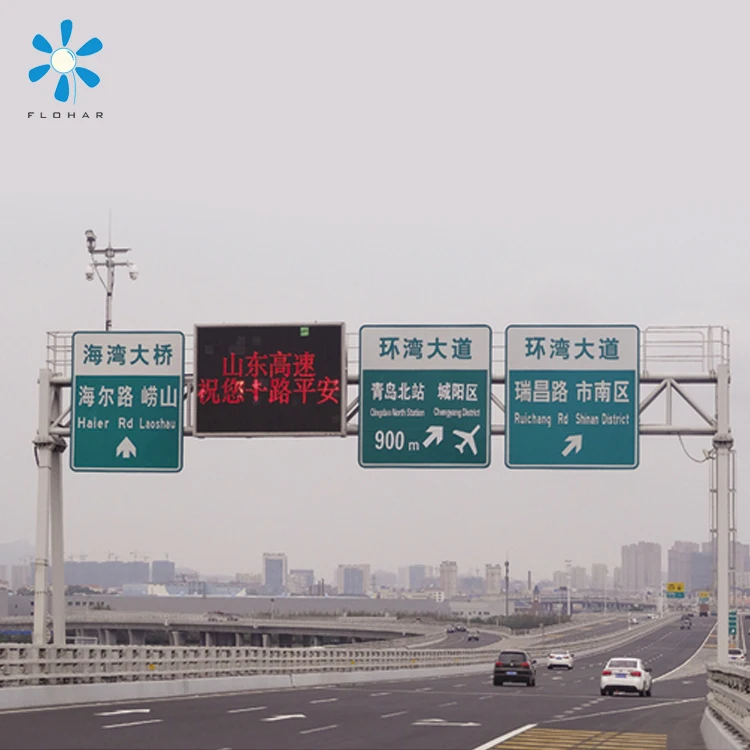

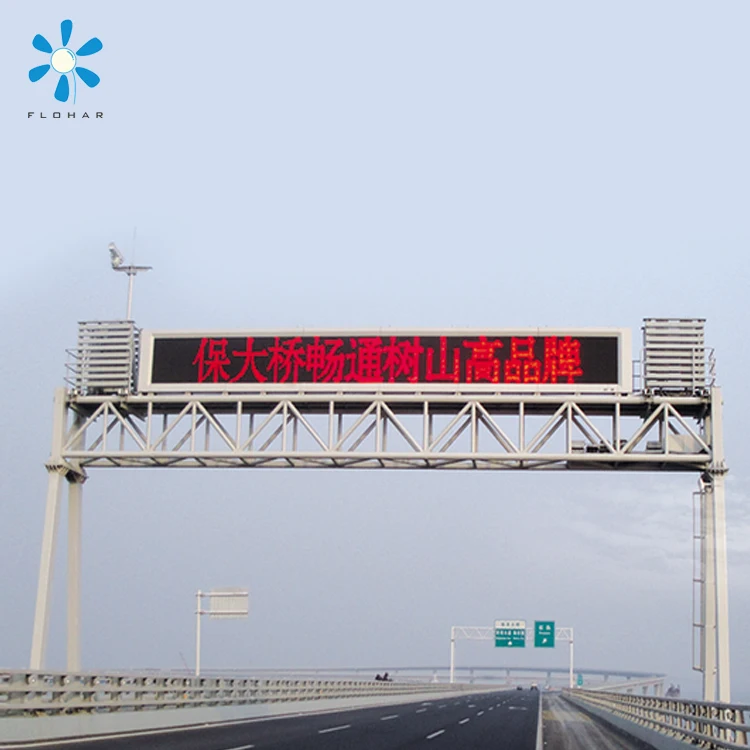

Electronic screen Frame pole
