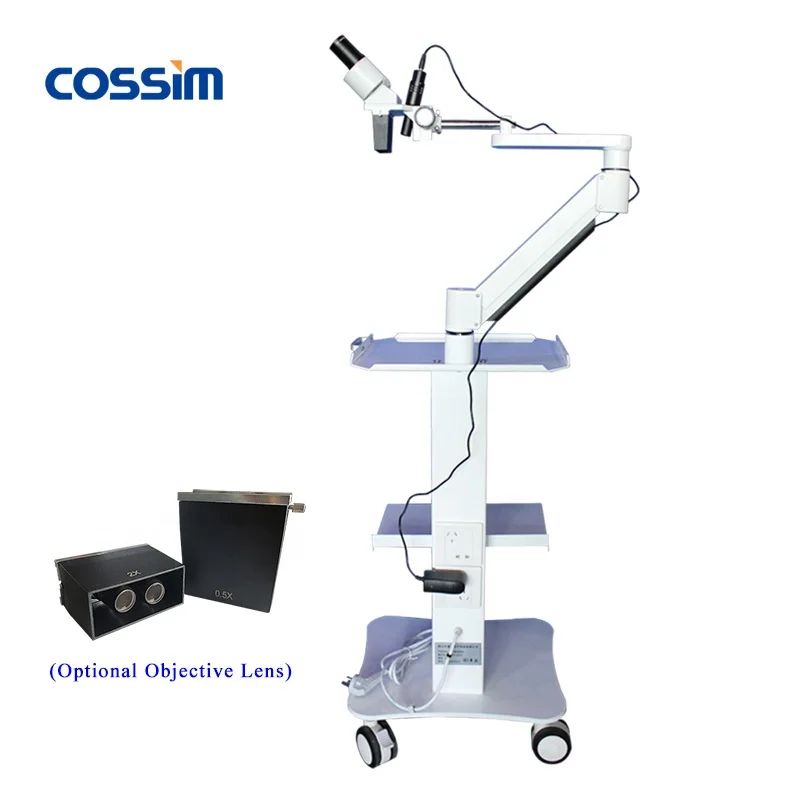

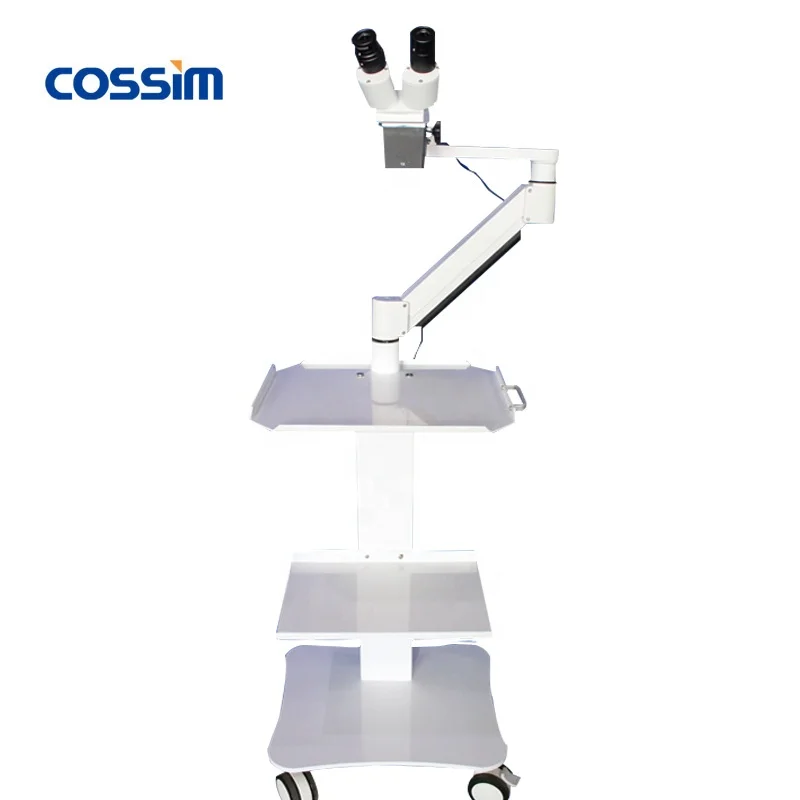

VMS102CD 10X Trolley Table Mounted Trolley Type Operating Dental Microscope with Auxiliary Lens
- Category: >>>
- Supplier: Suzhou Jingtong Instrument Co. Ltd.
Share on (62437385407):
Product Overview
Description
 | 1X Objective (0.5X, 2X Optional) WF 10X Binocular Head Long Work Distance LED Spot Light Source |
Product Description
VMS102CD is a dental microscope which has super long working distance (80~250mm) and clear sharp images. The standard equipment is WF 10X eyepiece & 1X objective, high brightness LED lamp. The left eyepiece’s interpupillary adjustment is 55~75mm, ±5DP.

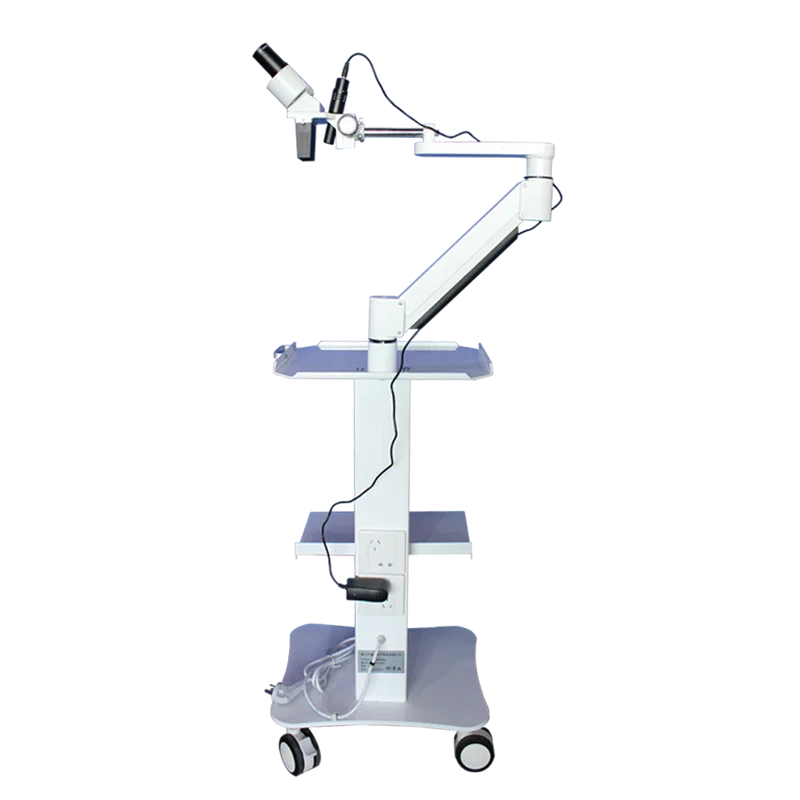

This microscope is trolley type which has three layers, universal wheels and universal holders for any directions.
Features
---1X Objective (0.5X, 2X Optional)
---WF 10X Eyepiece (WF15X, WF20X Optional)
---Super long working distance, for any directions
---Wide field of view, clear imaging and strong stereo sensation
 |

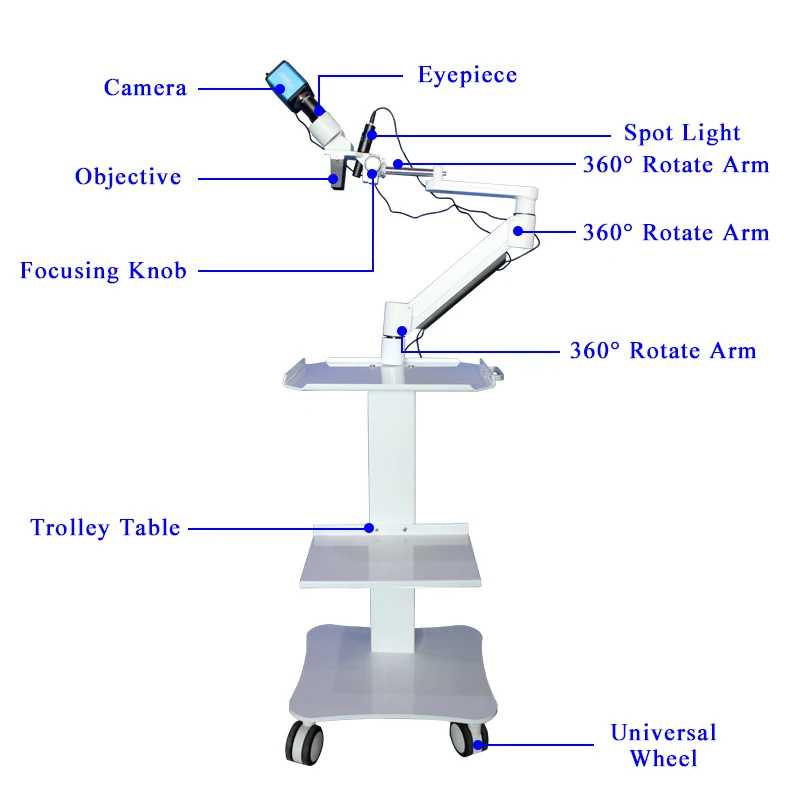

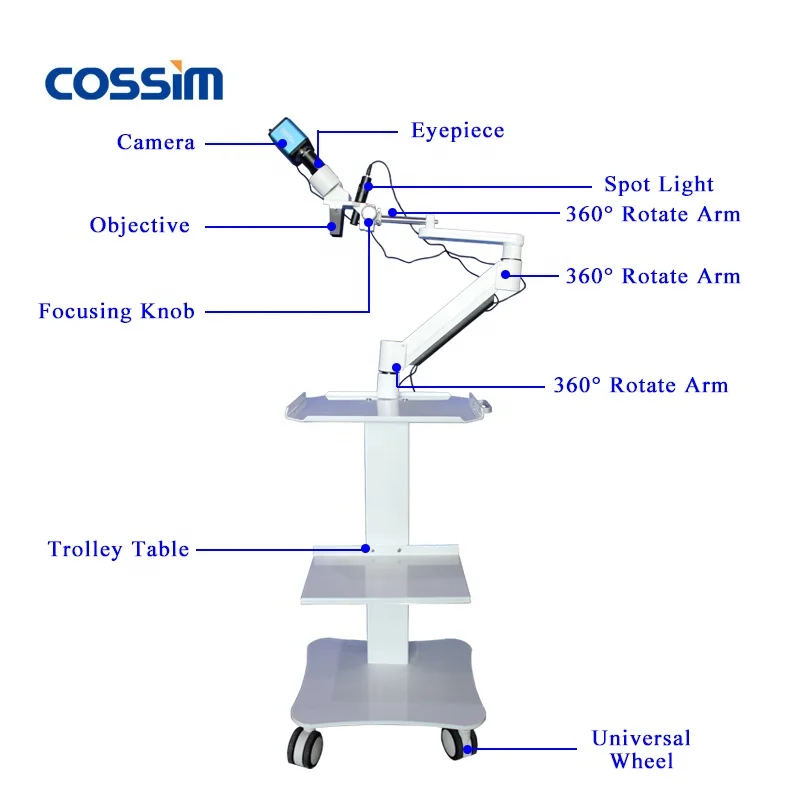

| Structure of VMS102CD Dental Microscope |
 |

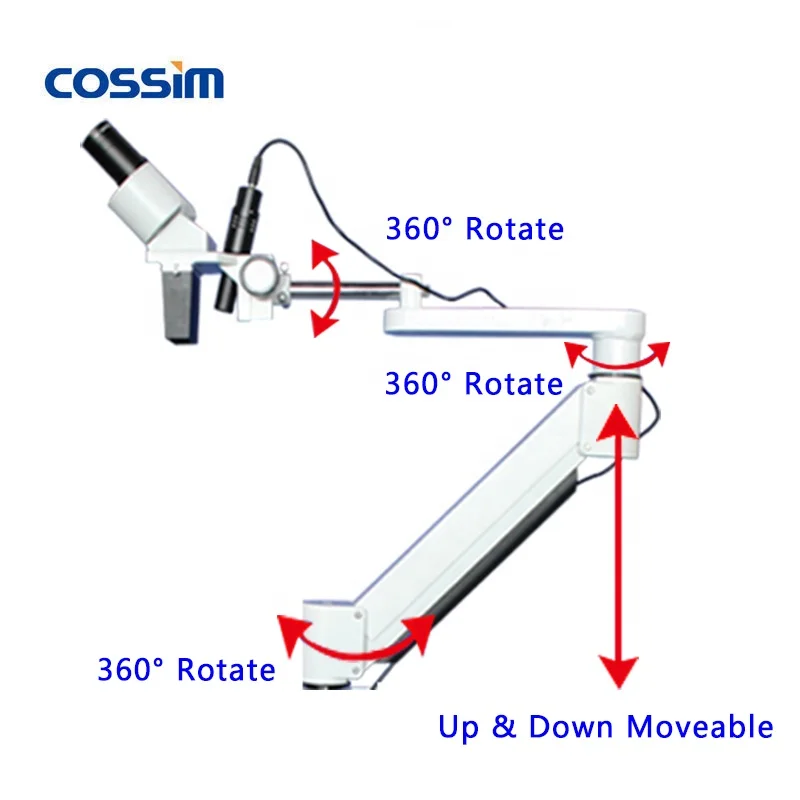

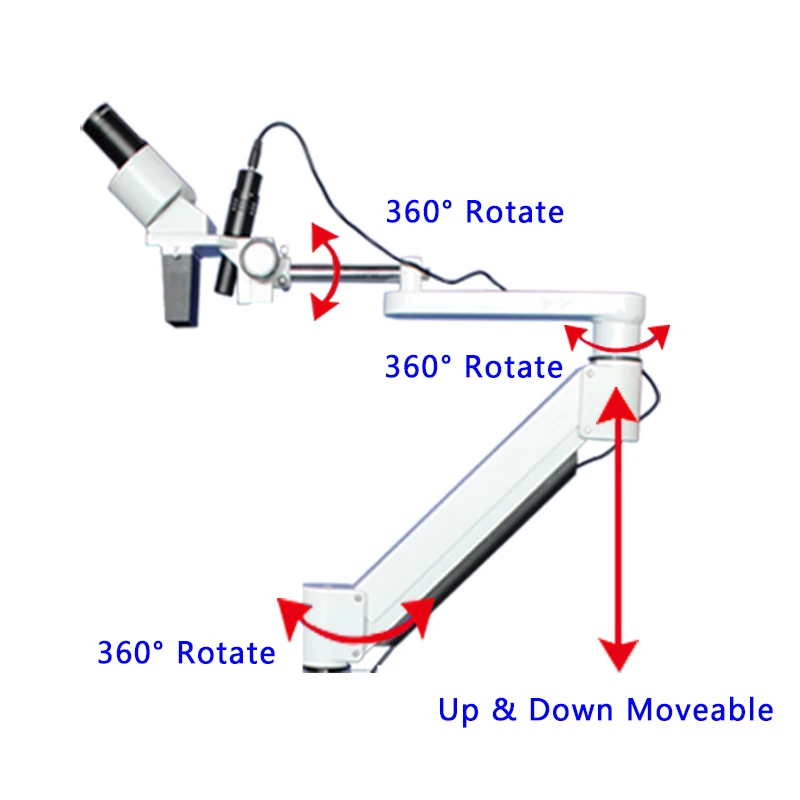

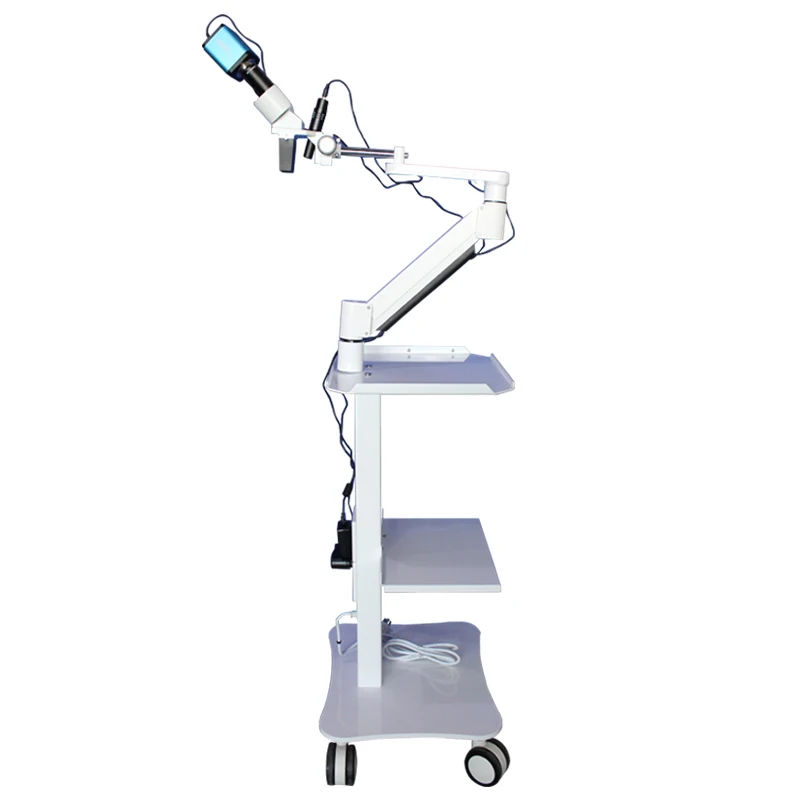

| Rotate Operation of VMS102CD Dental Microscope |
 |

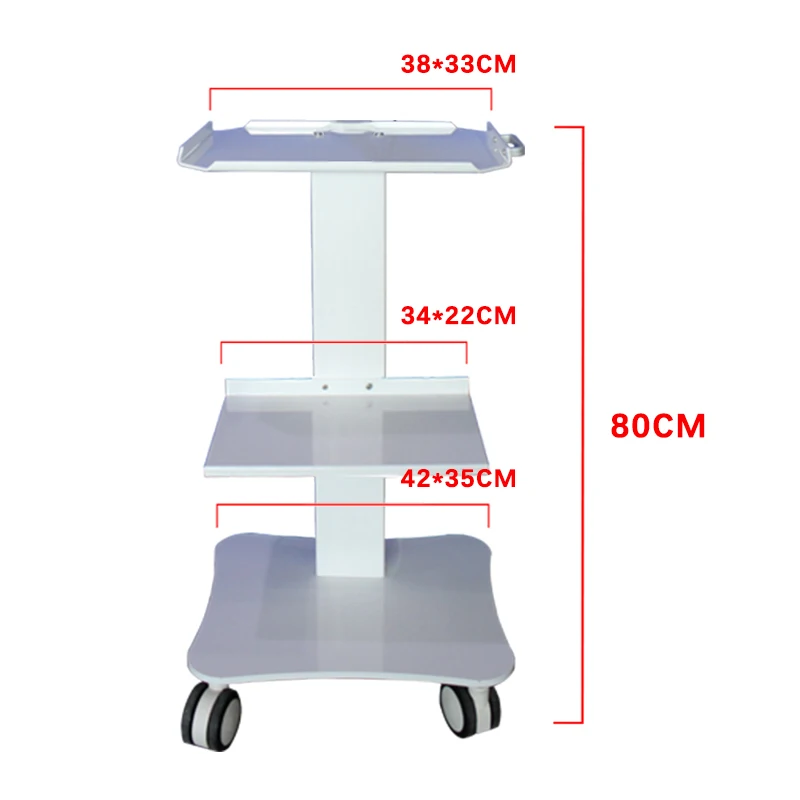

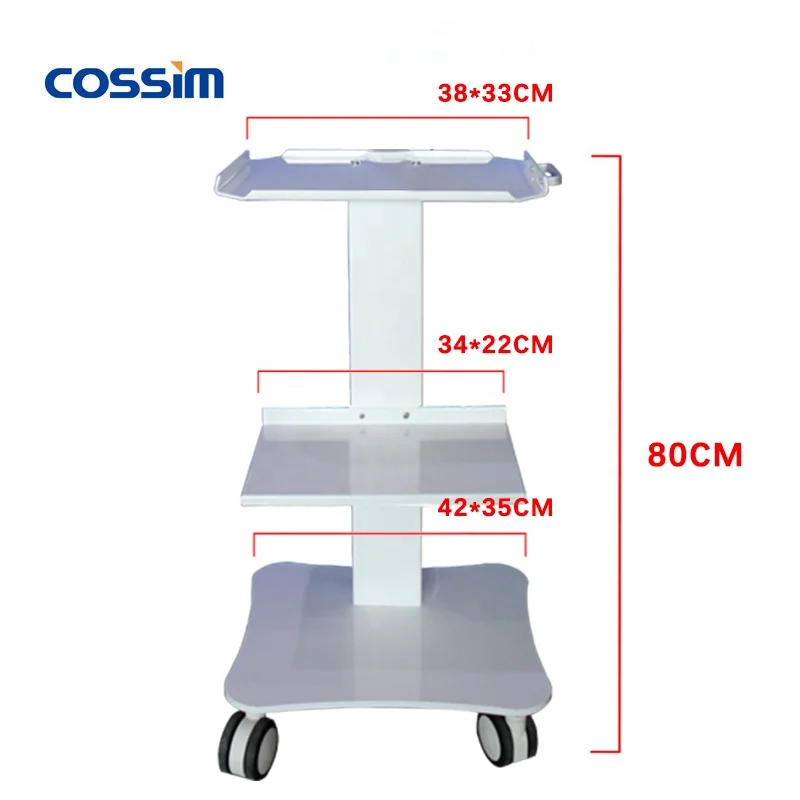

| Dimension of VMS102CD Dental Microscope Trolley Table |
Specification
Specification for VMS102CD | ||||||
|---|---|---|---|---|---|---|
Eyepiece | Objective | |||||
0.5X | 1X (Standard) | 2X | ||||
Mag. | FOV. | Mag. | FOV. | Mag. | FOV. | |
5X | 2.5X | 40mm | 5X | 20mm | 10X | 10mm |
10X(Standard) | 5X | 40mm | 10X | 20mm | 20X | 10mm |
15X | 7.5X | 30mm | 15X | 15mm | 30X | 7.5mm |
20X | 10X | 20mm | 20X | 10mm | 40X | 6.5mm |
WD. | 250mm | 230mm | 80mm | |||
Product Details

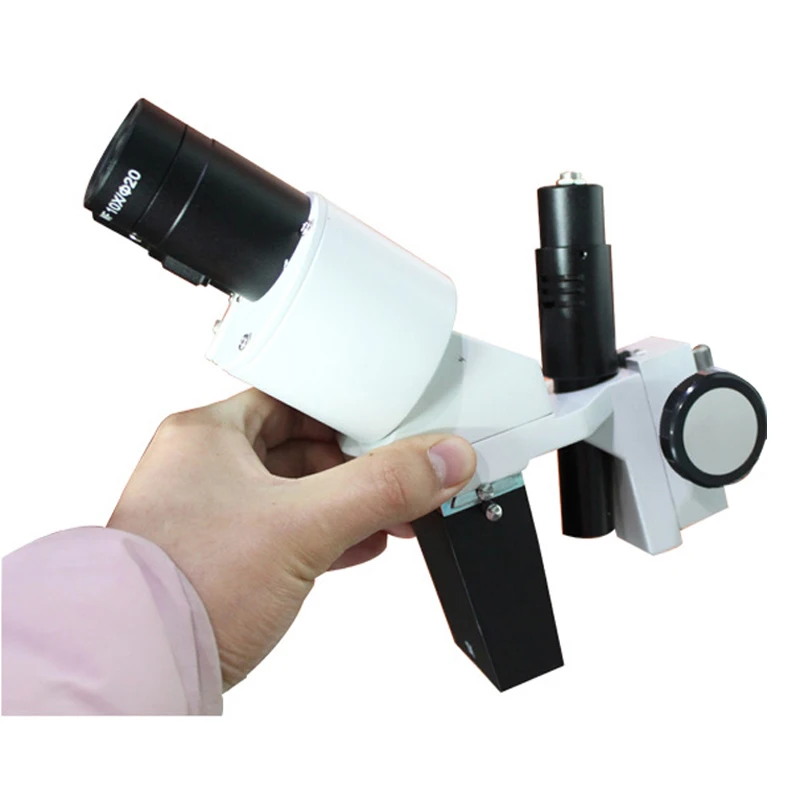

 | Head WF 10X Binocular, Articulate 360°; Dovetail slot insert objective lens with locking device for easy replacement. |

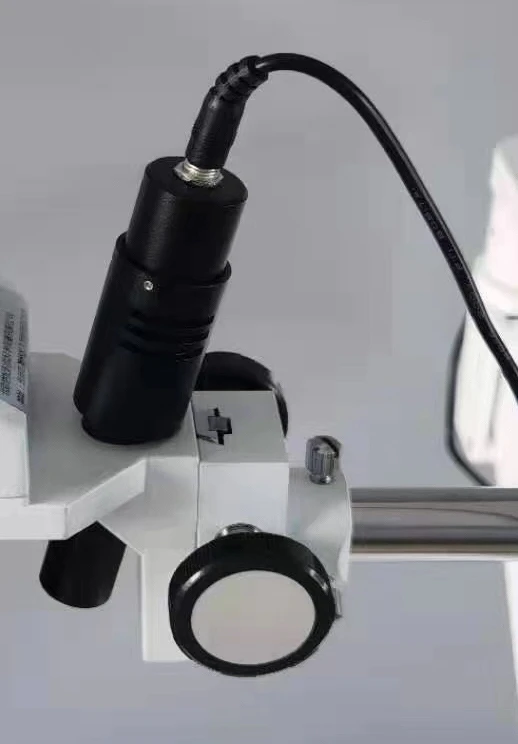

LED Spot Light High brightness LED spot light source, providing adequate light. |  |

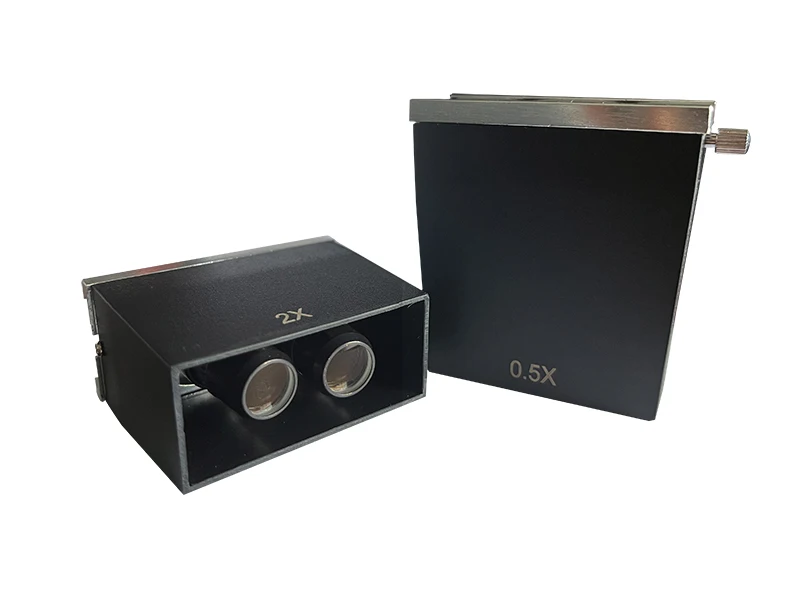

 | Objective Lens The standard objective is 1X, 0.5X & 2X is optional accessories, which can enlarge or shorter the working distance. |
Support connected with various microscope cameras, which can be showed the images on PC / Laptop / Monitor.
|
Application
 |

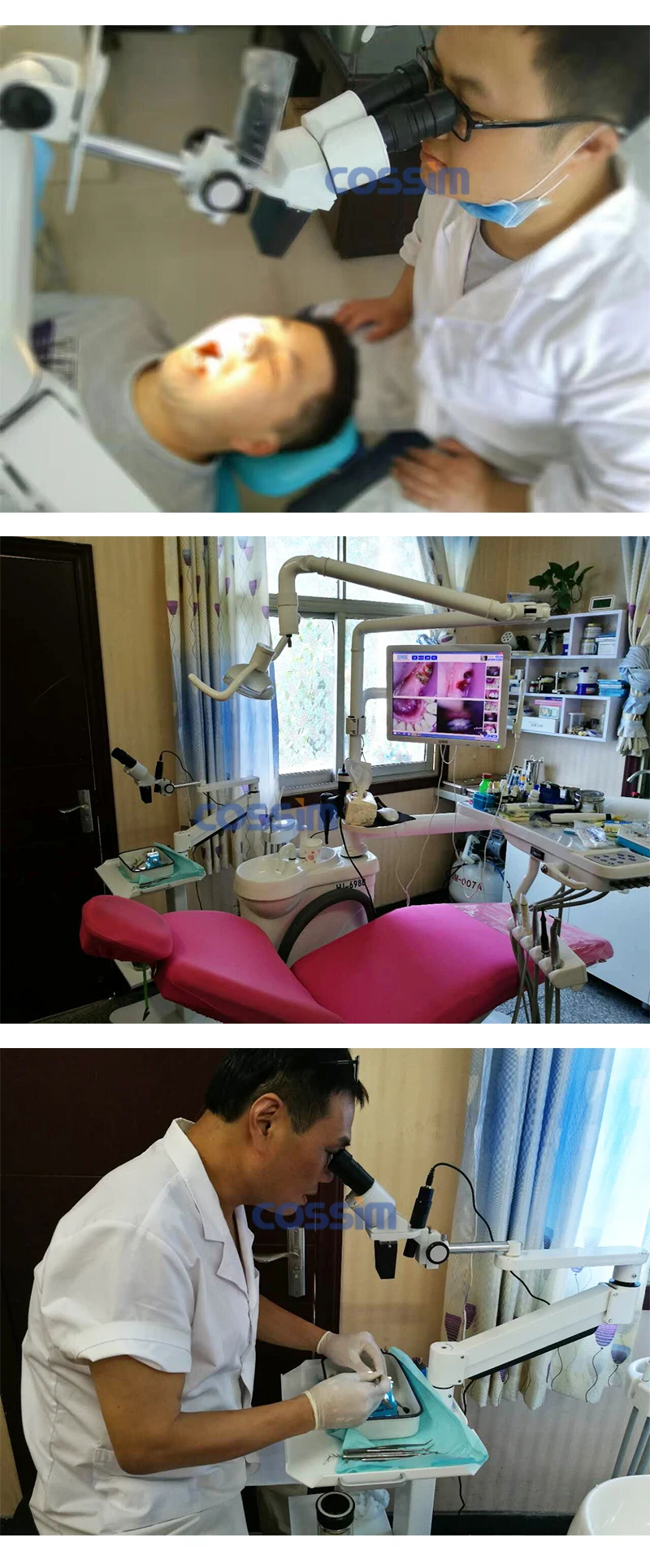

| Applications of VMS102CD Dental Microscope |
