RGB COLOR Underwater Light Garden Light LED Ring Wall Mounted Swimming Pool Lights 18W Concrete vinyl fiberglass

Share on (62437389752):


Price:

Quantity:


Product Overview

Description



Product Description

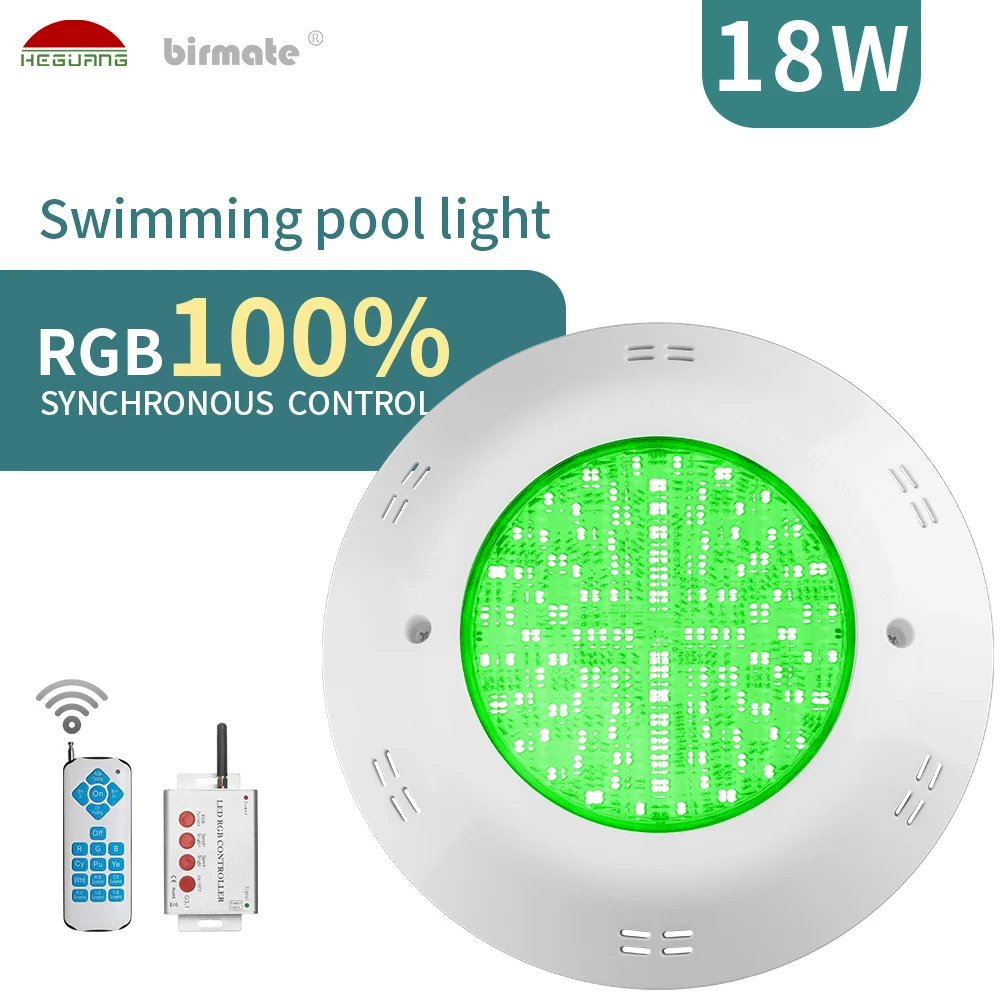

RGB LED POOL LAMP Underwater Light Garden Light LED Ring Wall Mounted Swimming Pool Lights 18W

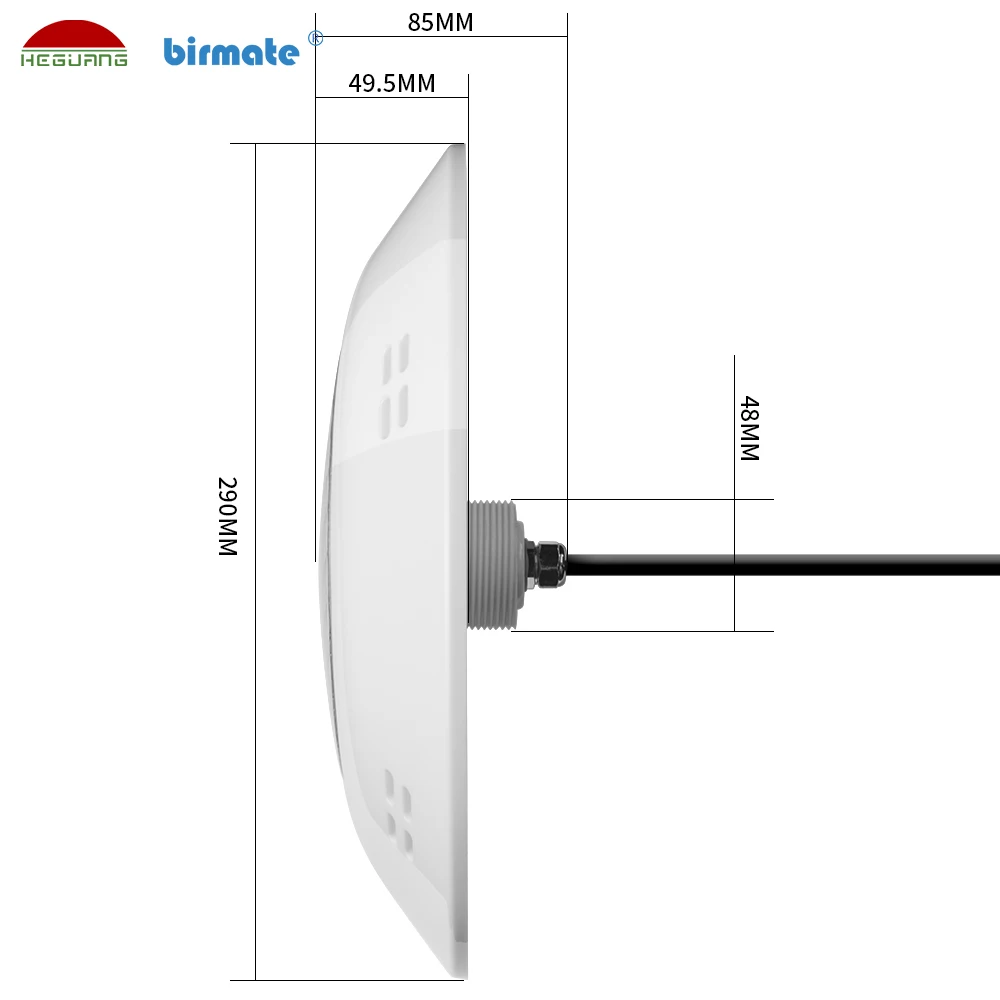

Product Size :


PL-F1 size



Product Parameter





















































Model No.



HG-PL-105S5-F1-T wall mounted swimming pool lights



Input voltage



AC12V



Wattage



18W



Halogen replacement



150W



Input current



1500ma



LED chip



SMD5050 LED chips



Beam angle



120°



Light dimension



Φ290×85mm



Cautions



Coil transformer only

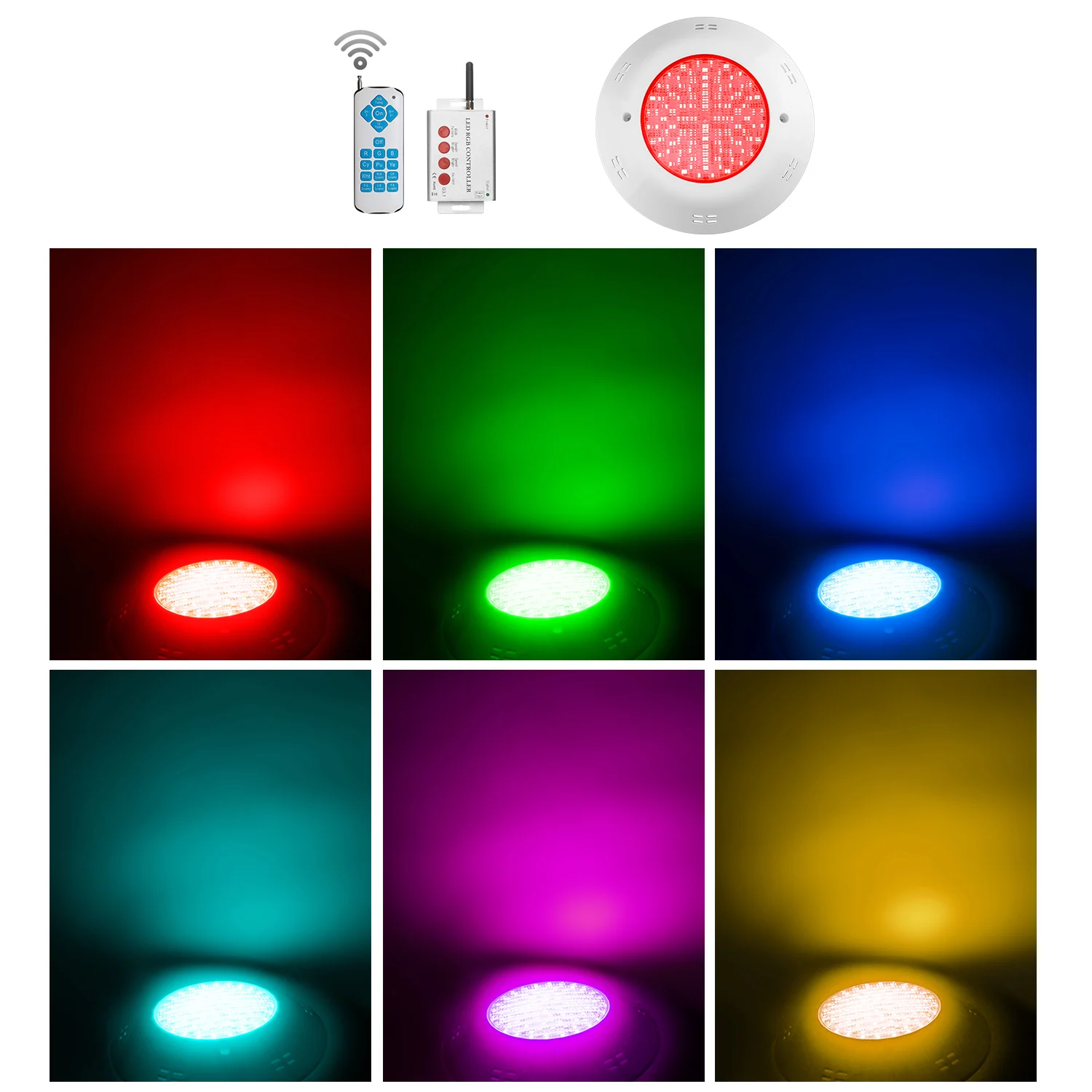

LED color available



single color: pure white/warm white/red /blue/green/purple /RGB



Certification



CE,ROHS,FCC,IP68






Advantages





1.Engineering ABS +Transparent PC cover ,without color fading in 2 years,uniform light no dazzing;


2.Nylon+fiber plastic back cover,good toughness and anti-aging ability;


3.High bright and energy saving imported LED chips,low light decay;


4.wall mounted swimming pool lights with high tension waterproof  silicone ring,no glue ,color changing <3%;


5.wall mounted swimming pool lights with IP68 nickel plated brass connector +VED standard waterproof cable ,better waterproof and anti-corrosion;


6.Heguang patent design RGB 100% synchronous control ,super good anti-interference ability;


7. 2-3MM aluminum light board for excellent heat dissipation, 2.0W/(m.k) Thermal conductivity.


8.wall mounted swimming pool lights all passed 30 steps quality control , 100% waterproof at 10m depth ,8 hours LED agening test,100% inspection before deliver.





wall mounted swimming pool lights compared to others :








 (1)

















Application





HG-PL-18W-F1-RGB-T wall mounted swimming pool lights use in fiberglass pool ,underwater IP68.





How to install the wall mounted swimming pool lights  :


PL-F1 install


Heguang wall mounted swimming pool lights Synchronous Control connection diagram:


one controller max connect with 20pcs lamps ,total power 600W ,one amplifier max connect 10pcs lamps (300W)


 PL-F1-T


wall mounted swimming pool lights application :fpool ,Outdoor Swimming Pool ,family pool,hotel pool ,underwater etc


PL-C1 APP (20)








Packaging & Shipping

































Item



HG-P56-PL-18W-F1-RGB-T wall mounted swimming pool lights



Product weight



1480g



color box size



310×310×120mm



Carton/pcs



10pcs/Carton



Carton size



650x330x640mm



Carton weight



16.3kg






About Company





In 2006, we began working in LED Underwater product development and production. factory area of 2,000 square meters, we are a high-tech enterprise also the only one China supplier who is listed


in UL certificate in Led Swimming pool light industry.

MAIN PRODUCTS
1.UL Certificated pool light
2.LED PAR56 pool light
3. LED Surface Mount LED Pool light
4. LED Fiberglass pool lights
5. LED Vinyl pool lights
6. LED Underwater Spot light
7. LED Fountain Light
8. LED Ground lights
9. IP68 Led Strip light
10.RGB Led Controller
11. IP68 par56 housing/Niche/fixture

CERTIFICATION AND GLORY
1.UL Certification (PAR56 Pool lights), CE, ROHS, FCC, EMC, LVD, IP68 , IK10.VDE
2.ISO9001 certification
3.Private model products
4.Structure waterproof technology
5.Customer satisfaction rate >98%
Heguang always adheres to the quality first, constantly develops new products to adapt to the development of the market,and provides customers with comprehensive and intimate product solutions to ensure worry-free after-sales!
The factory is located in Baoan, Shenzhen, close to Hong Kong and Shenzhen Airport. Welcome to visit factory.


(1)


Heguang LED pool lighting Certification :


certification


Heguang exhibition :









Recommed


 Heguang other products :IP68 underwater pool lights ,led fountain lights ,wall mounted led pool lights ,IP68 led strip lights ,led pool lighting accessories :


heguang products-2








FAQ





1. Q: When can I get the price?


A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices, please call us directly or leave us the messge ,we will give priority to your inquiry.





2. Q: May I get samples to test quality and how long can I get them?


A: Yes, samples can be ready in 3-5 days.





3. Q: What is the MOQ?


A: NO MOQ,the more you order ,the cheaper price you will get .





4. Q: Can you accept small trial order?


A: Yes





5. Q: Do you accept the OEM&ODM?


A: Yes, OEM/ODM acceptable





6.Q:what's the RGB control you have?


A: Patent design RGB 100% synchronous control ,switch control ,external control ,wifi control ,DMX512 control,etc.
