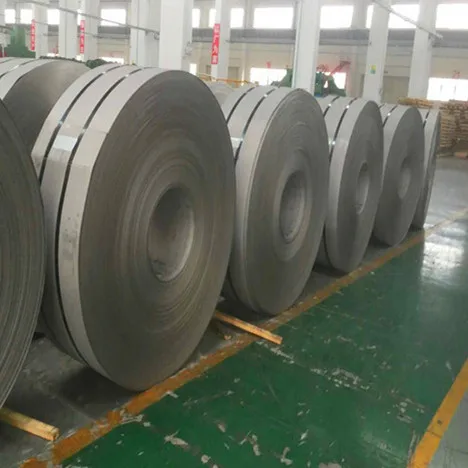

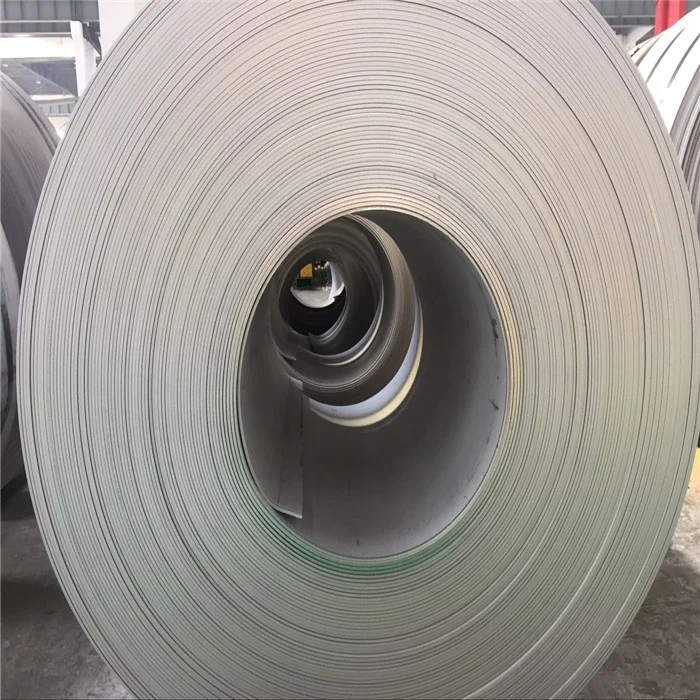

High Corrosion Resistant cold hot rolled 2.4819 Hastelloy C 276 Alloy C276 Plate Sheet
- Category: >>>
- Supplier: Jiangsu Xurui Metal Group Co. Ltd.
Share on (62437402242):
Product Overview
Description
High Corrosion Resistant cold hot rolled 2.4819 Hastelloy C-276 Alloy C276 Plate Sheet
Product Description
| Material | Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy |

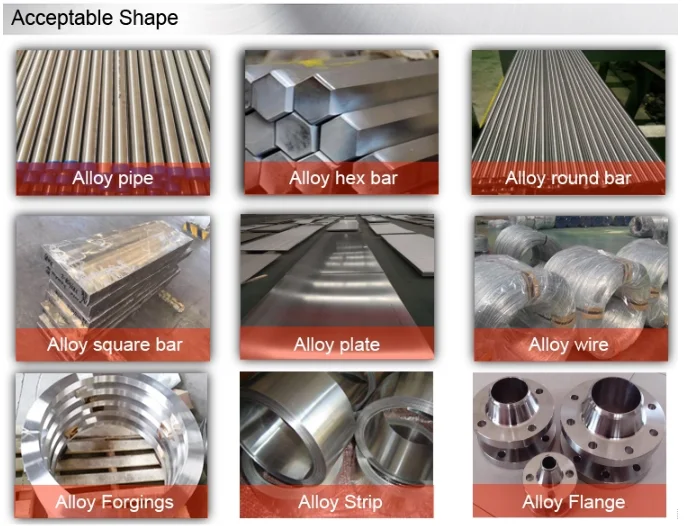

| Shape | Bar,Pipe/tube,sheet/plate,Forging,Ring,Coil,Flange,Ribbon,Square pipe/bar,product processing |
| Grade | Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760(Zeron 100),2304,904L |
| Hastelloy: Hastelloy B/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g;etc | |
| Inconel 600/601/602CA/617/625/713/718/738/X-750;ETC | |
| Incoloy: Incoloy 800/800H/800HT/825/925/926;etc | |
| GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044,etc | |
| Monel: Monel 400/K500/R405,etc | |
| Nitronic: Nitronic 40/50/60;etc | |
| Nimonic: Nimonic 75/80A/90/A263 ;etc | |
| Specification | Wire: 0.01-10mm Strip: 0.05*5.0-5.0*250mm Bar: φ4-50mm;Length 2000-5000mm Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm |
| Product Characteristics | 1.According to the preparation process can be divided into deformation superalloys, casting superalloys and powder metallurgy superalloys. 2.According to the strengthening mode, there are solid solution strengthening type, precipitation strengthening type, oxide dispersion strengthening type and fiber strengthening type, etc.. |
| Inspection | ISO,SGS,BV and so on. |

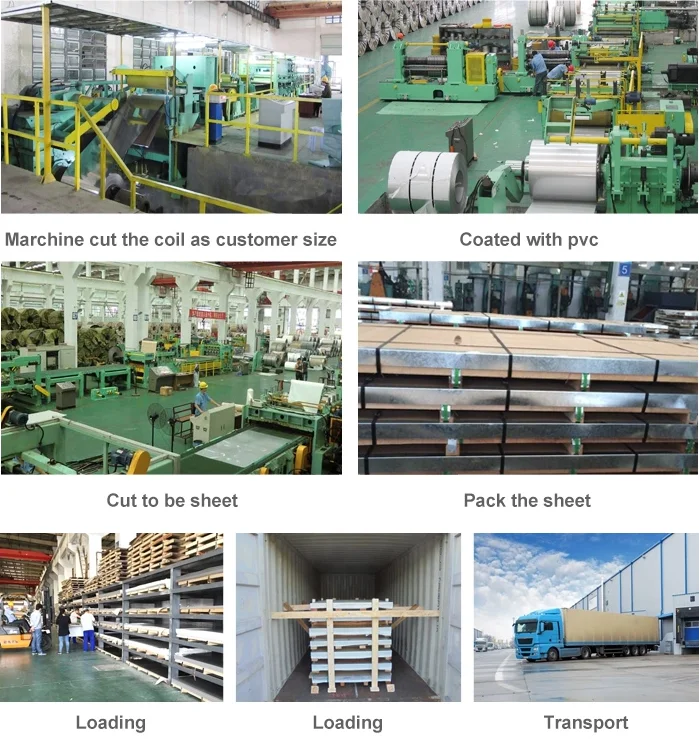

| Packaging | All our products are packed, stored, transported according to the international regulation.Or as customer's requirement provide special packing. |
hastelloy c276
Features: HASTELLOY C276 is a Nickel-chromium-molybdenum wrought alloy that is considered the most versatile corrosion resistant alloy available. This alloy is resistant to the formation of grain boundary precipitates in the weld heat-affected zone, thus making it suitable for most chemical process applications in an as welded condition. Alloy C-276 also has excellent resistance to pitting, stress-corrosion cracking and oxidizing atmospheres up to 1900°F. Alloy C-276 has exceptional resistance to a wide variety of chemical environments.
Applications:
- HASTELLOY C276 is one of the few alloys resistant to wet chloride gas, hypochlorite and chlorine dioxide solutions.
- HASTELLOY C276 has exceptional resistance to strong solutions of oxidizing salts, such as ferric and cupric chlorides.
- HASTELLOY C276 is not prone to grain boundary precipitation in the as welded condition and therefore suitable for many chemical process applications
Chemical Composition
| C | Cr | Ni | Fe | Mo | W | Si | Mn |
|---|---|---|---|---|---|---|---|
| 0.1 max | 14.5-16.5 | balance | 4.0-7.0 | 15.0-17.0 | 3.0-4.5 | 0.08 max | 1.0 max |
| S | P | V | Co |
|---|---|---|---|
| 0.04 max | 0.03 max | 0.35 max | 2.5 max |
Density and Melting point
| Density | Melting point |
|---|---|
| 8.47g/cm³ | 1325-1370 ℃ |
Mechanical Properties
| Tensile strength Rm N/mm² | Yield strength R P 0. 2N/mm² | Elongation (A 5%) Min |
|---|---|---|
| 690 | 283 | 40 |
![PRJI6KW_0{C$(1Q]6C1)TH](http://sc01.alicdn.com/kf/H6549112856924d4da9c7d5f645d5000ej/239369536/H6549112856924d4da9c7d5f645d5000ej.jpg)
