Heating industrial drying and curing machine Flower Jewelweed dehydrator
- Category: Other Drying Equipment >>>
- Supplier: Guangzhou Yike Heat Pump Drying Equipment Technology Co. ltd.
Share on (62437505519):
Product Overview
Description
Product Description
Purpose of drying
The purpose of drying is to remove water or solvent from some raw material and semi-finished products so as to facilitate the packing,transportation,storage,processing and use of material.
What is it ?

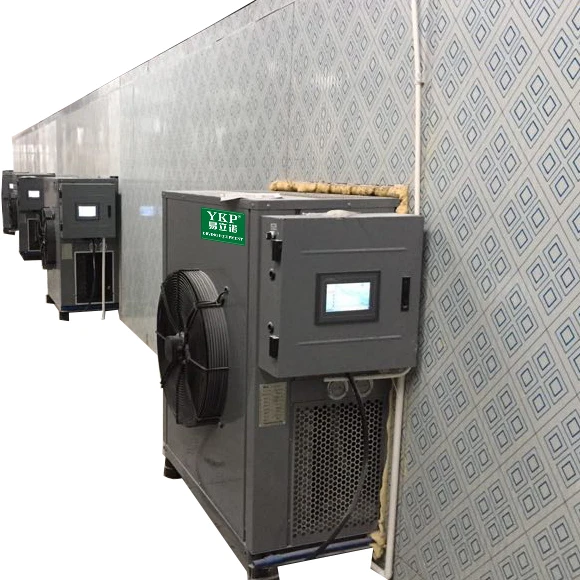

YKP Air Energy Heat pump Dryer uses the reverse Carnot principle to absorb the free heat from the air and transfer it to the drying room(input of 1 degrees of electric energy can produce 4 degrees of electric energy).
The temperture of the drying room is increase, and the corresponding dehumidification and moisture removal equipment is used to achieve drying of the material.
Products application:
Heat pump drying equipment is suitable for drying fruit, wood, seafood,agriculture product,tea and sludge in many field. The working principle of Heat pump drying machine
* In the dryer system,hot and dry air at the exit of condenser is allowed to pass through the drying chamber where it gains latent heat from the material. The humid air at dryer exit then passes through the evaporator where condensation of moisture occurs as the air goes below dew point temperature. Then drain the condenser water.
Product features
1.Safety & Environment protection：The low-temperture drying process below 80°c is fully suitable for drying.It adopts low temperture （40-80°c）fully enclosed drying mode ,no odor overlow ,no need to install complex deodorizing device.
2.Energy saving & Efficient: Using heat pump recoery technology, the closed drying mode dose not have any waste heat discharge.
3.Intelligent & Operating easily: Fully automatic operation, PLC+touch screen intelligent control,which temperature and humidity can be controlled in different time.
Detailed Images
Size Information
Recommend Configuration
Model | Capacity | Drying room size | Trolley qty | Drying room size can be customized under your requirements. |
YK-12E | 50KG/batch | 1300X760X2400mm | 1 | |
YK-24E | 100KG/batch | 2800x960x2200mm | 2 | |
YK-72RD-ZTB-24 | 150KG/batch | 2800x960x2200mm | 2 | |
YK-72RD-ZTB-24L | 200KG/batch | 2800x960x2200mm | 2 | |
One unit YK-72RD | 400KG/batch | 4000*2400*2400mm | 6 | |
Two units YK-72RD | 800KG/batch | 8000x2400x2400mm | 8 | |
One unit YK-145RD | 600KG/batch | 5000x3300x2400mm | 8 | |
Two units YK-145RD | 1500KG/batch | 8000x3300x2400mm | 12 | |
One unit YK-290RD | 1200KG/batch | 8000x3300x2400mm | 12 | |
Two units YK-290RD | 3000KG/batch | 12000x3300x2400mm | 20 | |
One unit YK-360RD | 1500KG/batch | 10000x3300x2400mm | 12 | |
Two units YK-360RD | 4000KG/batch | 13000x3300x2400mm | 20 |
Related Products
Model:YK-290RD
Click on me!
Model:YK-72RD-CH
Click on me!
Model:YK-240RD
Click on me!
Model:YK-145RD
Click on me!
Model:Yk-480RD
Click on me!
Model:YK-24E
Click on me!
Successful cases
Packing&Shipping
Packing: Unit packed in plywood cases.
Certifications
After Sales Service
Before arrival of machines:
* Inquiry and consulting support WITHIN 24 HOURS
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After deliver the machines:
* Technical support to instal,operate and maintain the machine
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
