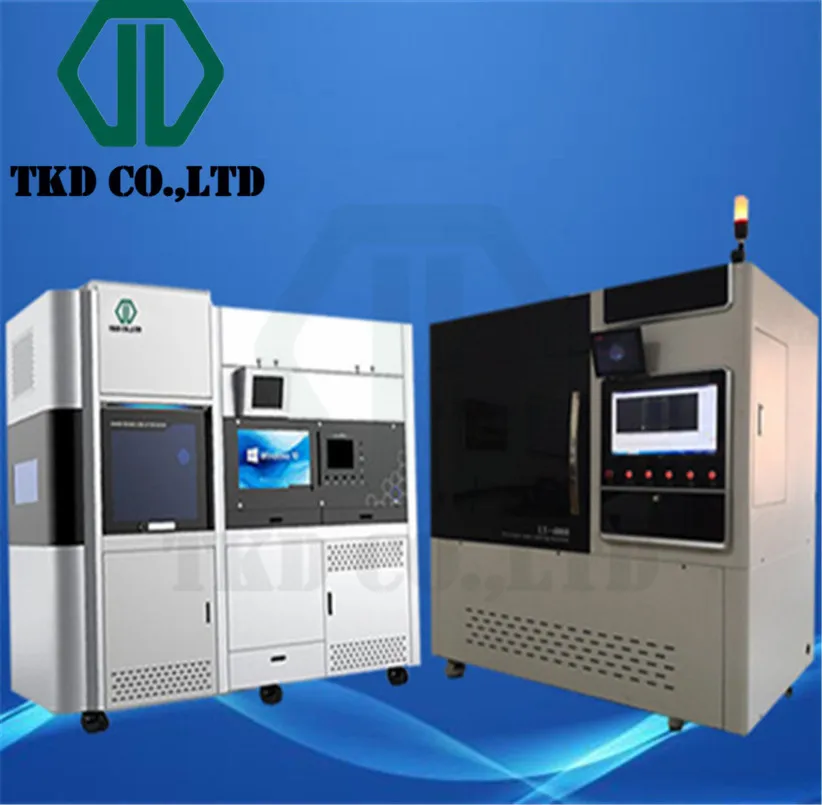

Diamond Fiber Laser Cutting Machine For PCD CVD PCBN CBN

 PCD diamond (superhard materials) laser cutting machine

1, Properties

1, high efficiency and speed, cutting lines clean, no cracks, maximum material savings;

2, mainly for PCD, PCBN, PCD and PCBN composite,

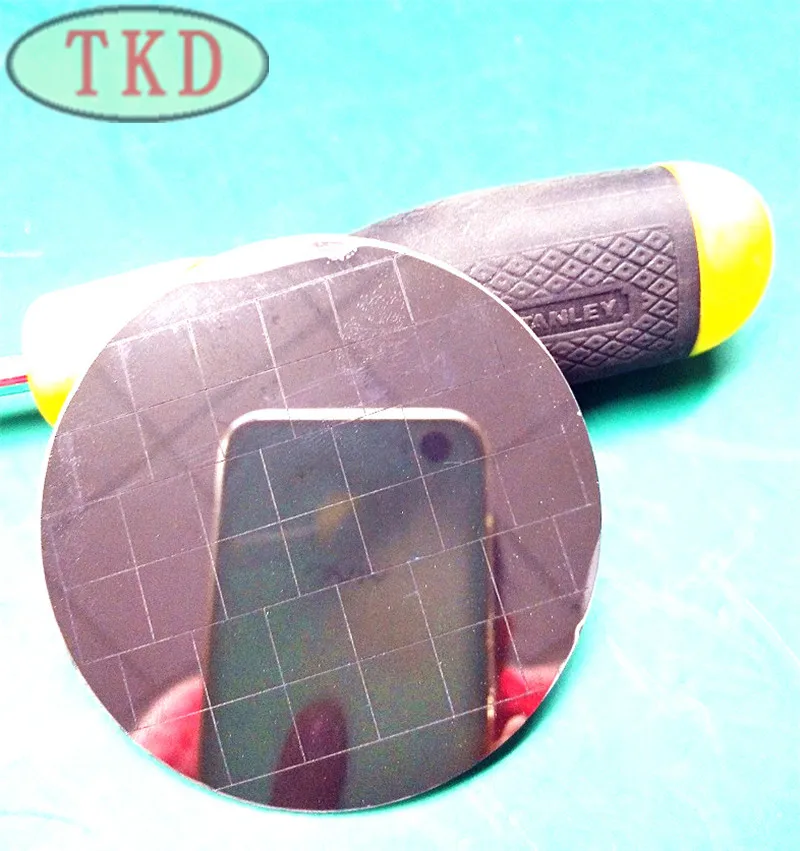

CVD diamond, single crystal diamond, carbide, ceramics, silicon disc and other

cutting, hole drilling, marking and engraving work.

3, Maximum cutting depth: PCD sheet materials for 5 mm with single face cutting (single way) PCBN materials and carbide materials bigger than this.

Double face cutting depth at PCD sheet materials for 10mm single way .

4, kerf width: 0.05 ~ 0.12 (mm);

5,Suggesting Cutting speed and kerf width: 1.6mm thick PCD cutting speed:>/=120mm/min, kerf width: </=0.12mm, 2.0mm thick PCD cutting speed:>/=80mm/min, kerf width:</=0.14mm
6, Cutting area: 300mm x 200mm
7, The maximum chamfering angle:30 °

8, The whole machine output: 8KW

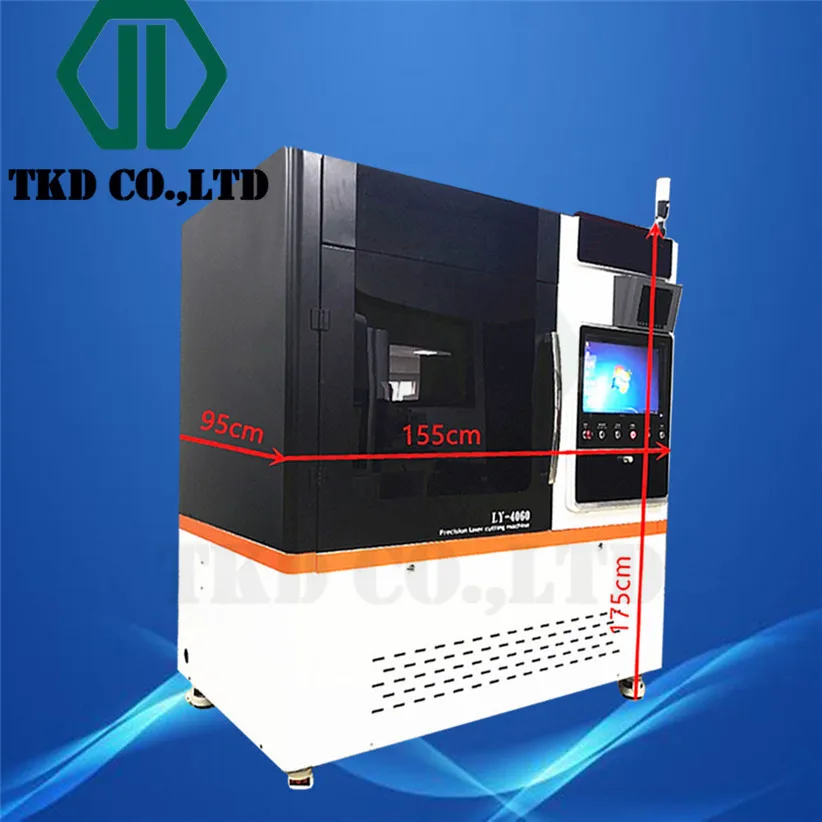

9, Size:1750mm x950mm x 1550mm, Weight: less or equal to 500 kg.

Model: TKD-150F/TKD-300F/TKD-400F

Type:Fiber laser cutting machine

Application: Cutting, drilling, chamfering, engraving.

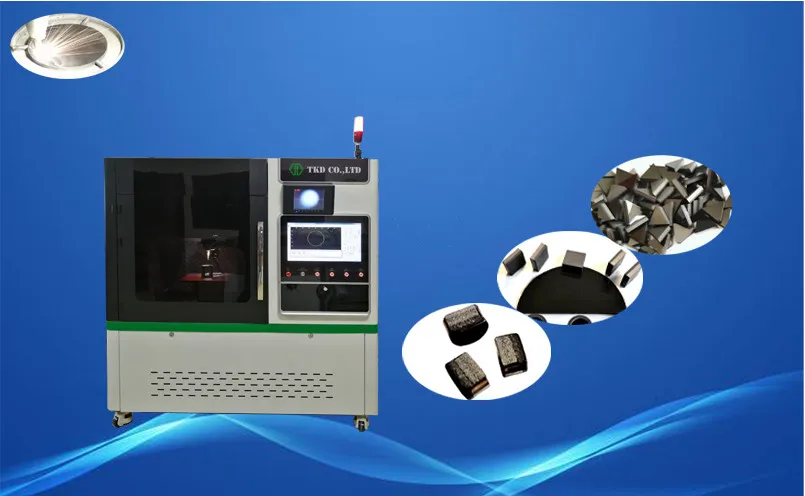

Workpiece: PCD, PCBN, poly-CVD, CBN, alloy, ceramic materials etc.

Advantage:

1, Advanced and mature fiber laser head makes cutting smooth, stable and operation friendly.

2, No consuming parts, except protect lens. No cooling tank. Easy maintenance.

3, Fiber laser photoelectric conversion rate is high, running power is only 1/10 of YAG laser type.

4,TKD-300F/TKD-400F are most powerful for cutting thick PCD up to 8mm at overall thickness at higher speed than YAG laser type. .

It is the non-conducting materials best cutting solution !!!

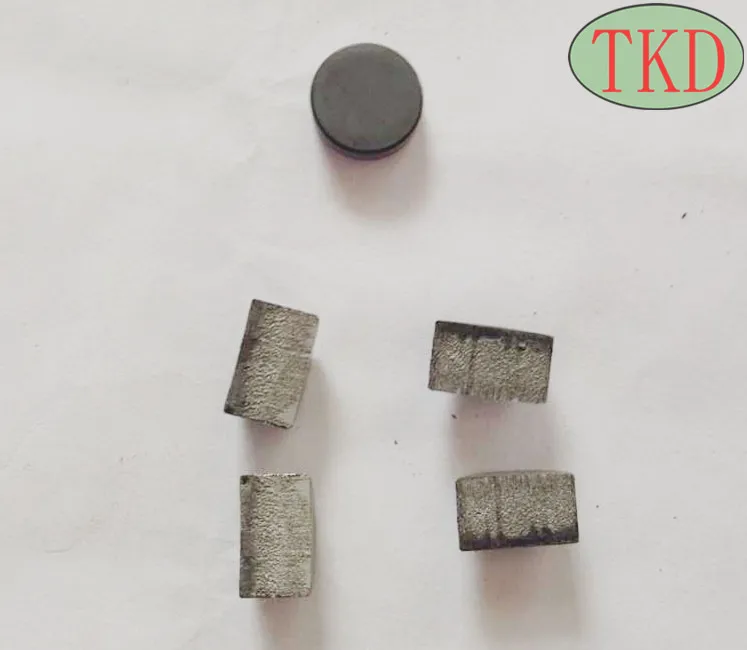

Cutting performance:

Programs can be edited to cut any designs you want, no matter for straight, curved, arc lines, you can all do it !

Training and Maintenance

Our professional engineer group will give the training lessons(including basic knowledge, operation, trouble-shooting etc) for our new customers to make sure every client master our equipment.

Also we offer 1 whole year maintenance for this equipment except some consumable parts.

For small problems, we will support by telephone, email way, for big problems, we will make door to door service until you are satisfied with our job.
