Trimble Hi target V90 GNSS GPS RTK radio Receiver with Electronic bubbles

Share on:

Price:$5,000.00 - $6,000.00
Price in USD:Details


Product Overview


Trimble Hi - target V90 GNSS GPS RTK radio Receiver with Electronic bubbles

Product Description

 Hi - target v 90 four-star RTK system, adhering to the characteristics of  Hi - target brand focus, professional and expert, condenses the ultimate professional pursuit of  Hi - target people, integrates cutting-edge technology, and has superior performance. Magnesium alloy structure, small volume, high quality, built-in transceiver integrated radio, improve efficiency, reduce strength; equipped with a new generation of four core strong Android hand book, equipped with hi survey professional measurement software, professional quality work more comfortable! Simple and convenient NFC operation, professional measurement easy to handle!

Intelligent experience

One key start job / automatic recovery mode / one key safety measurement / automatic access technology / intelligent voice broadcast / QR code parameter sharing.

Trimble Hi - target V90 GNSS GPS RTK radio Receiver with Electronic bubbles.jpg

 Key Features:

Multi-star system kernel

Support multiple systems of BDS, GPS, GLONASS, GALILEO for navigation and positioning;

Built-in transceiver

A built-in transceiver with high power and low power consumption, allowing base stations and mobile stations to be completely interchanged, which greatly improves the utilization rate of the instrument;

Trimble Hi - target V90 GNSS GPS RTK radio Receiver with Electronic bubbles.png

High-capacity battery

A single 5000mAh detachable high-performance large-capacity battery, which has a continuous increase in battery life that doubles, and meets your power requirements for field survey work in the multi-star era

Dual-format storage

GNS format and RINEX format can be stored at the same time. When compatible with other manufacturers' instruments, no software conversion is required, just download and use!

Large-capacity storage

In the multi-star era, higher host memory is required, V90's large 16G memory, and support for a maximum 32G SD expansion card to meet the needs of the instrument in the multi-star era!

Full-band antenna

 improve the satellite signal capture ability, easily fix in the urban measurement, enhance the multipath suppression and anti-interference ability, and can also measure stably in high-radiation environments such as squall lines and mining areas;

Magnesium alloy material

durable, better shielding, better heat dissipation, the choice of RTK users;

Tilt measurement

no need for precise centering for tilt measurement since then, automatic tilt compensation makes the measurement easy and simple;

Trimble Hi - target V90 GNSS GPS RTK radio Receiver with Electronic bubbles.png


NFC IGRS, lean on it, the software starts, the host connection is completed in one step, faster, more accurate, and easier to use;

Android handbook

professional customized professional surveying and mapping handbook, Android system, physical full keyboard, one-key smart start, one-key measurement;

Android software

Hi-Survey, a powerful professional measurement software, combines intelligence, experience and efficiency perfectly;

Electrical balance

share the notebook network, do not need the host to access the Internet, eliminate signal interference, and the notebook network is more stable;

Electronic bubbles

make your eyes clear! Graphic display, intelligent collection, sound prompts

Trimble Hi - target V90 GNSS GPS RTK radio Receiver with Electronic bubbles.png

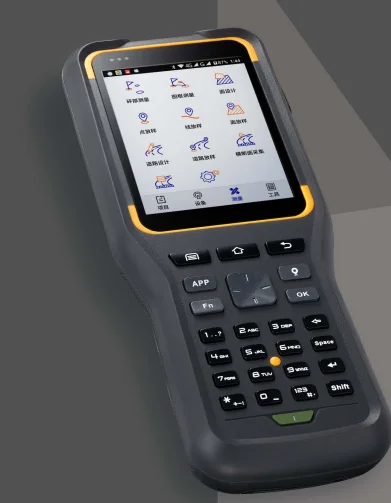

New iHand30 Handbook

  • Ergonomic design, more comfortable;
  • Powerful hardware configuration, quad-core 1.5GCPU, 2G + 16G storage, smoother operation;
  • Built-in 4G full Netcom, network standards are fully compatible;
  • The bright outdoor color touch screen is clearly visible in the sun;
  • New physical keyboard input method for faster input;
  • Support WF and cellular mobile dual-line intelligent Internet access;
  • USB Type C interface, support OTG function;
  • Battery life> 12 hours, support fast charging, charge one hour and work one afternoon;
  • Trimble Hi - target V90 GNSS GPS RTK radio Receiver with Electronic bubbles.pngTrimble Hi - target V90 GNSS GPS RTK radio Receiver with Electronic bubbles.png
Product Details


Performance Specification of V90
Measurements220 tracking channels ( Multi-constellation tracking)
Satellite Signals TrackedSimultaneouslyGPS: L1 C/A, L2C, L2E, L5
SBAS: L1 C/A, L5
Galileo: L1 BOC, E5A, E5B, E5AITBOC
BDS: B1, B2
QZSS: L1 C/A, L1 SAIF, L2C, L5
NGS approved full-band GNSS antenna



Static and Fast Static GNSS surveyingHorizontal: 2.5mm+0.5ppm RMS
Vertical: 5mm+0.5ppm RMS

Post processing  Kinematic

(PPK / Stop & Go)  GNSS surveying

Horizontal: 10mm+1ppm RMS
Vertical: 25mm+1ppm RMS
Initialization time: typically 10 minutes for base    while 5  minutes for rover
Initialization reliability: typically > 99.9%

Real Time Kinematic

 (RTK) Surveying

Single baselineHorizontal: 8mm+1ppm RMS
Vertical: 15mm+1ppm RMS
Network RTKHorizontal: 8mm+0.5ppm RMS
Vertical: 15mm+0.5ppm RMS
Initialization time: typically < 8 seconds
Initialization reliability: typically > 99.9%



GNSS positioning

Horizontal: 25mm+1ppm RMS
Vertical: 50mm+1ppm RMS
SBAS: 0.50m Horizontal, 0.85m Vertical
HardwarePhysicalDimensions(W × H):15.30cm×8.30cm
(6.02 in.×3.27in.)
Weight:0.95kgs (2.09lbs) without internal battery
Operating:-40°C to +65°C (-40°F to +149°F)
Storage temperature: -40°C to +75°C
(-40°F to +167°F)
Humidity:100%, considering
Water/dust proof: IP67 dust proof, protected from
temporary immersion to depth of 1m (3.28ft)
Shock and Vibration.Designed to survive
a 3m(9.84ft) nature fall onto concrete.
ElectricalPower 6V to 28V DC external power input
Power consumption< 3.5W
Automatic switching between internal power and
external power
Battery: rechargeable, removable 7.4V, 5000mAh
/block  lithium
battery in internal battery compartment
Internal battery life: Static 12 hours, RTK rover
(UHF/ GPRS / 3G)
8-10hours, RTK base 8 hours
I/O interface1×Bluetooth, NFC
1×standard USB2.0 port
2×RS232 serial port
2×DC power input(8-pin & 5-pin)
1×Micro SD card port for GSM or CDMA
Tilt survey system & electronic bubble


system and data storage

Network CommunicationFully integrated, fully sealed internal WCDMA,
compatible with
GPRS,GSM, WIFI frequency is 2.4G, supports
802.11b/g/n protocol
HI-TRAGERT internal  UHF radio(standard)Frequency: 450~470MHz with 116 channels
Transmitting power:0.5W, 1W, 2W adjustable
Transmitting speed: 9.6Kbps,19.2Kbps
Working range: 3-5km typical, 8-10km optimal
Pacific Crest XDL Micro internal UHF radio  Frequency: 403~473MHz, support most of radio
communication protocol
Transmitting power: 0.5W, 2W adjustable
Transmitting speed: up to 19.2Kbps
Working range: 3-5km typical, 8-10km optimal
HI-TRAGERT external UHF radio(standard)Frequency: 460MHz with 116 channels
Transmission power: 5W, 10W, 20W, 30W adjustable
Transmitting speed: up to 19.2Kbps
Working range: 8-10km typical, 15-20km optimal
Pacific Crest ADL Vantage Proexternal UHF radioFrequency: 390~430MHz or 430~470MHz
Transmitting power: 4W to 35W adjustable
Transmitting speed: up to 19.2Kbps
Support most of radio communication protocol
Working range: 8-10km typical, 15-20km optimal
SystemData storage:16GB internal storage(Support up   to 32GB  external SD card
Record GNS and RINEX format simultaneously
Data formatsPositioning output: 1Hz to 20Hz
CMR: CMR, CMR+, sCMRx input and output
Navigation outputs ASCII: NMEA-0183 GSV, AVR, RMC, HDT, VGK, VHD,
RTCM: RTCM2.1, 2.3, 3.0, 3.1, 3.2 input and output
Navigation outputs Binary:Trimble GSOF
product show

 Trimble Hi - target V90 GNSS GPS RTK radio Receiver with Electronic bubbles.pngTrimble Hi - target V90 GNSS GPS RTK radio Receiver with Electronic bubbles.pngTrimble Hi - target V90 GNSS GPS RTK radio Receiver with Electronic bubbles.png

shipping and payment

Generally, we accept Irrevocable LC at sight, Advance T/T, Paypal, Escrow and West

 union.If you prefer other payment terms, please let us know.

Multi-star system kernel Hi - target V90 GNSS GPS RTK Receiver with base and rover and pole.jpg

Company Information

With 8 years' experience in geodetic surveying and cadastration surveying, we are a professional and leading enterprise in the surveying industry in Mainland China. We specialize in the R&D and manufacturing and sales of all kinds of surveying products, including total station, electronic theodolite, electronic distance meter, automatic level, laser level, reflector prism, surveying accessory, GPS receiver, mapping software, etc. The marketing model advocated by us is not a simple sense of "selling products", instead, pre-sales service, services during operation and after-sales service are integrated in entire operating activities. It makes the customers feel that they purchased not only a commodity, but also a professional service.

Trimble Hi - target V90 GNSS GPS RTK radio Receiver with Electronic bubbles.png

Our Services


1.Any inquiries will be replied within 12 hours.

2.All our products have one year warranty, And we sure the products will be free from maintenance within warranty period.

3.All products will have been strictly quality checked in factory before seding out.



1. So for technical support where can I ask?

A: Please just send your questions to me and I will forward your requirement to the right person since all our technicians or factory engineers are speak Chinese only.


2. We want to import it, but we have not any import/export license, so, please let us know how it will be materialized, so that we can get that instrument without any problem.

A: As we will ship the product through express company like DHL/TNT, you don’t necessarily have any import/export license. The carrier/express will deliver the product to your office or your place and they will finish the custom clearance on behalf of you however you will have to provide supporting information or document, usually the PI, when necessary. You will also pay the fee or tax to the carrier. There are 2 typical fee may occur. One is custom duty upon your cargo value and category. The other is VAT/GST which is Value Added Tax upon on the cargo value and your local VAT rate.
