2100mm 25TPD Double Wire A4 Paper Making Manufacturing Machine

Share on:

Price:RUB 51,556,240.00 - RUB 74,301,640.00
Price in USD:Details


Product Overview


Product Description


Ⅰ.Technical parameter:
1.output paper : A4paper newspaper, printing paper
2.raw material: 30% waste paper, 70% finished wood pulp board
3.capacity: 25 ton per day;
4. net paper width:2100mm;
5.mesh width:2450mm
6.output paper weight: 60-80g/m2;
7. working speed: 100-140m/min
8. design speed:180m/min
9. rail gauge:3000mm;
10. drive way: adjustable-speed motor;
II. Main structure for paper making machine
1.Double wire section:
   Open type head box, recitify through double evener roll, covered with stainless steel, wire drive roll with diving device, forming board, water scraper plate, high and low vacuum suction box, wire tight screw device, adjuster etc. Equipped with caintilever type wire-chaning device, paper carrying fom wire part to press part by blowing device.
2.Press section:
  K type press: Φ800mm ×2450mm × 3000mm natural marble roll 1 set, Φ750mm × 2450mm × 3000mm vacuum press roll 1 set, Φ700mm × 2450mm × 3000mm rubber roll 1 set, rubber shore hardness 98 ± 2 SR.
on- machine press
Φ7000mm×2450mm× 2300mm natural marble roll 1 set, Φ6500mm× 2450mm× 3000mm rubber roll 1set,coated by rubber,rubber hardness 98±2SR, equipped with mechanical pressure device.
3. Dryer section
Φ2500mm×2450mm×3000mm alloy dryer cylinder 1 sets, Φ650mm ×2450mm ×3000mm touch roll 1 set, coated by rubber, rubber hardness 90±2SR, Φ1500mm × 2450mm × 3000mm dryer cylinder 4 sets, scraper blade 5 sets, with dry felt device pneumatic pressure device, semi-closed dryer hood.
4. Sizing section
  2100mm sizing machine 1 set.
5. Calebder section
  2100mm two-roll calender 1 set, and top roll Φ400mm, bottom roll Φ300mm.
6.Winding section:
  2100mm horizontal pneumatic winding machine 1 set.
7. Paper converting section:
  2100mm up-feed frame type rewinding machine.

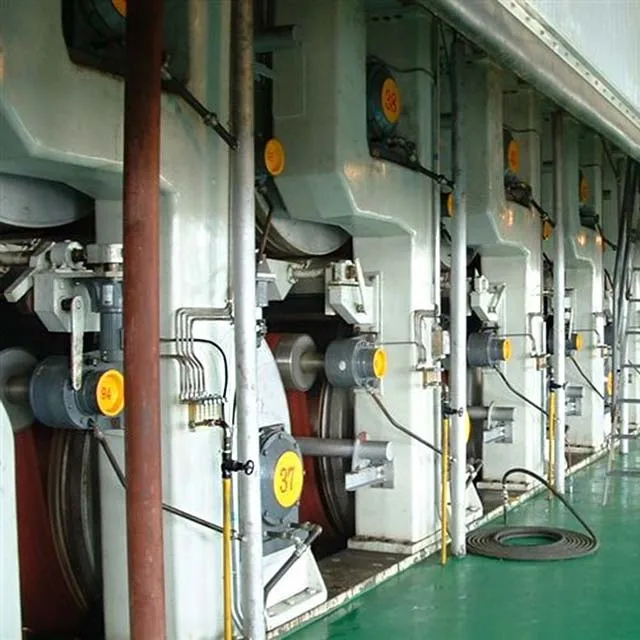

 double wire paper machine.jpg

printing paper machine.jpg

Company Information



Packaging & Shipping





Q: 1.What information do you need,if i need to get a quotation from you?

A: Output paper type; Capacity(tons/24hours); Output paper weight(gram/m2); Raw material

Q: 2.How long is guarantee period for paper making machine?

A: 12 months after formal operational.

Q: 3.What is the delivery time if we make a order from you?

A: Usually, the delivery time for smaller machines is 30-45 days after receiving deposit,but for bigger machines,it will be longer to make sure the equipment quality.

Q: 4.What is your payment terms?

A:  (1). T/T(telegraphic transfer)30% as deposit,and 70% balance paid before shipment.

     (2). 30%T/T + 70%L/C at sight.

     (3). 100%L/C at sight.

Q: 5.How is the quality of your equipment?

A: (1). We are manufacturer, specializing in producing all kinds of Pulping Machine & Paper Machine & Environmental Protection equipment for more than 40 years, competitive with good quality.

    (2). We have a technician team of engineers and experts. They mainly research the advanced paper making technology,to make sure our machines’ design are newest.

    (3). The machines will be pre-installed at workshop before delivery.

    (4). All of our machines has audited the certificate of ISO

Q: 6.Why your price is higher than other similar supplier?

A: Different quality,different price.Our price is matched with our high quality. Compared with to her suppliers based on the same quality,our price is lower.But anyway,to show our sincerity, we will give you some discount.

Q: 7.Can we visit your factory and the running machine has installed in China?

A: Welcome to visit our factory.You can check our production ability, processing ability ,check out facilities and running paper production line. What is more,you can discuss with engineers directly, and learn the machines well.
