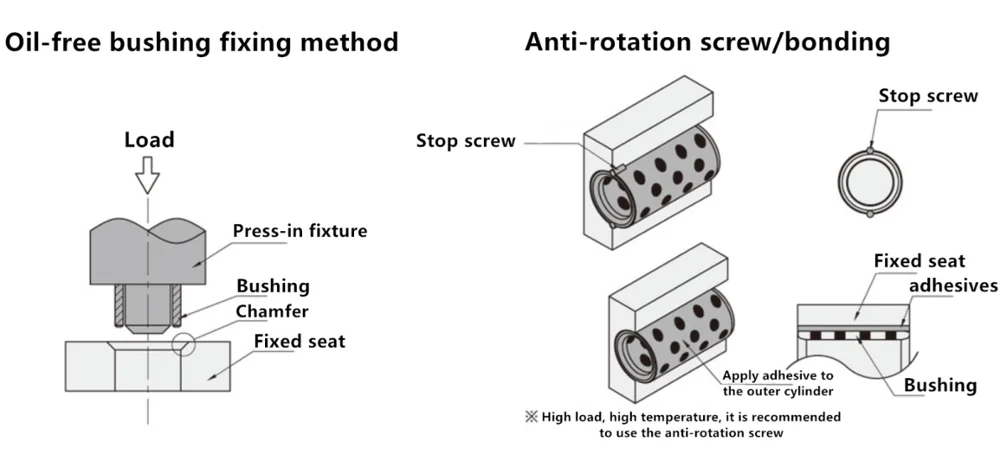

When pressing the oil-free bushing, use a vise or punch to press it in quietly. In order to facilitate the press-in, it is recommended to chamfer the end of the inner diameter of the fixed seat, apply a small amount of lubricating oil to the inner diameter of the fixed seat and the outer diameter of the bushing.
Anti-rotation screw/bonding
Note that when the oil-free bushing is prevented from falling off and turning, it is recommended to use the following methods depending on the conditions of use and the environment.
The life of oilless bushings depends on the amount of wear. The calculation of wear amount is very different due to surface pressure, sliding speed, movement pattern, lubrication conditions, surface roughness of matching shaft and other conditions.From the viewpoint that the wear amount is proportional to the load and sliding distance, the following formula is usually used to calculate the wear amount. Please consider it as the standard for selection.
Estimate wear(mm)W=K*1×p×v×T
Wear ratio(k):mm/(N/mm2·m/s·Hr)
Design surface pressure(p):N/mm2
Sliding speed(v):m/s
Friction time(T):Hr-hr
Roughly Standard for Friction Ratio
Lubrication condition
mm/(N/mm2·m/s·Hr)
mm/(kgm/cm2·m/min·Hr)
No lubrication
3×10-3~6×10-4
1~5×10-6
Regular lubrication
3×10-4~6×10-5
1~5×10-7
Grease
3×10-5~6×10-6
1~5×10-8
Company Information
Sanlong Bearing is a high-tech enterprise integrating R&D, design, production and sales.Introducing the world's top production lines, production processes and processing technologies.
From the product raw material to finished product ,processing has passed 21 quality inspections to ensure that the products meet international standards. The pursuit of excellence in craftsmanship and devout quality customer service has won recognition from domestic and foreign customers. Self-lubricating oil-free bearing products have been sold throughout the country and 21 countries and regions such as Taiwan, Europe and North America.For decades, we have always adhered to the first line of the bearing industry in China, providing the most professional bearing solutions and striving to build a world-class bearing brand.
FAQ
1.How long is your Delivery time?
Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
2.What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
3. Are you trading company or manufacturer? We have our own factory and our type is factory + trade.
4. Do you provide samples ? is it free or extra ?
We can provide samples.
5. How to ensure the quality?
Many of our products have passed SGS third-party certification to ensure that the authentic materials of the products are as described in the introduction.
6. What does your factory produce?

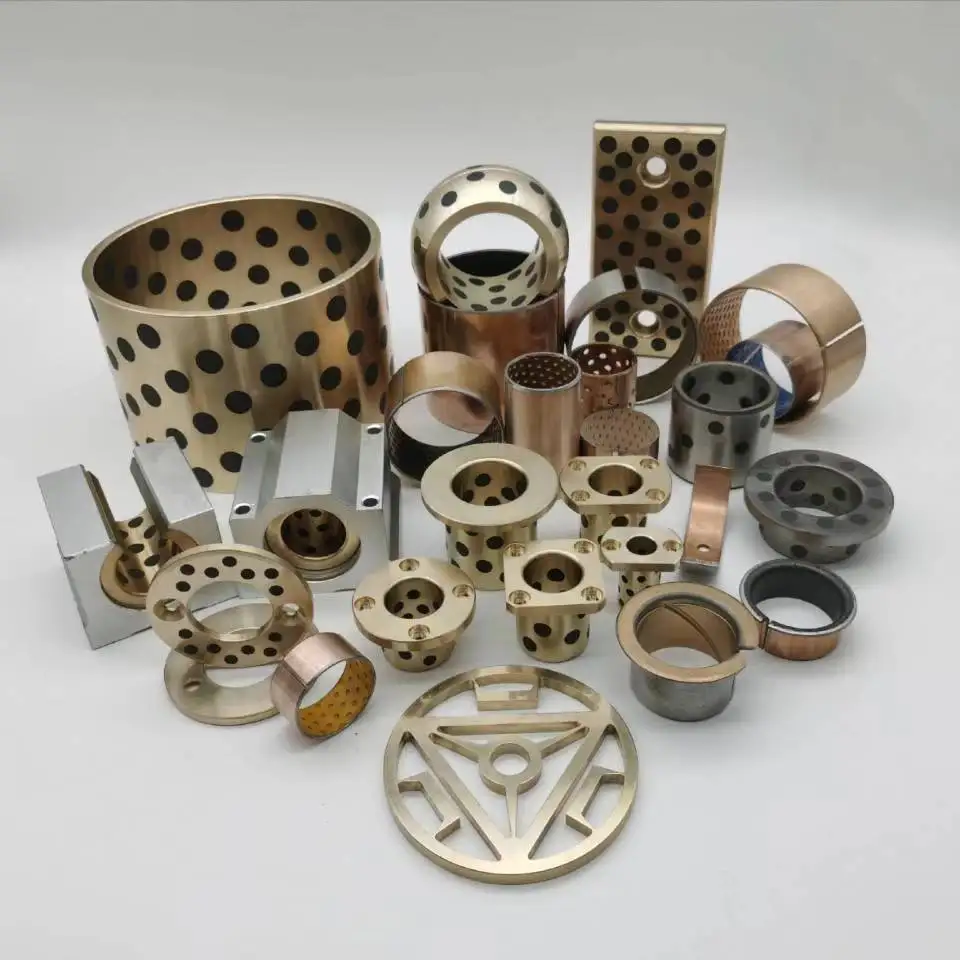

We make all kinds of bushings and bearings including Graphite copper sleeve ,DU,DX bushing,bimetal,wrapped bronze.
7.Do you like to serve the client only with small orders?
We enjoy to grow up together with all our clients whatever big or small.And it is our wish to reach a pleasant cooperation
8.How to maintain my bearings?
Protect the bearing with lubricant. Remove dirt from the bearing.
