sachet packaging machine former
US $420.00-$450.00
overflow filling nozzle vavles
- Category: Packaging Machinery Parts >>>
- Supplier: Zhangjiagang Sanofi Machinery Co. Ltd.
Share on (62438433753):
Product Overview
Description

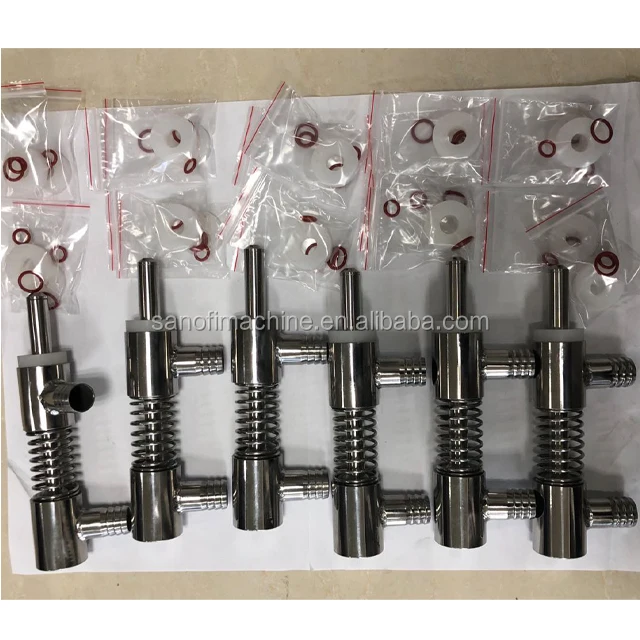

Liquid filling nozzles and accessories
We supply kinds of liquid filling nozzles and accessories. SUS 304 material gravity overflow filling nozzles, with safety, good preformance,Accurate filling speed
.Wine filling nozzles
Cleaning agent filling nozzle
5 gallon bottle water filling nozzle
Filling nozzles O sealing rings and gasket

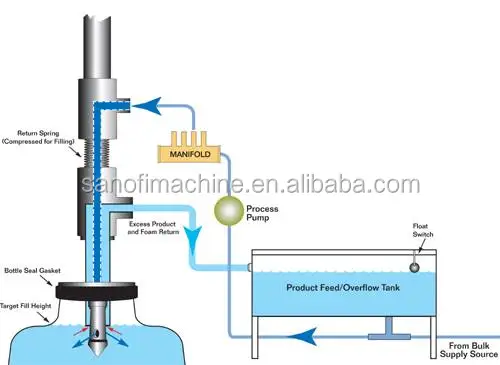

how overflow filling machine works
The supply side (dark blue) of a two part nozzzle is used to pump product into the container. When the container fills up to the
target fill height, the excess product and foam is forced out of the container (red arrows) via the return side to the original
product source tank.
target fill height, the excess product and foam is forced out of the container (red arrows) via the return side to the original
product source tank.
Application for the filling nozzles
This type of filler is best suited for liquids with low to medium viscosity. liquids with solid particulates not exceeding 1/16″
can also be filled. Note that overflow fillers are the machine of choice in handling very foamy products at higher speeds.
Examples:
Sauces, syrups, light gels and shampoos, foamy cleansers and chemicals, water and other non carbonated aqueous beverages.
can also be filled. Note that overflow fillers are the machine of choice in handling very foamy products at higher speeds.
Examples:
Sauces, syrups, light gels and shampoos, foamy cleansers and chemicals, water and other non carbonated aqueous beverages.
Inline Liquid filling machine nozzles
Filling machine nozzles | |||
Inlet size | 3/4'' | 1/2'' | customized(yes) |
Outlet size | 3/4'' | 1/2'' | customized(yes) |
