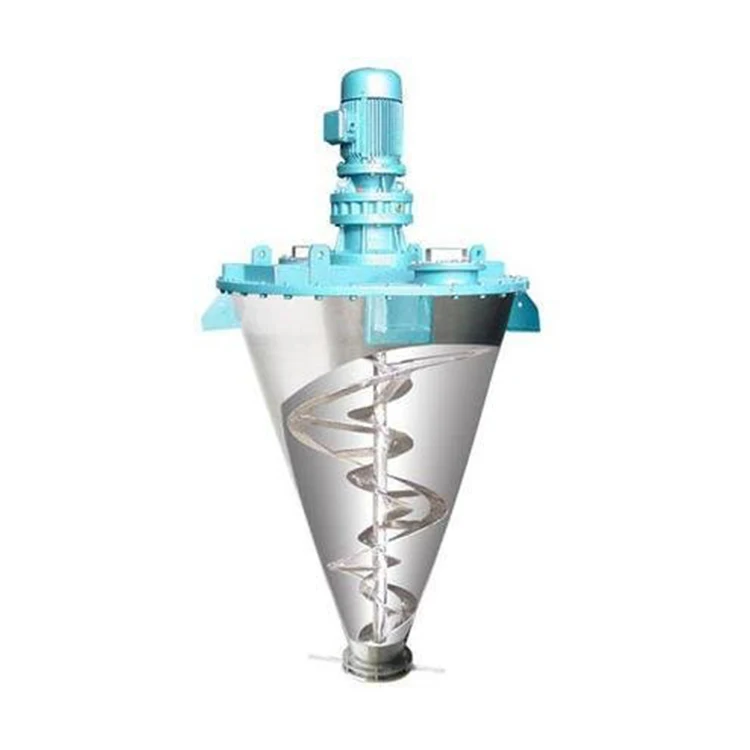

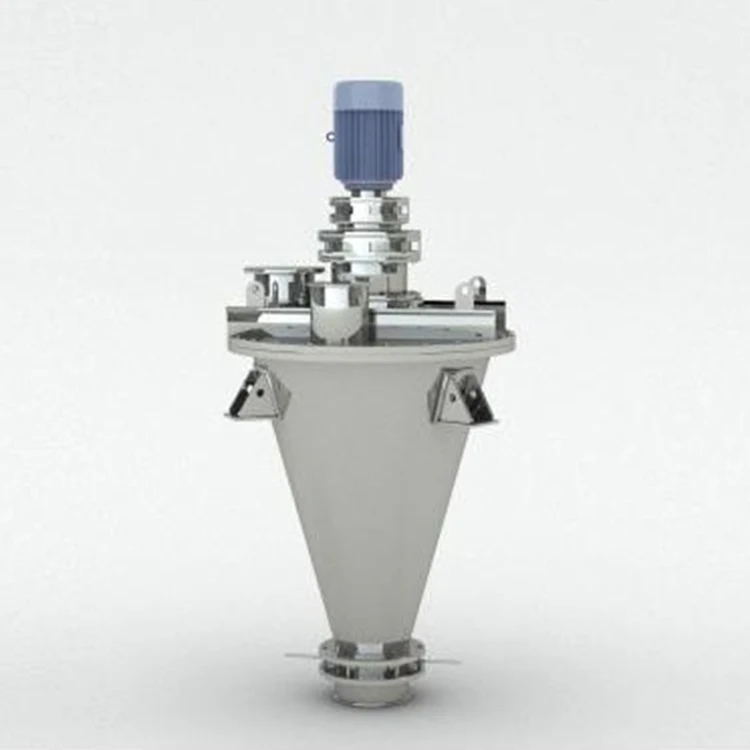

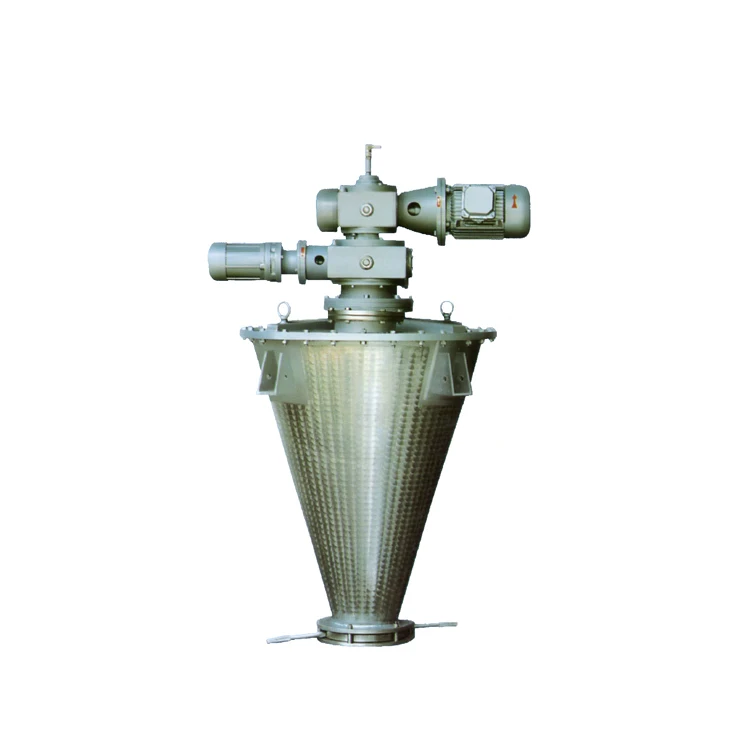

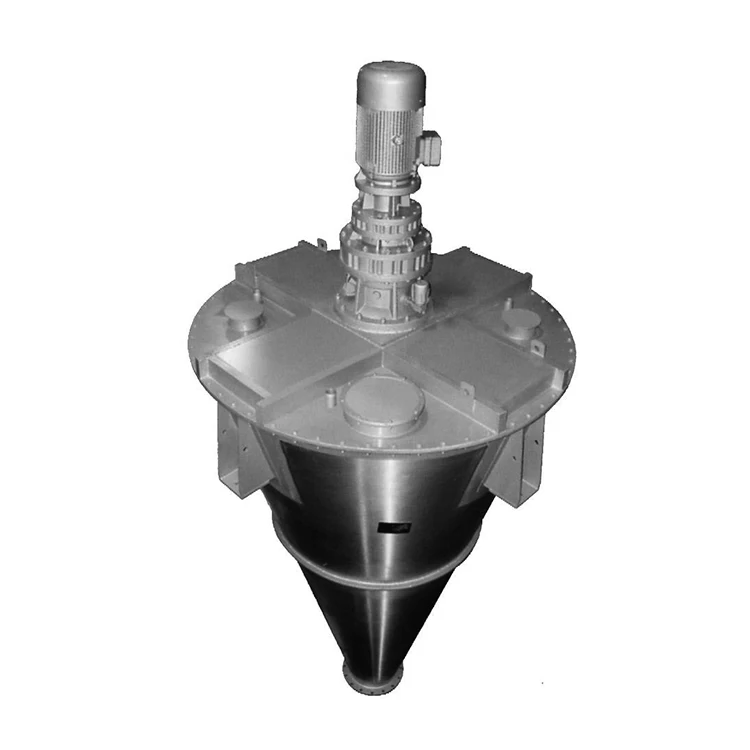

Double screw lifting baldes conical mixer/vertical ribbon blender for fertilizer laboratory powder mixer
- Category: >>>
- Supplier: Sino Pharmaceutical Equipment Development (Liaoyang) Co. Ltd.
Share on (62438794039):
Product Overview
Description
Product Description

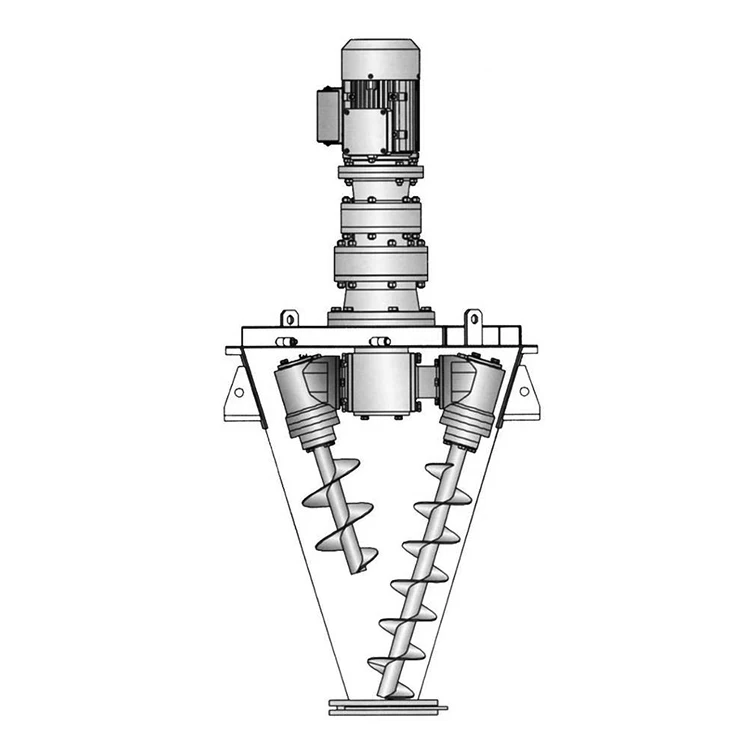

The material is made to conduct a compound motion in the cone because of the rotation and revolution of the screws.The effected motions include:
1.The revolution of the screw along the wall making the material conduct a circumferential motion;
2.The rotation of the screw making the material rise along the screw from the cone bottom;
3.The compound motion of the rotation and revolution of the screws making partial,material can be absorbed into the screw cylindroid meanwhile,under the action of centrifugal force,the partial material in the screw cylindroid discharges radially.
4.The rised material drops under its sole weight.the four kinds of motions effect convection,shearing,diffusion in the cone ,thus quick and even mixing can be achieved.

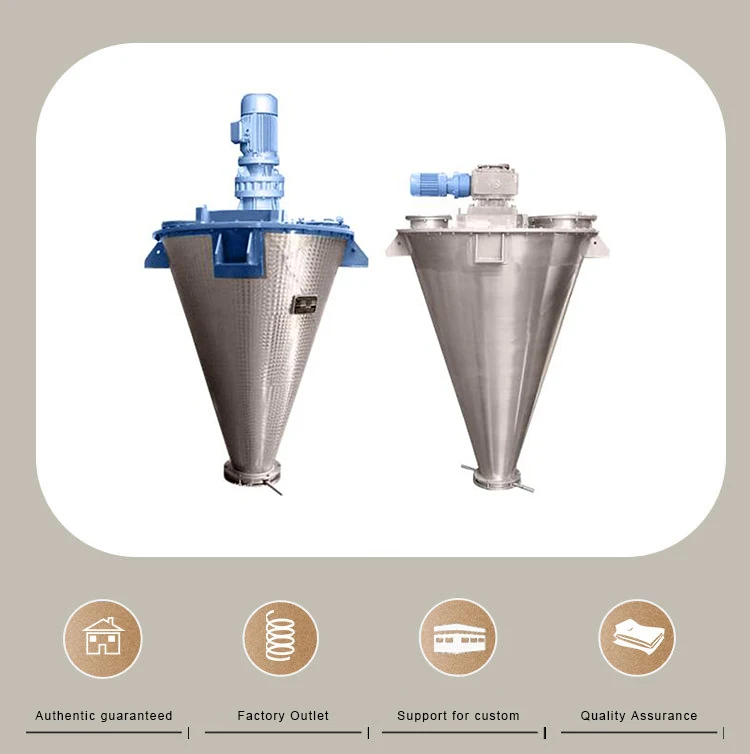

Detailed Images
Technical Parameters
It can be equipped with flying-entter aditionally, so as to meet the requirements for special technology.
The discharge valve adopts two ways , one is manual or the other is pneumatical.
The power of motor can be enlarged for special material(strengthening type).
The discharge valve adopts two ways , one is manual or the other is pneumatical.
The power of motor can be enlarged for special material(strengthening type).
Specification
Type | Total volume(m³) | Load factor | Equipped power(Kw) | Operating conditions | dimensions (mm) | Weight (kg) |
DSH-0.1 | 0.1 | ≤0.6 | 1.5 | Normal temperature pressure powder dust seal | 1569φ702 | 250 |
DSH-0.3 | 0.3 | ≤0.6 | 2.2 | Normal temperature pressure powder dust seal | 1929φ920 | 550 |
DSH-0.5 | 0.5 | ≤0.6 | 3 | Normal temperature pressure powder dust seal | 2322φ1124 | 660 |
DSH-1.0 | 1.0 | ≤0.6 | 4 | Normal temperature pressure powder dust seal | 2869φ1480 | 1200 |
DSH-1.5 | 1.5 | ≤0.6 | 5.5 | Normal temperature pressure powder dust seal | 3140φ1633 | 1350 |
DSH-2.0 | 2.0 | ≤0.6 | 5.5 | Normal temperature pressure powder dust seal | 3489φ1816 | 1500 |
DSH-3.0 | 3.0 | ≤0.6 | 7.5 | Normal temperature pressure powder dust seal | 3747φ2210 | 2300 |
DSH-4.0 | 4.0 | ≤0.6 | 11 | Normal temperature pressure powder dust seal | 4362φ2280 | 2520 |
DSH-5.0 | 5.0 | ≤0.6 | 15 | Normal temperature pressure powder dust seal | 4576φ2402 | 3000 |
DSH-6.0 | 6.0 | ≤0.6 | 15 | Normal temperature pressure powder dust seal | 4900φ2582 | 3150 |
DSH-8.0 | 8.0 | ≤0.6 | 18.5 | Normal temperature pressure powder dust seal | 5405φ2805 | 4500 |
DSH-10 | 10 | ≤0.6 | 20.7 | Normal temperature pressure powder dust seal | 5795φ3018 | 5500 |
DSH-15 | 15 | ≤0.6 | 24.2 | Normal temperature pressure powder dust seal | 6475φ3450 | 6600 |
DSH-20 | 20 | ≤0.6 | 41 | Normal temperature pressure powder dust seal | 7535φ3805 | 7000 |
DSH-25 | 25 | ≤0.6 | 41 | Normal temperature pressure powder dust seal | 7995φ4078 | 8500 |
DSH-30 | 30 | ≤0.6 | 52.5 | Normal temperature pressure powder dust seal | 8385φ4330 | 9200 |
Product Application
Applications
It can be equipped with flying-entter aditionally, so as to meet the requirements for special technology. The discharge valve adopts two ways , one is manual or the other is pneumatical. The power of motor can be enlarged for special material(strengthening type).
Packing & Delivery
Our Company
FAQ
Q1. Are you really a manufacturer? Where is your factory? How can I visit your factory?
Yes, we are a source manufacturer with headquarter located in Liaoning province China. Sinoped dates from 1947. We are Warmly Welcome You to Visit Our Factory if You Have a Travel Plan.
Q2. Why choose your company?
With more than 70 years of precipitation, Sinoped has experienced technology, production, quality inspection, sales and
after-sales departments. Every client has his own service team in our company and according to the different needs of clients, we develop different programs to provide customers with the best quality equipment. Moreover, we have exhibition halls and distributors in many overseas countries, which can ensure our service quality.
Q3. How can I trust you for the first-time business?
Please note our business license and certificates above. if you still worry about our company, we suggest using Alibaba trade assurance service for all transactions to protect your money and ensure our service for you.
Q4. How about the after-sale service and guarantee period?
1.18-month warranty period for whole machine except for human factors etc. and 18 months’ after-sale service starts from the date when you receive machine or 18 months when installation finished.
2.Consultation services for whole machine life, and 24 hours technical support by email or video on line
3.English software, user manual and the installation & debugging by our experienced technicians.
Q5. If we have very special request on the production line, could you help me to do the design?
Customized design is provided.
Yes, we are a source manufacturer with headquarter located in Liaoning province China. Sinoped dates from 1947. We are Warmly Welcome You to Visit Our Factory if You Have a Travel Plan.
Q2. Why choose your company?
With more than 70 years of precipitation, Sinoped has experienced technology, production, quality inspection, sales and
after-sales departments. Every client has his own service team in our company and according to the different needs of clients, we develop different programs to provide customers with the best quality equipment. Moreover, we have exhibition halls and distributors in many overseas countries, which can ensure our service quality.
Q3. How can I trust you for the first-time business?
Please note our business license and certificates above. if you still worry about our company, we suggest using Alibaba trade assurance service for all transactions to protect your money and ensure our service for you.
Q4. How about the after-sale service and guarantee period?
1.18-month warranty period for whole machine except for human factors etc. and 18 months’ after-sale service starts from the date when you receive machine or 18 months when installation finished.
2.Consultation services for whole machine life, and 24 hours technical support by email or video on line
3.English software, user manual and the installation & debugging by our experienced technicians.
Q5. If we have very special request on the production line, could you help me to do the design?
Customized design is provided.
Q6. How does the machine fit our voltage? How can I know your machine is designed for my product?
1. For each equipment, our sales team will confirm the voltage with the customer.If you need standard machines and samples, we can buy samples for your product testing in China, provided we have prototype machines.
2. If you need non-standard machine and special sample, please communicate with our team, then pay the deposit first, we will customize the machine according to the sample, after the production, we will provide you with detailed operation video and equipment photos.
Q7. How can you ensure the machine's quality after we put the order?
Before delivery, we will produce the equipment according to the agreed requirements, and after production, we will provide
detailed installation videos, operation videos, operating instructions, testing documents, certification documents, etc.
Alternatively, we can arrange a third-party inspector to perform FAT, and we also support SAT.
