hot sale good quality stepper motor nema 23 Casun rb step motor
- Category: >>>
- Supplier: Guangzhou Fude Electronic Technology Co. Ltd.
Share on (62438926323):
Product Overview
Description

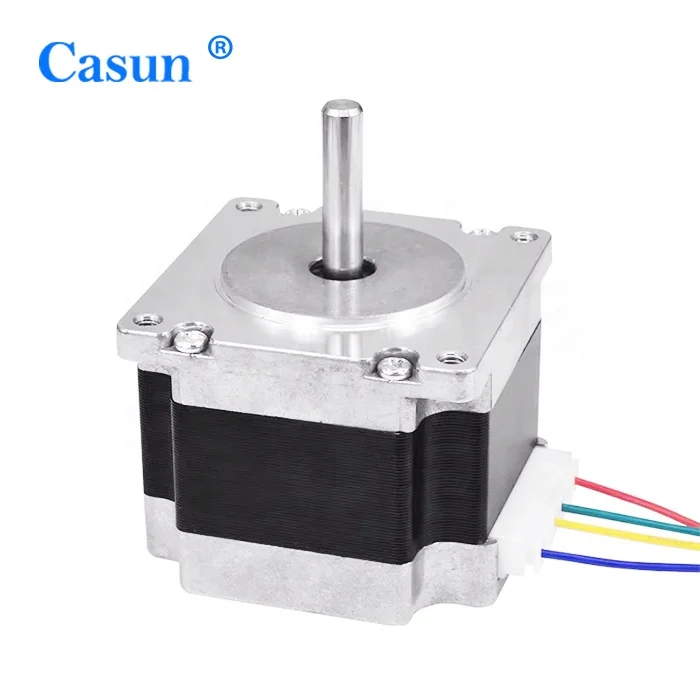

hot sale good quality stepper motor nema 23 Casun rb step motor
postcard
form
| Hybrid stepper motor 57SHY4601-9A Casun | |||
| General Specification | Electrical Specification | ||
| Step Angle | 1.8° | Rated Voltage | 1.8V |
| Number of Phase | 2 | Rated Current | 3.0A |
| Insulation Resistance | 100MΩmin(500V DC) | Resistance/Phase | 0.6Ω±10% |
| Insulation Class | Class B | Inductance/Phase | 1.2mH±20% |
| Rotor Inertia | 120g.cm² | Holding Torque | 650mN.m |
| Mass | 0.52kg | Detent Torque | 8mN.m |
Product Description
related product
detail
Certifications
customer feedback
FAQ
Q: What is the accuracy of stepper motor?
A:the error of the rotation accuracy is ±5% it is without cumulative error.
Q: What is the convert relationship between mN.m and kg.cm, N.m, g.cm, Oz-in?
A:1kg.cm=1000g.cm≈0.1N.m≈100mN.m≈13.877Oz-in
Q: Could you explain the Pitch, screw lead, and resolution of the lead screw for me?
A:Screw lead ÷ Pitch=the heads of the thread.
Resolution×200=screw lead.
