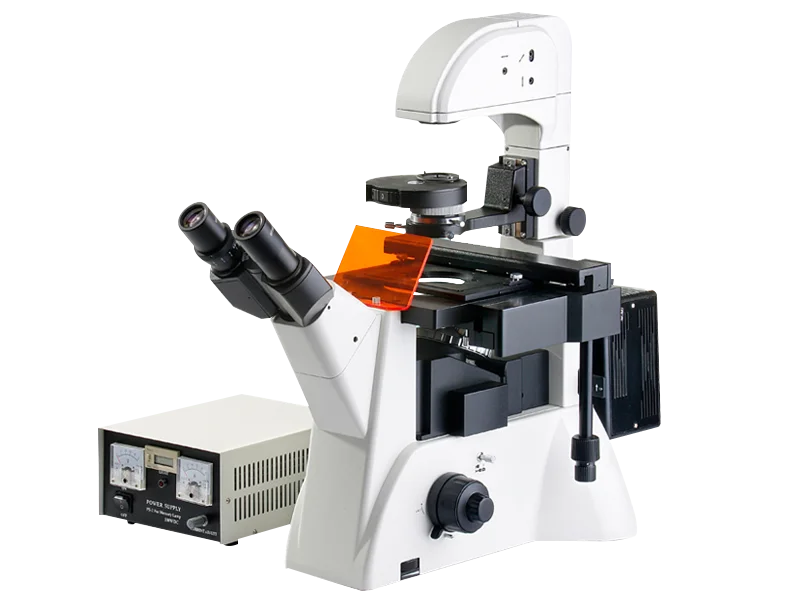

VMF400I Inverted Epi Fluorescent Microscope with Excellent UIS Optical System
- Category: >>>
- Supplier: Suzhou Jingtong Instrument Co. Ltd.
Share on (62439170799):
Product Overview
Description
 | Excellent Optical System B, G, V, UV Long Working Distance Modularization Function |
Product Description
VMF400I Inverted Fluorescent Microscope is composed with Epi-fluorescent microscope and inverted microscope, equipped excellent UIS optical system and adopted long working distance plan achromatic objectives and wide field eyepieces.
Compact and steady main frame body is embodiment for the shock resistance. The enable turning out or into condenser system is suited for observation in a high culture dish.
The Epi-fluorescence microscope system is adopted modularization function design idea, so that adjust the fluorescence illuminating system and switching-over fluorescence filters safely and quickly.
This is a sort of ideal optical instrument for micro observation in cell tissue and transmitted liquid tissue, even in dynamic observation in the culture dish tissue, can be applied in the fluorescence microscopy, such as biological pharmacy, medicine checking and measure, disease prevent and etc.
The mechanical stage driver is adopted coaxial high-strength steel wire. This is a ideal design for stable mobile. The automatic protection in the limited position is effective on the accurary of stage. There are three mode culture dish holder for selection.
Features
---B, G, V, UV four excitation wavelengths
---Adopted modularization function design idea
---Long distance for observing different high culture dish
---Adopted excellent optical system, equipped with excellent optical performance
Specification
Specification for VMF400I | ||||||
|---|---|---|---|---|---|---|
Eyepiece | WF 10X (Φ22mm) | |||||
Centering telescope | ||||||
Eyepiece Tube | inclined 45° and interpupillary distance is 53~75mm | |||||
Infinity plan achromatic objective | Objective | PLL 10X0.25 Work distance:4.3 mm,Cover glass thickness:1.2mm | ||||
PLL 20X0.40 Work distance:8.0 mm,Cover glass thickness:1.2mm | ||||||
PLL 40X0.60 Work distance:3.5 mm,Cover glass thickness:1.2mm | ||||||
Phase Contrast Objective | PLL 10X0.25 PHP2 Work distance:4.3 mm,Cover glass thickness:1.2mm | |||||
PLL 20X0.40 PHP2 Work distance:8.0 mm,Cover glass thickness:1.2mm | ||||||
PLL 40X0.60 PHP2 Work distance:3.5 mm,Cover glass thickness:1.2mm | ||||||
Epi-flourescent illumination System | Power supply unit, 110V or 230V can be selected. | |||||
100W/DC Mercury lamp is 100W/DC | ||||||
Flourescnet filters | ||||||
Group | Type | Wavelength of excitation light | Wavelength of emitted light | |||
UV+V | Ultraviolet light (UV) | 320nm~380nm | 435nm | |||
Violet light (V) | 380nm~415nm | 475nm | ||||
B+G | Blue light (B) | 450nm~490nm | 515nm | |||
Green light (G) | 495nm~555nm | 595nm | ||||
Focus System | Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing is 2.0μm | |||||
Nosepiece | Quintuple | |||||
Working Stage | Fixed stage overall size is 227 x 208mm | |||||
Glass rotundity stage overall size is Φ118mm | ||||||
Mechanical moving device, moving range is 77mm (longitudinal)X114mm (transverse) | ||||||
Culture dish holder 1 | Inside locating slot size: 86mm (W)X129.5mm (L), optional with a circular culture dish Φ90mm | |||||
Culture dish holder 2 | Inside locating slot size: 34mm (W)X77.5mm (L), optional with a circular culture dish Φ68.5mm | |||||
Culture dish holder 3 | Inside locating slot size:57mm (W)X82mm (L) optional with a circular culture dish Φ60mm | |||||
Culture dish holder 4 | Inside locating slot size:29mm (W)X77.5mm (L) optional with a circular culture dish Φ35mm | |||||
Transmitted illumination system | Turnplate phase contrast condenser, working distance is 55mm | |||||
6V30W halogen, brightness enable control | ||||||
Frosted glass and blue , green filter | ||||||
Accessory
Accessories for VMF400I | |
|---|---|
Eyepiece | WF 10X(Φ22mm) |
0.1mm/Div | |
Objective | Infinity plan achromatic objective PL 5X/0.12 W.D.: 26.1 |
Nosepiece | Sextuple (Backward ball bearing inner locating) |
CCD Adapter | 0.4X |
0.5X | |
1X | |
0.5X (with dividing 0.1mm/Div) | |
Camera | DV-1 (with USB & Video Output) |
DV-130 /300/ 500/ 900 (with USB Output) | |
DV-380/ 520 (with Video Output) | |
Digital camera adapter | CANON (EF), NIKON(F) |
Product Details

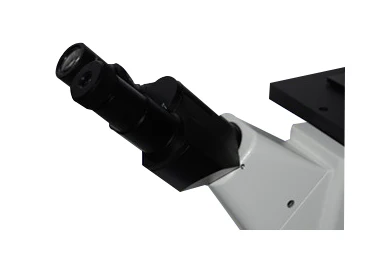

 | Head The gemel mode binocular is inclined 45°. The operator cervix and shoulder are released from tired in period of time keeping bow or head-up. |

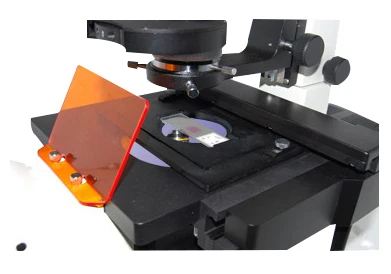

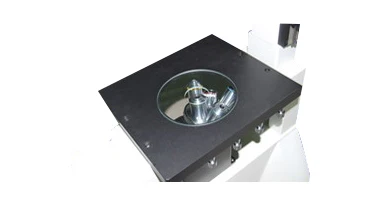

Transmitted Glass Stage Plate It is possible for process visualization in turning nosepiece. Overcome the deficiencies of the stage thermal deformation effectively. |  |

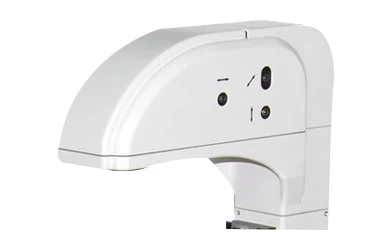

 | Illumination System Integrated illumination can make up the difference of halogen by adjusting the spacial position. Fully taken into account the cooling effect of illumination system so that the surface temperature of lamp house is lower, the operation is safer. |

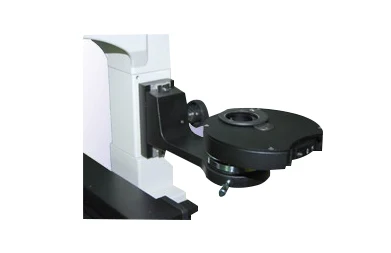

Condenser System The enable turning out or into condenser system is suited for tissue observation in a high culture dish. |  |

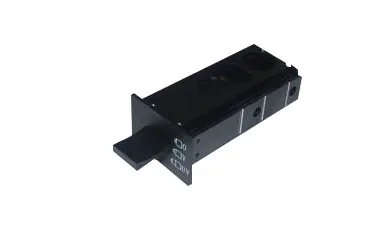

 | Reflected Flourescence Illumination System Pushed fluorescence filter provides four fluorescence filter system, such as UV, V, B and G. This kind of frame can make it switch fleetly between each fluorescence system. 100W mercury lamp can provide ample illumination for fluorescence observation. Equip power supply unit. |
UV, V, B, G
|  |
Diagram & Dimension
 |

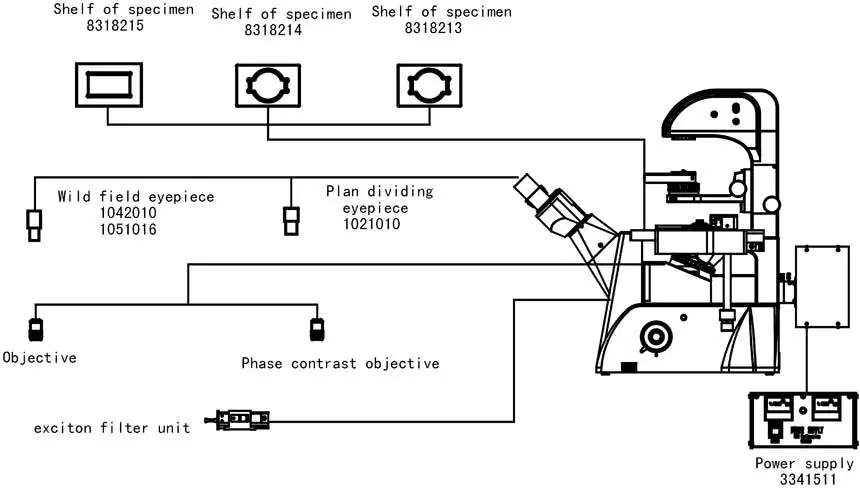

| Diagram of VMF400I |
 |

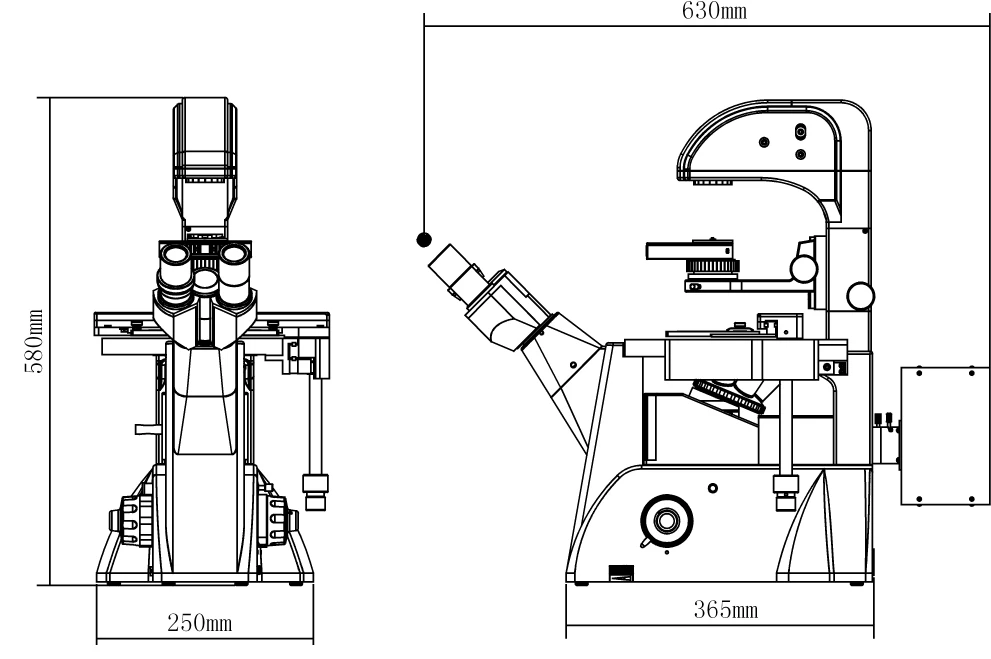

| Dimension of VMF400I |
