High Power 3C Industrial WINSTON LiFeYPO4 Battery 3.2V 100AH Thundersky Li ion Battery
- Category: >>>
- Supplier: Changsha,Deligreen,Power,Co.,Ltd.
Share on:
Product Overview
Description
product introductions
High Power 3C Industrial Winston LiFeYPO4 Battery 3.2V 100AH Thundersky Li-ion Battery
Winston LYP battery's cathode active material is made by fluorine compound and rare earth, and the anode active material is made by nanometer carbon fiber and artificial graphite. Therefor in the large current charge, it can mantian its original molecular structure. Make the crystal lattice solid, have resistance to impact and sustain a long life.
Product Structure
High Power 3C Industrial Winston LiFeYPO4 Battery 3.2V 100AH Thundersky Li-ion Battery
Model: TSWB-LYP100AHB
Demension: 179*62*218mm /143×67×218 mm
Operating Voltage: 2.8v-4.0v
Internal Risistance: ≤0.3mΩ
Constant discharge current: ≤3CA
Peak discharge current: ≤10CA
Max charge current: 1200A(CA)
Standard charge/discharge current: 200A(0.5CA)
Cycle life: (80%DOD) ≥5000times
(70%DOD) ≥7000times
Demension: 179*62*218mm /143×67×218 mm
Operating Voltage: 2.8v-4.0v
Internal Risistance: ≤0.3mΩ
Constant discharge current: ≤3CA
Peak discharge current: ≤10CA
Max charge current: 1200A(CA)
Standard charge/discharge current: 200A(0.5CA)
Cycle life: (80%DOD) ≥5000times
(70%DOD) ≥7000times
High Power 3C Industrial Winston LiFeYPO4 Battery 3.2V 100AH Thundersky Li-ion Battery

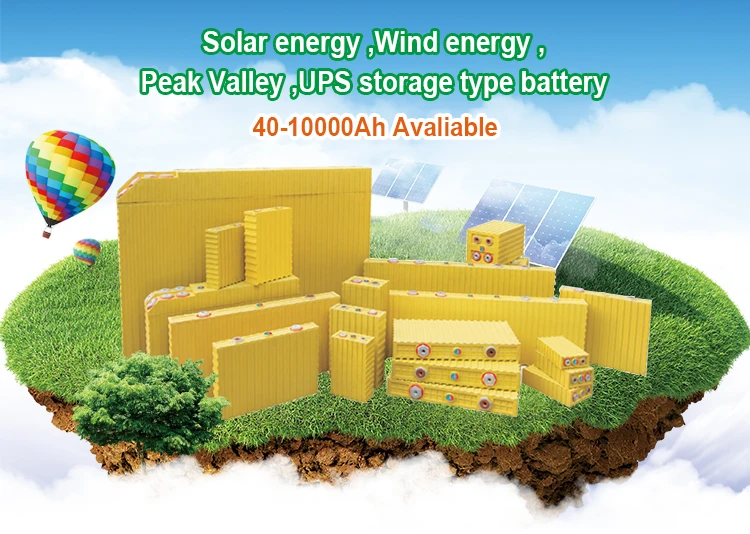

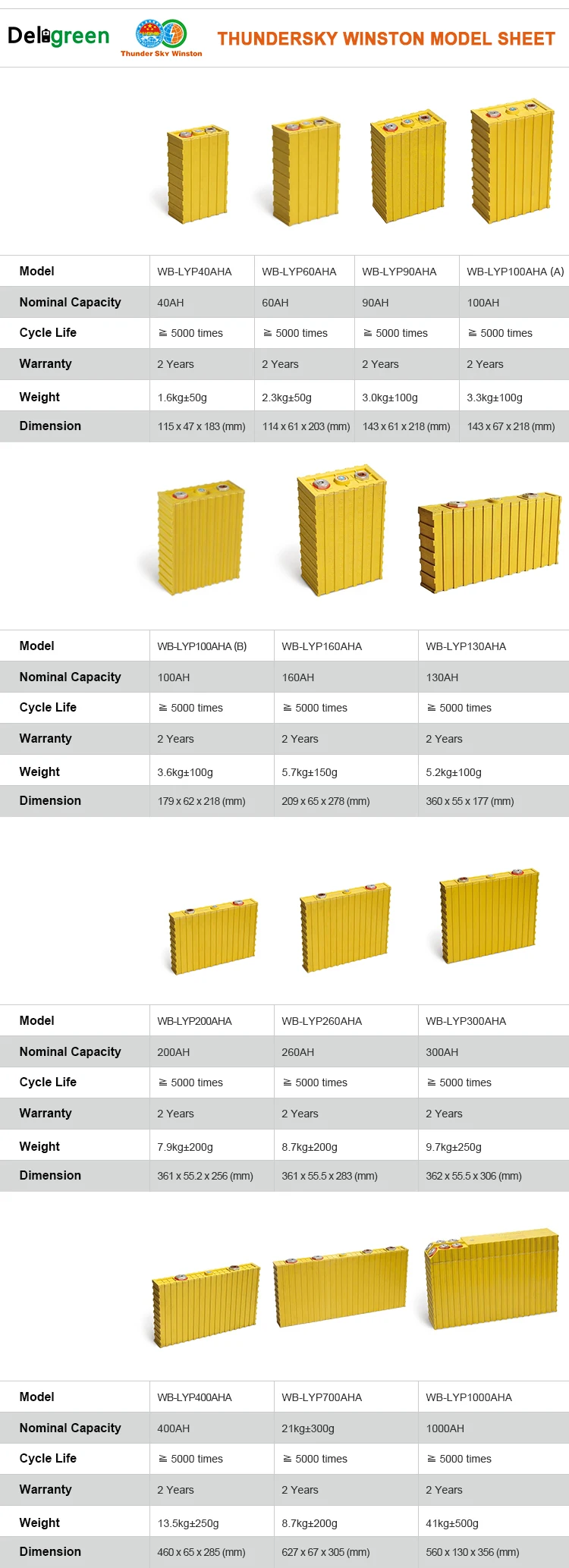

Various Available Battery Type

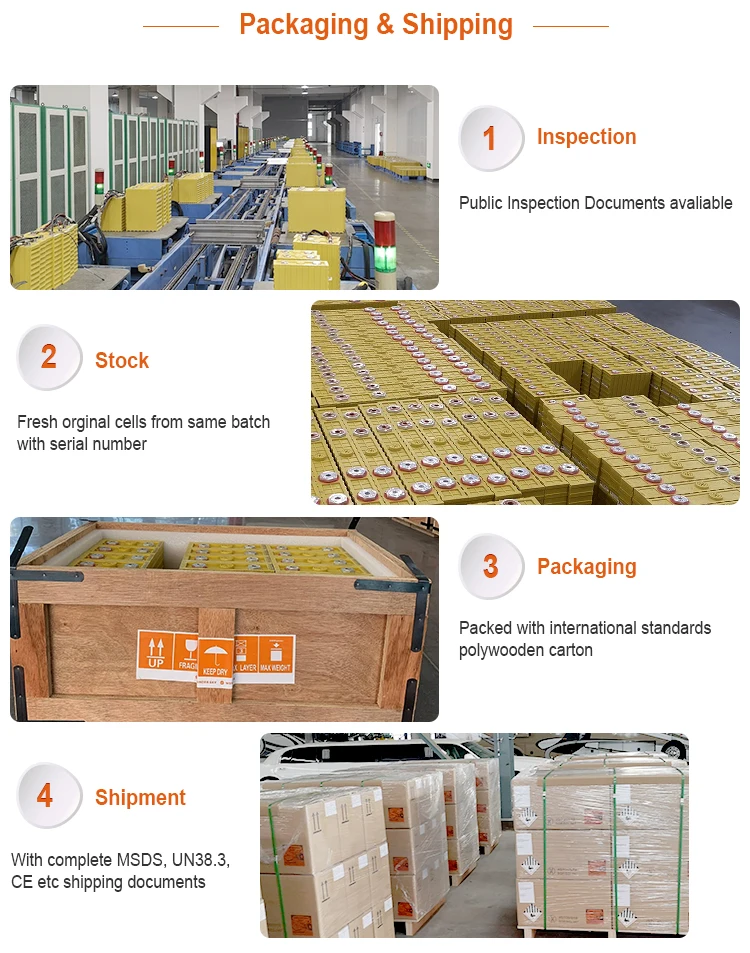

Packing&Shipping
Company Introduction
winston Battery is high power lithium iron phosphate (LiFePO4) batteries.We are the official partner of Thunder Sky Winston lithium battery cells for sales and technical support.Warranty is 24 Month
With over eight years friendly cooperation,we had many safety delivery method for options ,All the fresh cells direct from factory with best services ,
Li-ion batteries are classified as Dangerous Goods for transport according to the UN Model regulation for the Transport of
Dangerous Goods.They are classified under CLASS 9 Dangerous Goods due to their dual hazard properties associated with their chemical and electrical content UN 3480 : Lithium-Ion Batteries,
We ship lithium ion battery by a 20 feet Dangerous Goods container by sea from Shenzhen to USA every month.
For more information of Thunder Sky Winston LiFePO4 Battery Cells. pls feel free to contact Deligreen.
Li-ion batteries are classified as Dangerous Goods for transport according to the UN Model regulation for the Transport of
Dangerous Goods.They are classified under CLASS 9 Dangerous Goods due to their dual hazard properties associated with their chemical and electrical content UN 3480 : Lithium-Ion Batteries,
We ship lithium ion battery by a 20 feet Dangerous Goods container by sea from Shenzhen to USA every month.
For more information of Thunder Sky Winston LiFePO4 Battery Cells. pls feel free to contact Deligreen.
To get fresh price, please contact with us
