R2T 600W led grow light full spectrum Samsung LM301B quantum panel for indoor garden
- Category: >>>
- Supplier: Shenzhen R2T Electronic Limited
Share on (62439523866):
Product Overview
Description

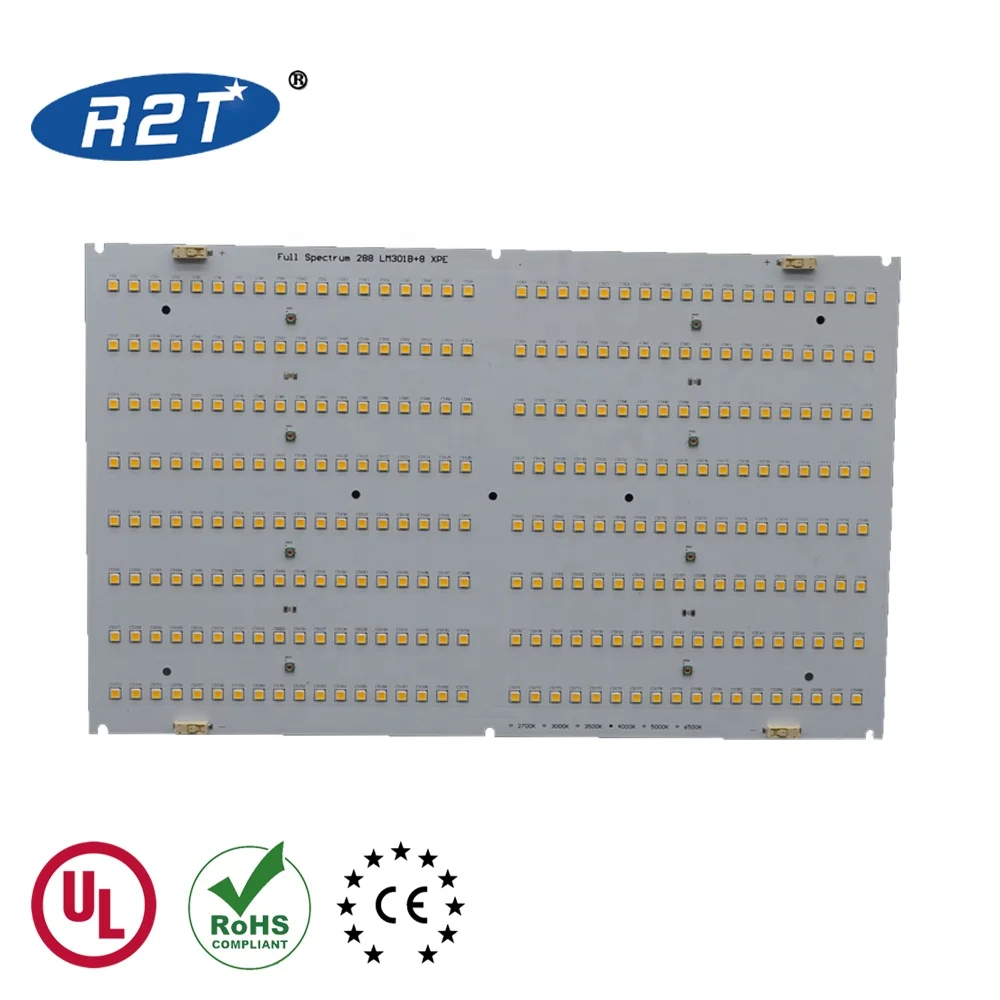

R2T 600Watt led grow light full spectrum Samsung LM301B quantum panel for indoor garden
Specail attention: if you place the order with RTS, the CCT option is : 3000K +660nm and 3500K+660nm
Specifications of products
Lamp Size:
Light size:670*690mm
Power supply Inventronic 600H-54B:1pcs;
Dimmer: 1pcs
led hanger racket: 1pair
1.Isolated standards isolated driver which is safety for everyone;
2.Full spectrum distribute most nutrient lights from vegetative growth ,flowering and fruit-bearing;
3.Samsung LM301B SK/SL RA:80, CCT option: 2700k/3000k/4000k/5000k/5500k/6000K/6500k
4.Customize wattages,chips ratio,logo,package available.
600W Full Spectrum LED grow light:
Initiator: | Russell | Date: | 2019-12-17 |
Project Name: | 600W LED Grow light | New Project Code: | R2T-4in1 600w |
Function Request | |||
Electronic Requirement: | 288+8 Board: 4pcs Meanwell HLG-600H-54B driver: 1set 300Watt heatsink: 2sets wateproof connector and plug: 1set
| ||
Optic Requirement: | Samsung LM301B chips and Cree XPE-2/Samsung LH351H Deep red 660nm chips | ||
Mechanical & Outline Request | |||
Circuit Board Requirement: | N.Layer: | Single side LAYER | |
substrate: | Aluminum | ||
Board thickness: | 2.0mm | ||
Copper thickness | 1oz | ||
Finishing: | HASL | ||
Solder Mask: | White | ||
silkscreen: | Black | ||
Panel | No request | ||
pecial Requirement | 2.0w/m.K thermal conductivity | ||
Silkscreen Design: | Black words | ||
Location hole: | Size | M3*8 | |
location | N/A | ||
Testing Data---Temperature:30Degree Celsious,Humidity: 65%

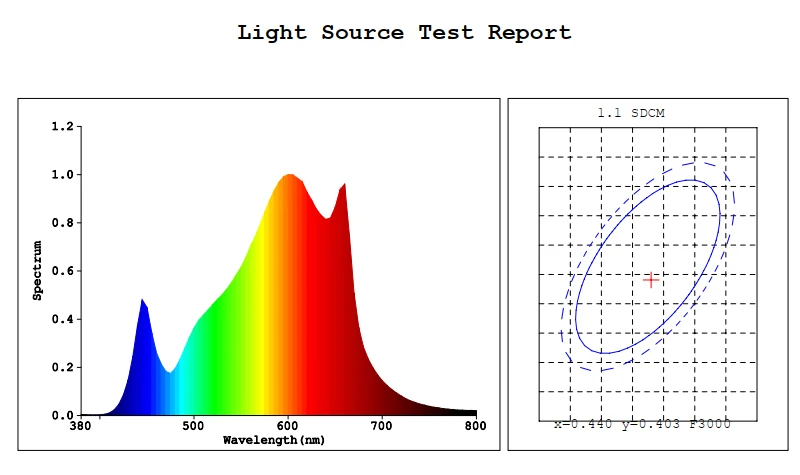

Spectrum

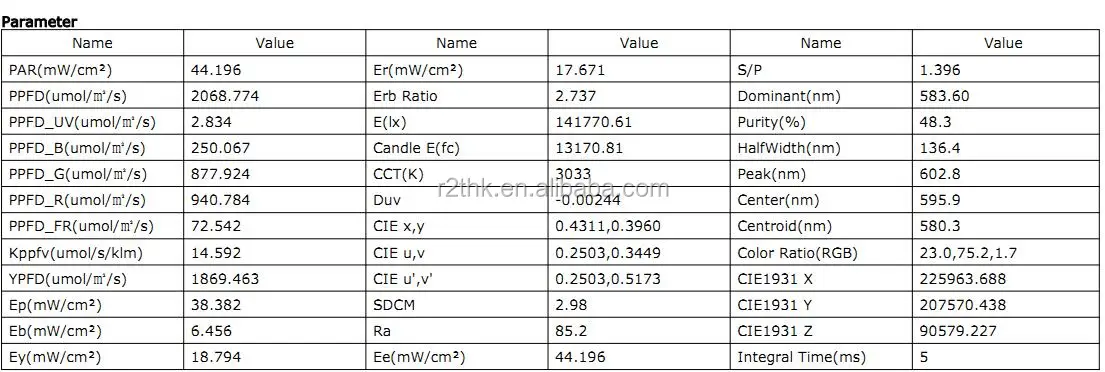

1.Power: 600watt Height: 12inch

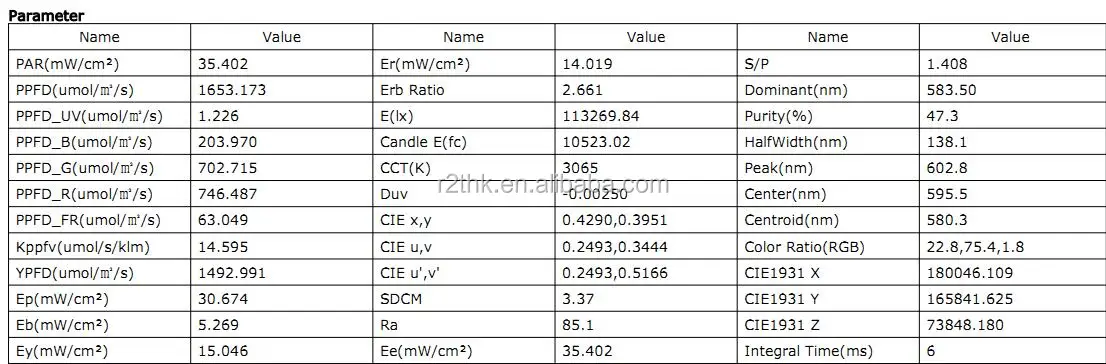

2: Power: 600watt Height:16inch
3: Power: 600watt Height:18inch

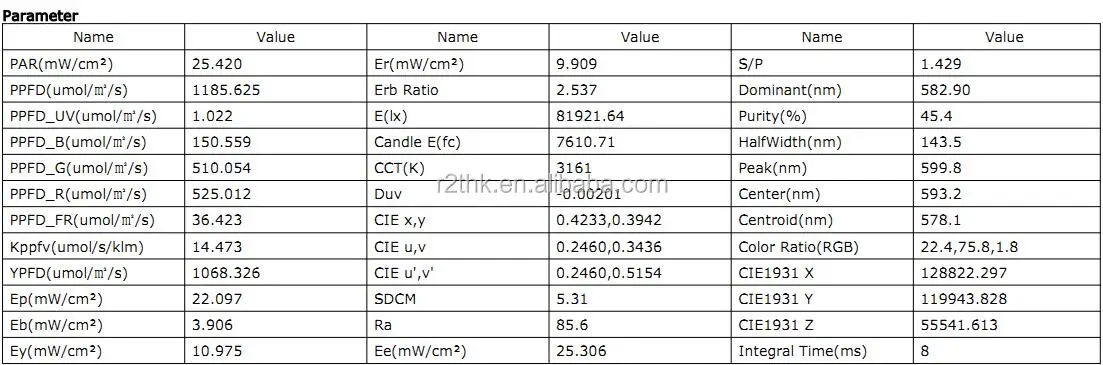

Power: 600watt Height:24inch

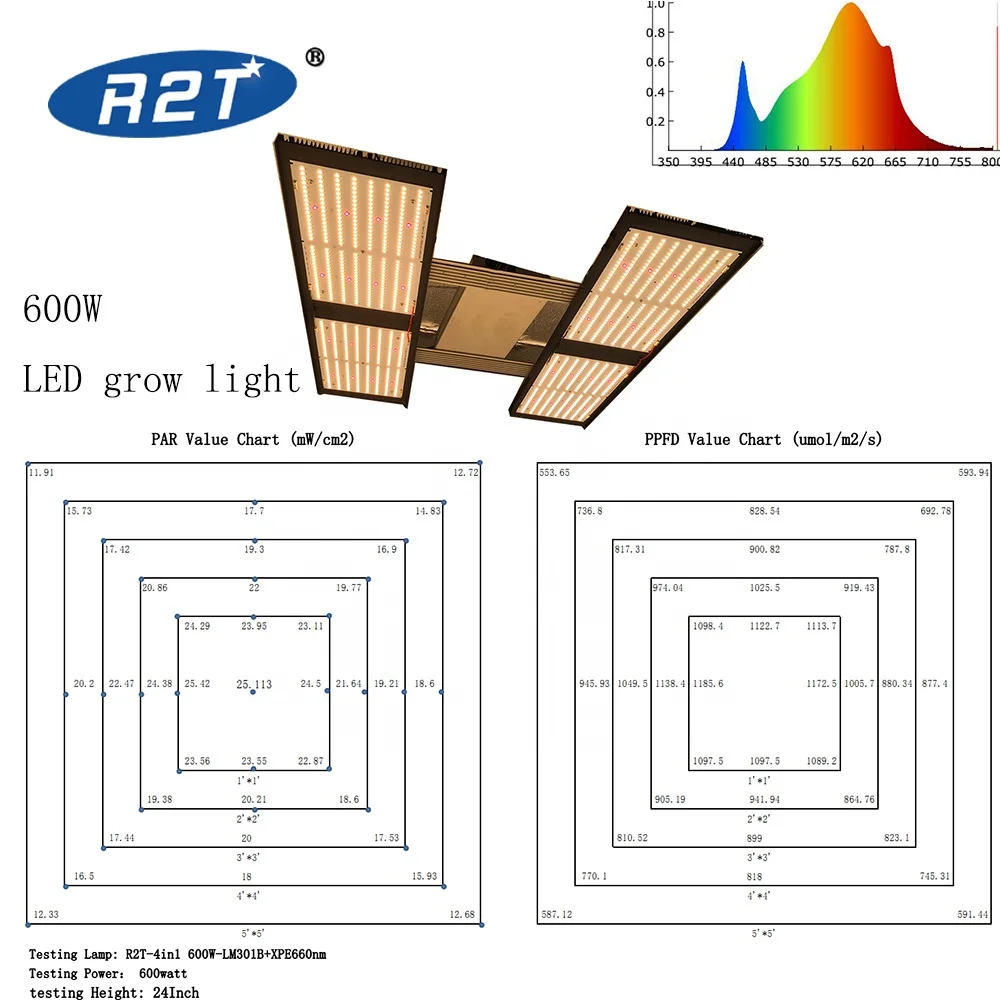

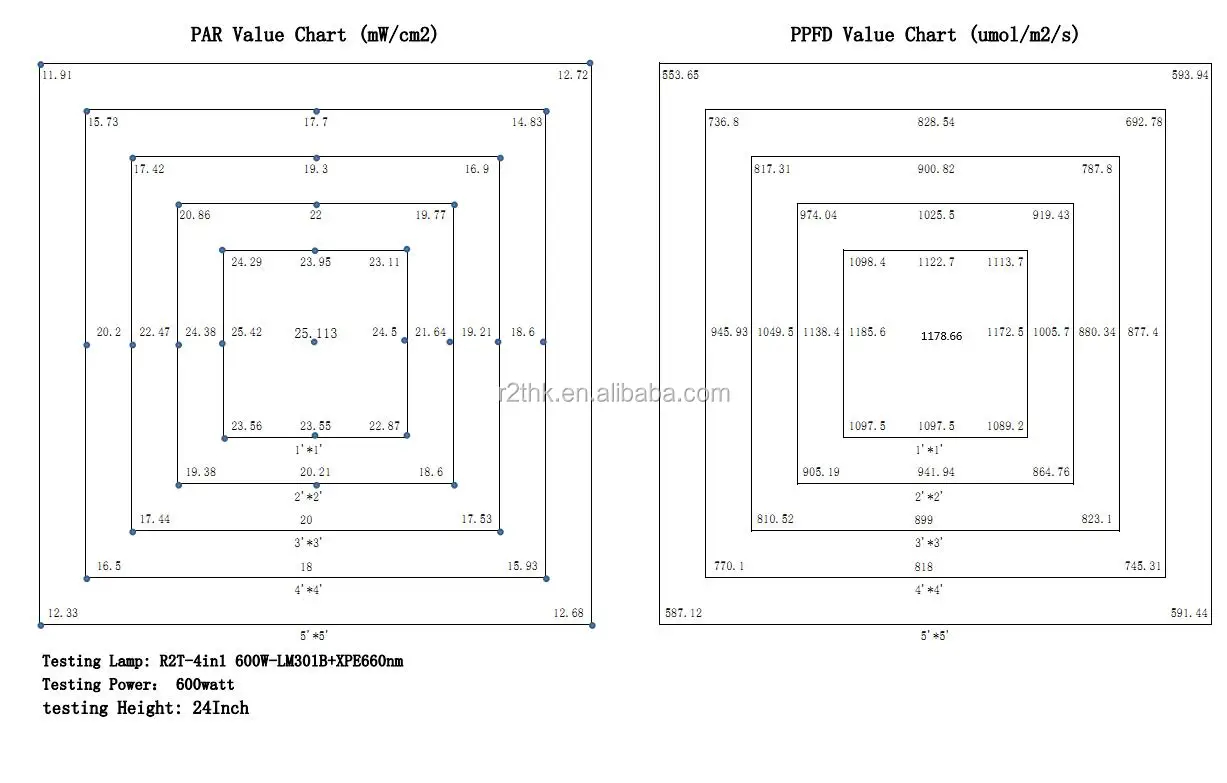

PPFD & PAR Chart testing in 24inch height
Effectivity of Special Wavelength
Why and when need grow light
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-3 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
Packing and Shipping:
Customer feed back:
