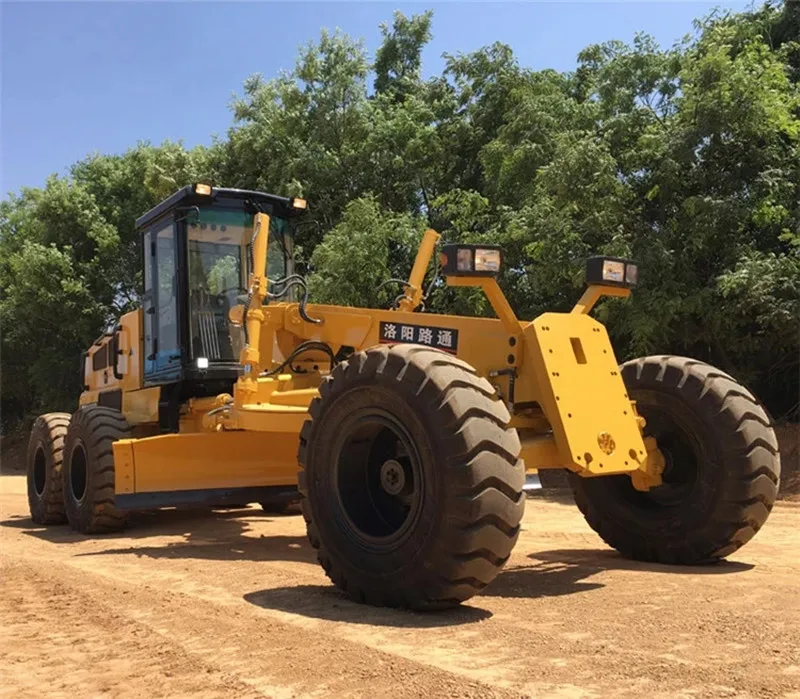

PY165C Hydrodynamic Self propelled Motor Grader

Product Overview

Description

 Motor Grader PY165C

Product Description

1. Feature:

·  Power configuration is Cummins or Shanghai Diesel Engine inter-cooling supercharged diesel engine with strong power and reliable performance.

· Torque converter and power-shift gearbox introduced from GERMANY ZF inc. are integrated together Six forward gears and three backward gears meet various requirements during machine’s working and transporting.

· Driving axle with integrated free-wheel anti-slip differential and strong roller chain drive tandem case, Boxed oscillated steering front axle with leaned wheels.

· Popular working mechanism with pendulum-arm connecting rod structure,Standard equipped free-maintenance rolling-plarecircle device. Double cylinders of the blade tip control can adjust the cutting angle depending on soil quality.

· Flexible hydraulic control system with two sets of HUSCO five way control valve, lmported hydraulic equalizing valve for the bladelifting,Patent hydraulically-operated pin drawing device is designed firstly in board.

· Steering system with center articulated joint and tilting turning front wheels can get offset travel of the entire machine.

· Service braking system of,caliper disc brakes on four rear wheels and mechanical internal expanding parking brakelet.

· Hydraulically operated with with entire instrumental monitoring system, Free-maintenance OPTIMA.

· It is optional for front bulldozing plate and rear ripper.

2.Parameter:



MODEL	PY165C
Operating mass	Kg	15000
Front axle load	Kg	4150
Rear axle load	Kg	10850
Max forward speed	Km/h	40.4
Max backward speed	Km/h	25.7
Speed gear number		F6/R3
Turning radius	mm	7500
Hydraulic system pressure	Mpa	18
Blade  lengt × height	mm	3660×610
Front wheel track	mm	2150
Rear wheel track	mm	2255
wheelbase	mm	5347
Engine model	mm	6BTA5.9
Engine power	kW	125
Overall dimensions	mm	8305×2695×3420
