hydraulic wire rope lifting hoist winch wheel traction small crane hydraulic winch 3ton
- Category: >>>
- Supplier: Jining Shantuo Mechanical & Electrical Equipment Co. Ltd.
Share on (62439878512):
Product Overview
Description
Product Description

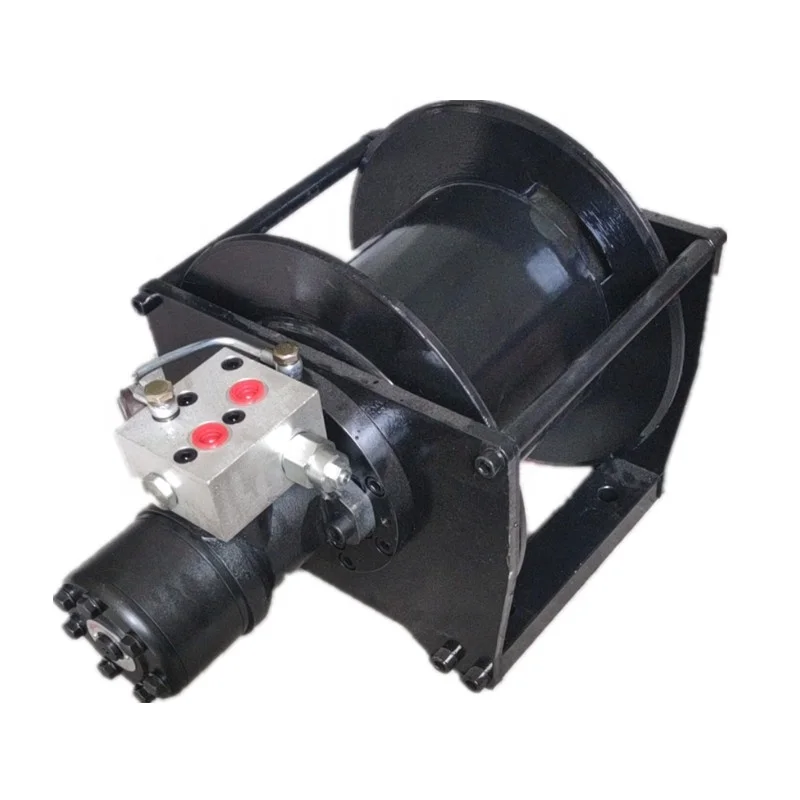

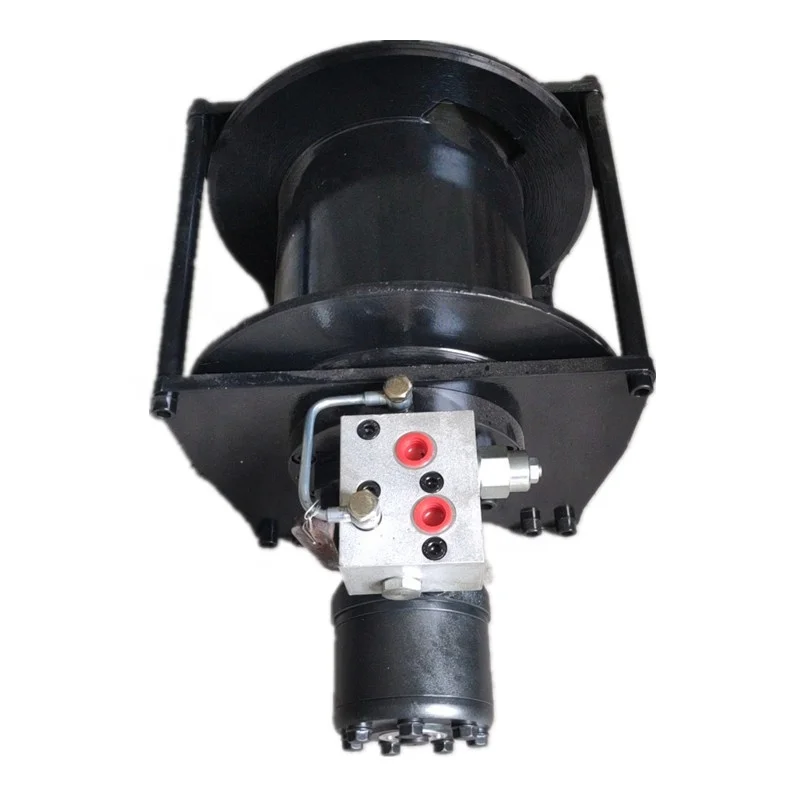

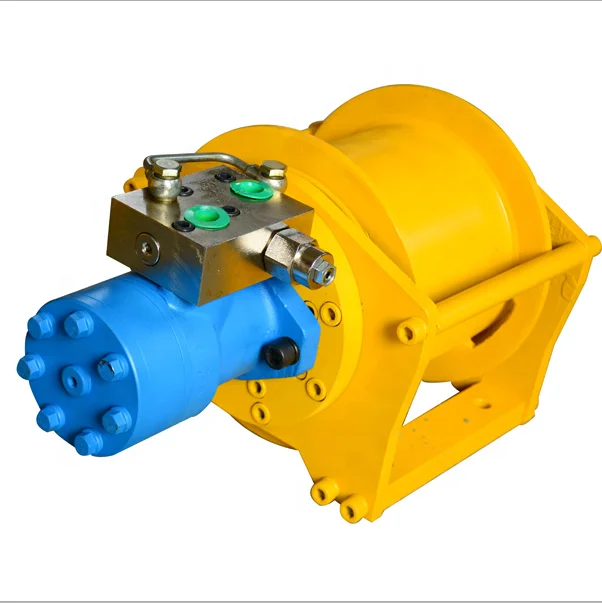

ST10 series hydraulic winch
Model No. | ST-15 |
Pull(kn) | 15 |
Working prussure | 12Mpa |
Oil flow supply | 56L/min |
Rope diameter | 12mm |
Wire ropa | 60m |
Direction for use
The ST series winch consists of a variety of valves, hydraulic Motors, multi-plate hydraulic brakes, planetary reducers, rolls, and racks composed of one-way or two-way balance valves and high-pressure shuttle valves for controlling hydraulic brakes. Users only need to be equipped with pumping stations and reversing valves.
Description of application effect
The ST type hydraulic winch runs smoothly, has low noise, and has the characteristics of high efficiency, low energy consumption, compact size, beautiful appearance, and good economy. Can be widely used in railway locomotives and automobile cranes, ships, oil field drilling and mining, coal mines, ports, small-scale construction machinery and other lifting traction equipment.

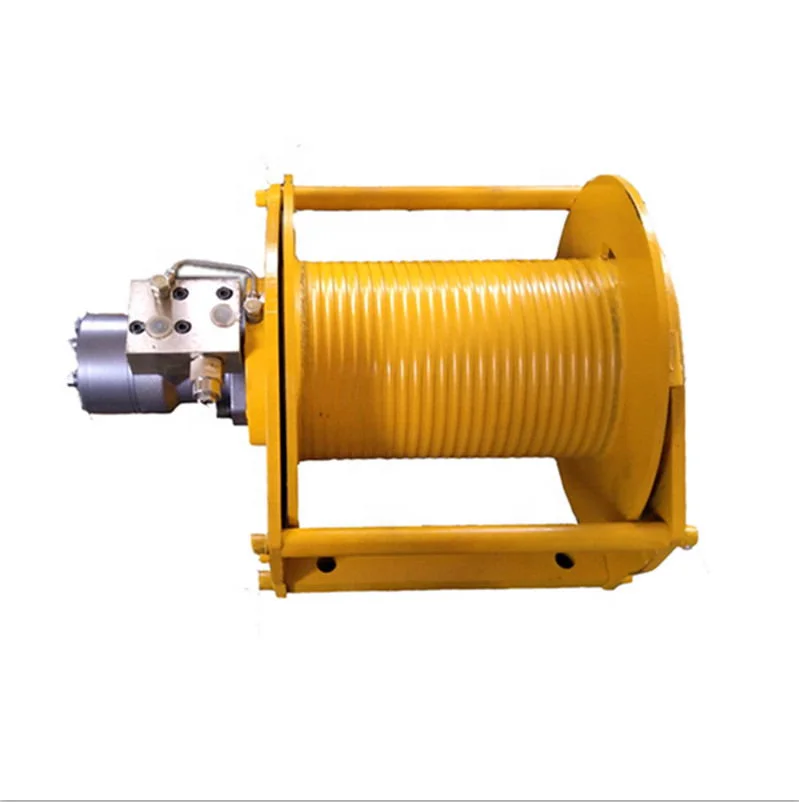

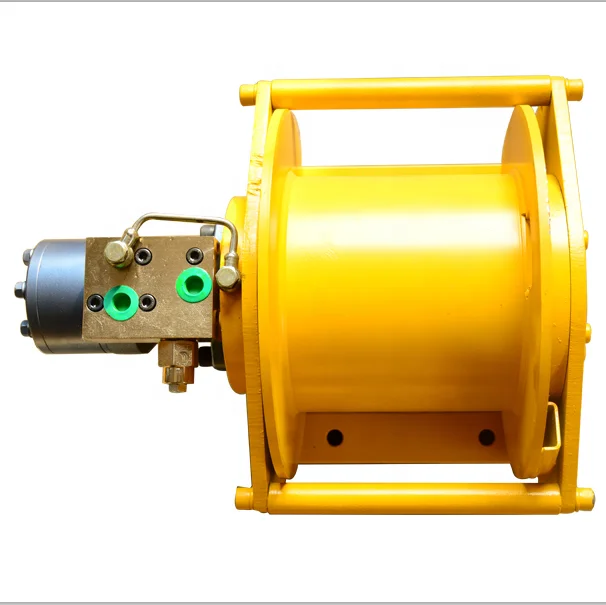

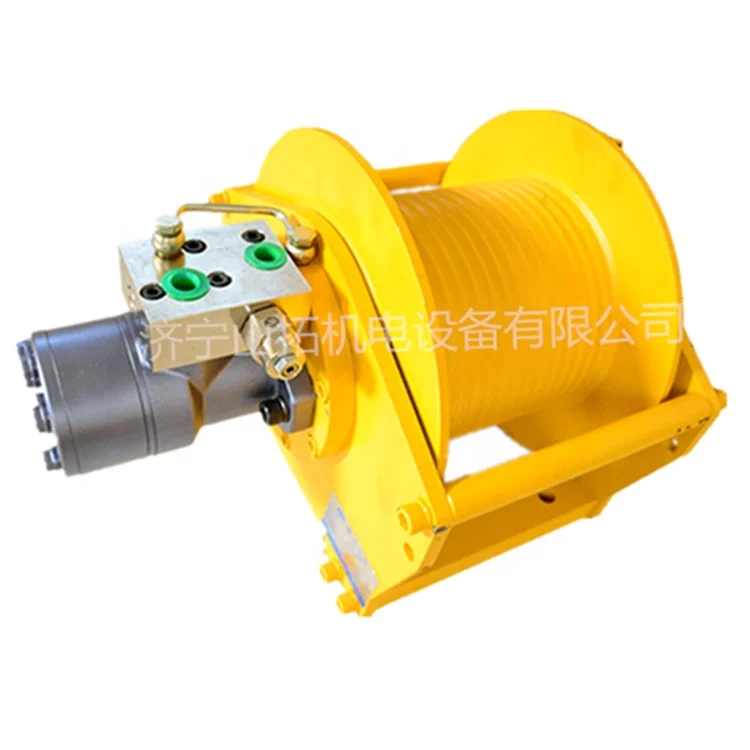

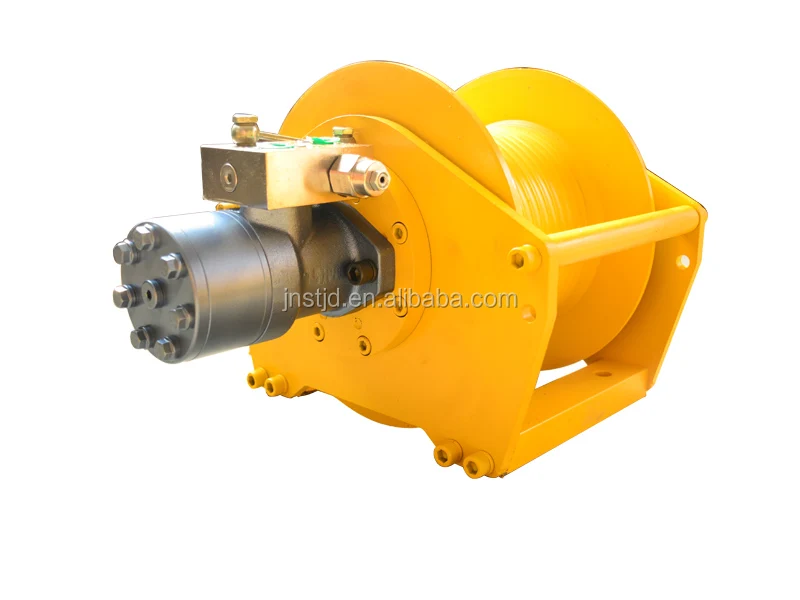

Detailed Images
Hydraulic winch -Internal structure
Size Information
Model No. | Pull （KN） | Rope Speed （m/min） | Working pressure diff（Mpa） | Oil flow supply （L/min） | Hydraulic motor |
ST15-15 | 15 | 0-45 | 12 | 56 | 200cc |
ST15-10 | 10 | 0-45 | 11 | 56 | 160cc |
Related Products

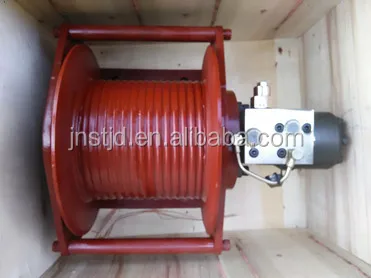

Packing&Shipping
Company Introduction
Jining Shantuo mechanical and Electrical Equipment Co., Ltd. located in East of the eight battalion bridge, Ji zou road, Jining high-tech zone,Shandong province,China.We are specialized in manufacturing hydraulic parts integrating processing, manufacturing, assembly, sales and service. We main produce and sell the hydraulic winch, hydraulic rotary reducer, hydraulic motor, hydraulic brake and other products. Operating various industrial and mining machinery, hydraulic motors, hydraulic pumps, hydraulic system components, engineering machinery equipment and accessories. Our products are widely used in engineering machinery , fishing machinery, mining machinery, oil-drilling equipment, etc . We have exported our products to many countries and regions all over the world,We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Our Services & Strength
rovide consultation and after-sale support to customers and maintain customer satisfaction;
FAQ
Low speed ?
Low output torque ?
Low braking torque ?
If you have any question please contact us !
