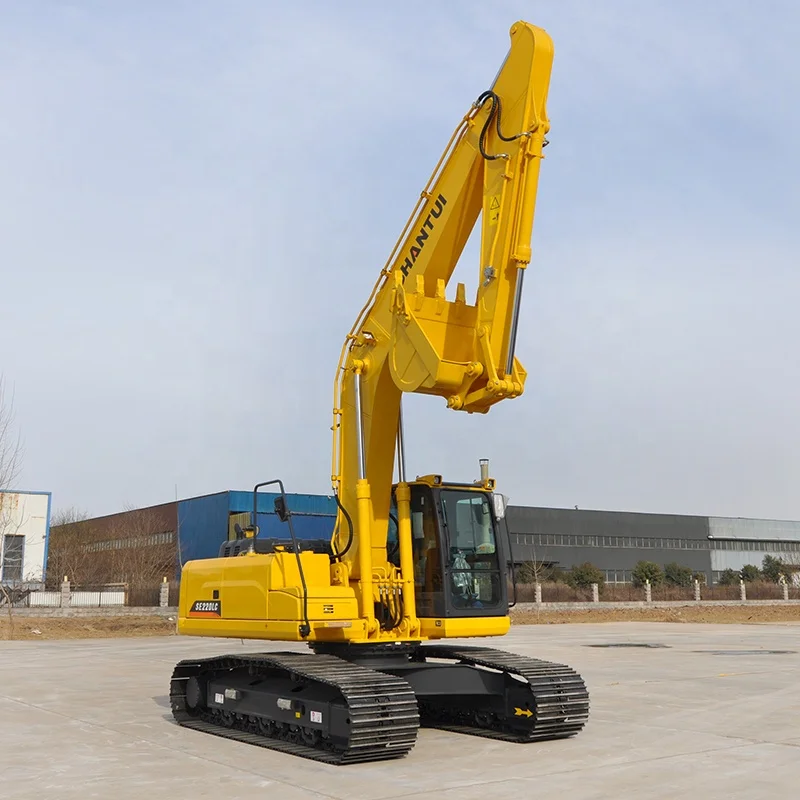

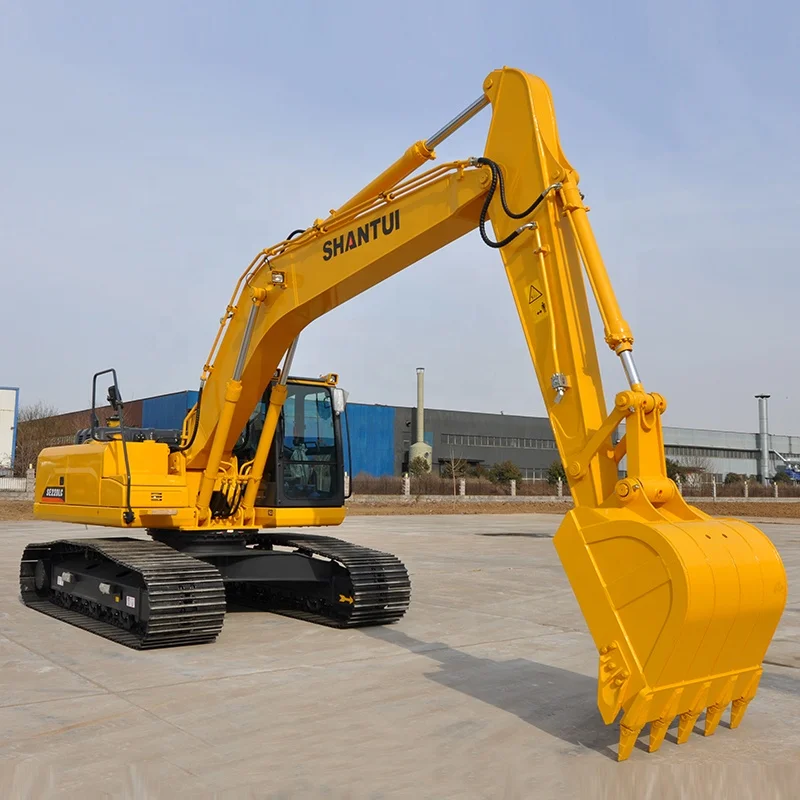

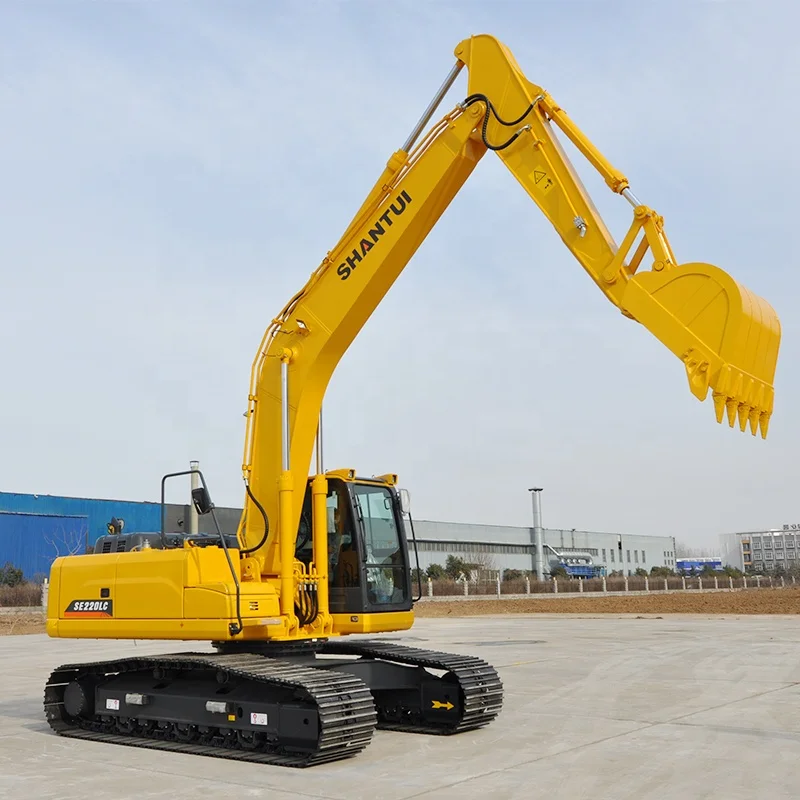

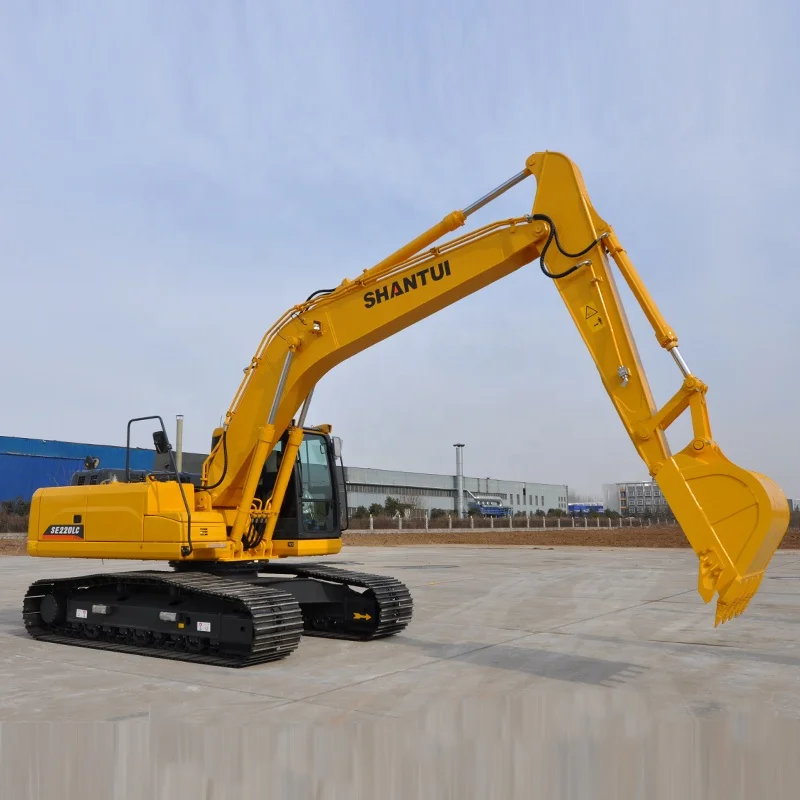

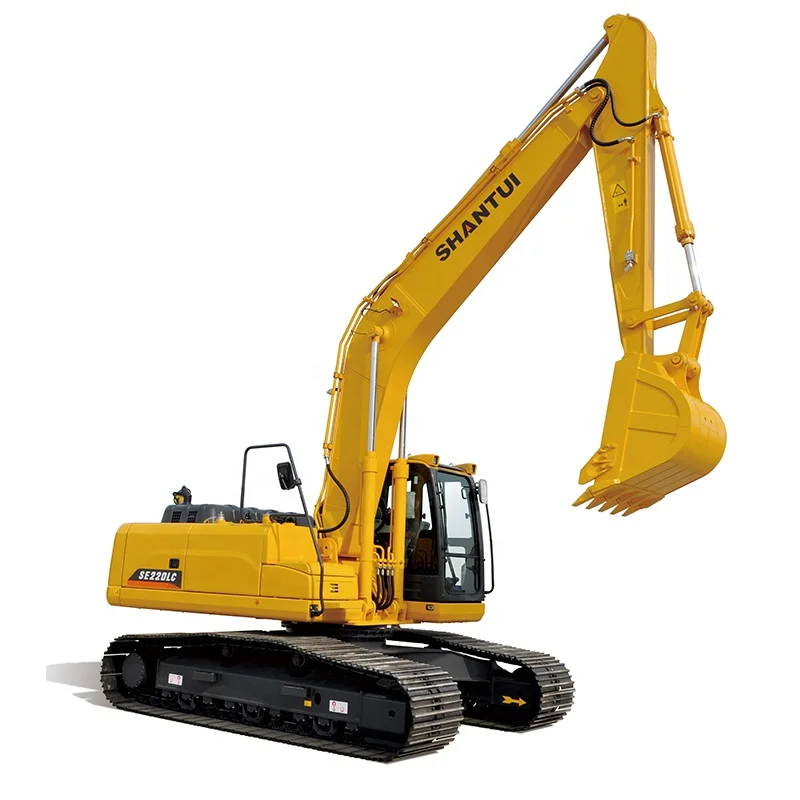

CE SHANTUI brand construction equipment 112KW SE220LC hydraulic track excavator machine
- Category: >>>
- Supplier: Shandong Shantui Construction Machinery Import And Export Co. Ltd.
Share on (62440149928):
Product Overview
Description
Products Description

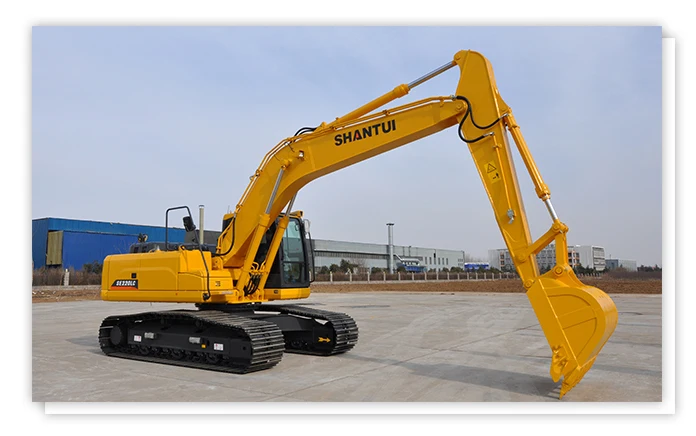

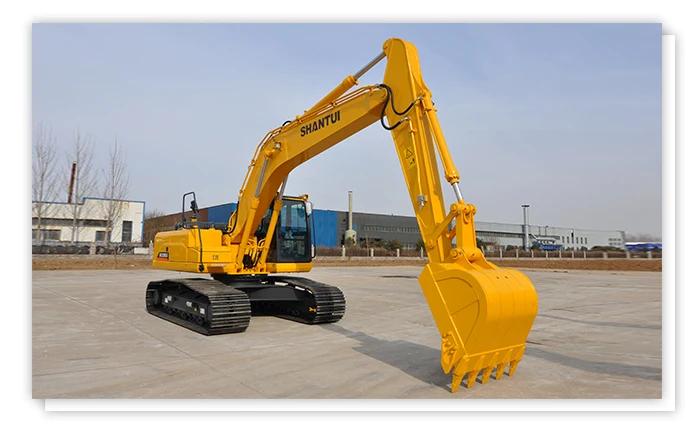

The new SHANTUI SE220LC excavator is designed specifically to give you the confidence to complete any given excavating task. This machine is purpose-built to be just the right machine to get your everyday jobs done. Great machine performance combined with low owning and operating costs make the SE220LC the right choice for your business
Technical Features
Improved reliability and efficiency
An advanced electro-hydraulic negative flow control system provides the optimum balance of power and efficiency while giving you the control you need for precise digging requirements. A Cummins B5.9 engine and powerful hydraulics give you the power to move your material with speed and precision.
Operator comfort and convenient control

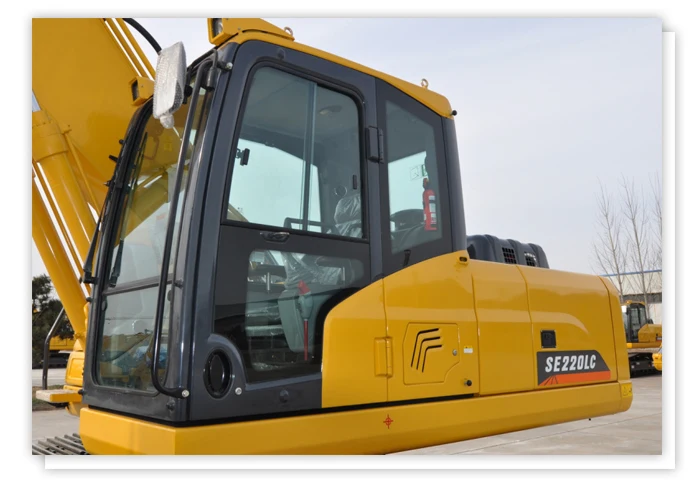

Work comfortably and safely in a spacious and quiet cab which provides superb visibility from the operator seat to keep you aware of surroundings. An adjustable suspension seat can increase comfort and reduces operator fatigue.
ROPS and FOPS certified cab provides a safe work environment. The hydraulic activation level locks out all the hydraulic functions. Enter and exit the cab and walk on the upper structure safely with handrails, anti-skid plating and countersunk bolts which are meant to reduce slipping and tripping. Rear-view camera is also optional to protect working from all around.
ROPS and FOPS certified cab provides a safe work environment. The hydraulic activation level locks out all the hydraulic functions. Enter and exit the cab and walk on the upper structure safely with handrails, anti-skid plating and countersunk bolts which are meant to reduce slipping and tripping. Rear-view camera is also optional to protect working from all around.
Reliable and durable design
Using advanced engineering and software, we carefully analyze each structure to create durable, reliable machines for tough applications.

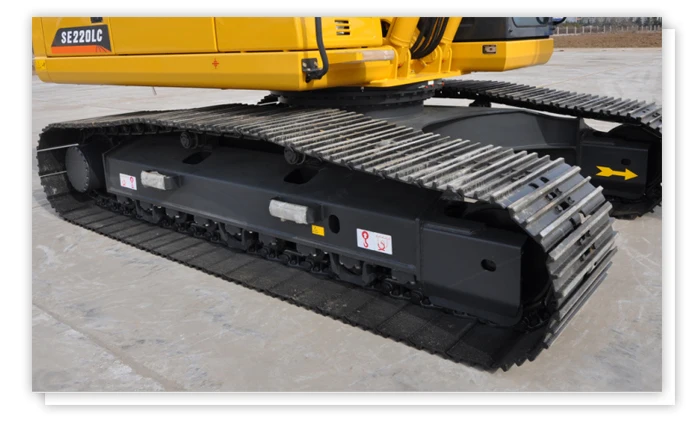

Drive wheels, guide wheels, track rollers, carrier rollers, and tracks
With 30 years of R&D and manufacturing experiences of drive wheels, guide wheels, track rollers, carrier rollers, and tracks and with world’s leading technologies, it’s the first choice for excavators;The world’s sophisticated forging and heat treatment processes guarantee stable and reliable quality.
Versatile SHANTUI attachments
Fast and easily change attachments with optional auxiliary hydraulics. Enhance your work capabilities with a variety of attachments including buckets, hammers, grapples and couplers.
SHANTUI dealer can install hydraulic kits to properly operate attachments, maximizing machine uptime and profits.
222

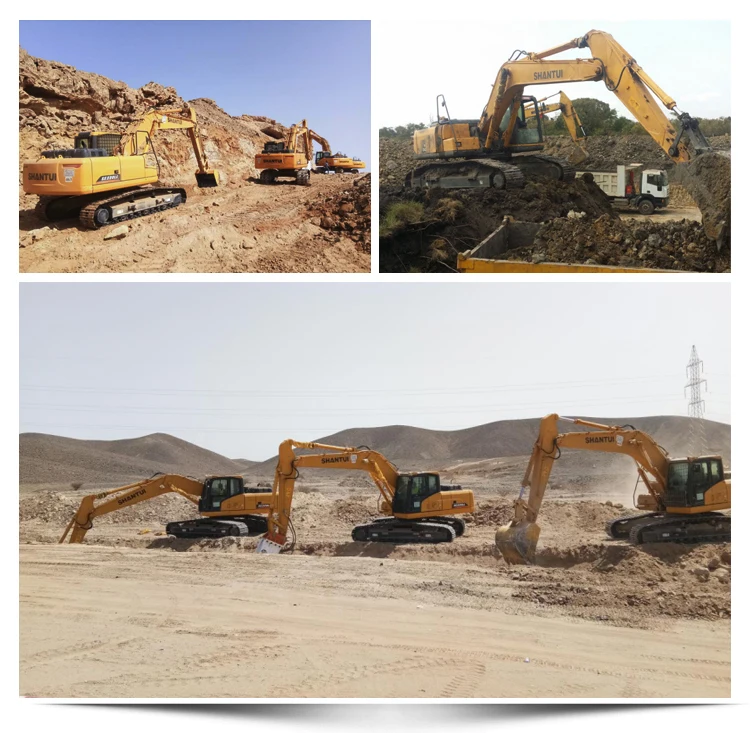

Working Conditions

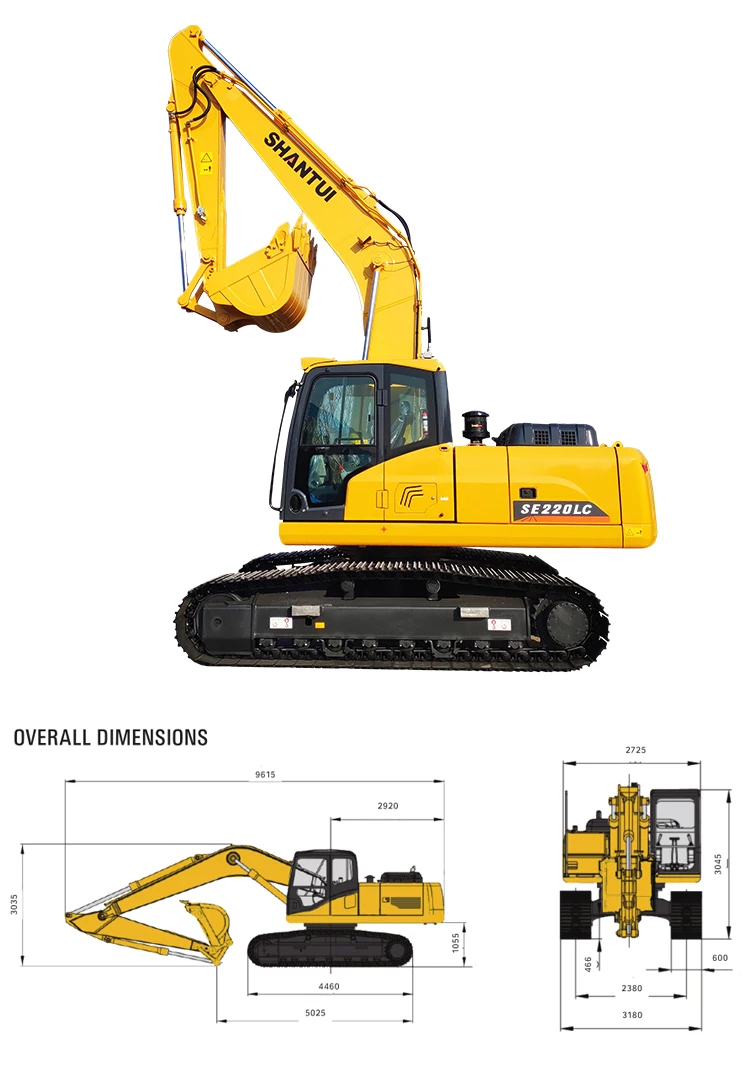

Technical Specification
Engine | Model | Cummins B5.9-C |
Type | Water cooling, in-line ,6 cylinders, turbocharging | |
Quantity of cylinders | 6 | |
Bore x stroke | 102 X 120 mm | |
Displacement | 5.9 L | |
Power output | 112 kW/1950 rpm | |

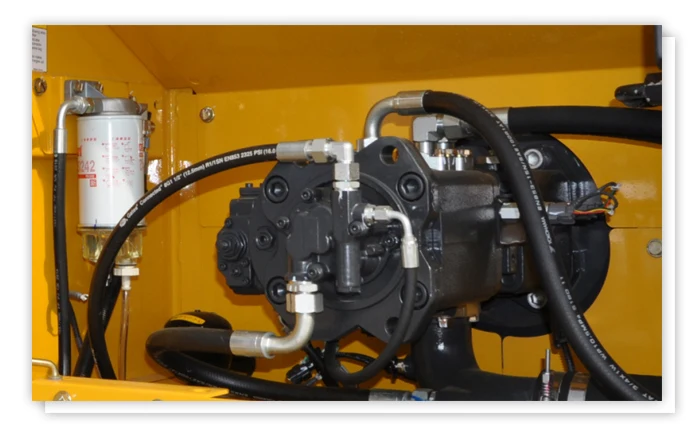

Hydraulic System | Pump | Imported |
Type | Variable plunger pump | |
Maximum discharge flow | 2X218 L/min | |
Control circuit | 3.9 MPa | |
Travel circuit | 31.9 MPa | |
Swing circuit | 25.5 MPa | |
Travel System | Travel motor | Variable axial piston motor |
Travel brakes | Lubricated double-disc | |
Parking brake | Pressure release | |
Travel shoes | 2 x49 | |
Travel speed | 3.2/4.7 km/h | |
Drawbar pulling force | 203kN | |
Gradeability | 70% | |
Minimum ground clearance | 466 mm | |
Oil Capacity | Fuel tank | 330 L |
Cooling system | 28 L | |
Engine oil | 20 L | |
Hydraulic oil tank | 270L | |
System capacity | 400L | |
Swing System | Brake | Pressure Release Mechanical Braking |
Swing speed | 10.2 rpm | |
Tail swing radius | 2925 mm | |
Arm digging force | 92.5 KN | |
Bucket digging force | 127KN | |
Bucket | Bucket capacity | Backhoe bucket 1.05 m3 (SAE) |
Number of bucket teeth | 5 | |
Bucket width | 1370 mm | |
Arm length | 2.925 m | |
Maximum digging reach/ Maximum digging reach at ground level | 9.865 m/9.685 m | |
Maximum digging depth/height | 6.515 m/10.075 m | |
Maximum dumping height | 7.165 m | |
Minimum swing radius | 2.97 m |
