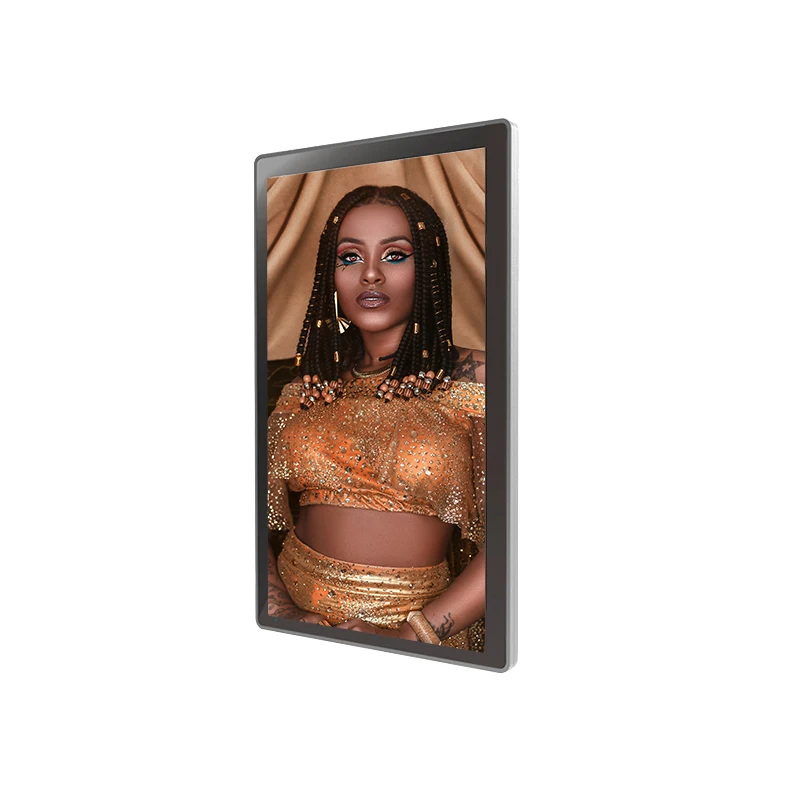

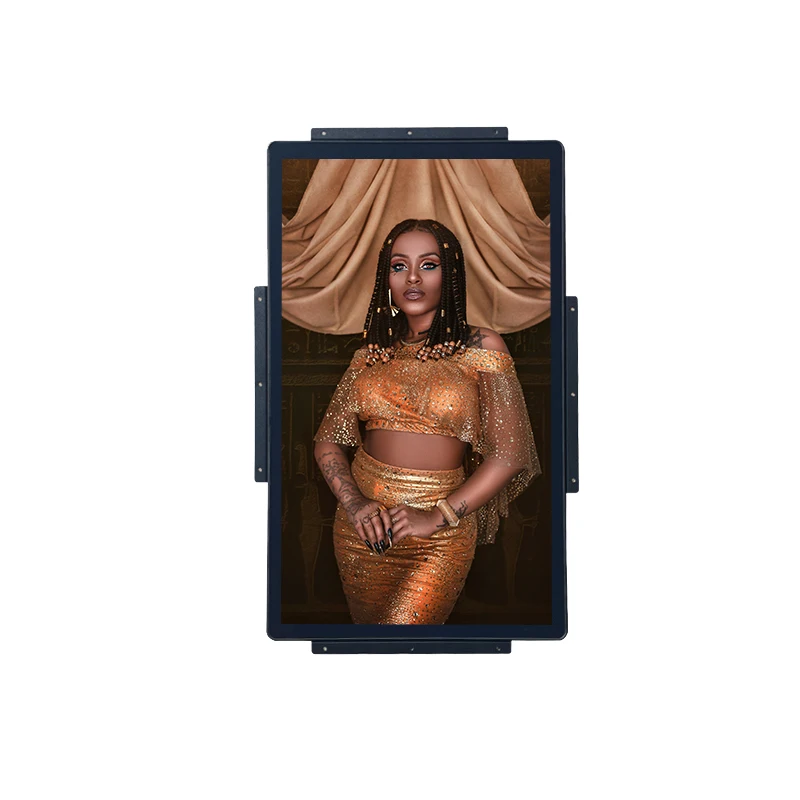

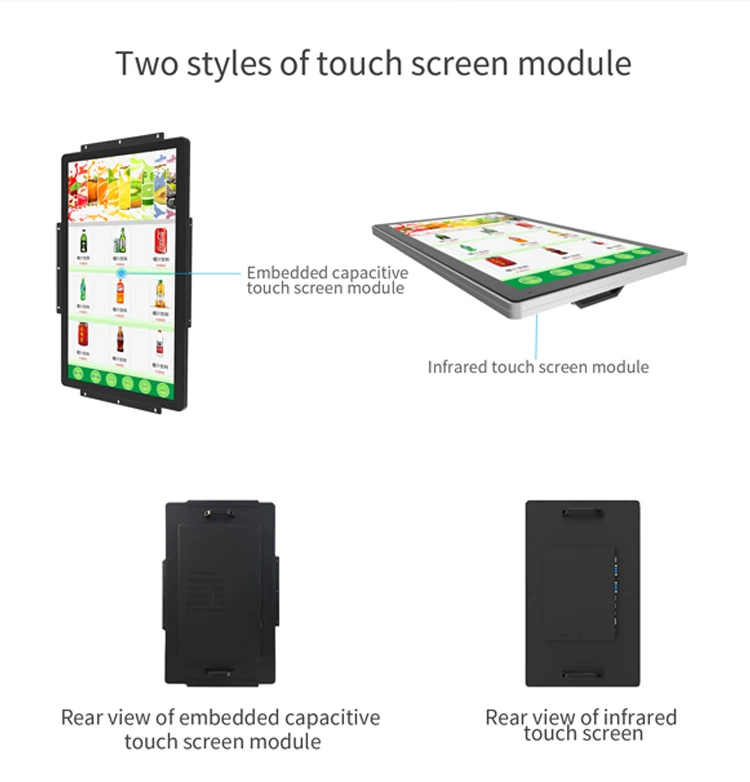

oem 22 inch flexible infrared uhd touch screen lcd display module
Product Core Feature:

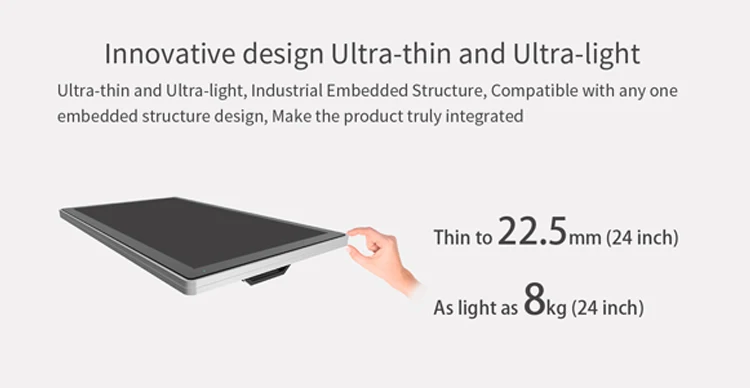

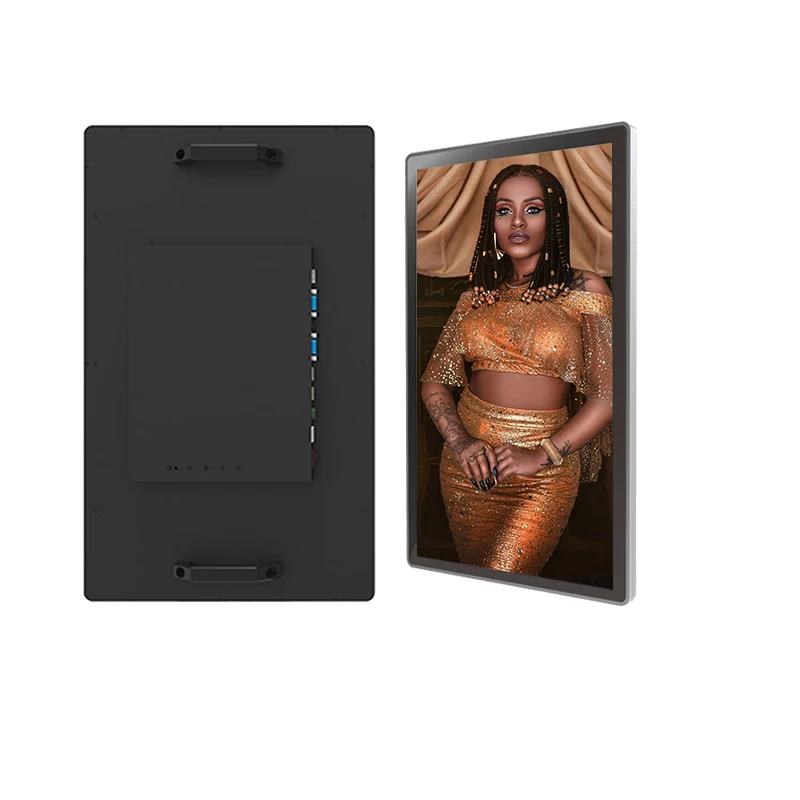

1.Embedded design makes it compatible with cases in different structures.
2.With auto-control on brightness and temperature
3.Industrial design supports 24/7 work
4.Support VESA standard
5.With 2 HDMI input
6.With DC12V 3A output
7. Projected Capacitive touch screen





Product | 22 inch touch screen | |
Model | TYL-TPM22LUX-86 | |
LCD Panel | Display area | 476.64(H)×268.11(V)mm |
Display ratio | 16:9 | |
Backlit | LED | |
Resolution | 1920×1080 | |
Brightness | 250cd/m2 | |
Contrast Ratio | 1000:1 | |
Response Time | 8ms | |
Dot Pitch | 0.24825×0.24825 mm | |
Color | 16.7M | |
Viewing Angle | H/V:178°/178° | |
Interface | VGA | 1 input support 1920*1080 |
HDMI | 2 input support 1080P 60HZ | |
USB touch | 1 input | |
DC12V 3A | 1 output | |
Audio output | 1 R/L sound track | |
Touch screen | Thickness of glass | 3mm tempering glass |
Touch mode | Projected Capacitive G+G | |
Touch points | 10 points | |
Touch accuracy | 2.5mm | |
Function | Brightness auto adjusting | Available |
Temperature detection | Available | |
Energy conservation | Available | |
Serial Port control | Available | |
Power supply | Working voltage | DC24 input or AC90-246V input (optional) |
Power consumption | 25W | |
Working environment | Temperature | 0~60 ℃ |
Humidity | 5~90%RH | |
Package info. | Weight | 6.7KG |

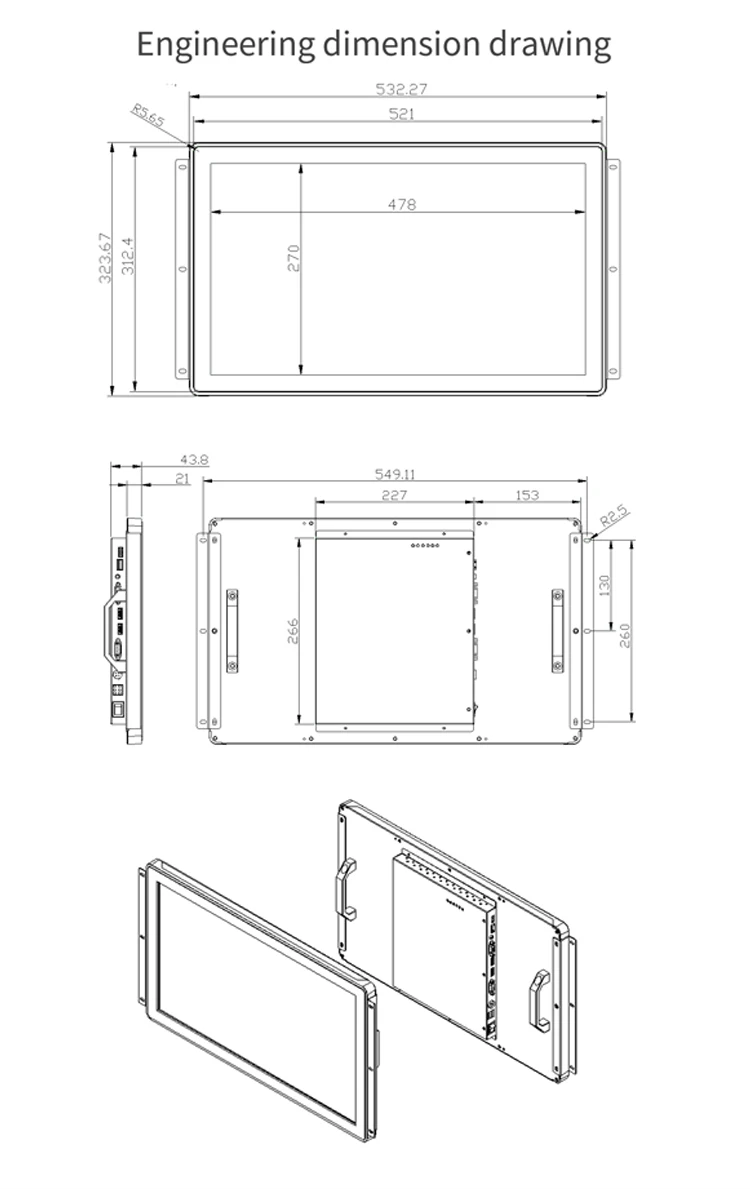

Dimension | 532.2mm×323.6mm×40.2mm | |
The reason why choose us ?
1. We have our own R&D team, and we have strict standards for product development, production, inspection and delivery. Over 15 years of experience gives us the edge!

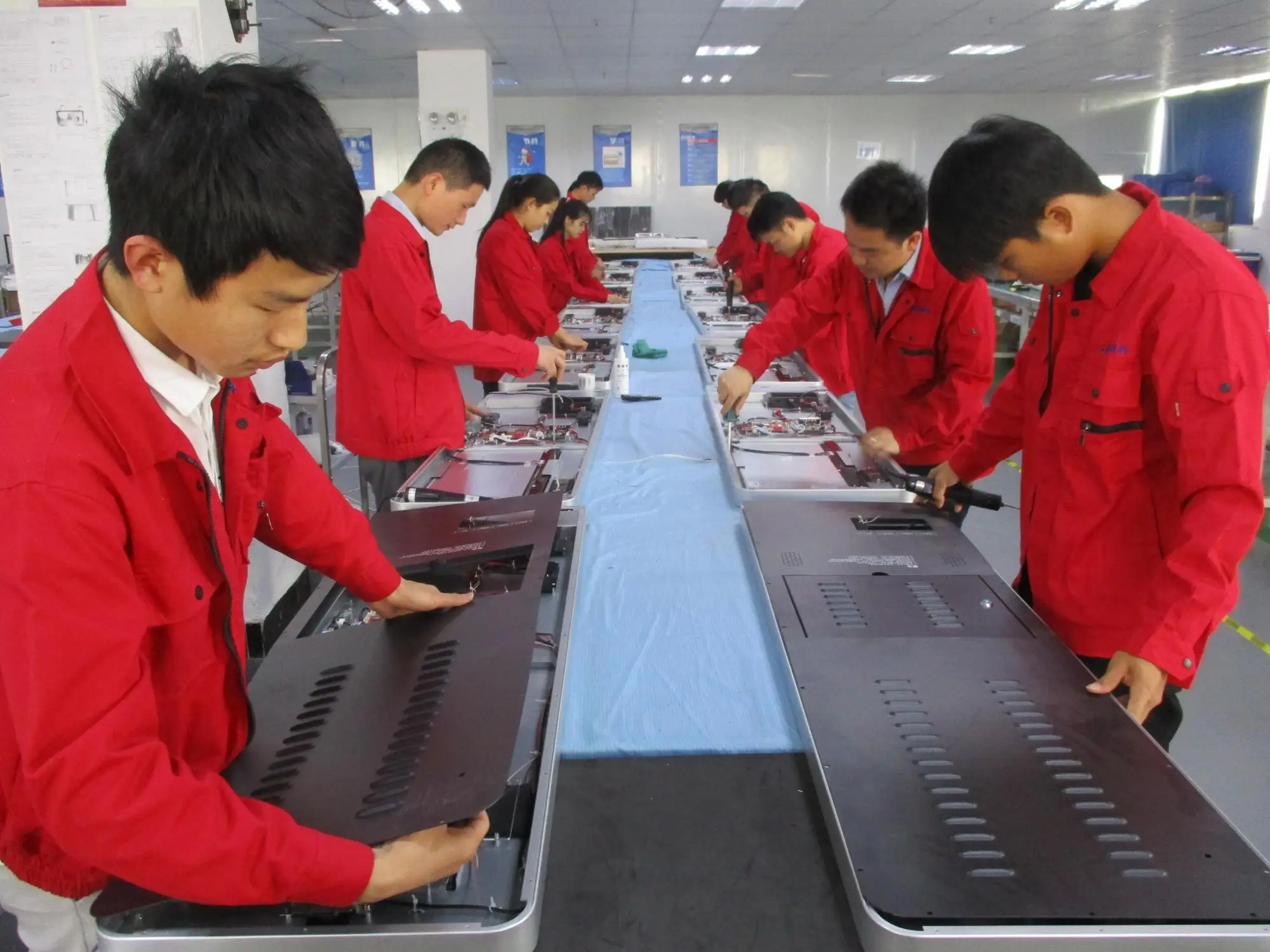

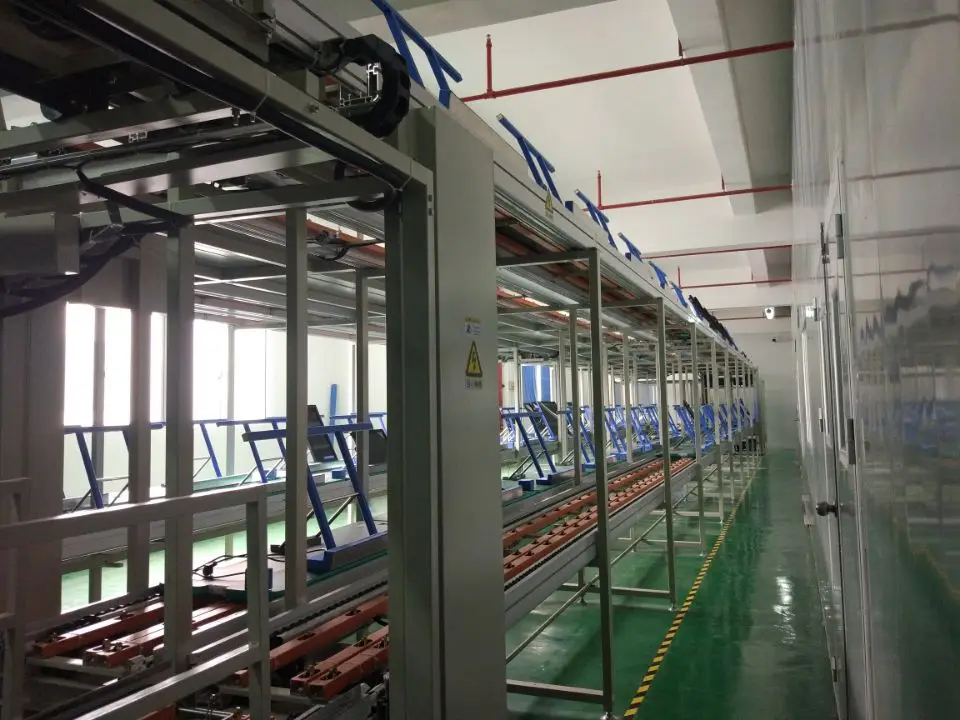

2. We have an automated production line and a production-free workshop that greatly reduces production time.
3. We provide OEM/ODM services to our customers worldwide. Our factory area is 5,000-10,000 square meters.
4. We will serve outlets in the United States and Canada. Over 6000 projects have been successfully installed to satisfy every client covering domestic and abroad market.
5. Our Trade Assurance limit on Alibaba keeps growing, we can now be covered up to US $322,000.00 on your orders.
6. As part of our multiple services, we can offer 1 years warranty on all our products. Don't worry about after-sales problems at all.
1. Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in producing LCD displays since 2003.
2. Q:How long is the warranty?
A:Our officially promised warranty time is 12 months from the date of delivery.
3. Q:I would like to ask you if it's possible to have my logo on the product.
A: TYALUX (our brand), neutral appearance, customized logo, all are available if you like.
4. Q:Which panel you use ?
A:Samsung and LG A+ panel.
5. Q:I haven't done business with you guys before, how can I trust your company?
A: Advertising displays received CE, RoHS, ISO9001, CCC etc; Our company is golden supplier more than 10 years; what’s more, our company became a listed company in NEEQ in 2016.
