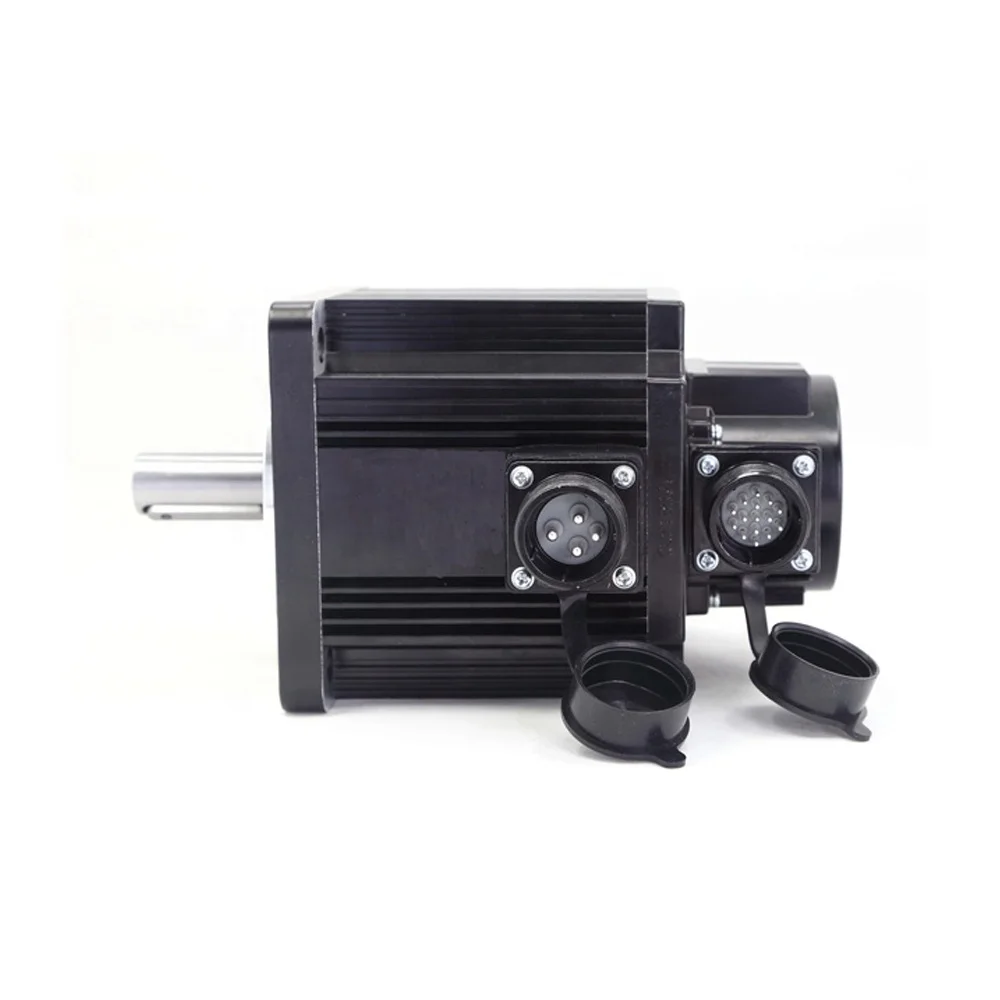

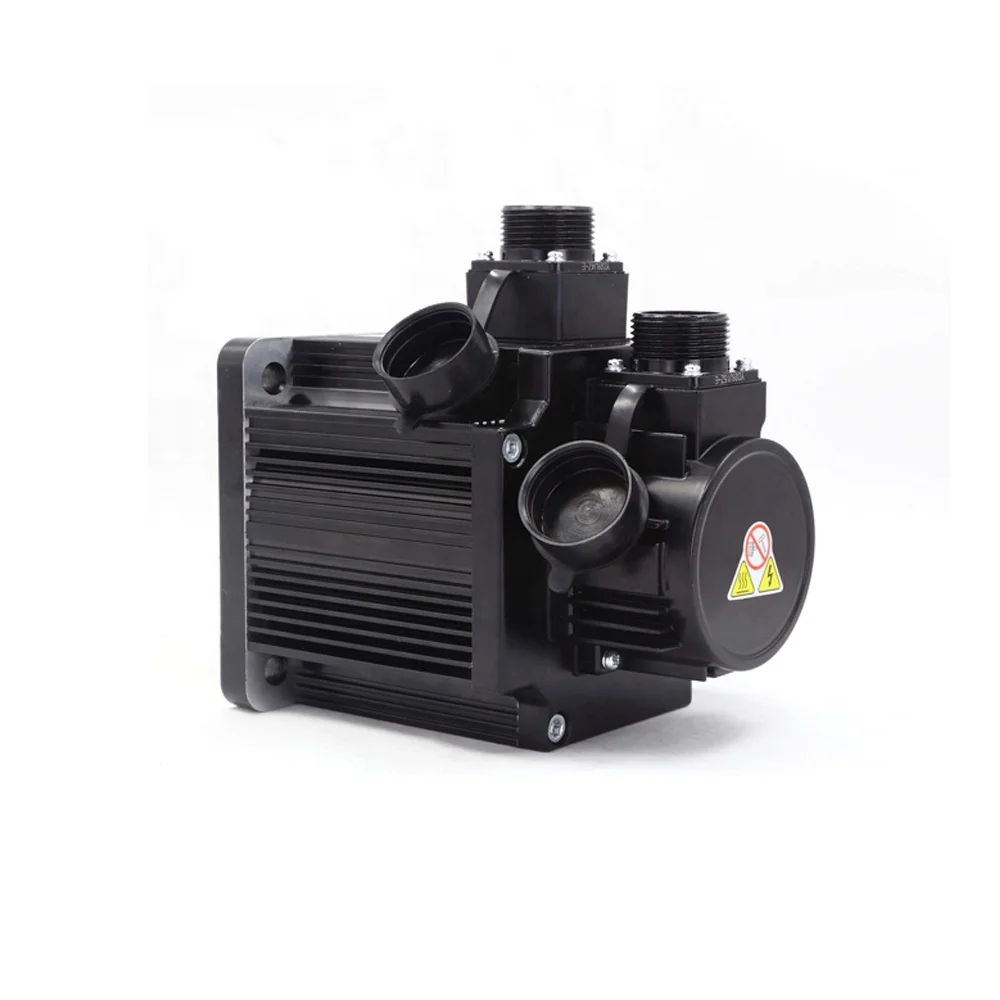

China supply nema 16 220v industrial sewing machine servo motor 2.6kw 10Nm 2500rpm ac servo motor
- Category: >>>
- Supplier: Beijing SDSW Technology Co. Ltd.
Share on (62440438058):
Product Overview
Description
Product Description

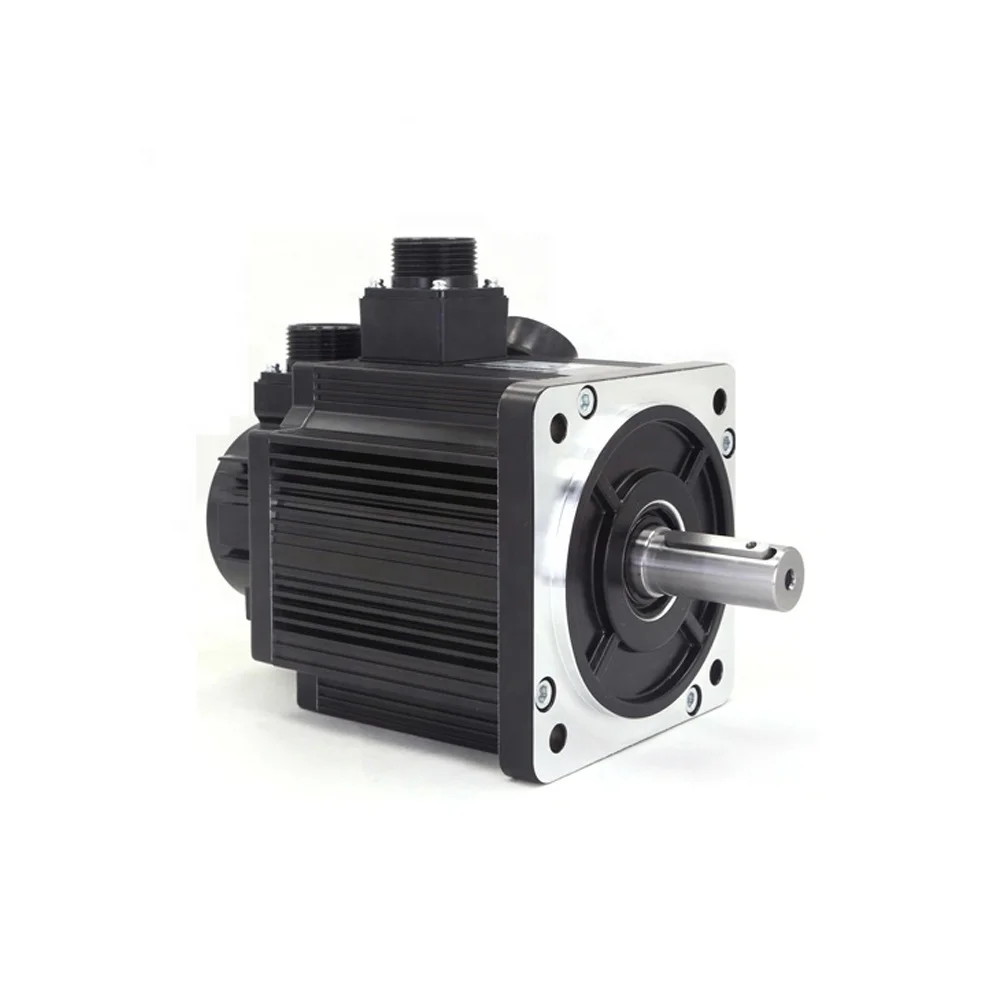

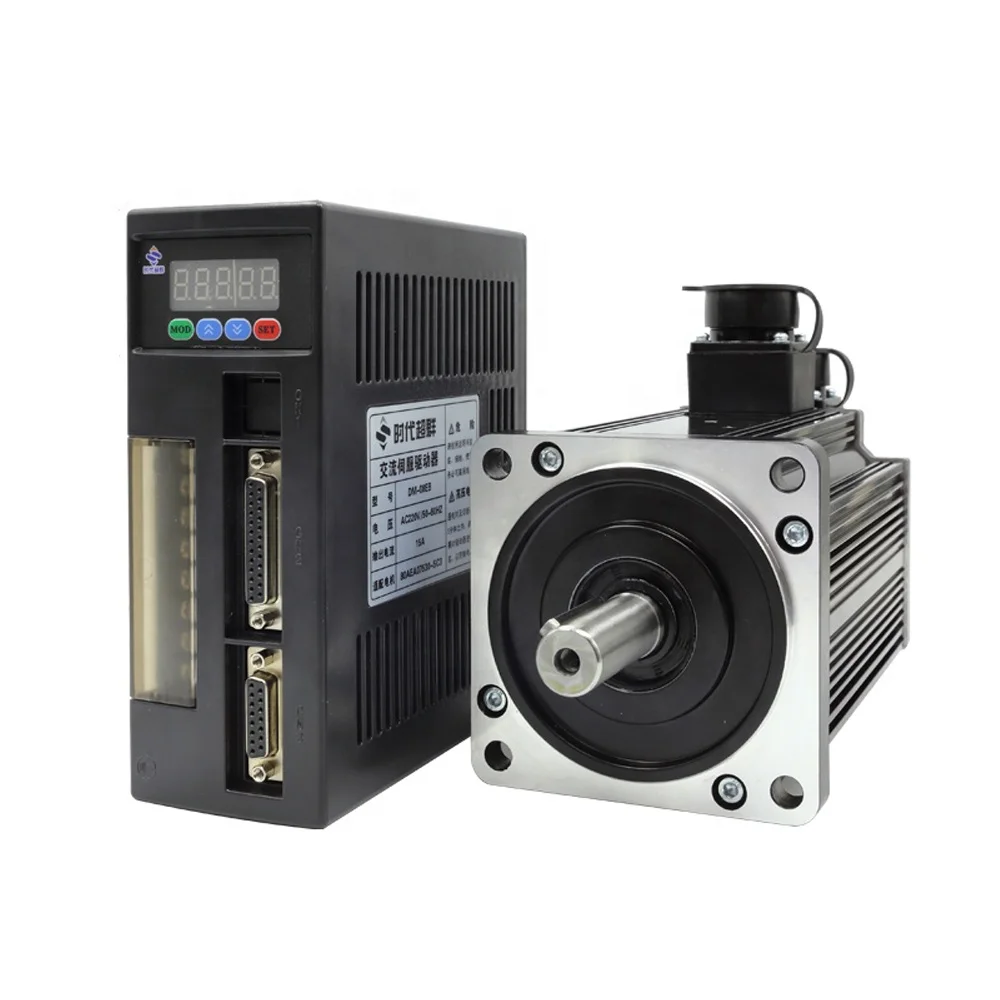

220V 2.6KW 15NM 2500rpm AC servo motor with driver

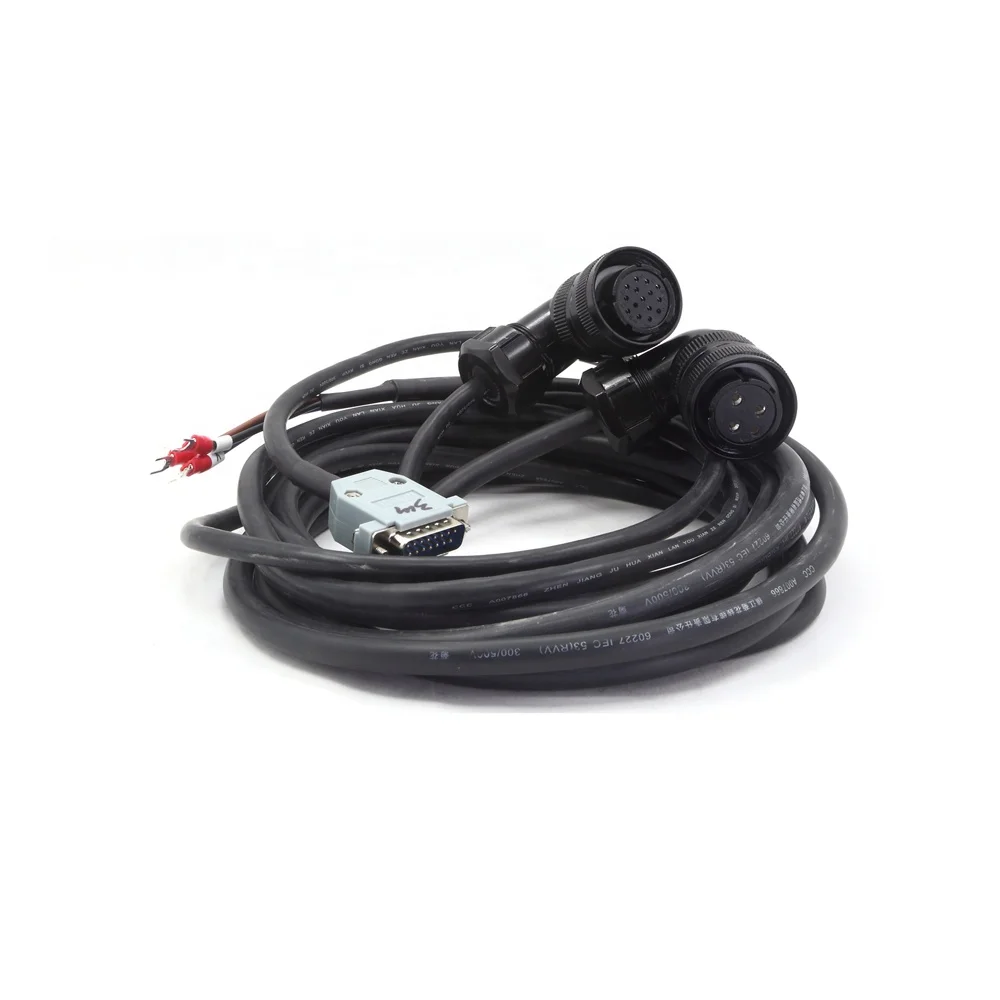

3m cable 2500PPR Increment encoder
Relate Products:
Another power of servo motor

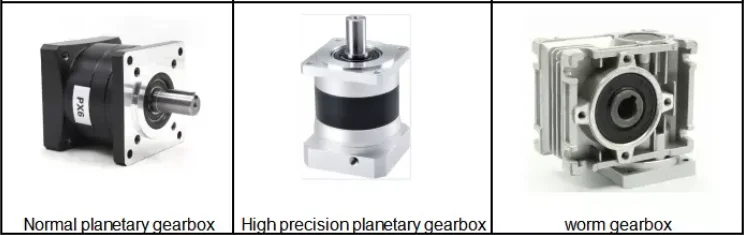

Adapter gearbox for reference

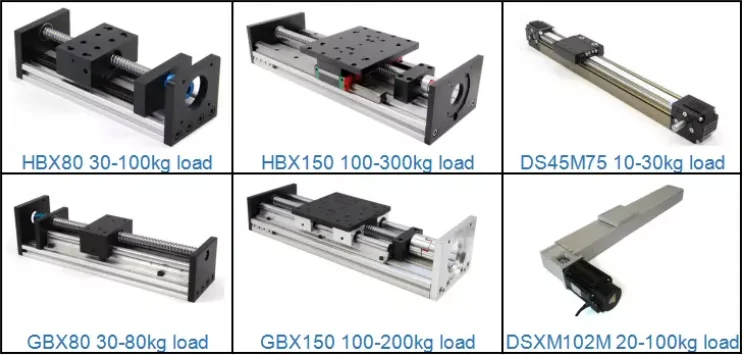

Linear guide for reference

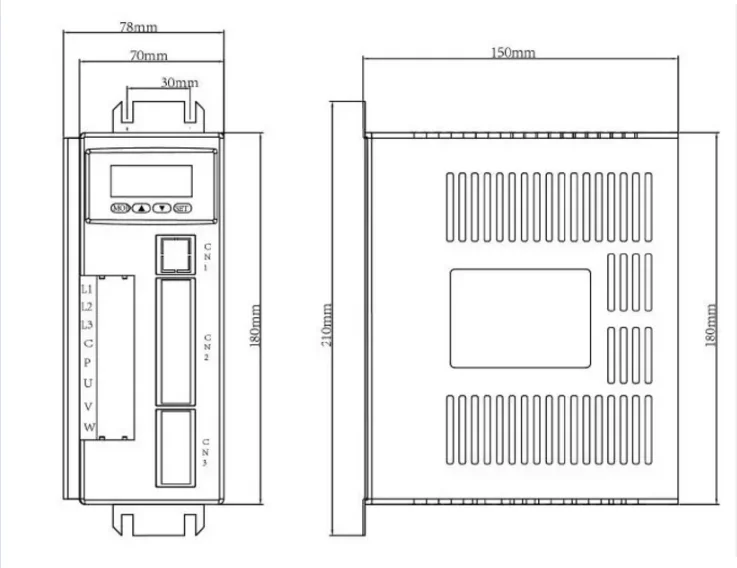

Size of Motor:

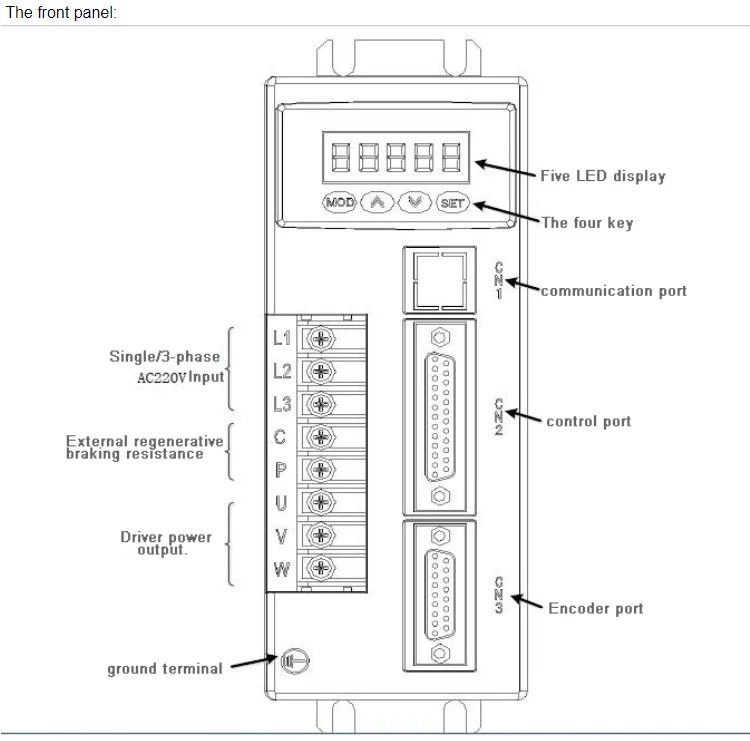

The function of AC servo motor driver.
| The input power | Single phase or three phase AC220V -15~+10% 50/60Hz | |
| environment | temperature | Using: 0~55℃ Storage: -20℃~80℃ |
| humidity | Below 90% RH No dewing | |
| vibration | Belown0.5G(4.9m/S2),10-60 no continue running | |
| Control mode | 1 Torque mode (internal or external) 6 Speed/torque model |
| Control input | servo enables,alarm reset, Forward driving is prohibited, Reverse driving is prohibited , External forward torque is limited , external reverse torque is limited, Emergency stop, Zero speed clamp , 1 Internal speed command option 1, 2 Internal speed command option 2 3 Internal speed command option 3, 1 The internal torque command option 1 2 The internal torque command option 2 Control mode switch, Gain switch, 1 Electronic gear molecular option 1, 2 Electronic gear molecular option 2,Instructions for, Position deviation to clear, Pulse input is prohibited, Proportional control, The origin return to trigger, The origin return reference point. 1 Internal location option 1, 2 Internal location option 2, Trigger internal position command, Suspend internal position command |
| Control the output | Alarm detection, Servo ready, Emergency stop checked out, Positioning to complete, Speed to reach, Reach the predetermined torque, Zero speed detection, Servo motor current, Electromagnetic brake, The origin return to complete, Located close to, torque limit, speed limit, Tracking arrive torque command |
| The encoder feedback | 2500p/r,15 line increment model, differential output |
| Communication mode | RS-232 OR RS-485 |
| Display and operation | 1.five LED display 2.Four buttons |
| Braking way | Through the internal/external braking resistance braking energy |
| Cooling way | Air cooled (heat transfer film, the strong cold wind fan) |
| Power range | ≤7.5KW |
Installation environment conditions
1.Working environment: 0 ~ and ℃;working environment: less than 80% (no condensation)
2.Storage environment temperature:- ℃; Storage environment humidity: 80% of the (no condensation)
3.Vibration: Below 0.5 G
4.Well ventilated, less moisture and dust place
5.No corrosive, flash gas, oil and gas, cuttingfluid, iron powder and so on environment
6.No moisture and direct sunlight place
Installation method
1.Level installation:to avoid liquids such as water, oil from motor wire end into the motor internal, please will cable outlet inbelow
2.Vertical installation: if the motor shaft and the installation with reduction unit, must pay attention to and prevent reducer in mark through the motor shaft into the motor internal
3.The motor shaft out quantitymust be thoroughly, if insufficient out to motor sports generates vibration
4.Installation and remove the motor, please do not use hammer knock motor, otherwise easy to cause damage to themotor shaft and encoder

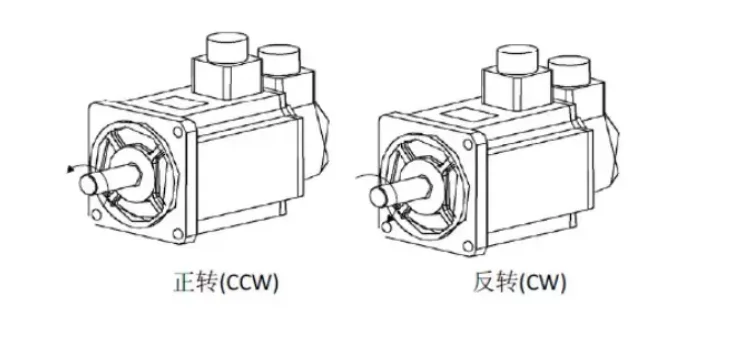

The motor direction of rotation
Looking from the motor load on the motor shaft and counterclockwise (CCW) for the forward, clockwise (the CW) as the reverse.
