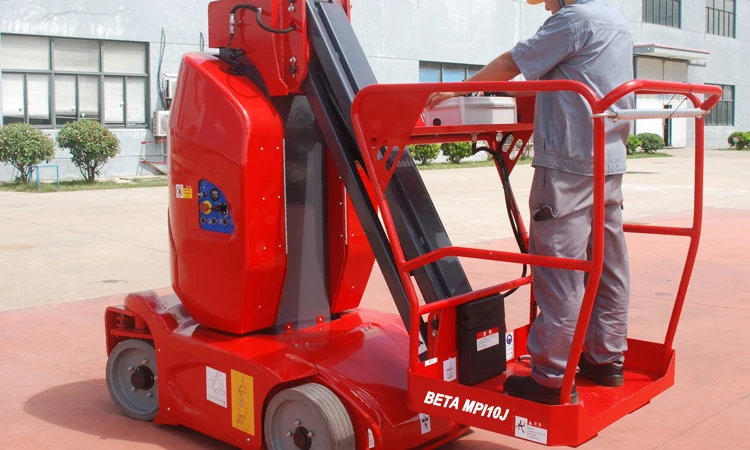

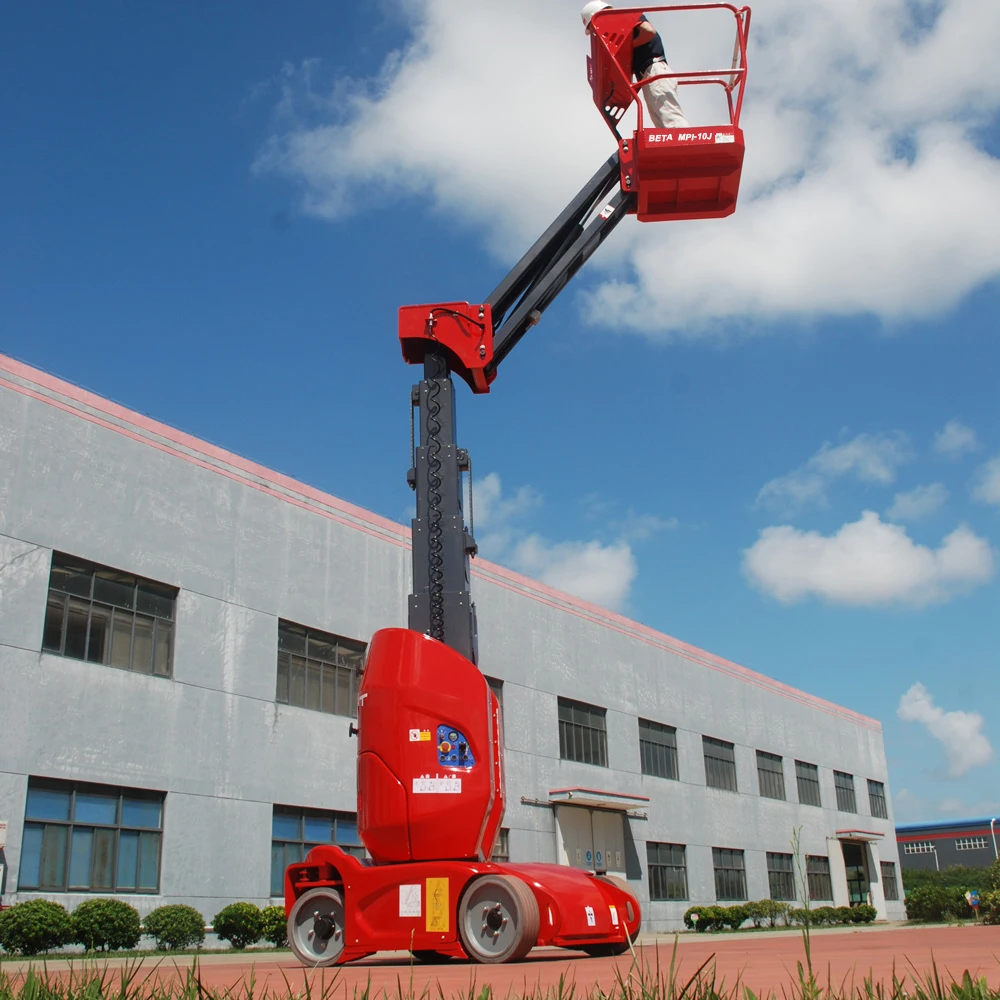

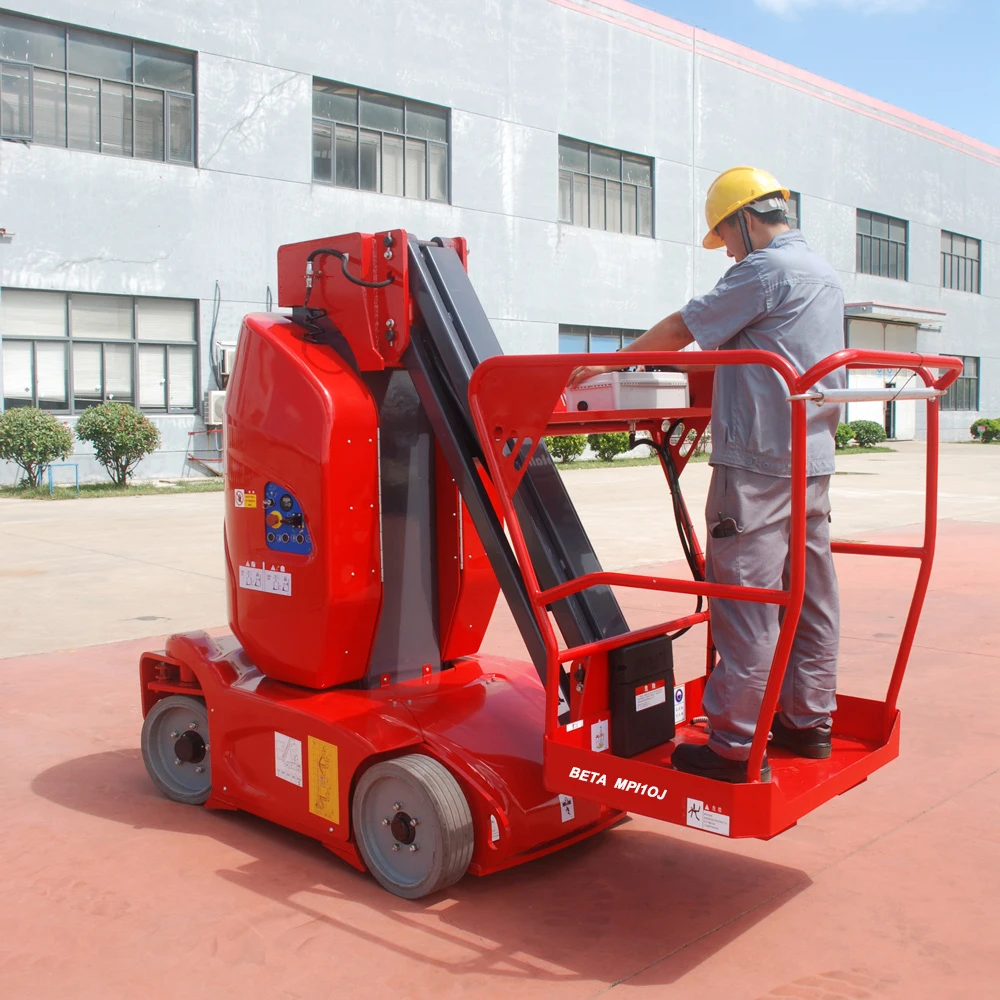

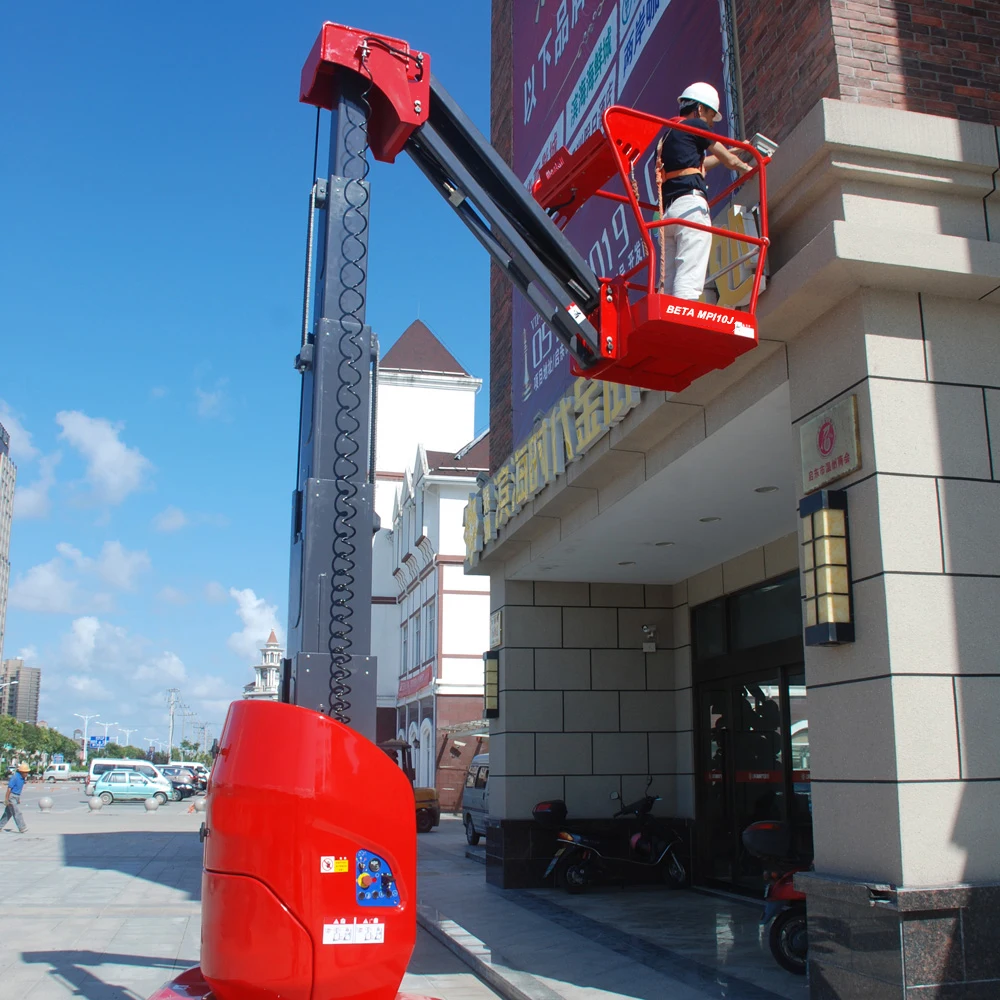

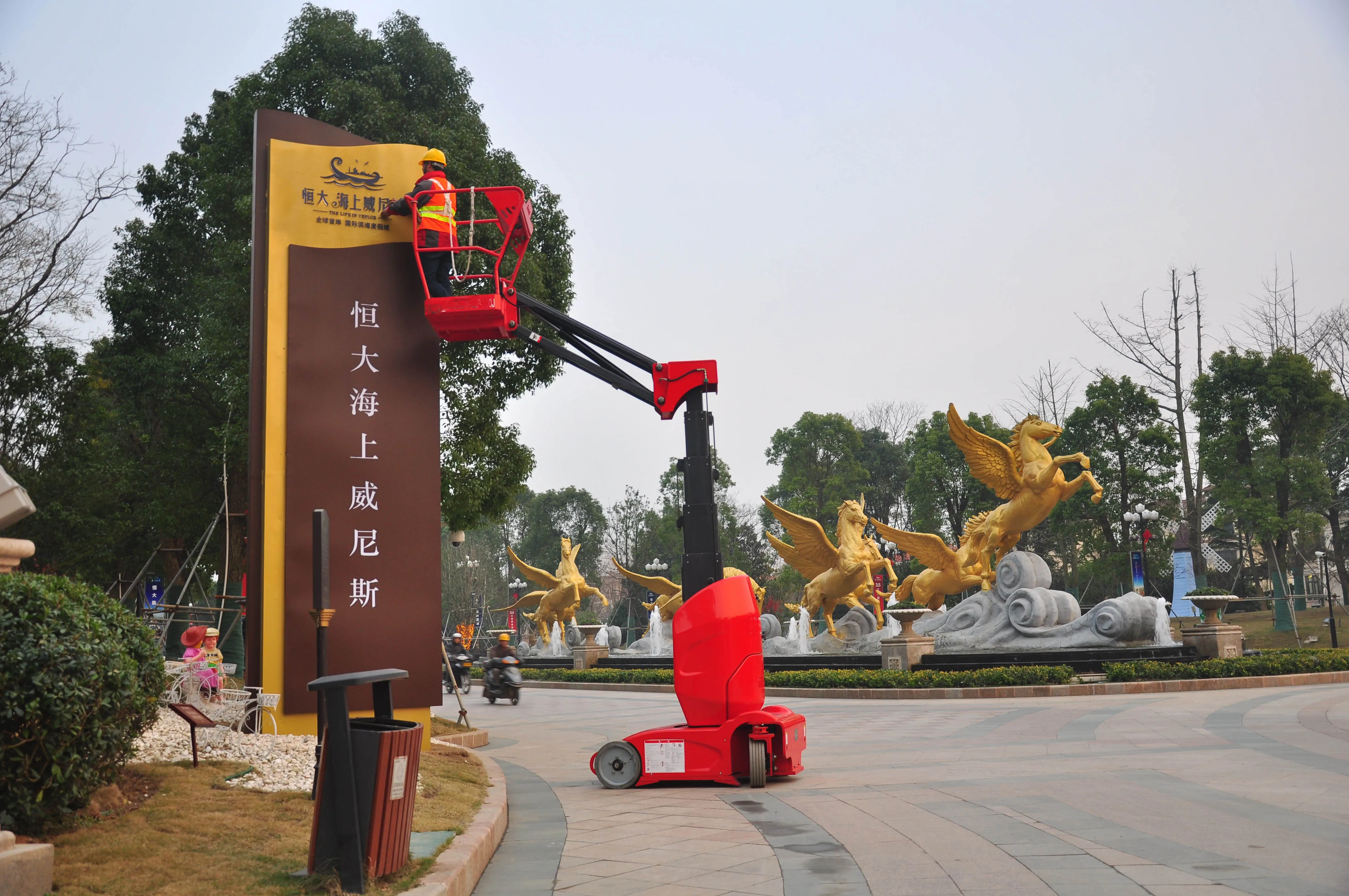

MPI10J Single Mast 10m Telescopic Self propelled Aerial Work Platform 200kg
- Category: >>>
- Supplier: Beta (hangzhou) Industrial Machinery Co. Ltd.
Share on (62440754896):
Product Overview
Description
Product Description
Self-propelled Work Platform | ||
Model | MPI10J | |
Working height | 10m | |
Platform height | 8m | |
Outreach Max. | 3.15m | |
Lift capacity | 200kg | |
Weight kg | 2870 | |
Platform size(L*W*H) | 0.91×0.85*1.14m | |
Stowed size(L*W*H) | 2.76×0.99×1.99 | |
Gradeability | 23% | |
Wheelbase | 1.2m | |
Ground clearance | 0.075m | |
Pothole Protection board ground clearance, m | 0.025m | |
Outside rotation radius | 1.82m | |
Inside rotation radius | 0m | |
Jib Swing | -60°/+60° | |
Vertical tilt Max. | 3 | |
Driving speed-stowed | 4.5km/h | |
Driving speed-raising | 0.5km/h | |
Power source | DC24V/240Ah | |
Tire Size (mm) | 406*125 | |
Standard Features
1. The working height can reach up to 10m
2. The lift capacity can reach to 200kg
3. Standard platform with median sliding rod
4. Auxiliary platform lowering system
5. Ground emergency lowering valve
6. Proportional raising and Driving control
7. Diagnosis system
8. AC wiring to platform
9. Adjustable work tray
10. Lowering and tilting alarm
11. Turn inter-radius is 0
12. Double wheel brake
13. Hydraulic brake releace
15. Pothole protection
15.The rear shield mounted with hinge,conveniently to close to all major electrical and hydraulic components.
16. Transportation fixing hole
17. Wide type forklift handling notch
18. Non-mark solid tire
Options Features
1. Door type standard/narrow/wide platform
2. Extendable platform
3. Fiber glass platform
4. Goods collection platform
5. Motion alarm
6. Tool box
7. Platform positioning laser lights
8. Fluorescent tubes box
9. Working flashing beacon
10. Top limit protection auto-stop device
11. Maintenance-free battery
1. The working height can reach up to 10m
2. The lift capacity can reach to 200kg
3. Standard platform with median sliding rod
4. Auxiliary platform lowering system
5. Ground emergency lowering valve
6. Proportional raising and Driving control
7. Diagnosis system
8. AC wiring to platform
9. Adjustable work tray
10. Lowering and tilting alarm
11. Turn inter-radius is 0
12. Double wheel brake
13. Hydraulic brake releace
15. Pothole protection
15.The rear shield mounted with hinge,conveniently to close to all major electrical and hydraulic components.
16. Transportation fixing hole
17. Wide type forklift handling notch
18. Non-mark solid tire
Options Features
1. Door type standard/narrow/wide platform
2. Extendable platform
3. Fiber glass platform
4. Goods collection platform
5. Motion alarm
6. Tool box
7. Platform positioning laser lights
8. Fluorescent tubes box
9. Working flashing beacon
10. Top limit protection auto-stop device
11. Maintenance-free battery
