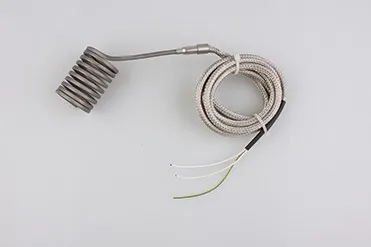

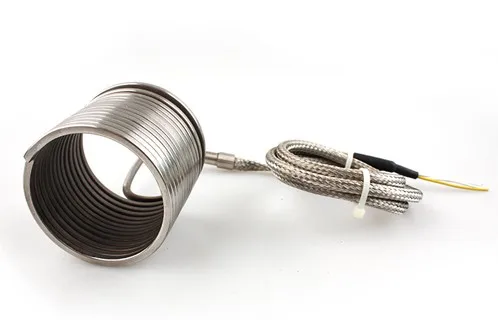

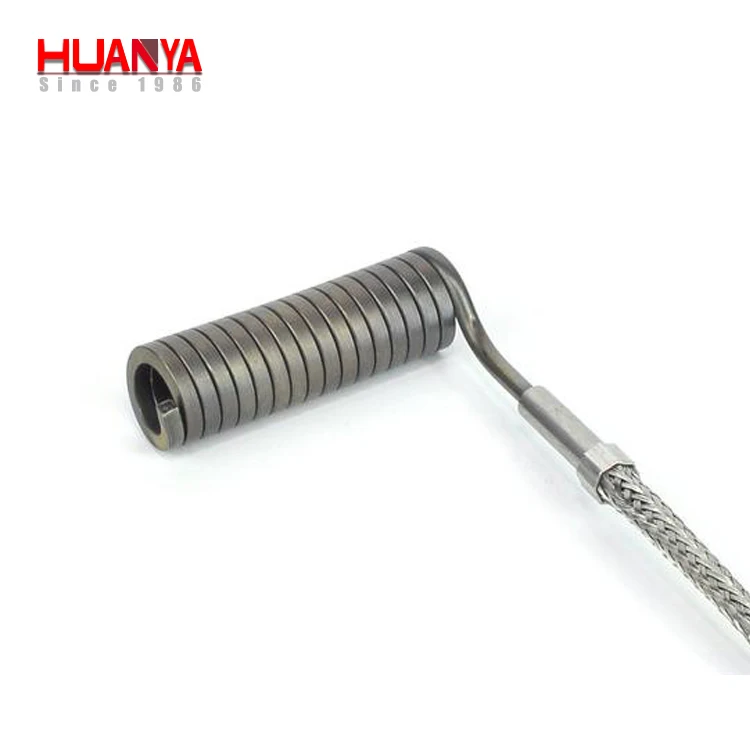

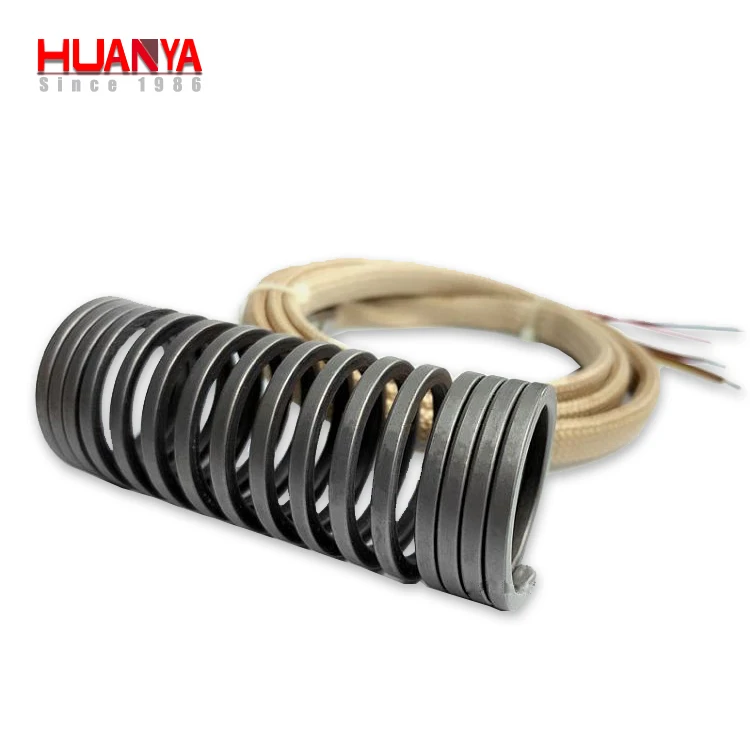

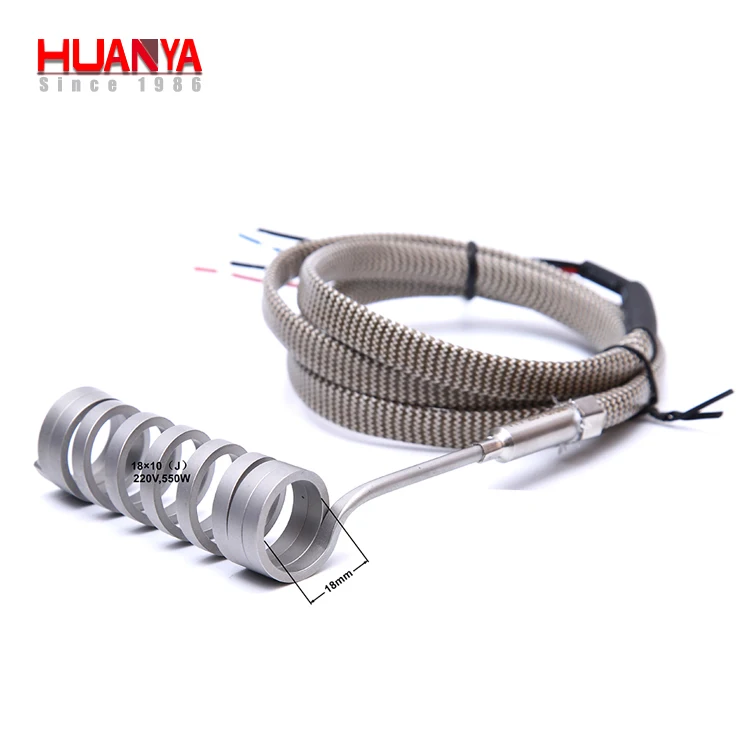

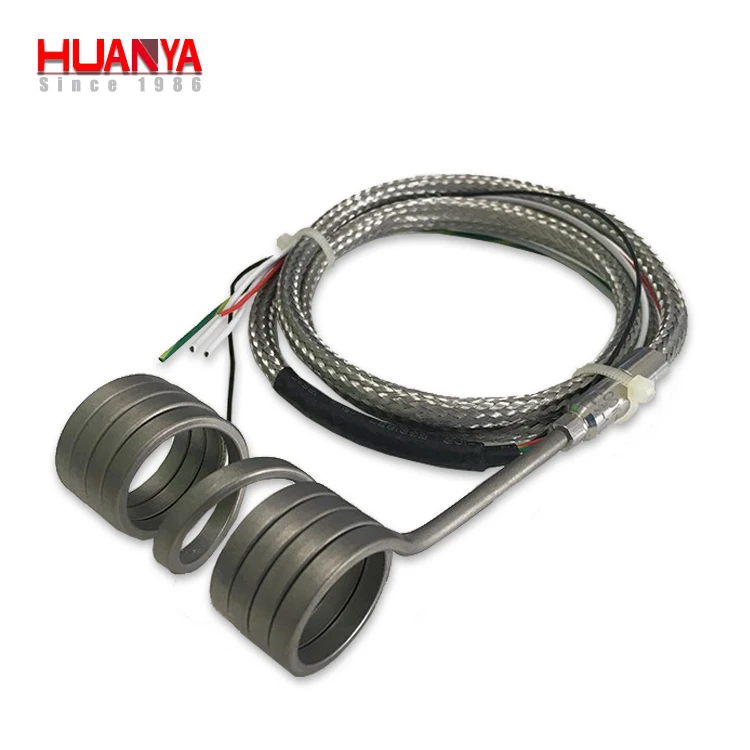

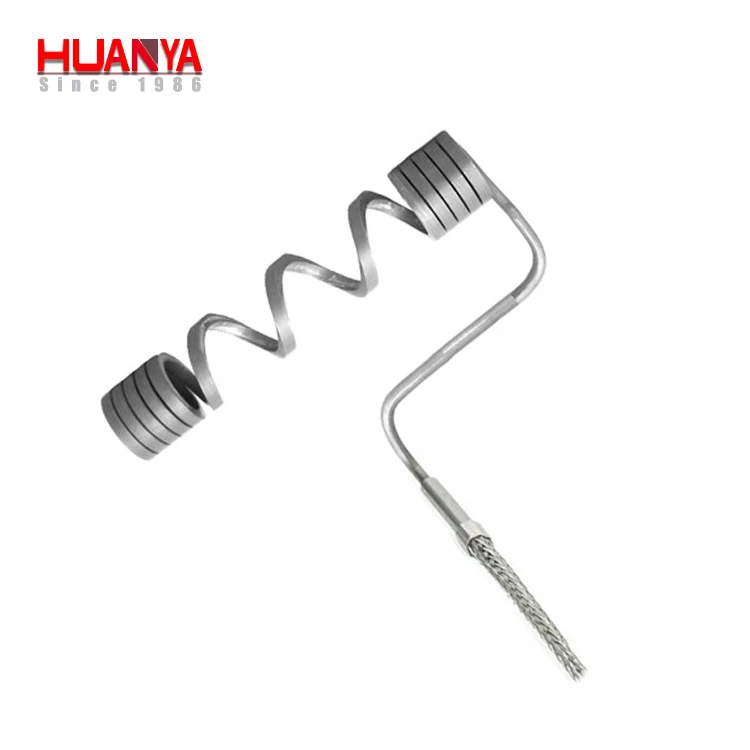

2.4x4.2mm hot runner spring coil nozzle heater with thermocouple

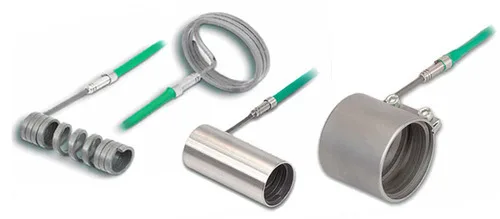

Hot Runner Spring Coil Heater/pipe heater are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The hot runner heaters are annealed to acquire malleability for bending into any shape. Coil tube heating elements with thermocouple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.





Detailed Images


Specifications


Sectional area
3X3,4.2X2.2,4X2,4X2.7,4X2.5 3.3 X 3.3 3.5 X 3.5 4 X 4,2.2X1.3
Minimum ID
6mm
Sheath Material
SS304,SS310
Insulation Material
High Pure MgO
Resistance Wire
Cr20Ni80
Maximum Sheath Temperature
700°C
Die Electrical Strength
800V A/C
Insulation
> 5 M W
Dimensional Tolerance
Coil I.D + 0.05mm // Coil Length + 1mm
Wattage Tolerance
+ 10% (+ 5% Available Upon Request)
Voltage
12V~440V
Wattage
50W~2000W
Build-in thermocouple power
without or with J/K/T/E type thermocouple
Sheath's length
500/1000/1200/1500/2000mm
Available Cable
nylon,metal braided,fiberglass ,silicone rubber, armored


Features

* Standard sizes available with various cross section
* Various Watt Density option available
* Designed for even heat profile
* Precision fit on Hot Runner Nozzles
* Highly Non-corrosive



Application

* Injection moulding machine nozzle
* Hot Runner Nozzles & Bushings.
* Packaging machineries
* Hot runner Injection moulds.
* Injection & Blow Moulding Machine Nozzles.
* PET preform & Thin wall container Moulds
* Hot runner Manifolds.



Order Guidance

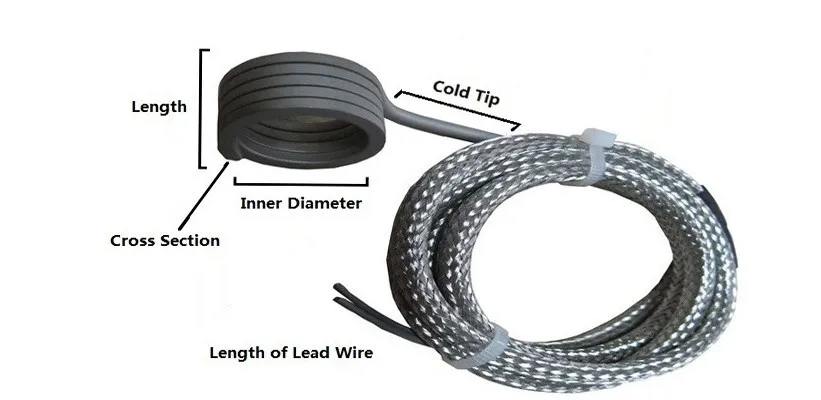

When you enquiry, Please specify these parameters :

1. Volts&Watts
2. Inner dia of coiled heater : I.D (Or) Outer diameter of nozzle to be heated
3. Height of coil
4. Connection lead option and leading wire length
5. Type of the thermocouple (J type or K type)
6. Drawing or sample for special type
7.Quantity
