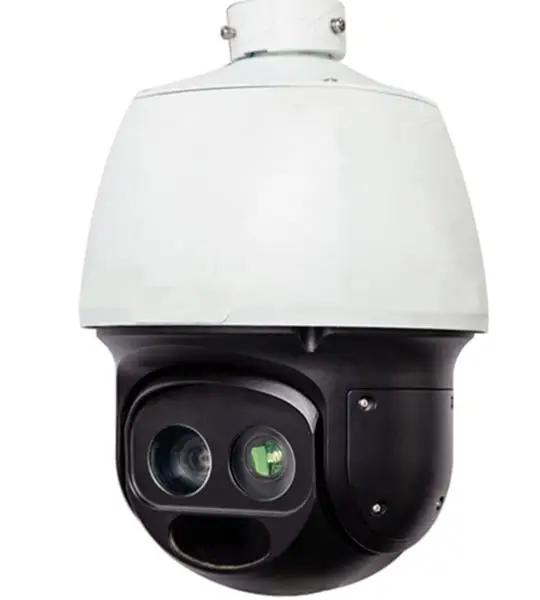

2MP Starlight Laser IR PTZ and Laser IR speed Dome Camera
- Category: >>>
- Supplier: Zhongshan Canstar Electronics Limited
Share on (62440879858):
Product Overview
Description
Whatsapp:+8613527160960
Wechat: +8613527160960
Skype: Markvovk
• 1/2.8" progressive scan CMOS
• Up to 1920 x 1080 resolution, 60fps
• 33x optical zoom (4.5~148.5mm)
• Ultra 265, H.265,ONVIF
• Smart IR, up to 30m IR distance
• Vari-focal laser: 30m to 500m(1640ft) distance
• All-weather design
• –40°C ~ +70°C
• Alarm I/O,Audio I/O
• AC24V,DC24V,8~47W
• IP66
• Up to 1920 x 1080 resolution, 60fps
• 33x optical zoom (4.5~148.5mm)
• Ultra 265, H.265,ONVIF
• Smart IR, up to 30m IR distance
• Vari-focal laser: 30m to 500m(1640ft) distance
• All-weather design
• –40°C ~ +70°C
• Alarm I/O,Audio I/O
• AC24V,DC24V,8~47W
• IP66
| Camera | |||||
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | ||||
| Lens | 4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens | ||||
| Digital Zoom | 16 | ||||
| Optical Zoom | 33 | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 4.5 | 69.8 | 27.9 | 14 | 7 | |
| 148.5 | 2304.3 | 921.7 | 460.9 | 230.4 | |
| Angle of View (H) | 62.67° ~ 2.82° | ||||
| Angle of View (V) | 38.4° ~ 1.3° | ||||
| Angle of View (O) | 77.1° ~ 3.3° | ||||
| Shutter | Auto/Manual, shutter time: 1 ~ 1/100000s | ||||
| Minimum Illumination | Colour: 0.001Lux (F1.6, AGC ON) 0Lux with IR | ||||
| Iris | Auto/Manual, F1.6 ~ F5.3 | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >52dB | ||||
| VF laser | Up to 500m (1640ft) | ||||
| Defog | Digital Defog | ||||
| WDR | 120dB | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 60fps; Sub Stream: 2MP (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 24 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Smart | |||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Two-way Audio | Supported | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256GB | ||||
| Network Storage | ANR | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL, QoS | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| Pan & Tilt | |||||
| Pan Range | 360° | ||||
| Pan Speed | 0.1°/s ~ 240°/s | ||||
| Preset speed: 300°/s | |||||
| Tilt Range | -15° ~ 90° (auto reverse) | ||||
| Tilt Speed | 0.1° ~ 160°/s | ||||
| Preset speed: 240°/s | |||||
| Number of Presets | 1024 | ||||
| Patrol | Preset patrol, route patrol, recorded patrol | ||||
| Home Position | Supported | ||||
| Interface | |||||
| Audio I/O | Audio interface | ||||
| 1 Input: impedance 35kΩ; amplitude 2V [p-p] | |||||
| 1 Output: impedance 600Ω; amplitude 2V [p-p] | |||||
| Alarm I/O | 1/1 | ||||
| Network | 1 RJ45 10M/100M Base-TX adaptive Ethernet network interface | ||||
| General | |||||
| Power | AC 24V±25% (default power supply), DC 24V±25%, PoE (PSE Required) | ||||
| Power consumption: 8 ~ 47W | |||||
| Dimensions (Ø x H) | Ø227 x 359.4mm (Ø8.9" x 14.2") | ||||
| Weight | 5.6kg (12.3lb) | ||||
| Working Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | ||||
| Ingress Protection | IP66 | ||||
| IR | Built-in VF laser IR | ||||
| Reset Button | Supported | ||||
