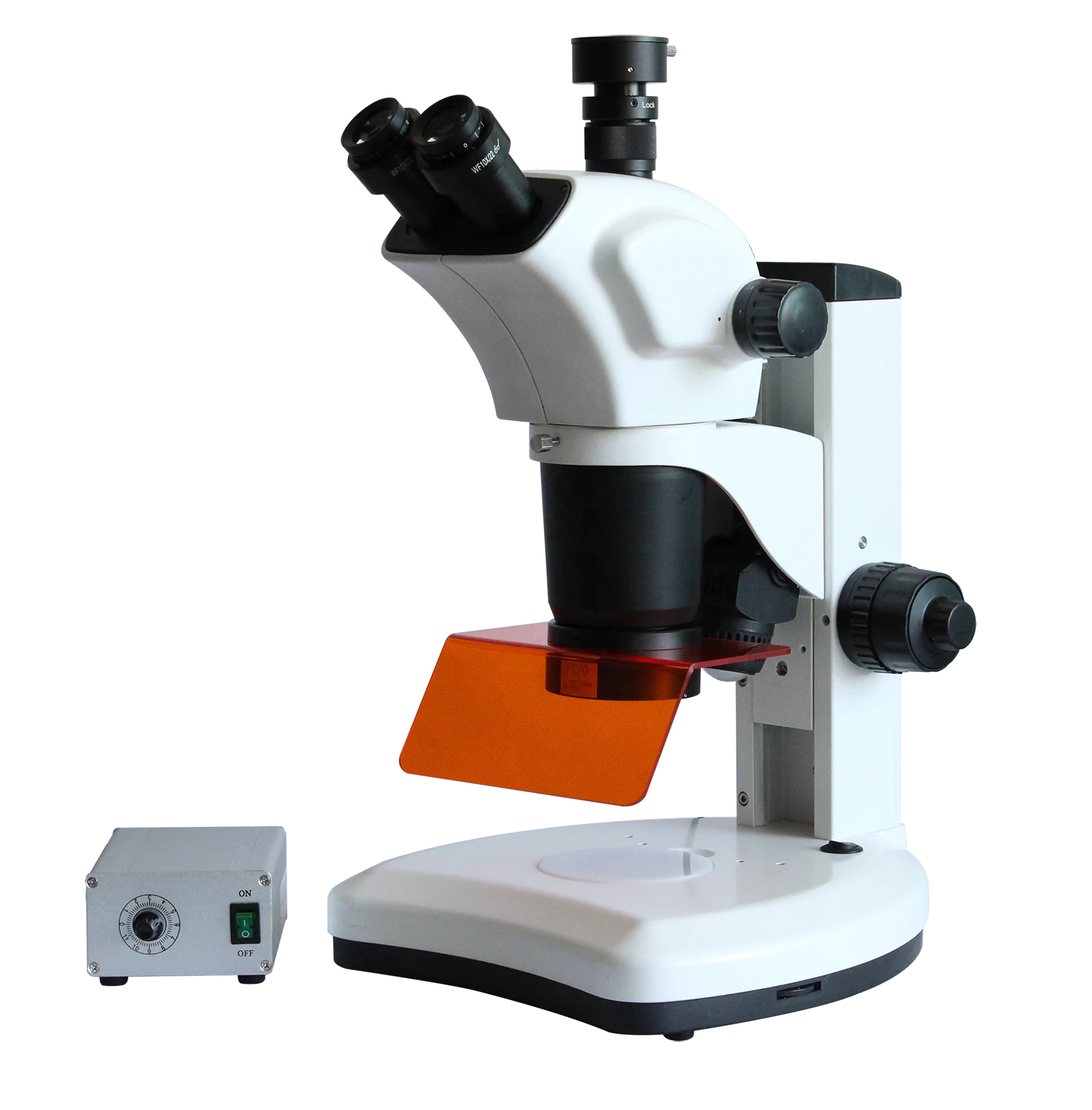

VMF7063 LED Illumination Trinocular Fluorescence Stereoscope with 2 / 4 filters
- Category: >>>
- Supplier: Suzhou Jingtong Instrument Co. Ltd.
Share on (62441016422):
Product Overview
Description
 | Plat Field of View 3W LED Lamp B, G, V, UV External Power Supply |
Product Description
VMF7063 is a instrument which has long working distance and wide zoom range stereo zoom objectives. Streamline shape and sensible functional layout, make the operation easy and convenience. This instrument can be use in Electronics Industry line detection, criminal analysis and life sciences study field etc.
High brightness white LED illumination, transmission, reflecting, transmission-reflecting mode illumination can be selected, independent electrical control, brightness adjustable freely.
Flourescent lighting system falls in new design, highlight the use of LED lighting mode as excitation light source, the brightness is adjustable, suitable for flourescnt stereoscopic observation.
Features
---B, G flourescent illumination
---External power supply
---3W LED lamp, brightness adjustable.
---The plat field of plan objective can achieve 22mm
---Trinocular, inclined 45°, interpupillary distance is 48~75mm
Specification
Specification for VMF7063 | |
|---|---|
Eyepiece | WF 10X (Φ22mm) |
Interface: 30mm; Parfocal distance: 10mm | |
Objective | 0.7X~6.3X, ratio: 1:9 |
Eyepiece Tube | Trinocular, inclined 45°, interpupillary distance: 48~75mm, ±5 diopter |
Magnification | 7X~63X |
Working Distance | 110mm |
Mechanical Stage | 310mm x 280mm, with specimen clip |
Reflected Illumination | 3W LED / 30W Halogen lamp(optional), brightness adjustable |
Transmitted Illumination | 3W LED / 30W Halogen lamp(optional), brightness adjustable |
Epi-fluorescence Illumination | 3W x 2LED B, G, V (optional), UV(optional) |
Power supply | Input: AC 85V~265V 50/60 Hz Output: 12V |
Fluorescence Filter System | B exciton wavelength: 460nm~470nm, emission wavelength: 515nm |
G exciton wavelength: 520nm~530nm, emission wavelength: 590nm | |
V exciton wavelength: 390nm~400nm, emission wavelength: 455nm (Optional) | |
UV exciton wavelength: 360nm~370nm, emission wavelength: 425nm (Optional) | |
Weight | Net: 5.5Kg; Gross: 7Kg |
Dimension | 28 x 38 x 46 (cm) |
Product Details

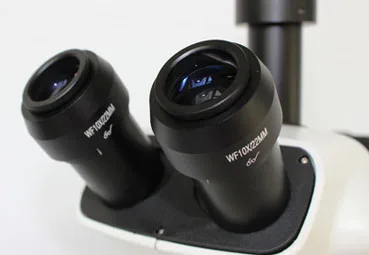

 | Head Optical tube is inclined toward 45°, interpupillary distance and eyepieces diopter can be adjusted, observe convenience and operation easy . |

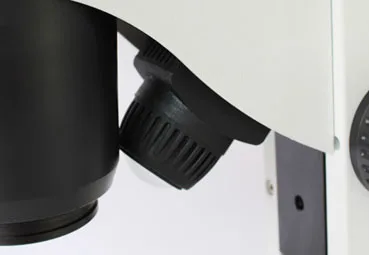

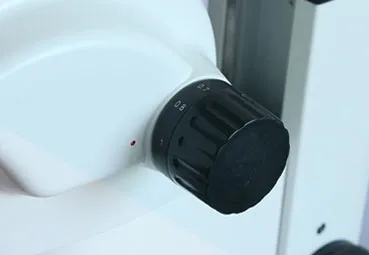

Focusing System Zoom range 0 .7~6.3 (zoom ratio 1 :9),the tatal magnification is 7X~63X. 2X Auxiliary Objective is optional. |  |

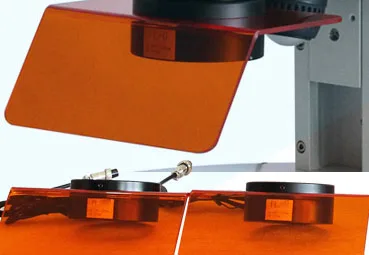

 | Fluorescence Observe Reflected flourescence illumination: 3W x 2 blue light LED (B, G, V, UV 4 color light optional). Power supply: AC Voltage 100~240V, 50/60 Hz. |
Illumination System Reflected light source: 3W high brightness LED illumination, adjustable brightness; Transmitted light source: 3W high brightness LED illumination, adjustable brightness. |  |

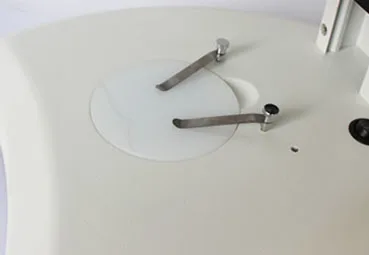

 | Mechanical Stage Base size is 310mm x 280mm, with specimen clip. |
Samples
 |  |  |
| Fluorescent Observe | Fluorescent Observe | Fluorescent Observe |

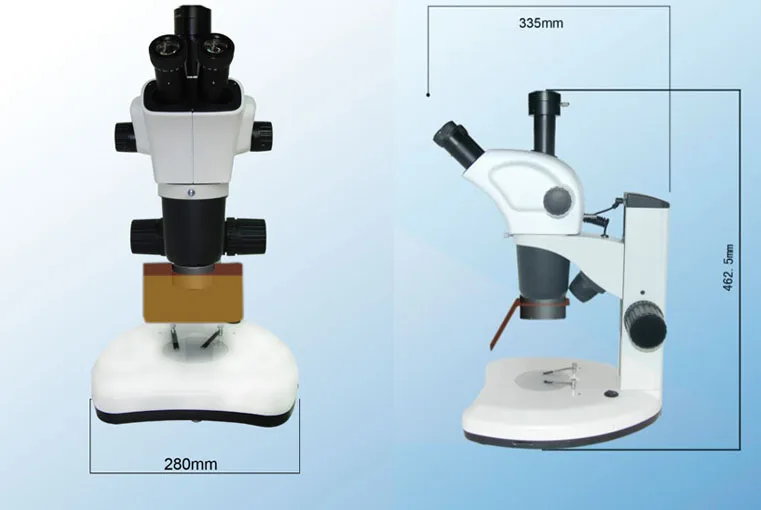

Dimension
 |
| Dimension of VMF7063 |

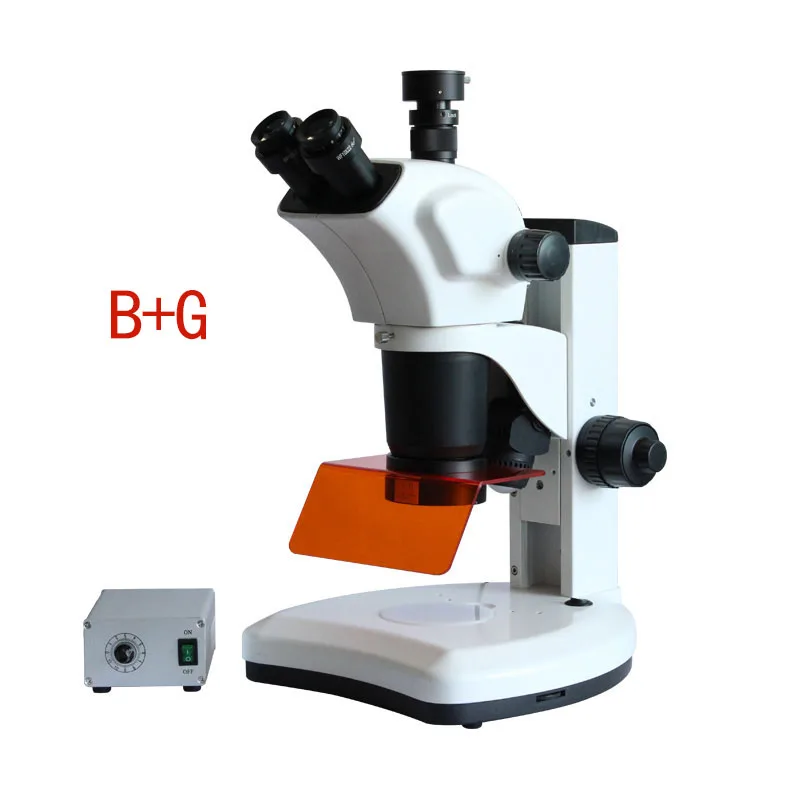

 | Set 1 B+G (2 Filters) |

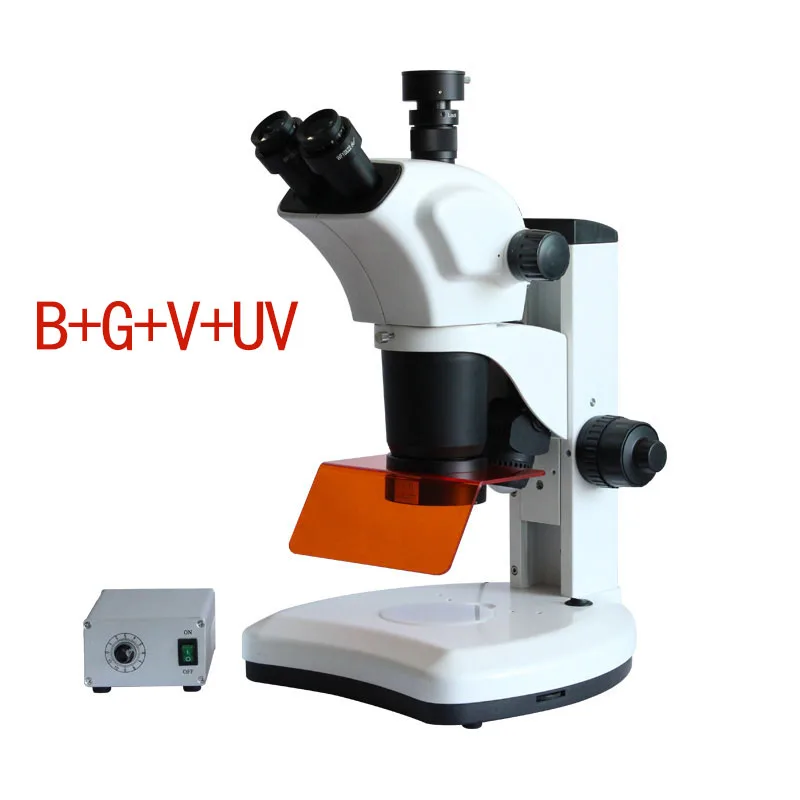

 | Set 2 B+G+V+UV (4 Filters) |

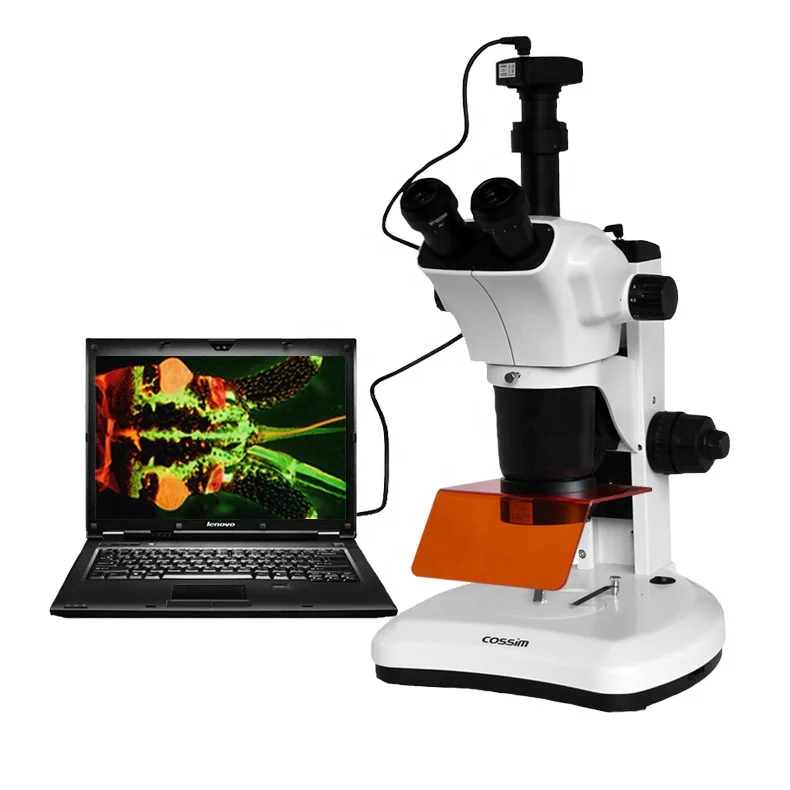

 | Set 3 6.3MP(E3ISPM06300KPA) |

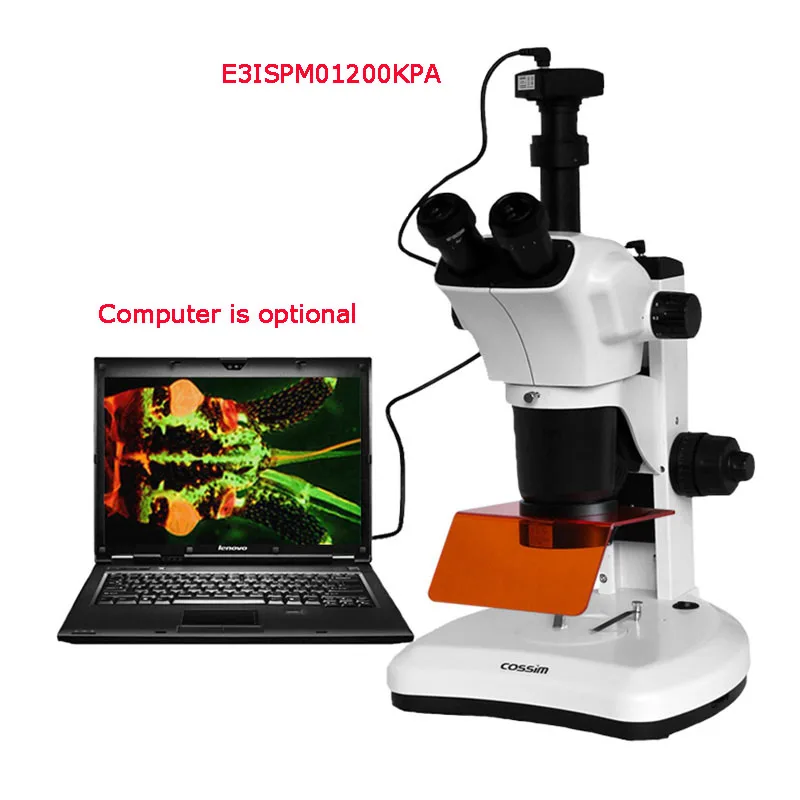

 | Set 4 12MP(E3ISPM012000KPA) |
