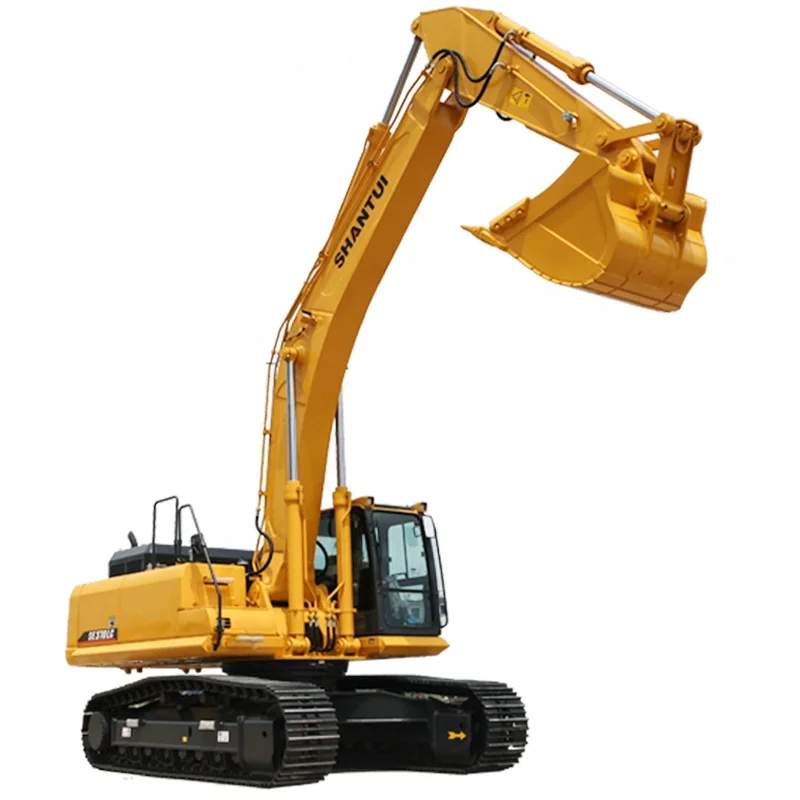

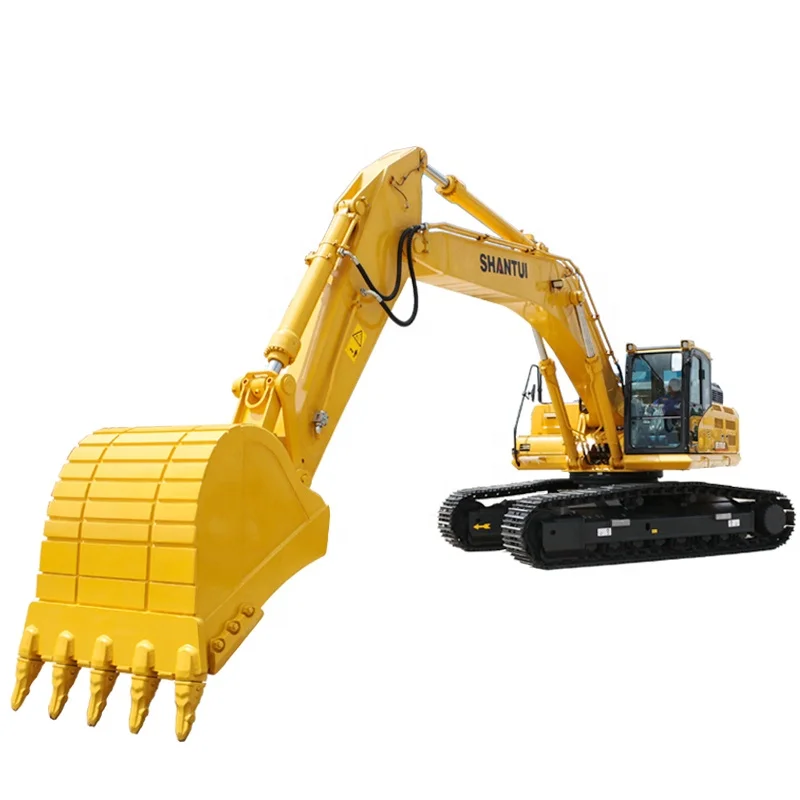

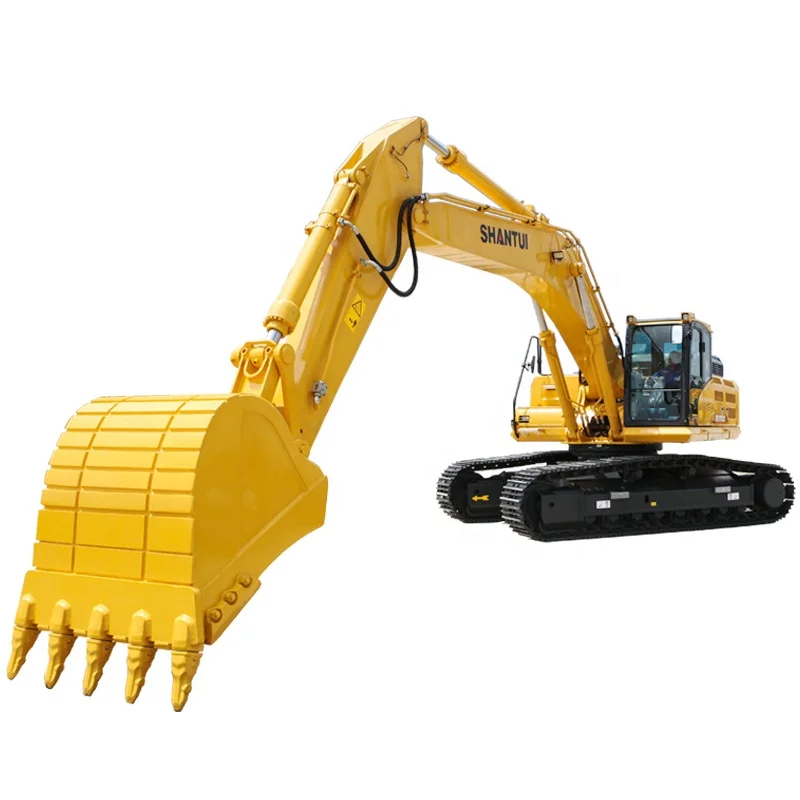

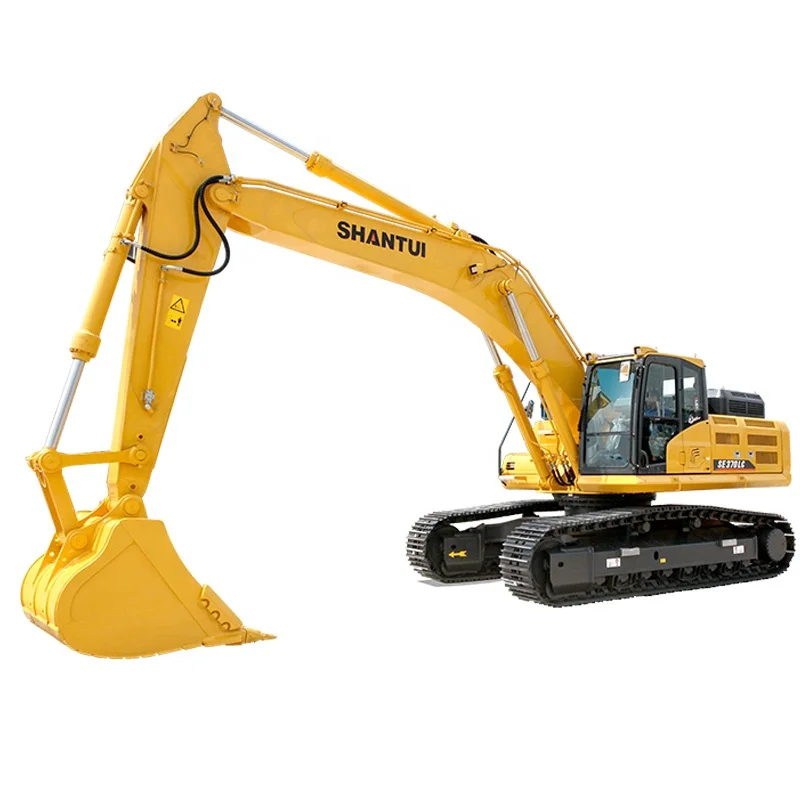

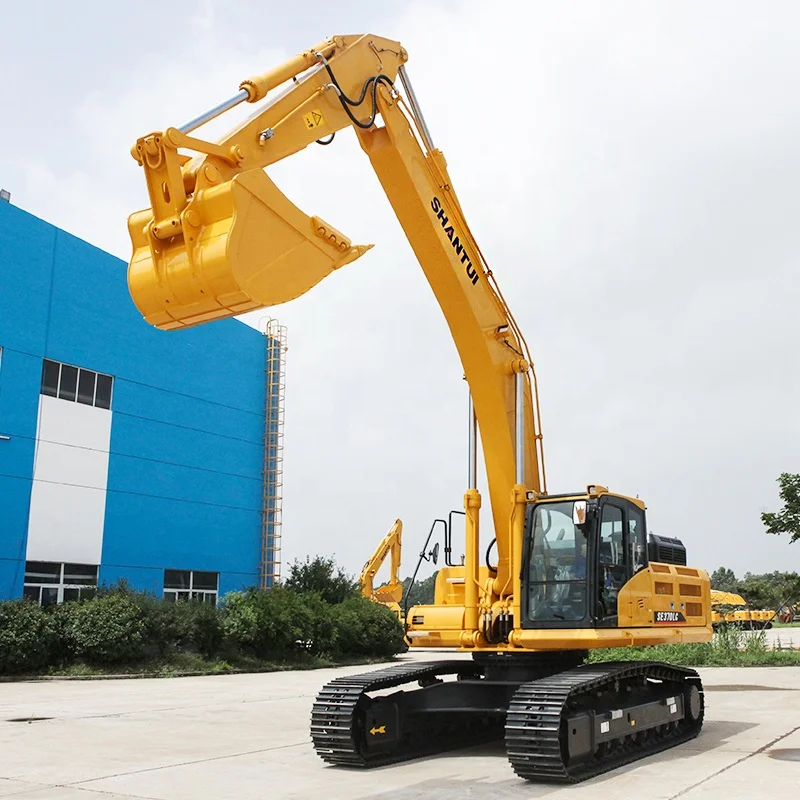

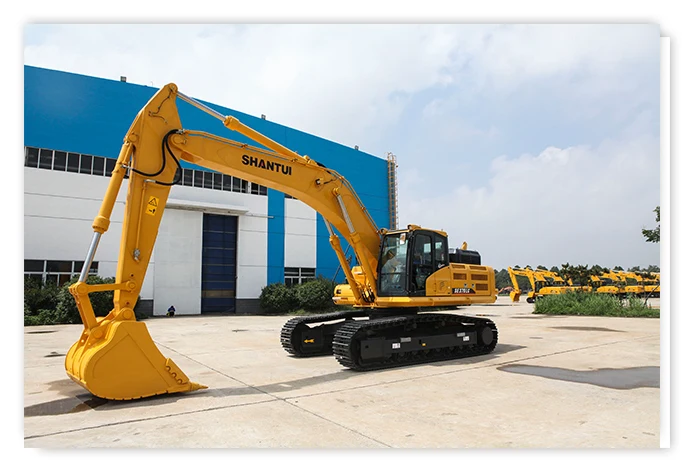

Shantui manufacturers 36.8t SE370LC 1.8cbm hydraulic track sand excavators
- Category: >>>
- Supplier: Shandong Shantui Construction Machinery Import And Export Co. Ltd.
Share on (62441177020):
Product Overview
Description
Products Description
The SHANTUI SE370LC features standard integrated SHANTUI technology to make you more efficient. With new cab options focused on operator comfort and less fuel and maintenance, the excavator ensures you’ll spend more time producing profits for your business.
Technical Features
Move more with less fuel

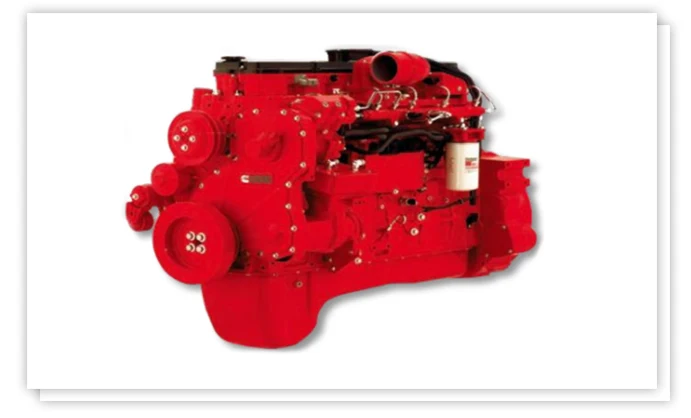

To fulfill the tough job of mining environment, the SHANTUI SE370LC is equipped with a super strong “heart”-Cummins QSL9. Four working modes can switch freely and contributes to perfect balance of efficiency and energy saving.
Purpose built for mining

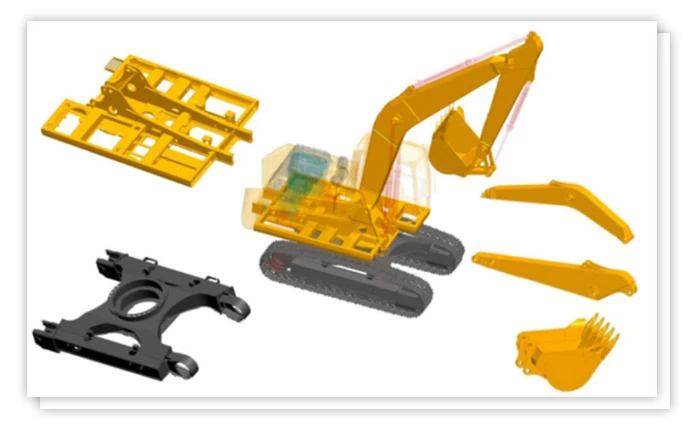

The design of SE370LC is completely optimized and the major stress locations are reinforced to resist against severe working conditions. Using advanced engineering and software, we carefully analyze each structure to create durable, reliable machines for tough applications.

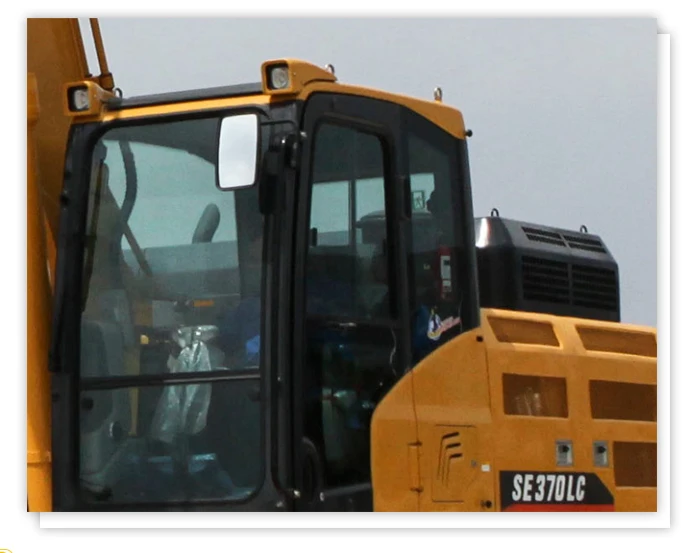

Work in comfort
The full size ROPS and OPG certified cab is quiet and comfortable. Fully adjustable suspension seat can maximize comfort levels and reduces operator fatigue.
ROPS and FOPS certified cab provides a safe work environment. The hydraulic activation level locks out all the hydraulic functions. Enter and exit the cab and walk on the upper structure safely with handrails, anti-skid plating and countersunk bolts which are meant to reduce slipping and tripping. Rear-view camera is also optional to protect working from all around.
ROPS and FOPS certified cab provides a safe work environment. The hydraulic activation level locks out all the hydraulic functions. Enter and exit the cab and walk on the upper structure safely with handrails, anti-skid plating and countersunk bolts which are meant to reduce slipping and tripping. Rear-view camera is also optional to protect working from all around.
Reduced maintenance costs

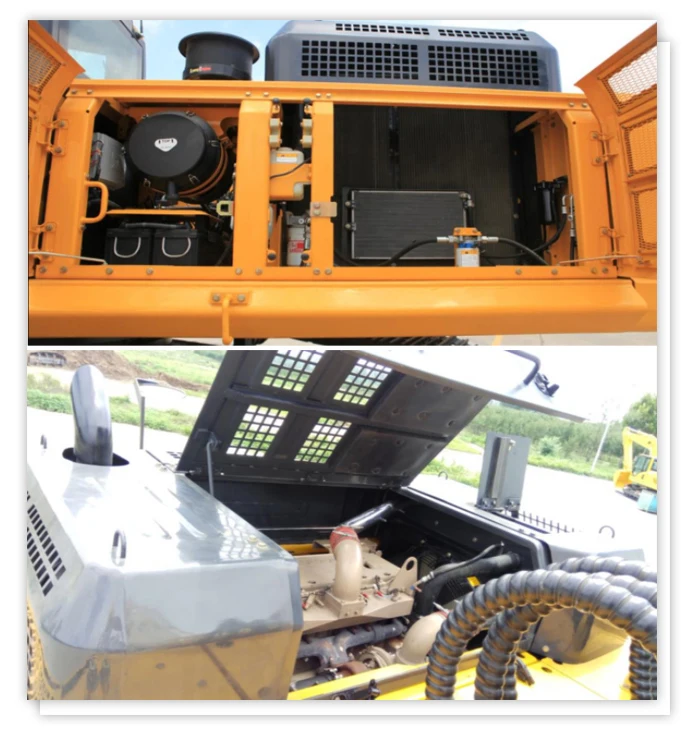

Convenient maintenance means less cost , and SE370LC’s most routine service points are at ground level. The electric parts are centrally arranged to ease the checking and maintenances. The filling of coolant, the replacement of air filter element, and the power master switch are easily accessible. The parallel radiator effectively avoids the overheating and eases the cleaning.
Multi-purpose SHANTUI attachments
Fast and easily change attachments with optional auxiliary hydraulics. Enhance your work capabilities with a variety of attachments including buckets, hammers, grapples and couplers.
SHANTUI dealer can install hydraulic kits to properly operate attachments, maximizing machine uptime and profits.
222

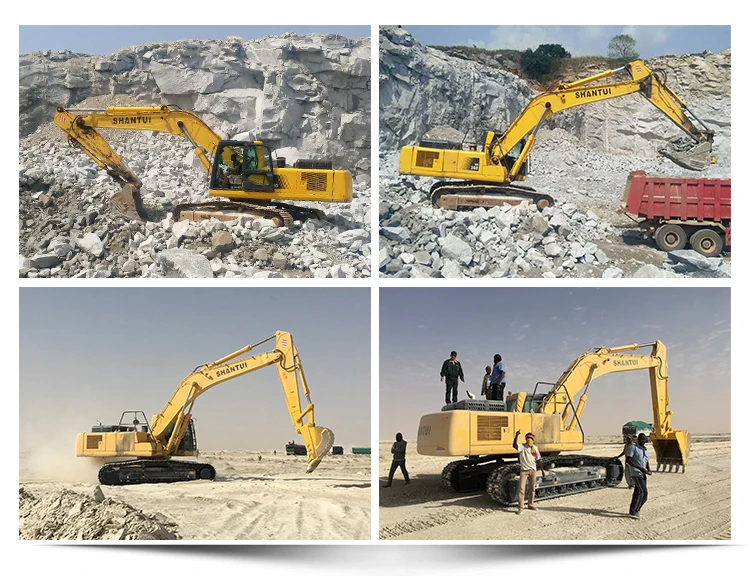

Working Conditions

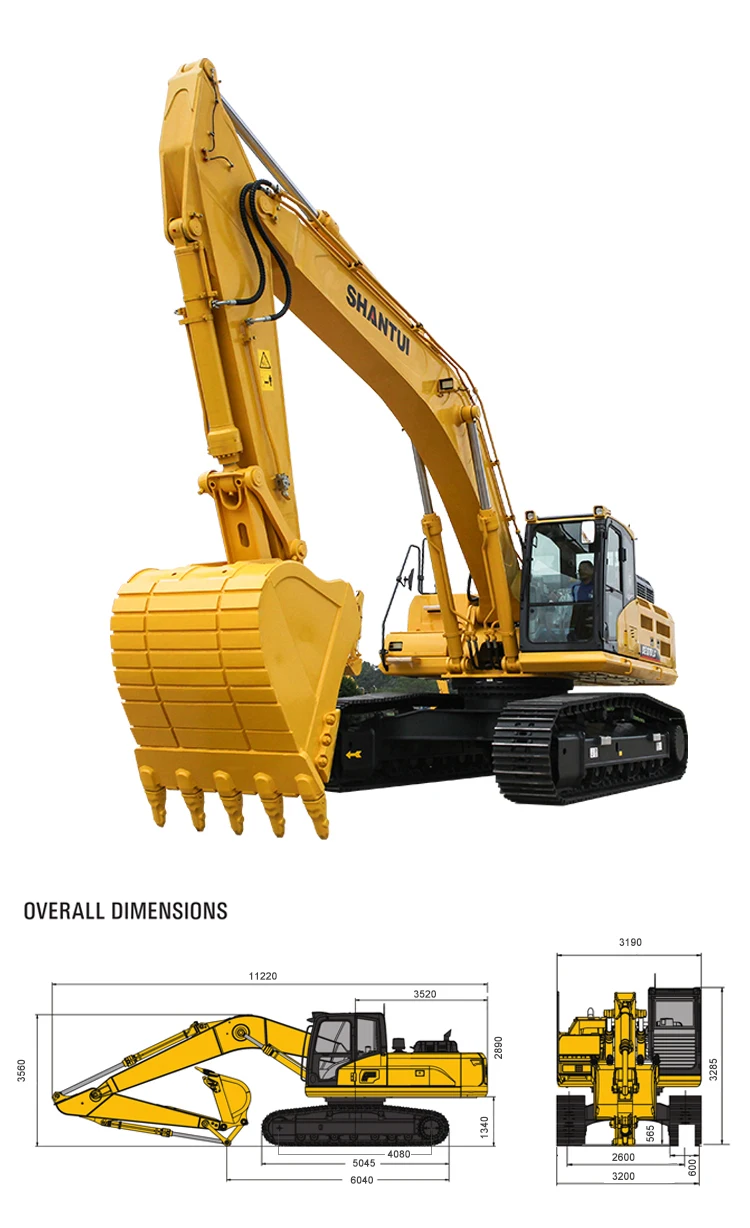

Technical Specification
Engine | Model | Cummins QSL9 |
Type | High pressure and common rail, air air intercooled, turbocharging | |
Quantity of cylinders | 6 | |
Bore x stroke | 114x 145 mm | |
Displacement | 8.9 L | |
Power output | 214 kW | |
Hydraulic System | Pump | lmported |
Type | Double piston pump plus gear pump | |
Maximum discharge flow | 2 x 300+27 L/min | |
Travel System | Travel motor | Variable axial piston motor |
Travel brakes | Lubricated double-disc | |
Parking brake | Pressure release | |
Travel shoes | 2 x49 | |
Travel speed | 3.0/4.9 km/h | |
Drawbar pulling force | 315 kN | |
Gradeability | 70% (35°) | |
Minimum ground clearance | 565 mm | |
Oil Capacity | Fuel tank | 550 L |
Cooling system | 35 L | |
Engine oil | 24 L | |
Hydraulic oil tank | 366 L | |
Swing System | Brake | Pressure Release Mechanical Braking |
Swing speed | 10.5 rpm | |
Tail swing radius | 3520 mm . | |
Arm digging force | 174 KN | |
Bucket digging force | 254 KN | |
Bucket | Bucket capacity | 1.8 m3 |
Number of bucket teeth | 5 | |
Bucket width | 1730 mm | |
Arm length | 3.186 m | |
Maximum digging reach/ Maximum digging reach at ground level | 11.12 m/10.915 m . | |
Maximum digging depth/height | 7.34 m/10.05 m | |
Maximum dumping height | 7.09 m . | |
Minimum swing radius | 4.335 m |
