Product Overview

Description


Product Description
Feature:
Advertising cutting machine MTC09 series with precise. CCD positioning cutting function, which Allows you to easily position whatever material you cut，and can finish cutting the car stickers, Self Adhesive, PVC, KT board and acrylic and other different materials to maximize the production efficiency and save labor.

RJMTC09 Technical Parameters
Model
MTC09-2513
MTC09-2516

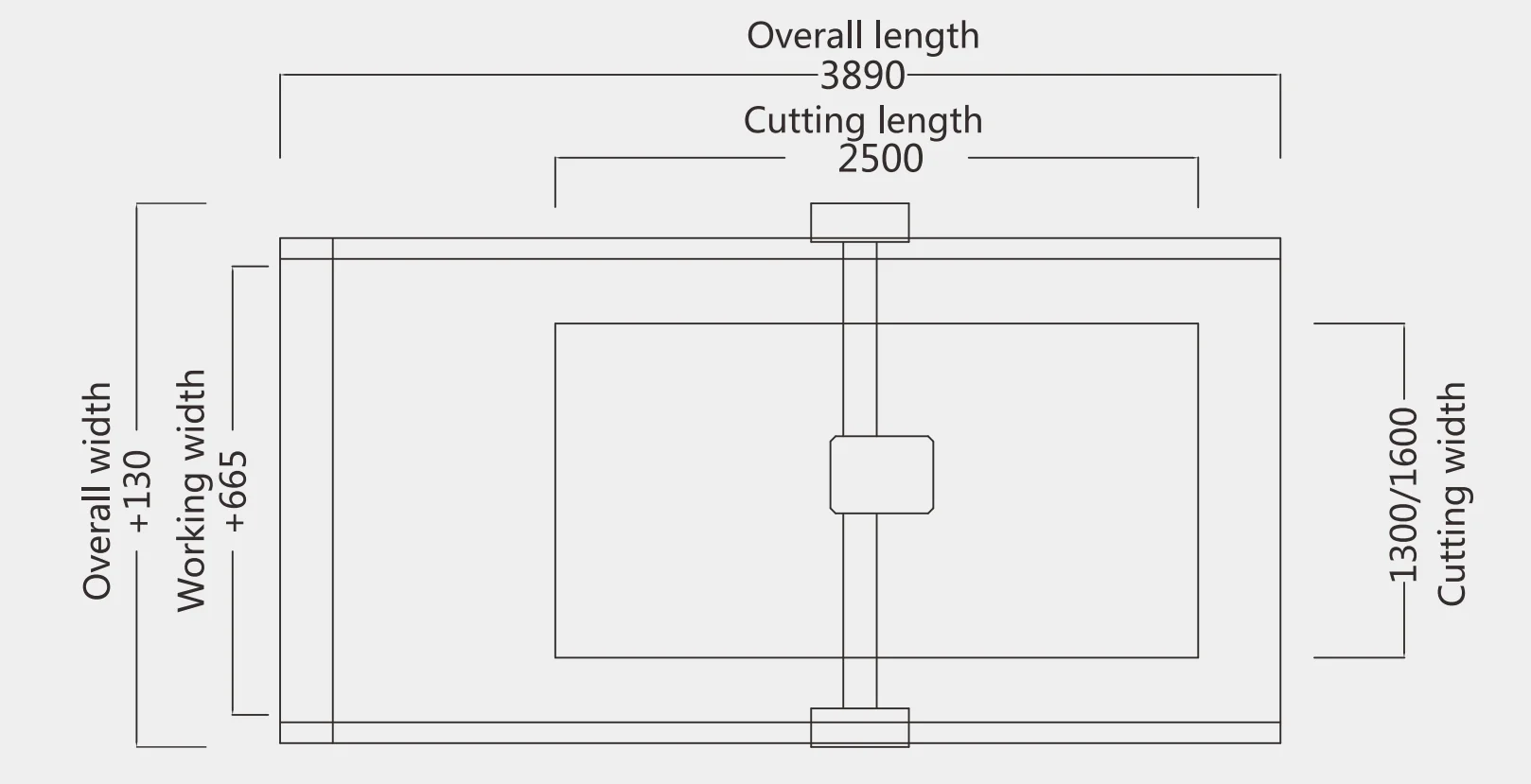

Effective Cutting Area(mm)
2500mm*1300mm
2500mm 1600mm ( as customer request )

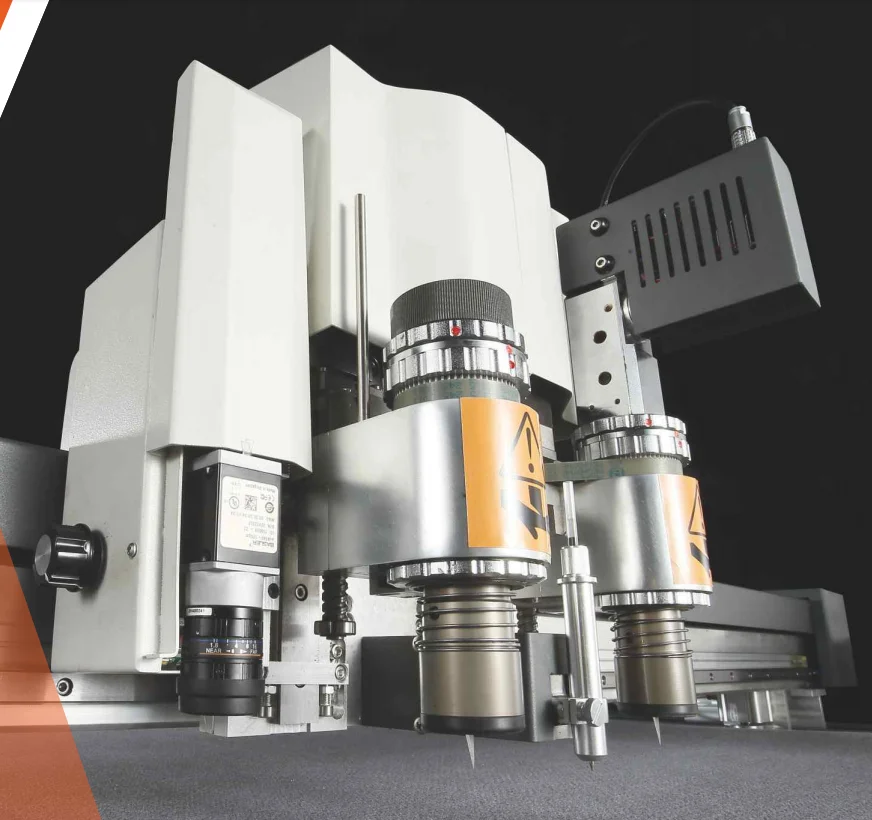

Multi-function Head
Multi-station head, can be freely replaces with different tool head, with routing.Vibration cutting,half-cutting.Creasing
line,drawing,CCD industrail camera's positioning and driving rotary tool cutting
Operation Properties
Work with computer synchronouly for quick data transmission,multi-page file in one time
Cutting Speed
300-1600mm/s(Depend on different materials)
Cutting Thickness
≤50MM(Depend on different materails)
Standard Tools
Pen, Cursor, Oscillating tool, Kiss cut tol,Universal cutting to,CCD automatic positioning system
Option
High speed water-cooled milling tool,V-CUT (45°，30°，22.5° ，15°,0°for option ) ,Foam cut tool,Creasing wheel
Fixing Method
Vacuum System
Feeding Method

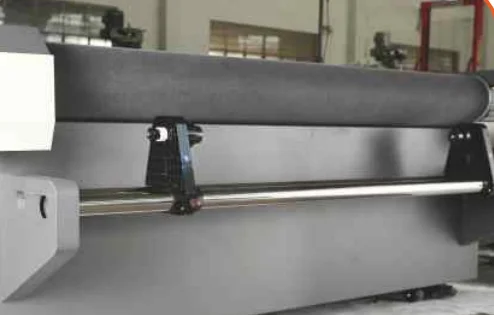

Automatic feeding mode of imported crawler (unlimited length cutting)
Repeat Precision
≤0.01mm
Software Resolution
0.025
Interface
Ethernet port
Buffer Memory
Fast transimission for multi-page large file
Command Mode
HPGL compatible format
Format Compatible
AI，Auto CAD，CDR etc...
Control Panel
7 inch color touch screen
Driving System
Imported servo motor , high precision linear guide, precision ball screw.
Safety Device
Adopt infrared sensor, safe and reliable.
Voltage / Power
AC 220V/380V+10% 50HZ
Pump Power
7.5KW
Total Fixed Power
9.5KW
Working Environment
Temp:0°C ~ 35°C Humidity : 35% ~ 80%
Detailed Images

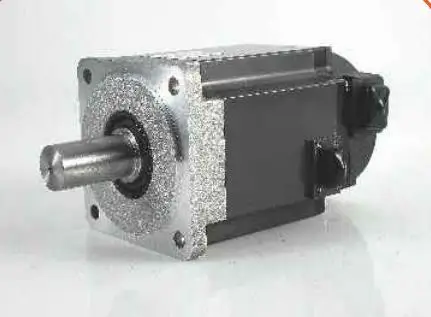

Japan motor not only improves theperformance of the equipment (over 30%) but also improves safety，ensure higher precision and faster speed.

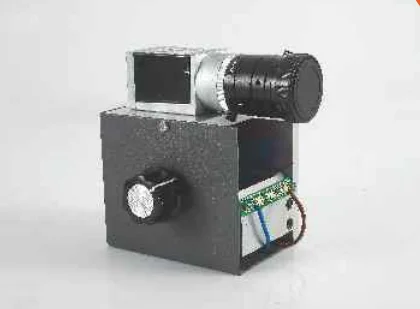

Firstcustom MARP Point automatic positioning and cutting with stronger print fault-tolerant compatibility to achieve cutting without bleeding.

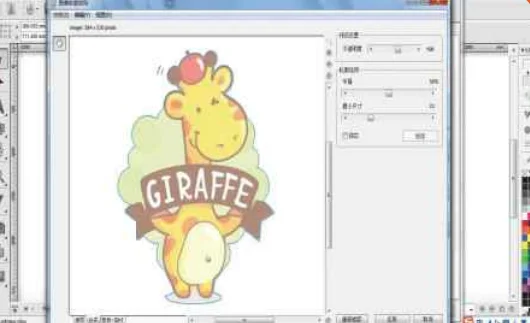

Automatically extract the cutting path software: Without complex cutting path design, generate cutting path automatically

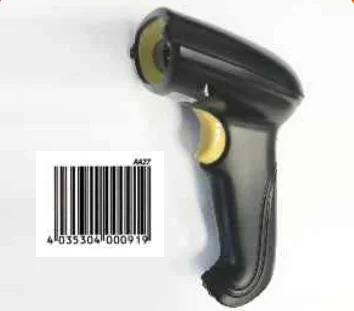

Bar code or QR code to read the file function
Original adjustable aluminum platform, strong adsorption, adjustable flatness to ensure the cutting table is not deformed permanently.
Automatic nesting system, equidistant cutting can save 30% more than the peer cutting time, and to achieve seamless docking.

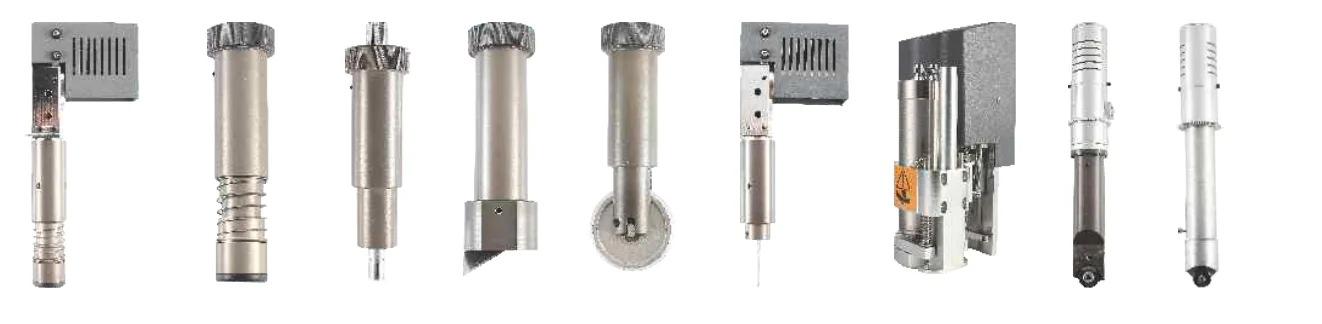

What is the tools equipped with?
Multi-tools for option to meet your Various production requirements.
 1. High-speed Osillating tools
2. High-speed
3. Kiss Cutting Tool
4. V-CUT Tool
5. Creasing Wheel Tool
6. Foam Cut Tool
7. Milling Tool
8. Driving Rotary Tool
9. Great Driving Rotary Tool
Application
Cutting Materials:
All kinds of pictorial cloth, mesh doth, flags, back glue, car stickers, PP synthetic paper, corrugated cardboard red cardboard, PVC, honeycomb board, PVC foam board, acrylic KT board, aluminum-plastic plate, fber board and rubber sheet, thick foam, knitted fabric, woven fabric
