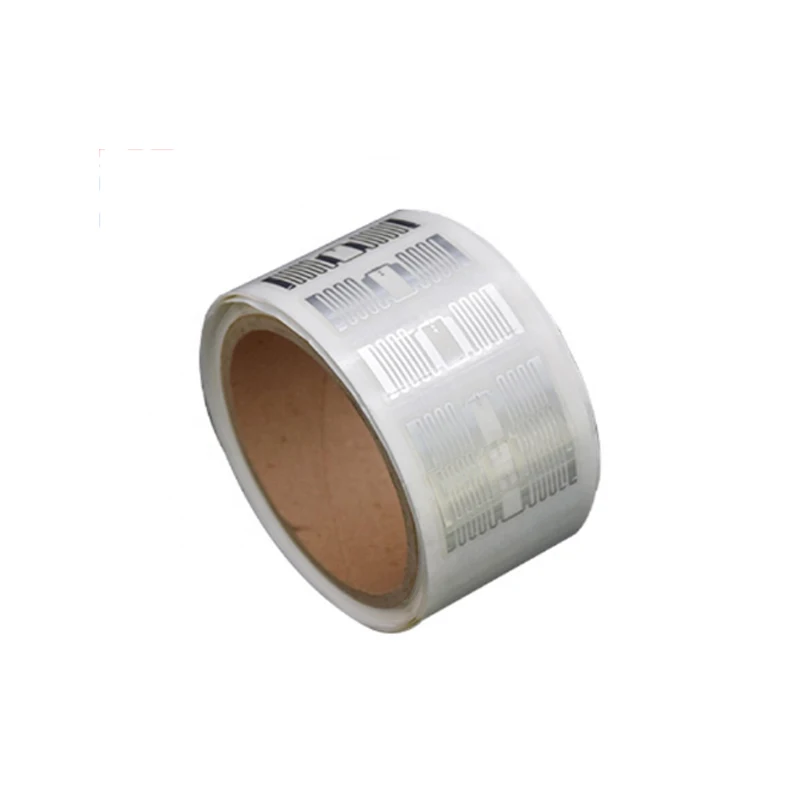

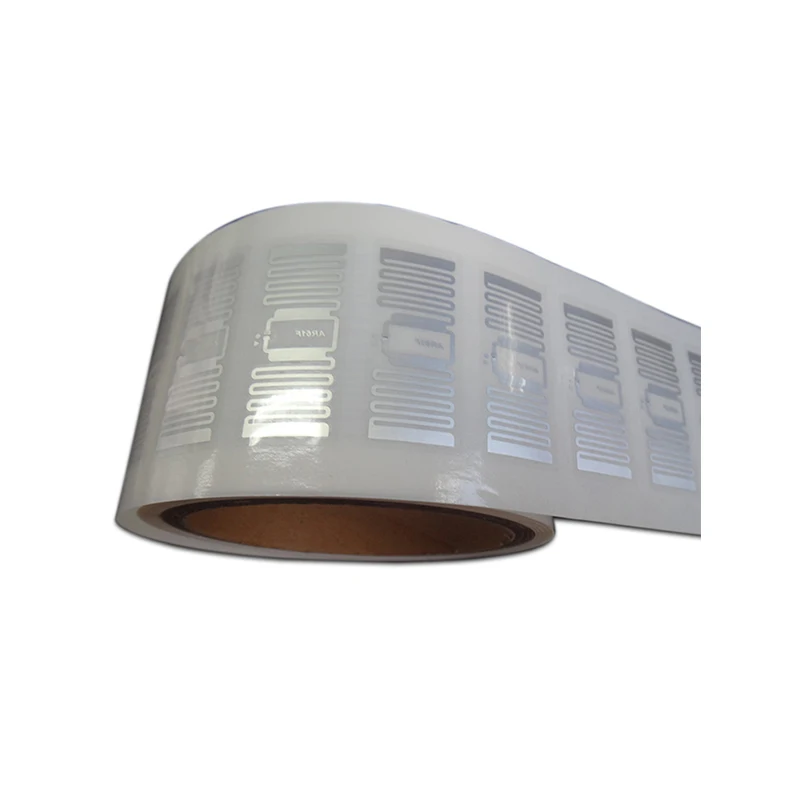

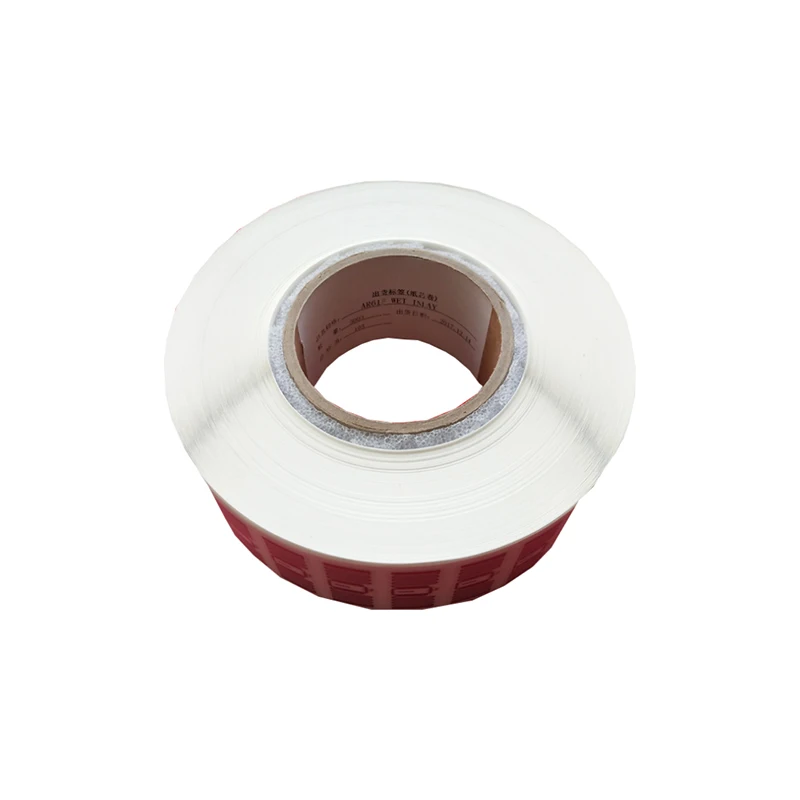

Low Price EPC GEN2 Monza R6 UHF dry/Wet Inlay Ultra High Frequency rfid tags

Product Overview

Description

Low Price EPC GEN2 Monza R6 UHF dry/Wet Inlay Ultra High Frequency rfid tags

Monza R6 has the industry's reading sensitivity, the typical value is - 22.1dbm, and the reading distance is 25% higher than the existing RFID tag, so it can make inventory check faster and more accurately. This game changing performance helps retailers reliably deploy small labels, such as those used in jewelry and cosmetics, and supports advanced usage modes, including full-time automatic data collection. Monza R6 is also a fast label chip in the world. It only takes 1.6ms to encode 32-bit memory. Impinj's STP (R) source label platform can encode the Monza R6 at a speed of 9500 per minute, enabling service agencies to easily estimate the requirements of retailers on quantity, cost and order turnaround time.



Electrical Characteristics:

Item		Description	Remarks
Manufaturer/chip		Monza R6	100um thickness
Basic material optional		Paper/PET/PP AD: AW3209, AW2150, AW1416 UPM: 04RP5X01H0  Or Customization
Antenna		Aluminum etching Al(10μm)+PET(50μm)
Protocol		ISO/IEC 18000-6C EPC Class1 Gen2
IC Store area	EPC	Up to 96bits	Read and write
	TID	48Bits	Read only
	Unique TID	48Bits	Read only
	Passwordarea	0
	User area	0
Frequency		860~960MHz
Reading distance		up to 8m	IMPINJ R2000 Fixed Reader (1W+30dbm)
		6m	IMPINJ R2000 Module handsets (1W+30dbm)
Operating Mode		Passive
IC life		100,000 Programming cycles, 10years data retention
ESD Voltage Immunity		At most 2000v	Human being mode(HBM)

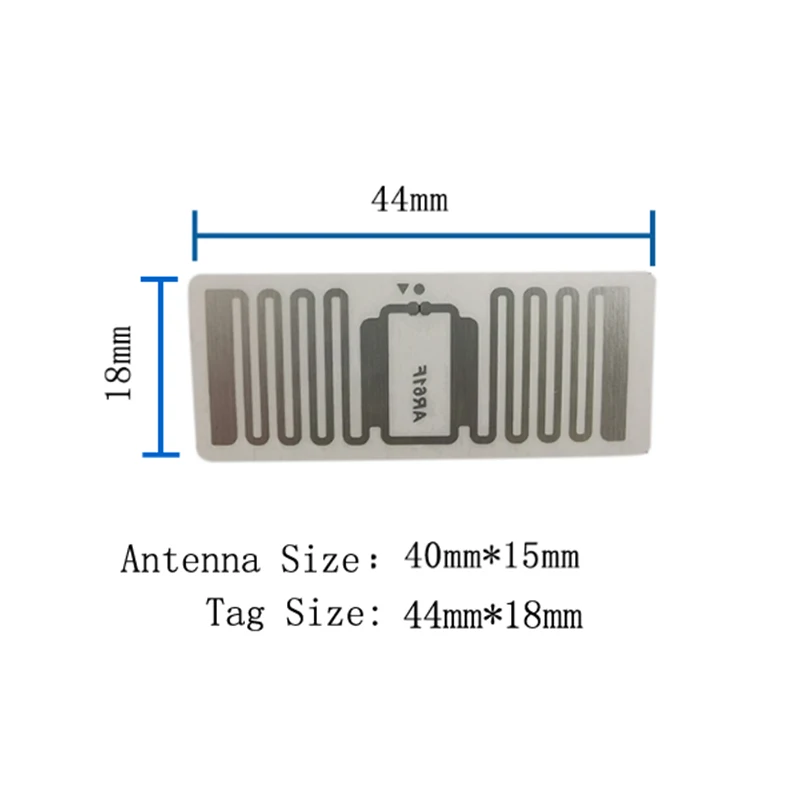

Structure:
