used construction equipment steel Frame Scaffolding System
- Category: >>>
- Supplier: Tianjin Ehong International Trade Co. Ltd.
Share on (62441609395):
Product Overview
Description
Product Description
Name | used construction equipment steel Frame Scaffolding System |
Type | E-frame , H-frame a frame scaffolding |
Material | Q235, Q345 Steel |
Surface Treatment | Painted , Pre-Galvanized, Hot Dipped Galvabized ,Powder Coated |
Main Component | Frame ,Catwalk ,Joint Pin ,Cross Brace ,Base Jack ,U-head Jack And Castor |
Specification | Main Pipe :42*1.5/1.8/2.0/2.2 mm ; Inner Pipe : 25*1.5/1.8/2.0 mm etc |
Cross Brace | 21.3*1.2/1.4 mm etc as request length |
Joint Pin | 36*1.2/1.5/2.0*225/210 mm etc |
Cat Walk | 420/450/480mm*45mm*1.0/1.1/1.2/1.5/1.8/2.0mm |
Application | Matching with frames, joint pins, base jack, u-head jack, catwalk, stair, etc,as working platform for construction, indoor&outdoor decoration, housing maintenance, etc |
OEM is available | |
Detailed Images

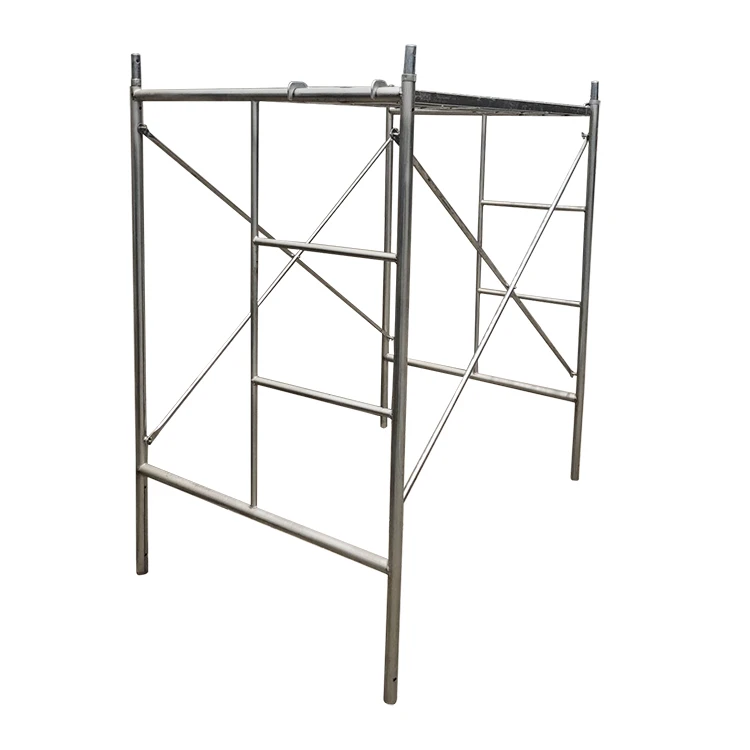

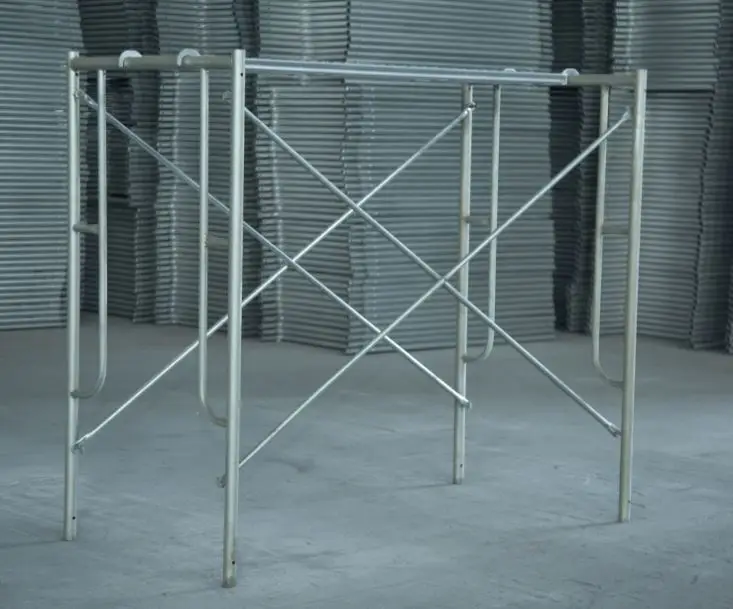

E Frame ( Door type frame)

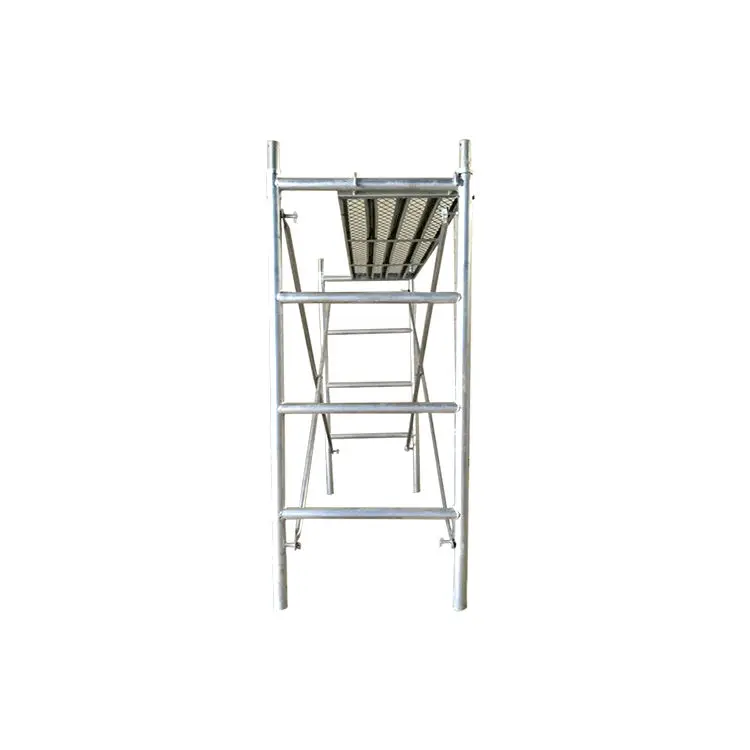

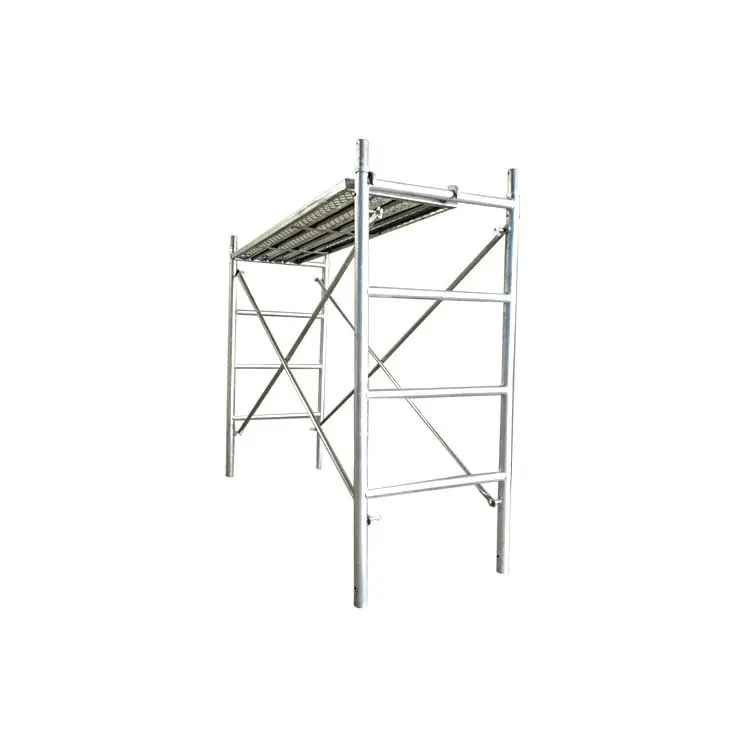

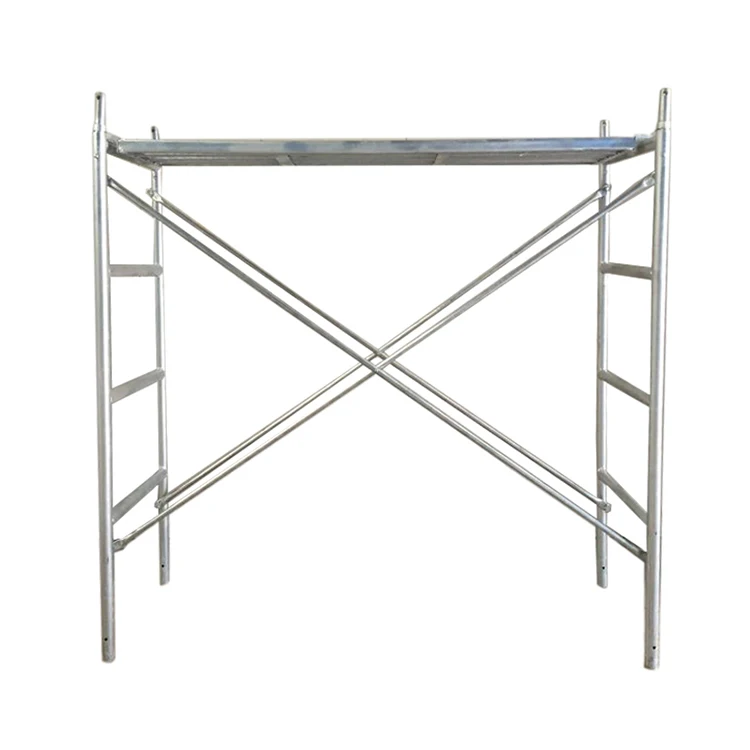

H Frame ( Ladder type frame)
Scaffolding Frame | ||
Model NO. | Specification (H*W) | Weight |
E-Frame Scaffolding (Door-type frame) | 1930*1219 mm | 12.5/13.5 kg |
1700*1219 mm | 12.5/13 kg | |
1700*914 mm | 10.8 kg | |
1524*1219 mm | 11 kg | |
H Frame Scaffolding (Ladder-type frame) | 1930*1219mm | 14.65/16.83kg |
1700*1219 mm | 14/14.5 kg | |
1524*1524 mm | 13-14 kg | |
1219*1219 mm | 10 kg | |
914*1219 mm | 7.5 kg | |

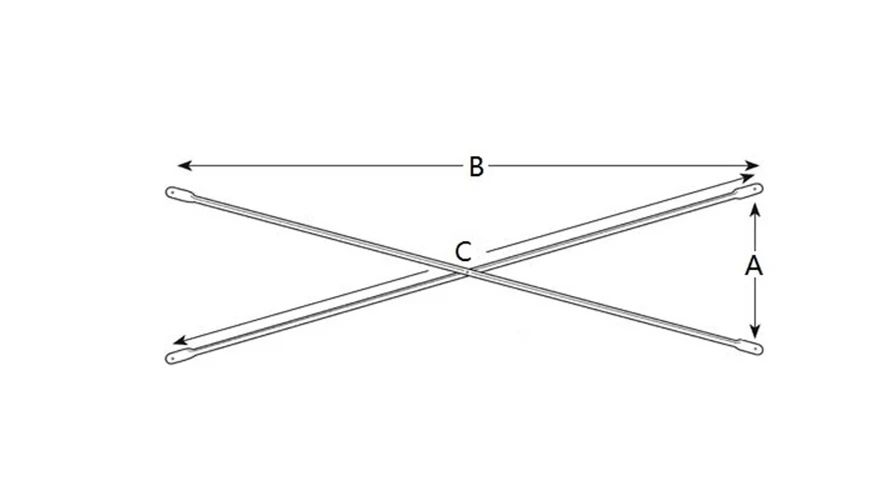

Cross Brace Description:
Item No. | AXBXC | Reference Weight |
JSCW-001 | 1219x1524x1952mm(21.3x1.5mm) | 2.9kg |
JSCW-002 | 1219x1219x1724mm(21.3x1.5mm) | 2.5kg |
JSCW-003 | 1219x1829x2198mm(21.3x1.5mm) | 3.2kg |
JSCW-004 | 610x1219x1363mm(21.3x1.5mm) | 2.0kg |
JSCW-005 | 610x1219x1928mm(21.3x1.5mm) | 2.8kg |
JSCW-006 | 914x1829x2045mm(21.3x1.5mm) | 3.0kg |
JSCW-007 | 610x1219x1524mm(21.3x1.5mm) | 2.3kg |

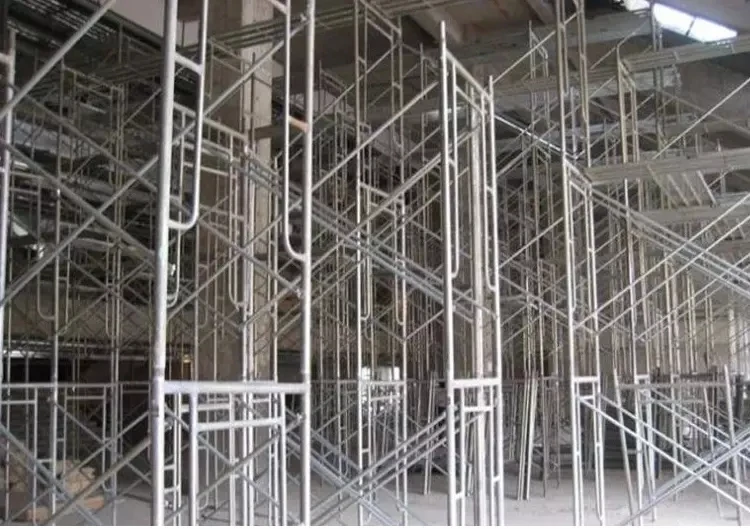

Application

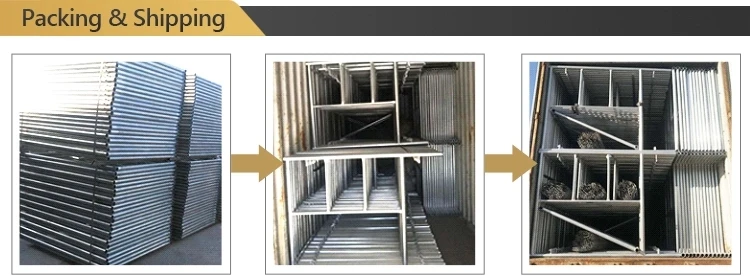

Packaging & Shipping
Related Accessories
Our Services
FAQ
1. Q: What's your MOQ(minimum order quantity)?
A: One full 20ft container,mixed acceptable .
2. Q: What's your packing methods?
A: Packed in bundle or bulk (customed is accepted).
3. Q: What's your payment terms?
T/T 30% in advance by T/T ,70% will be before shipment under FOB.
T/T 30% in advance by T/T ,70% against the copy of BL under CIF.
T/T 30% in advance by T/T ,70% LC at sight under CIF.
4. Q: What's your delivery time?
A: 15-28 days after received the advance payment .
5. Q: Are you manufacturer or trader?
A: We are production and trade integration of construction materials for 19 years.
6. Q: Where's your factory?
A: Our factory is in Tianjin city (near Beijing) afforded enough production ability and earlier delivery time.
7. Q: Can we visit your factory?
A: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
8. Q: Can you supply other scaffolding materials?
A: Yes. All related construction materials.
(1) Scaffolding system (cup-lock system, ring lock system, scaffolding steel frame, pipe&coupler system)
(2) Scaffolding steel pipes
(4) Steel coupler (pressed/drop forged coupler)
(5) Steel plank with hooks or without hooks
(6) Steel stair case
(7) Screw adjustable base jack
(8) Construction Metal Formwork
