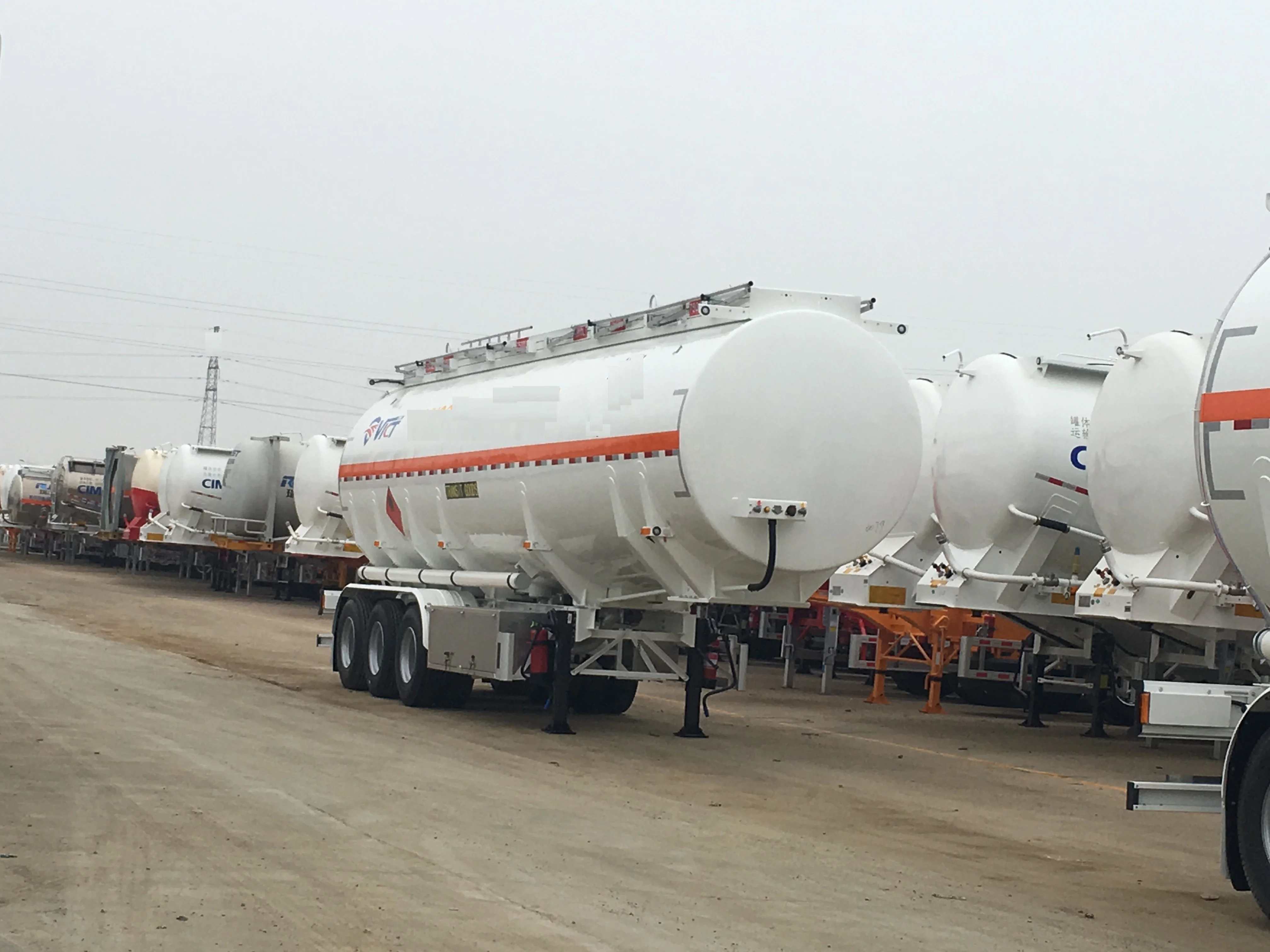

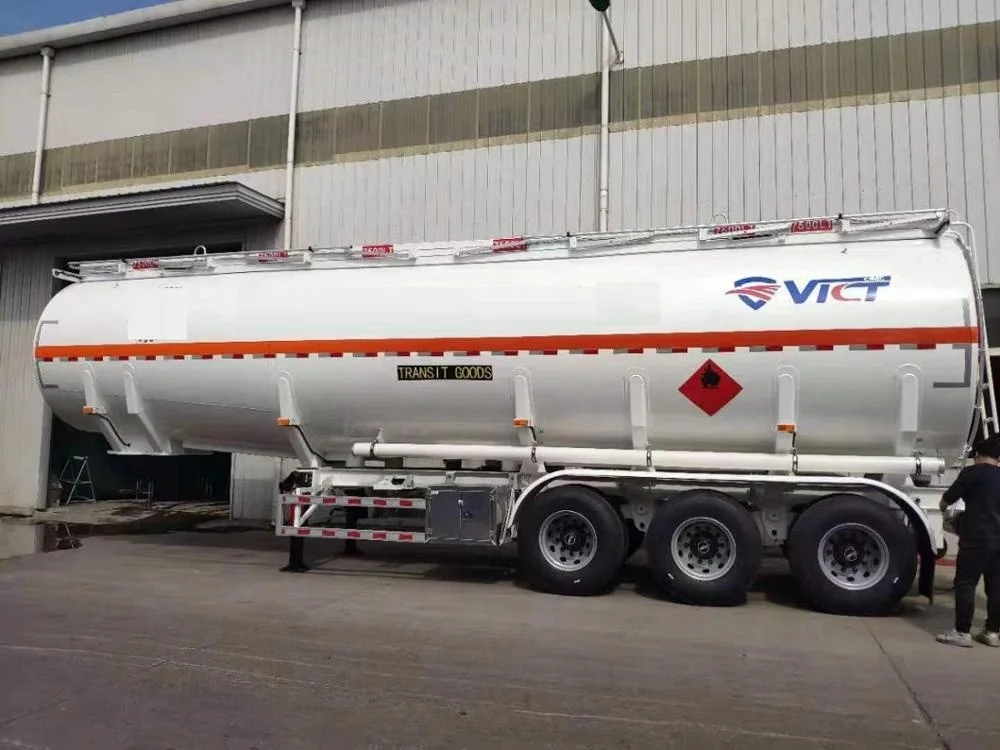

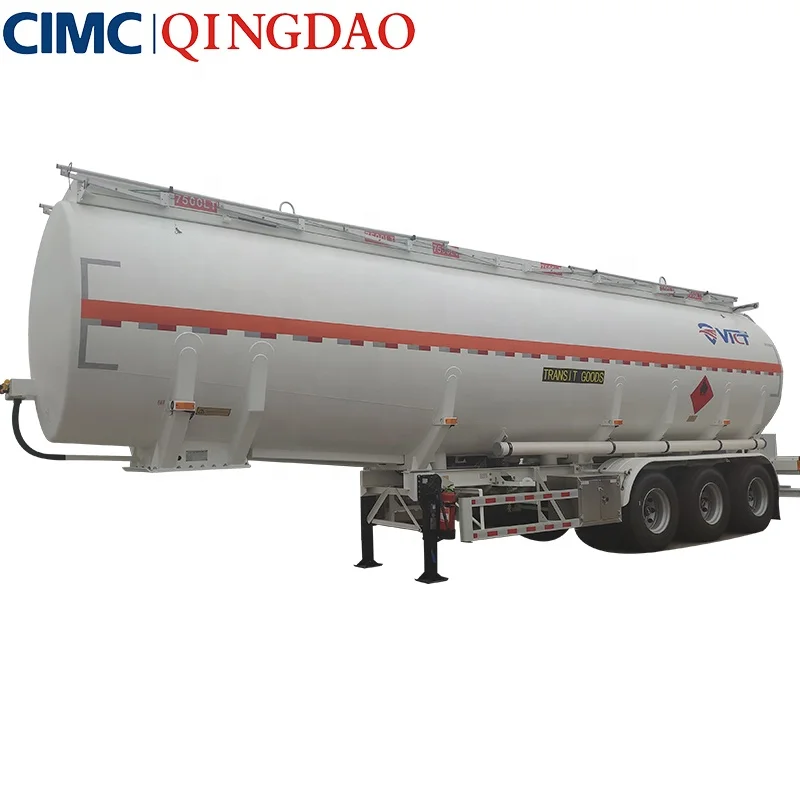

CIMC brand 45m3/45000L 6 compartments aluminum fuel tanker oil tanker trailer

Product

Tri-axle 45,000 liters aluminum fuel tanker trailer

Weight & Size:

Loading capacity:

45,000 Liters

Overall L*W*H:

11,600*2,500*3,800 mm

Frame:

Material of main beam:

CIMC specified aluminum alloy

Tanker Body:

Tanker body:

Material :Aluminumalloy 5182, thickness:6mm, end plate:6mm

Manhole:

6 pcs, aluminum alloy manhole

Compartment:

6 pcs (the volume of each compartment is customized)

Discharge hole:

3 inch discharge hole with API valve, 6 pcs

Bottom valve:

Equipped

Handrail:

Collapsible type

Top walking way:

Anti-skidding type

Running Gear:

Axle:

3x13 tons axles , fuwa brand

Tire:

12R22.5 tubeless tires with rim , 12 sets ,linglong brand

Suspension:

Heavy duty mechanical suspension

Landing gear:

Fuwa landing gear

Kingpin:

JOST 2 inch bolted type

Brake system:

Emergency relay valve

Wabco

Air tanker:

2*46L

Brake chamber:

Six-double structure brake chamber

ABS:

Equipped

Electrical System:

Receptacle:

7-way socket standard

Voltage:

24 Volt

Lights:

LED

Accessories:

1 pcs tool box + 1 spare tire carrier+ 1 discharge piple which is 6,000mm in length+ 2 pvc discharge pipe carries +6 joints& dust covers + 2 fire extinguishers+ one rear ladder+ one ladder for the inner side inspection +1 shaft sleeve, 1 spare tire shake handle, 1 tire wrench
