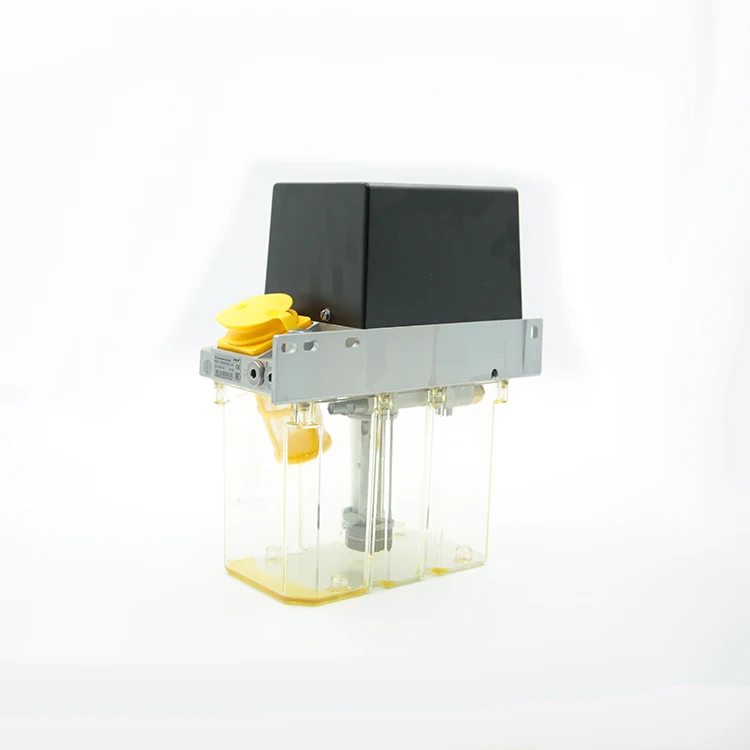

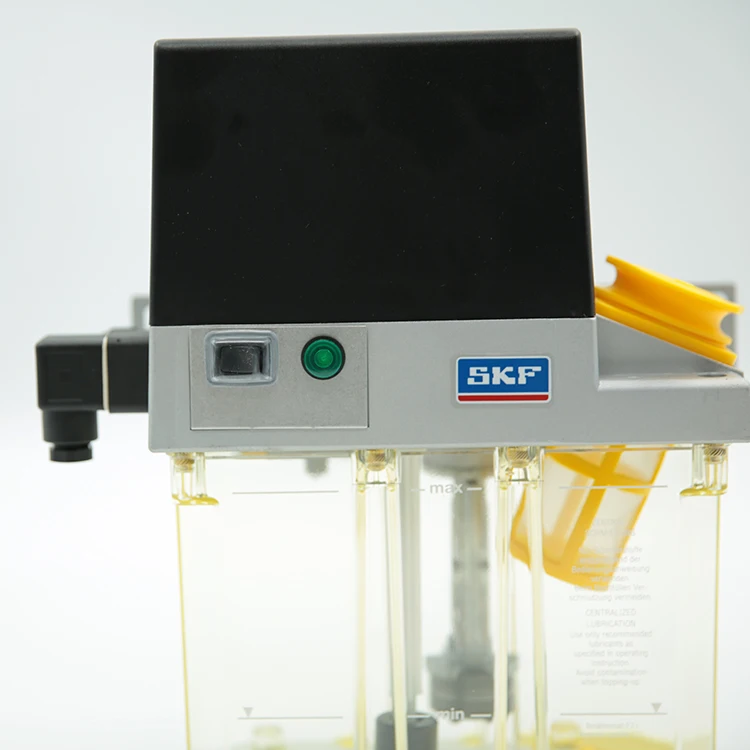

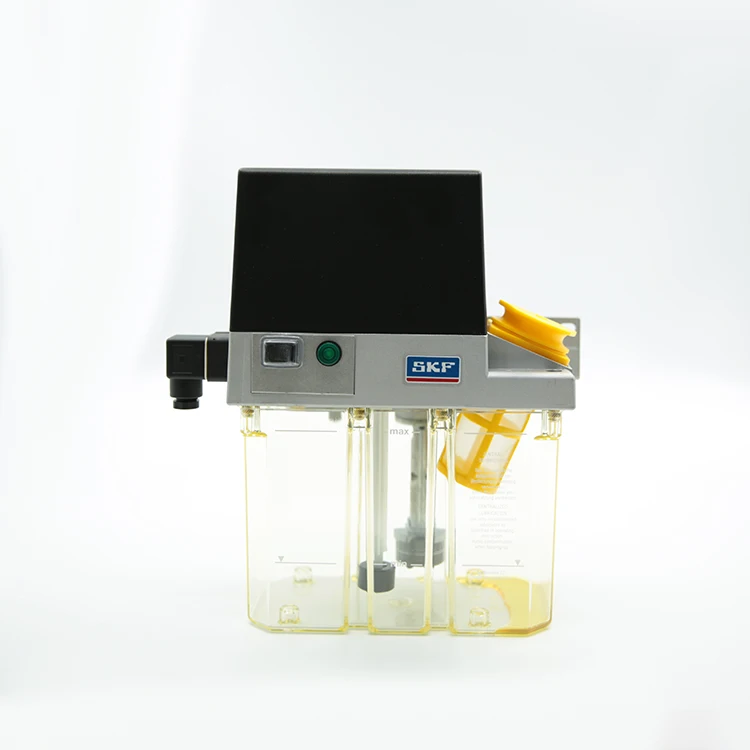

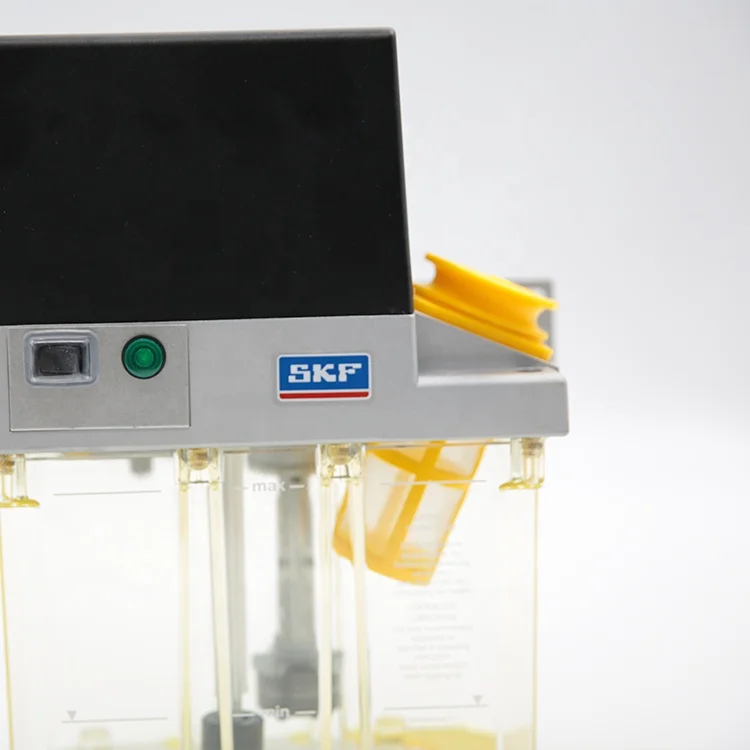

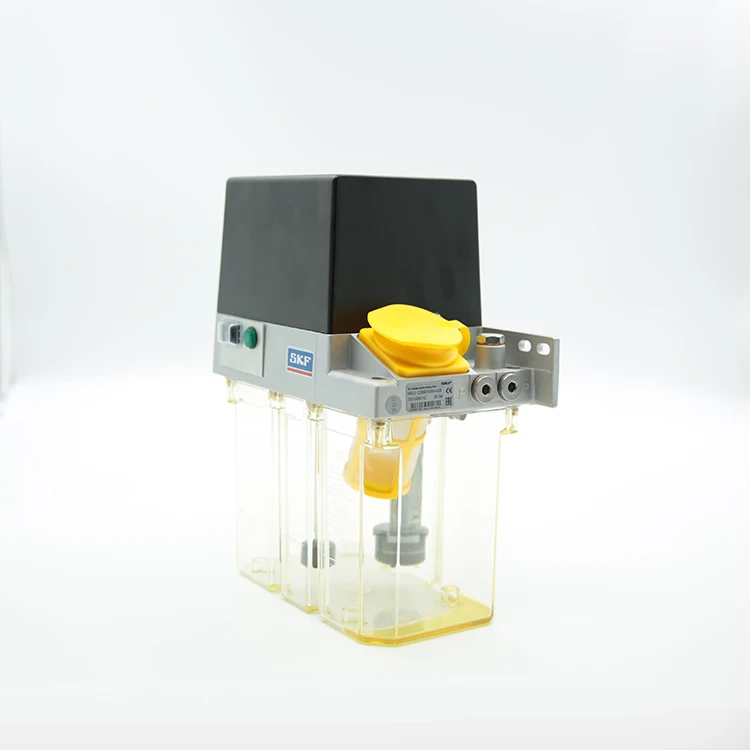

MKU2 KW3 20005 428 LINCOLN VOGEL Automatic lubricating oil pump

Product Overview

Description



Technical data
Flow rate	at 50 Hz:-0.1, 0.2 or 0.5 l/min at 60 Hz: -0.12, 0.24 or 0.6 l/min
Operating pressure	30 bars
Operating temperature	+10 to +40 °C
Medium	oil on a petroleum basis or synthetic basis
compatible with	plastics, NBR elastomers,copper, copper alloys
MKU1 units	20 - 750 mm2/s
MKU2, MKU5 units	20 - 1500 mm2/s
Reservoir capacity	nominal 1.8 , 3 or 6 l
Reservoir material	plastic or metal
Type of enclosure	IP 54
Frequency / voltage	50 / 60 Hz, 115 V AC or50 / 60 Hz, 230 V AC
please indicate when ordering
Mode of operation	S3, 20 % (1.25 to 25 min) duty cycle 1)
Power consumption approx	50 Hz: 115 W; 60 Hz: 140 W
Speed	50 Hz: 2700 rpm;60 Hz: 3300 rpm
Function	opens in event of low lubricant
Max. switching voltage	42 V AC
Max. switching current	0.7 A (ohmic load)
Max. contact rating	50 VA 2)



 Please contact customer service to confirm whether it can arrive or not and the detailed freight before placing an order
