Siglent SPD1305X,30V and 5A Single Channel Lab Power Supply

SPD1000X Programmable Linear DC Power Supply has a 2.8 inch TFT-LCD display, features remote computer control capability, and real time wave display, to deliver high performance and ease-of-use.
The SPD1168X features a high precision programmable output capable of delivering up to 16 V, the SPD1305X features a high precision programmable output capable of delivering up to 30 V and also includes a 4-wire sense function for more accurate voltage sourcing, especially for long leads or high resistance connections. There are additional output short and overload protect functions to assist in production and development applications.

Excellent output performance
The SPD1000X is robust and stable, and can accurately simulate even small voltage or current changes, fully meeting the power requirements of the load.
Ultra-high resolution: 1 mV, 1 mA
Excellent setting and readback accuracy to ensure accurate and pure output
Support panel programming and timing output
Independently controlled and isolated outputs

Stable performance
This single output design is focused on delivering high performance and ease-of-use in a small package. And it also offers stable performance. All the features make it an ideal choice for bench power supplies:

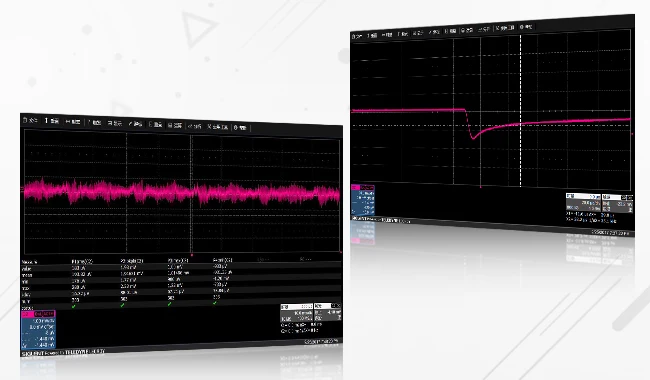

Low noise ≤350uVrms/3mVpp
Fast transient response time <50μs
Voltage output without overshoot
0.01% load regulation and 0.2% power regulation
Intelligent temperature control fan to effectively reduce noise

Convenient operation and real-time display

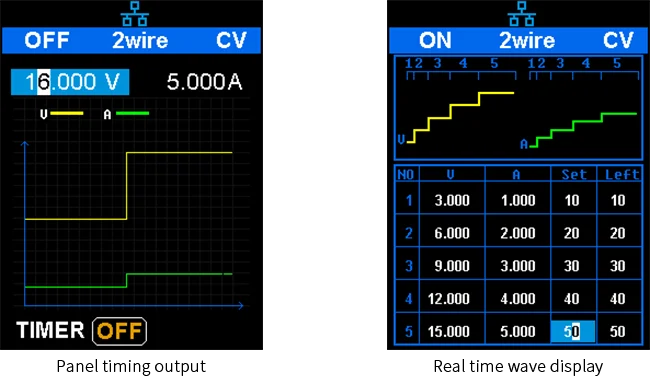

Support panel timing output function (5 sets of timing settings and output control). With Free PC software EasyPower, comprehensive communication and control requirements can be easily achieved.

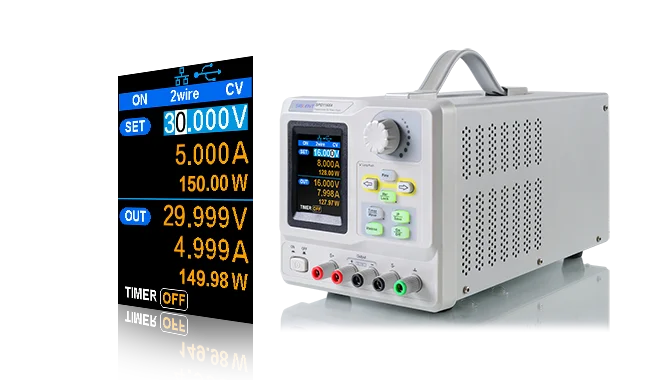

The SPD1000X programmable linear DC power supply employs a 2.8-inch TFT-LCD liquid crystal screen with a resolution of 240×320 which can display voltage and current clearly, allowing users to understand the output status.

• Single path high-precision programmable voltage output:30 V/ 5A, total power up to 150 W
• Stable, reliable, Low ripple and noise:≤ 350 uVrms/3mVpp; < 2 mArms
• Fast transient response time: < 50 μs
• 5 digit Voltage, 4 digit Current Display
• Ultra-high resolution: 1 mV, 1 mA
• 2 types of output modes:Two-wire output mode, 4-wire compensation output mode,Maximum
• compensation voltage 1V
• Internal 5 groups of system parameter save/recall
• Clear graphical interface, with the waveform display function
• Supports SCPI, LabView driver
