YouKun Auto Sensor Screw in Vent Air Vent Valve M10 Pressure Balance Vent Plug

Share on (62441717421):


Price:$1.28 - $1.78

Quantity:


Product Overview

Description



Product Display

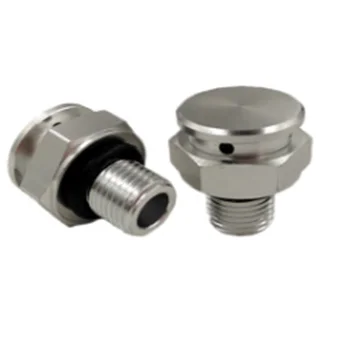

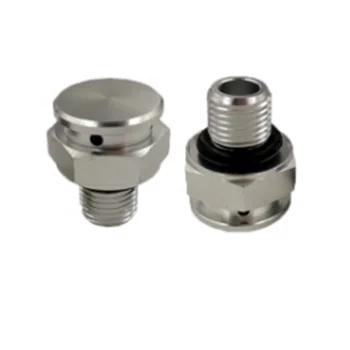

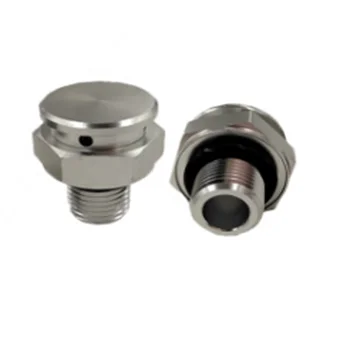

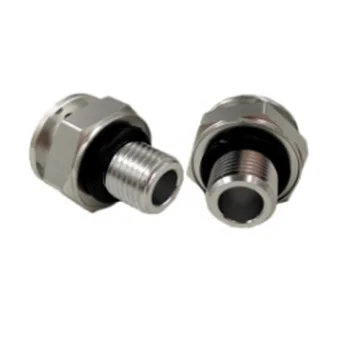

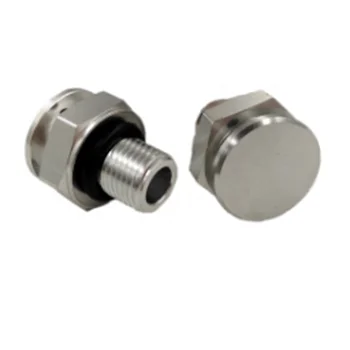

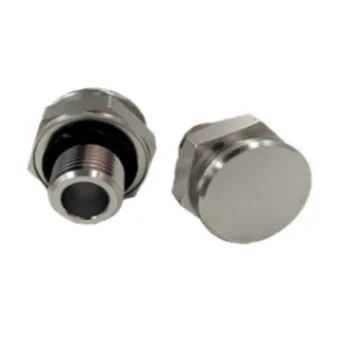

YouKun Auto Sensor Screw-in Vent Air Vent Valve M10 Pressure Balance Vent Plug




 2 - .png


Benefits:


1.High air permeability membrane can balance the pressure and lower down tension for sealing stripe;
2.With the hydrophobic and oleophobic membrane inserted inside the body, the vent becomes chemically inner and UV- resistant ;
3.It can greatly reduces the fog and condensation. Faultfree and maintenance-free working under harsh environment with a long service life. Eptfe film can prevent salt crystal moisture and moisture permeability.







































Company NameHuizhou Youkun Electronic Technology Co., Ltd
Focus onProfessional protective vent development and manufacture
Product Features

waterproofoil-resistantsound throughdecompression


anti-explosionradiating and filtration in e-PTFE


Export CountryEurope, North America, South America, Middle East, Southern-east Asia, etc
Websitehttps://you-kun.en.alibaba.com/
OEM & ODMYes
Operation PrincipleCustomer focus, Quality first, Credit foremost




Product Description

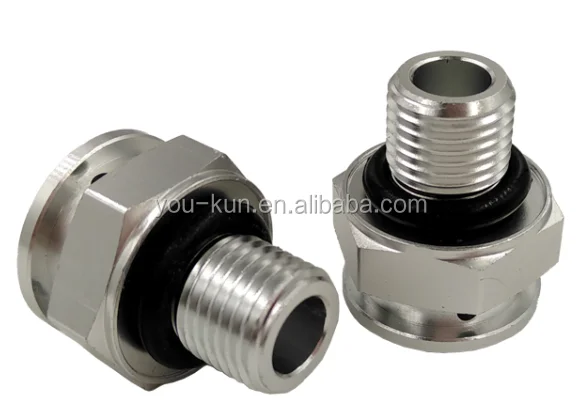

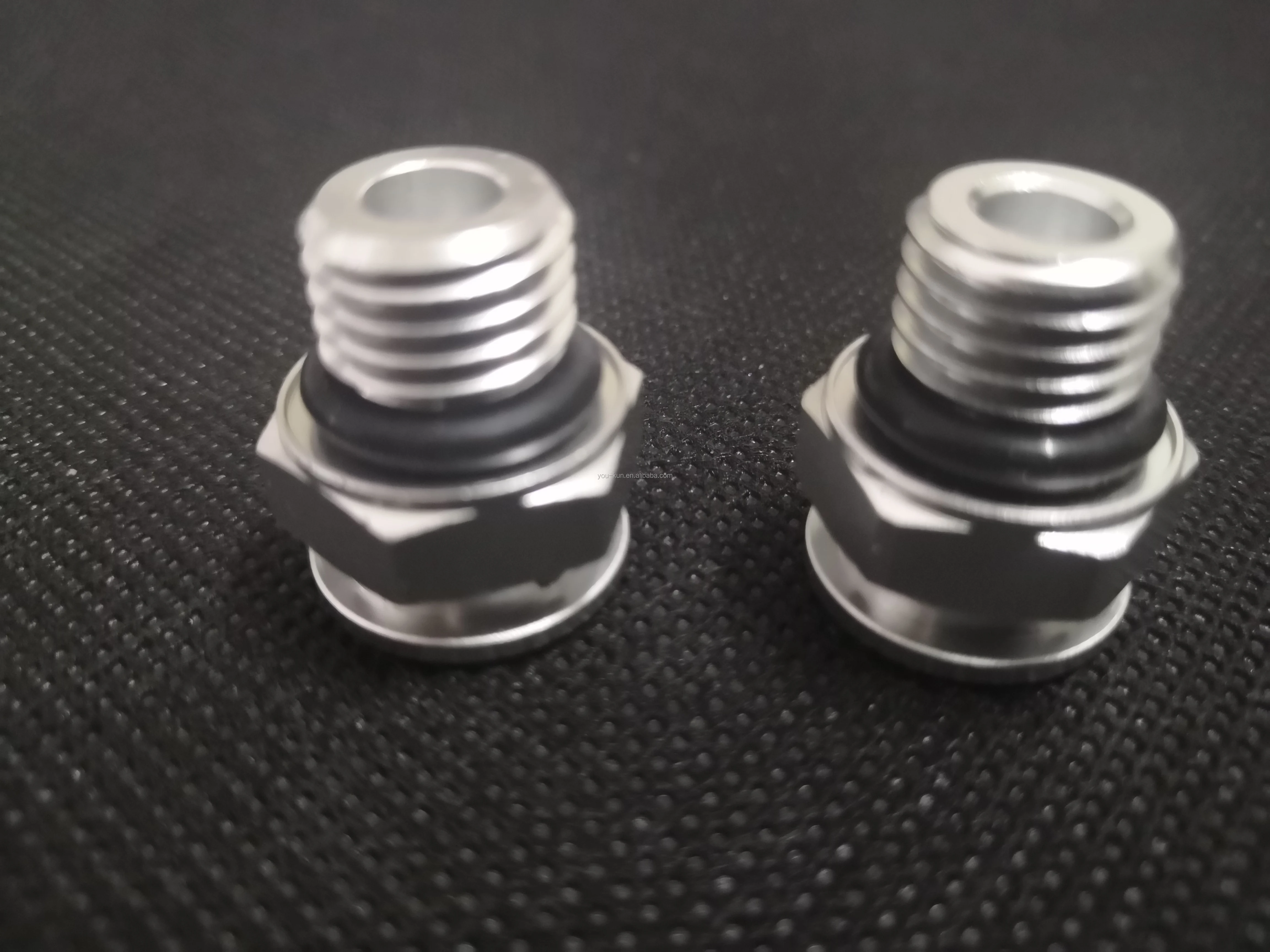

YK-HXY-M10X1.0-A  is Metal Screw Waterproof Vent valve which made of Anodised aluminium with e-PTFE membrane . It is easy to install and confirmed with IP67.




































Body Material


AL6063(Anodised aluminium)


Membrane Material


E-PTFE

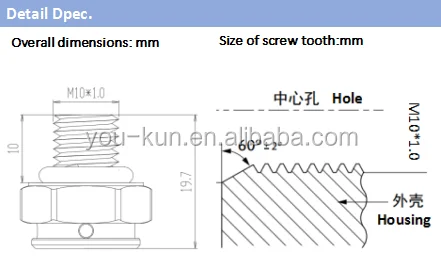

Specification


M10*1.0


Airflow


≥800 ml/min p=10Kpa


Water Entry Pressure

  12Kpa(>1m)

Temperature


-40℃—150℃


IP Rate


IP 67(IP68 can be customized)

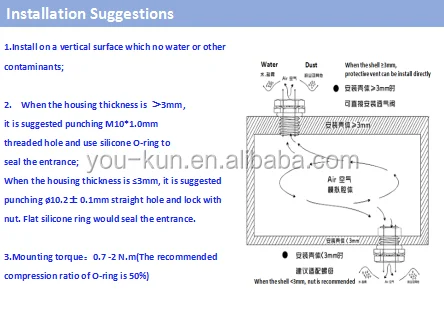

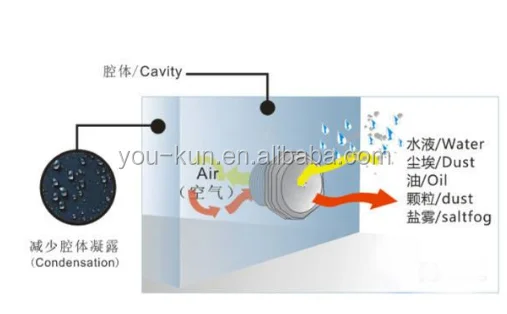

Principles of Use







_201908161158413

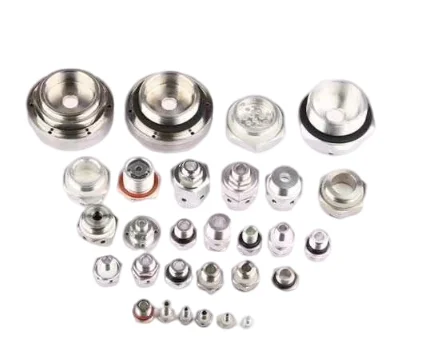

Similar products







Company Information





Huizhou Youkun Electronic Technology Co., Ltd, a technology-driven company focused on professional protective vent development and manufacture. With professional protective vent technology, we manufacture great  products which are waterproofoil-resistantsound throughdecompressionanti-explosionradiating and filtration in e-PTFE. Getting the ISO90001, export certificate and more than 3 patents in vent field.





We owns PV / MV / BAE production lines and test rooms now, including injection molding machine, fuse machine, ultrasonic and so on. By going through on-site simulation pressureair permeabilityVPI and so on. We are trying to develop high quality products continuously, apply to LED, AVS, ECU, Photovoltaic, Communication, Outdoor cabinet, Electrical appliance, Military industry, Chemical packaging, Portable electronic, Battery and Module.





YK concentrates on waterproof vent technology, making the sustainable development of materialmanufacture and practical technology, we will always regard the technology as coreservice as carrier, provide professional solutions to you sincerely.
