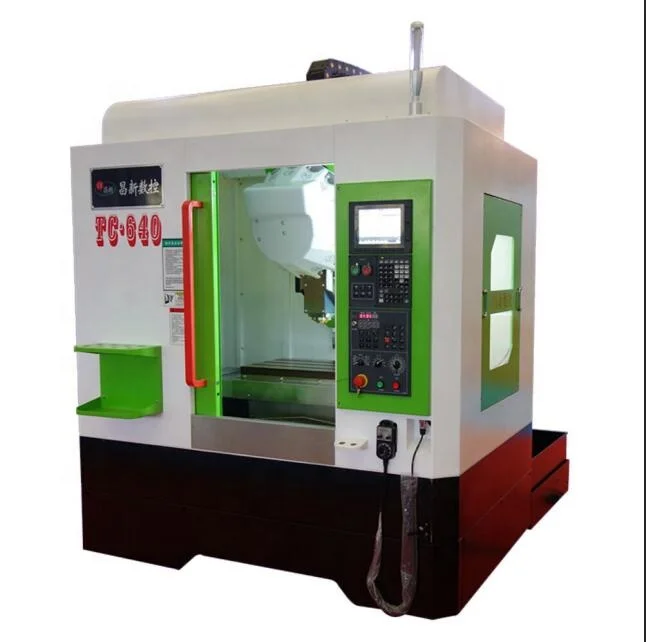

High-speed CNC 4-axis Drilling Tapping Machine Center for Metal Processing
System
Syntec/Mitsubishi/Siemens/Fanuc
Motor
Yaskawa/Mitsubishi/Siemens/Fanuc

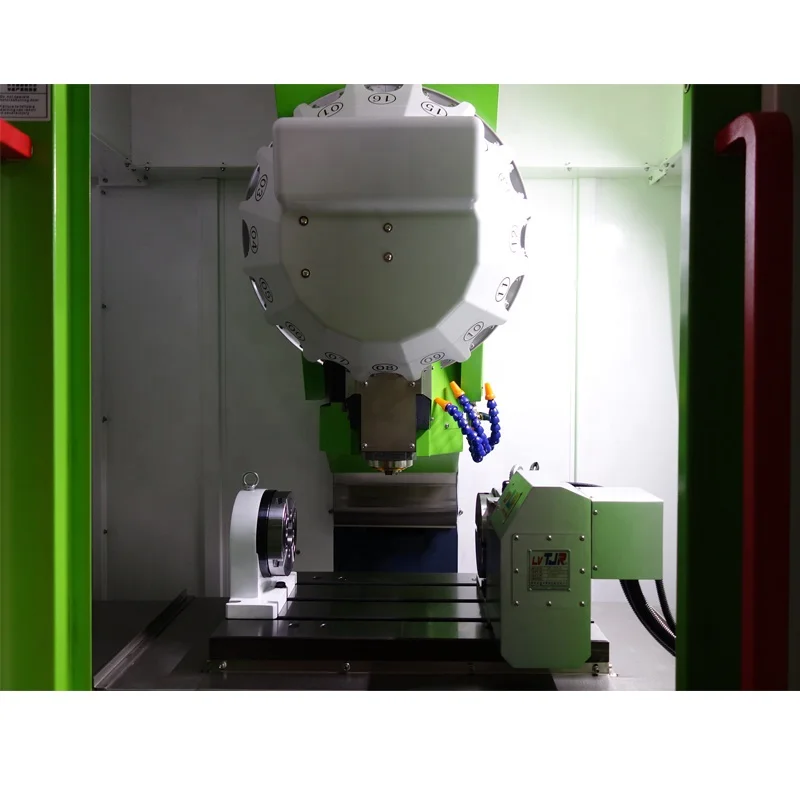

Tool Magazine Capacity
Automatic Tool Changer Tool Number:16
Lubrication System
Automatic
Cooling System
Oil Cooling
X/Y/Z-axis Travel
600mm/400mm/300mm
Distance from Spindle Nose to Table
140mm-440mm
Distance Spindle Center to Column Guide Rail
450mm

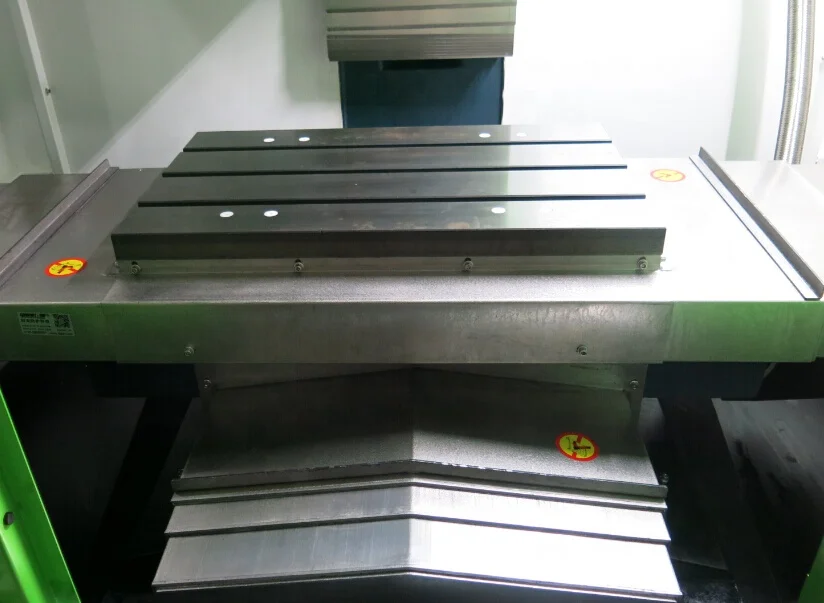

Working Table Size
700*420mm
Table Max Load
350kg
T Slot
3pcs,size:18T,Space:133mm
Spindle Rotation Speed
15000/20000rpm
Spindle Motor Power
5.5kw
X/Y/Z-axis Motor Power
1.5/1.5/3.0kw
Rapid Traverse(X/Y/Z-axis)
48000/48000/48000mm/min
Cutting Speed
0-10000mm/min
Spinldle Taper
BT30
Positioning Accuracy
±0.005mm/300mm
Repeat Positioning Accuracy
±0.003mm/300mm
Machine Size
2300mm*1700mm*2500mm
Machine Weight
3.2ton
Warranty
One Year
Main Component Brand
System
Syntec/Mitsubishi/Siemens/Fanuc
Spindle
Waylong/Roaly/Volis in Taiwan
Tool Magazine
Okada/Sanjet/Deta in Taiwan
Bearing
NSK in Japan or FAG in Germany

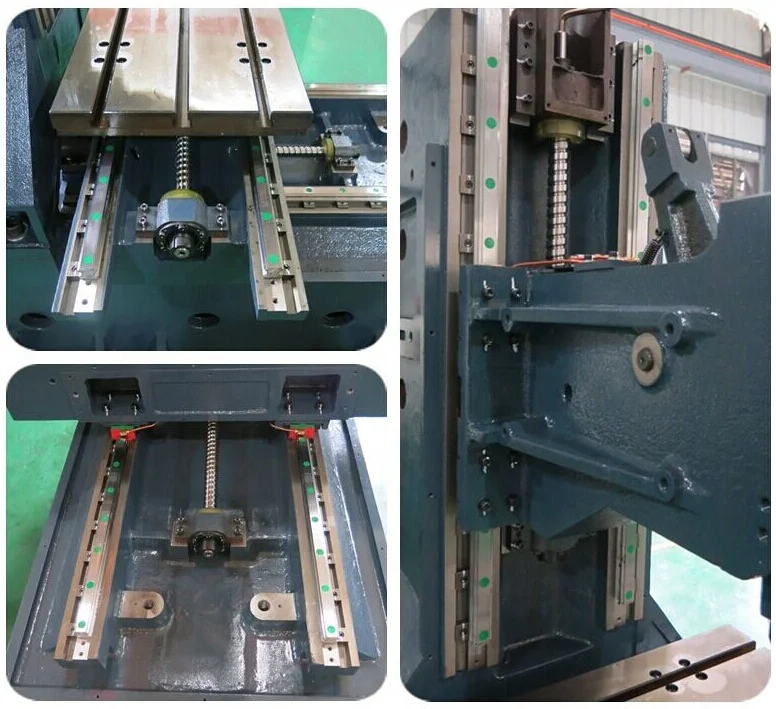

Lead screw/Guide Rail
Hiwin/PMI in Taiwan
Coolant Tank
Taiwan Brand
Machine Working
Our Partners
Company information
Certifications
Packaging & Shipping
FAQ
Q1: Are you a factory?
A1: Yes,we are a professional factory that was founded in 1998.
Q2: Payment term
A2: After the contract is signed, you shall pay 40% deposit, then the contract comes into effect.
Q3:Production time
A3: 20 days upon order confirmation
Q4:Check the acceptance
A4: When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine. If there is any problem about machine, please take pictures and contact us immediately.
Q5:Warranty time
A5: 1) One year warranty. During the first year, if some parts need replacing, we will free provide. And we offer life-long maintenance. After warranty time, customers shall pay money for component and express fee.We can provide debugging on site and training for customers, but customers need to pay expense. In this case, the customer will pay for air tickets between China and buyer's destination and free provide accommodation and meals. 2)12 months warranty begins from the day when the machine arrives. If it can’t work normally, my company will send engineers to your factory within 24 hours after receiving your notice. We still support maintenance for machine even warranty expires. Each cnc machine leaving the factory will be along with related English instructions including maintenance manual and operation manual.
Q6:OEM Service
A6: We accept purchase orders with customers' brand or trade mark.
