FULONGMA parking lot sweeper machine for sale
US $32000-$35000

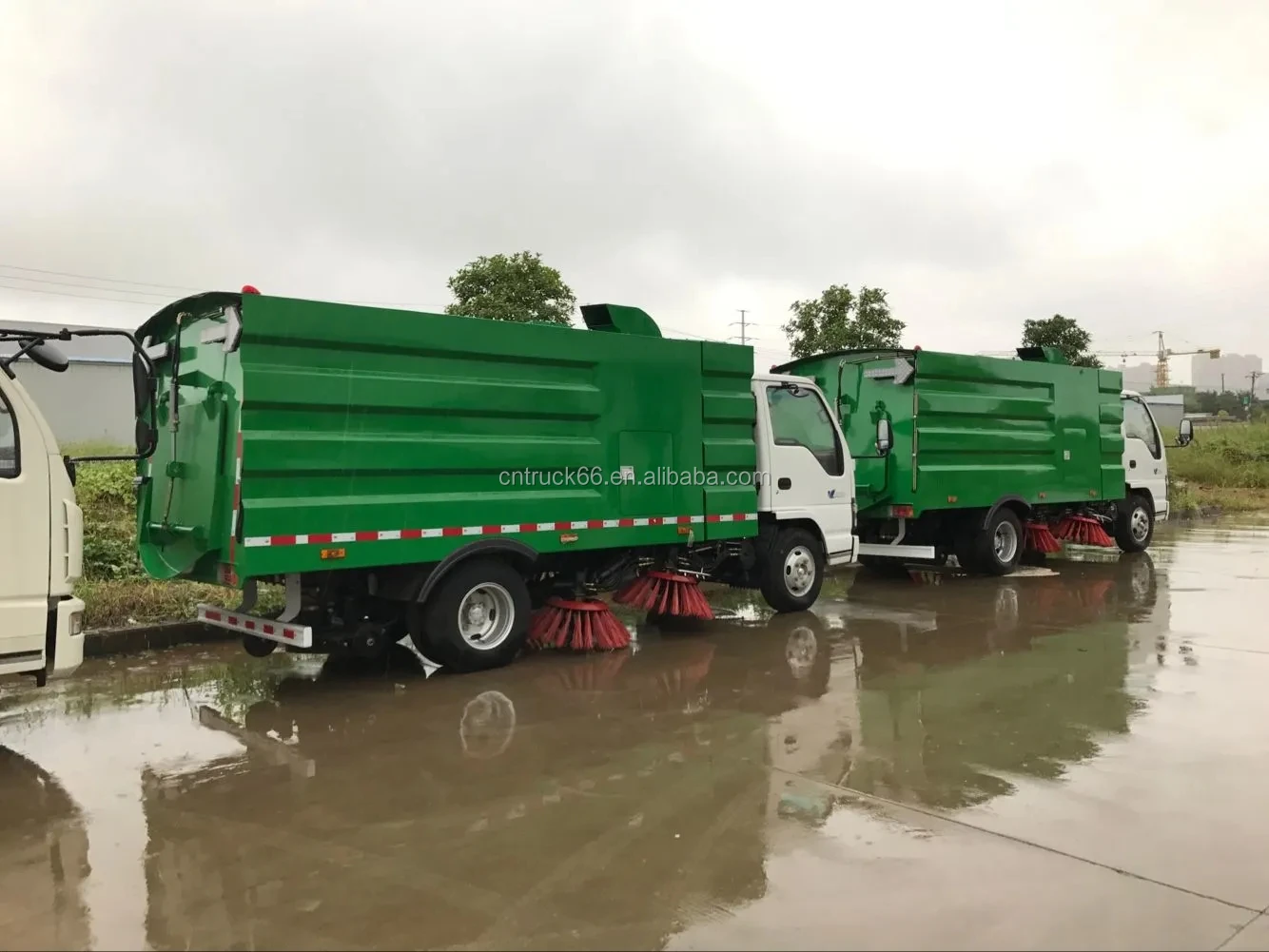

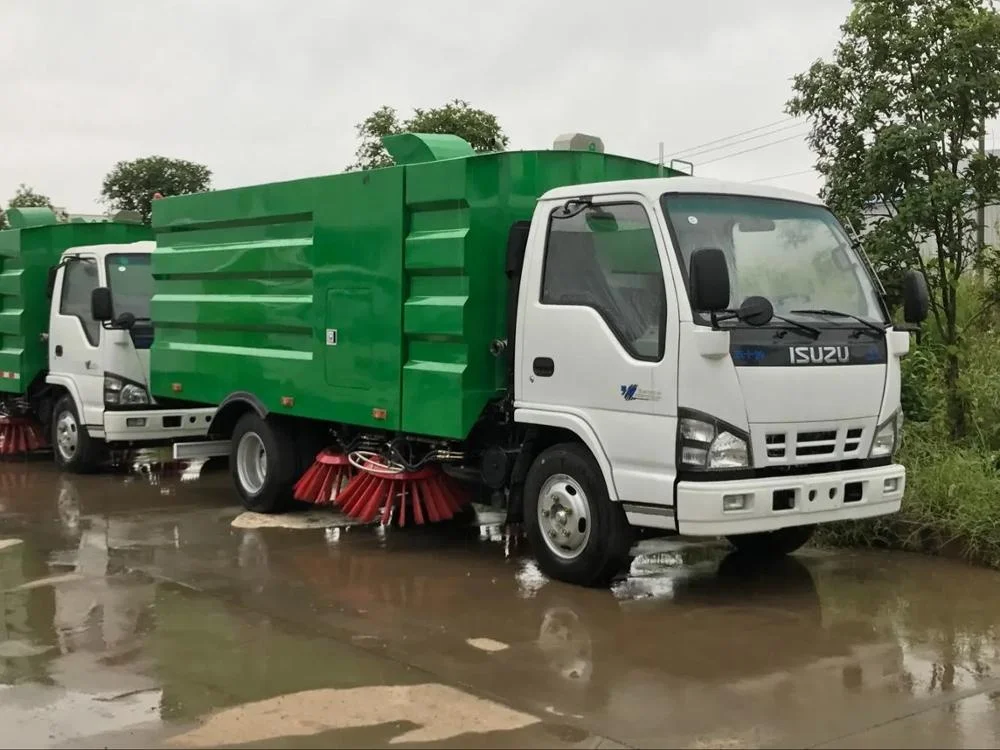

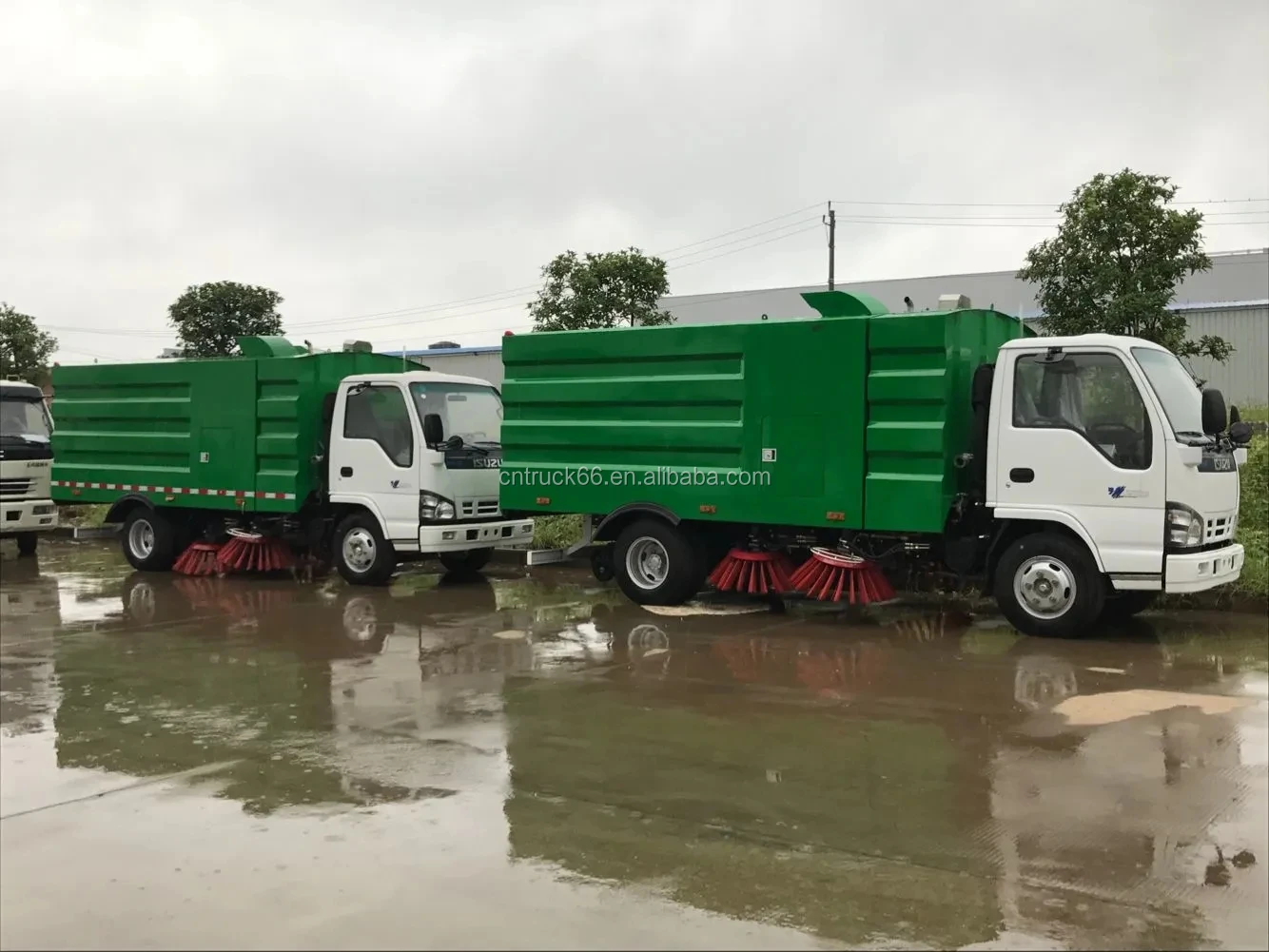

isuzu 130hp Street Cleaner Truck 5m3 Vacuum Road Sweeper Vehicle for sale
- Category: Road Sweeper >>>
- Supplier: Hubei Wanglong Special Purpose Vehicle Co. Ltd.
Share on (62442074845):
Product Overview
Description
isuzu 130hp Street Cleaner Truck 5m3 Vacuum Road Sweeper Vehicle for sale
Specification:
Product Name: ISUZU 600P street cleaner truck vacuum road sweeper vehicle street cleaner truck
Applications:
Road sweeper truck is widely used in brushing ,suction and transportation of dusts ,muds ,soil ,sand , stone chips ,gravels and other small particles on the ground of city roads and areas.
Road sweeping vehicle is made up by the chassis , vice generator, water tank , garbage tank , sweeping brushes , suction dish , hydraulic system , electronic system and so on
Competitive Advantage:
Applications:
Road sweeper truck is widely used in brushing ,suction and transportation of dusts ,muds ,soil ,sand , stone chips ,gravels and other small particles on the ground of city roads and areas.
Road sweeping vehicle is made up by the chassis , vice generator, water tank , garbage tank , sweeping brushes , suction dish , hydraulic system , electronic system and so on
Competitive Advantage:
- Our sweeper truck has free maintenance fan which can reduce the maintenance cost and get long service life.
- Water tank and garbage tank is made of stainless steel for better anti-corrosion performance and easy maintenance .
- It is also with wear-resisting sweeper brush and oil -less rotating mechanism .
- The parts is from famous brand such as Italian motor ,Schneider witch control ,Taiwanese multifold solenoid valve .
- It is with FAW chassis ,perfect performance !
| Truck Specification | ||
| Truck model | CL5080TSL3 | |
| Cab | ISUZU 600P single row cabin | |
| Driving Type | 4*2 Left hand driving | |
| Max Speed (km/h) | 99 | |
| Overall dimension(mm) | 6335*2050*2680 | |
| GVW( kg) | 7300 | |
| Mass in working order ( kg) | 5700 | |
| Wheelbase(mm) | 3815 | |
| F/R track base (mm) | 1504/1425 | |
| F/R overhang (mm) | 1015/1375 | |
| Approach/Departure Angel | 24/15 | |
| Tire | 6.50-16 (6+1) | |
| Clutch | Single-plate dry diaphragm spring clutch | |
| Steering | Hydraulic steering with power assistance | |
| Gear box | MSB 5-speed gear box | |
| Bridge | Front axle | 2.5T |
| Rear axle | 4.8T | |
| Enging | Model | 4KH1-TCG40 |
| Fuel Type | Diesel fuel | |
| Type | ISUZU Water-cooled four-stroke,, direct injection, turbocharged | |
| Exhaust(ml) | 2999 | |
| Max output power/rotate speed (hp /rpm ) | 120/2900 | |
| Max torque/rotate speed(N.m/rpm) | 290/1500 | |
| Braking system | Service Brake | Oil brake |
| Park Brake | Spring energy | |
| Auxiliary brake | engine exhaust brake | |
| Eletric system | 24v | |
| Upper-Body specification | ||
| Vice generator | ||
| Model | JX493-G3 | |
| Rated power (kw) | 57 | |
| Suction sweep operation | ||
| Cleaning efficiency | ≥95% | |
| The maximum diameter of the suction body(mm) | 120 | |
| Suction sweep width(mm) | 2.8-3.2 | |
| Maximum cleaning capacity (m2/h) | 60000 | |
| Butterfly dish brush overhang dimension(mm) | ≥400 | |
| Working speed (km/h) | 3-20 | |
| Water tank body | ||
| Rated capacity (m3) | 1.0-1.5 | |
| Garbage tank body | ||
| Rated capacity(m3) | 3.5-4 | |
| Discharge door opening angle | ≥45º | |
| Hydraulic system | ||
| Model | Open, electrical control | |
| The main element | Gear pumps, hydraulic motors, hydraulic cylinders, solenoid valve | |
| Pressure (mpa) | 16 | |
| Hydraulic oil tank capacity (l) | 60 | |
| Hydraulic oil temperature (ºC) | 60 | |
| Electrical system | ||
| Model | DC24V | |
| voltage | 24V | |
| Battery | 24V(2 set 12 v battery series connection ) | |
| Sprinkle system | ||
| The main elements | Electric diaphragm pump, water filters, nozzles, etc. | |
| Sweeper disk device | ||
| Model | Center four sweeper disk, controlled by a hydraulic motor, front right can be independently controlled with avoidance and reset function | |
| Diameter (mm) | 850 | |
| Angel | Forward 4-6º roll 4-7º | |
| Sucker device | ||
| Model | Single suction port, hydraulically controlled, spring suspension. | |
| Diameter (mm) | 200 | |
Can be installed: sprinkler, snow shovel, job monitoring, high pressure water gun.
.
Our Services
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers' trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20'GP OR 40'GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Model: we have sewage suction truck and sewage suction cleaning truck;
6. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;
7.Chassis brand: Dongfeng FOTON JAC FAW I-SUZU IVECO Sinotruk HOWO Shacman JMC.etc;
9. Crane tonnage: 5m3 to 200m3;
10. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
