VICAM NEW Automatical cabling winch borehole cameras from 200m to 500m





Product Description



 Borehole Inspection Camera Features




  Model



   V10-BCSA




  Features



 * Dual waterproof camera for deep well inspection

 * Dia.63mm x L570mm stainless steel 700TVL  camera

 * IP68 waterproof ,up to 50 Bars

 * 200m-500m twist wires cable with electrical winch\\

 * Auotmatical cabling system

 * Electrial winch winding speed adjustable

 * HD DVR control box with Audio/video recording function                                               * Built-in 128G Solid State Drives to storage video /Audio files

* Built-in compass




 Borehole Inspection Camera Technical Specifications




  Camera Head



* Φ63mm L570mm Stainless steel casing
* Waterproof IP68 Operating depth 50 bars (725 PSI)
* Dual Camera Down & Side viewing
* Pan 360° rotate endless
* View angle 120°
* Sensor resolution PAL 720H×576V NTSC 720H×480V
* Horizontal resolution 700 TVL
* 6pcs high light LED (down view)
* 6pcs high light LED (lateral view)
* Camera weight 4 Kg





  Monitor





* 10" industrial screen monitor
* Display model 4:3
* Resolution 1024*768
* Menu language 9 languages optional





  Control Unit



* Video input option: Pan & Tilt Camera or Borehole Camera
* Winch operating knob(adjusting speed,cable up and down, brake)
* Camera rotation control button
* Down camera and side camera LED brightness control button
* HD DVR Audio/Video record & playback
* Video storage Medium: Built in 128GB SSD or USB device





  Electric Winch



* Winding speed:0~20m/min
* Cable speed adjustable
* Φ10.5mm twist wires cable (150m-500m option)
* Power supply AC 110/AC230V, DC12~24V
* On screen depth encoder Electrical and handle cable rolling





  Built-in Wifi transmitter





* Built in WIFI transmitter
* Using intelligent terminals as display and recording device
* Transmitter distance 30m
* Through WIFI wireless transmit video to Android, Apply OS or MID terminal
* Non-interference for 2.4G wireless remote control







 Our Advantages

   		1)     12 years experience in manufacturing and exporting,service will be more professional

2)     24-hour hotline,service more quick;

3)     Large-scale production line, more rapidly delivery

4)     Advance equipment , the quality are perfect

5)     Professional foreign trade operations, services are more circumspect
  Your sucess is our sucess!





Application

* General Industrial Application: Borehole & water well inspection, Pipe inspection, drain inspection, sewer inspection,chimney inspection,wall pipe inspection and other industrial pipe;
*   Special Industrial Application: Air industrial, nuclear-power industrial, oil exploration industrial application etc.;



Payment Terms

* Payment terms: T/T, Western Union

* Trade term: FOB, & EXW are available;





Warranty



* One year warranty, whole life service;
* Any problem, freely return within one week;



Why Vicam

♦ We as a leading manufacturer specialize in pipe inspection systems & cameras.

♦ Rich experience of 8 years to design, produce and export.

♦ France CYBERIA SAS, and Shenzhen Institutes of Advanced Technology support.

♦ Professional engineers guarantee the reliable products.

♦ Strong production line provide best price, good quality and fast delivery.

♦ Inquiry will be replied within 24 hours



Contact Us

  Shenzhen Vicam Mechatronics Co., Ltd
  ADD: 6/F., Block 11 North Area, Shangxue Industrial   Park, Bantian, Shenzhen, China
  Web: www.vicam.cn;
  TEL: +86 755 8920 2820
  FAX: +86 755 8920 2819
  Skype: vicamsales1

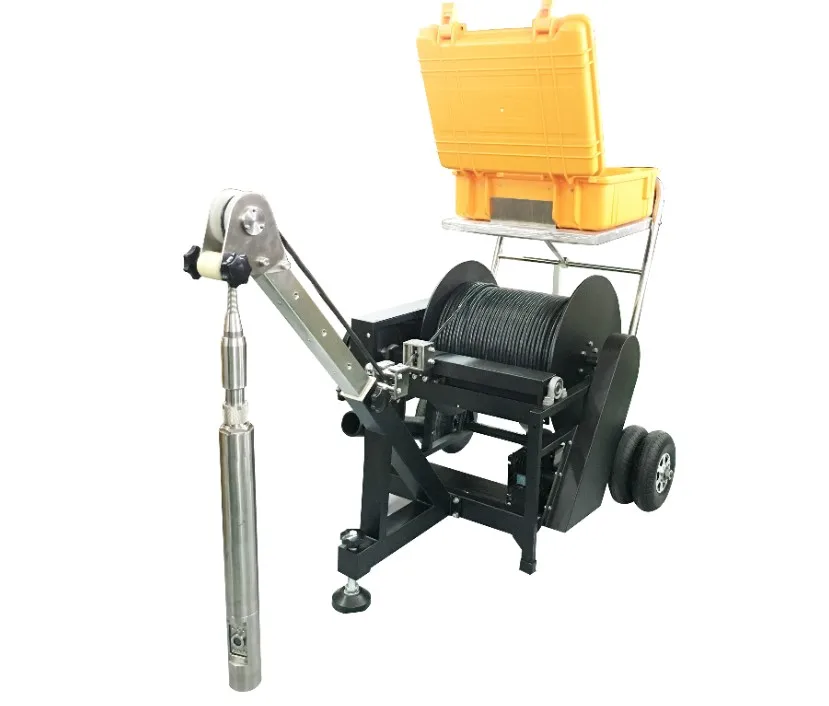

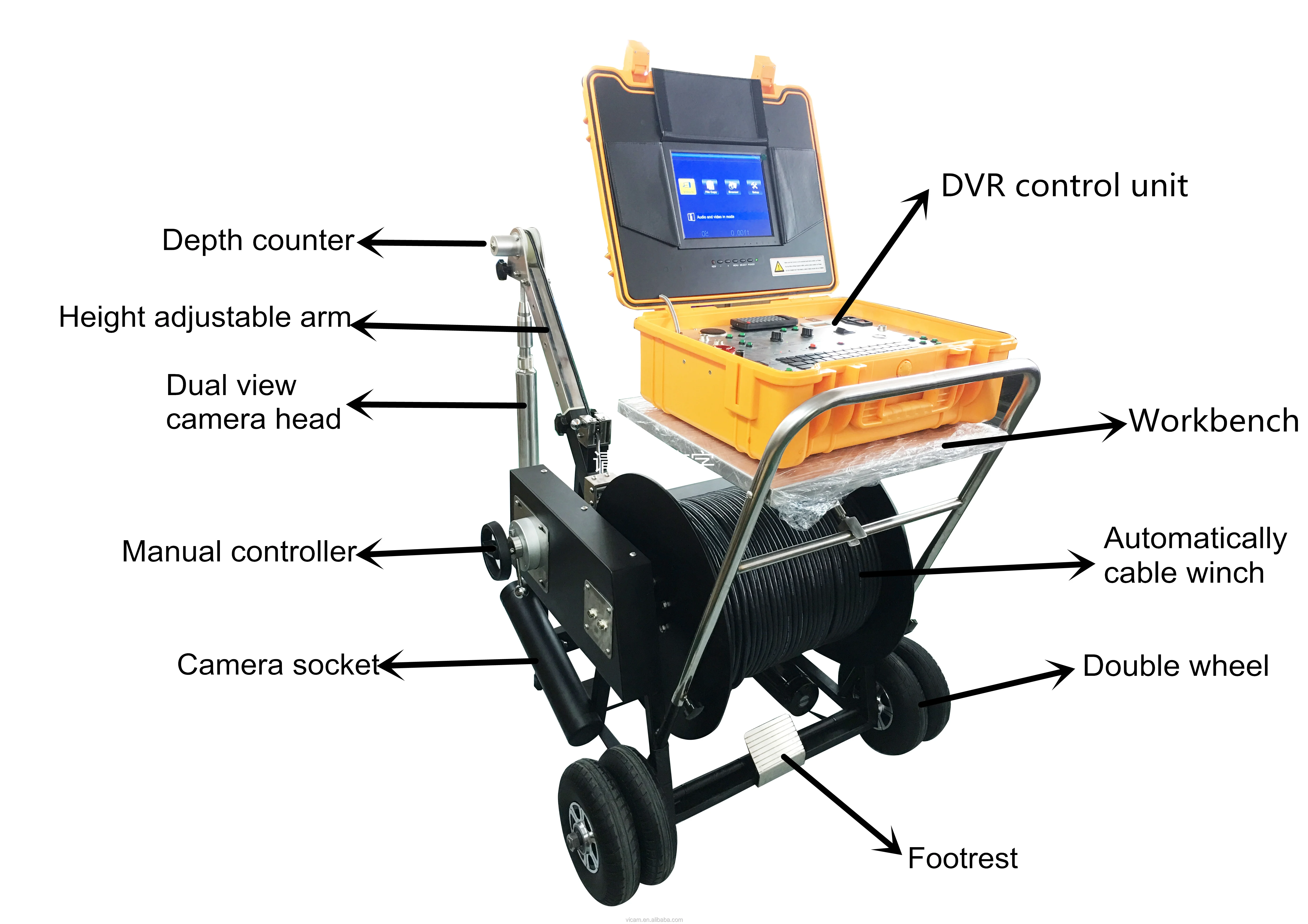

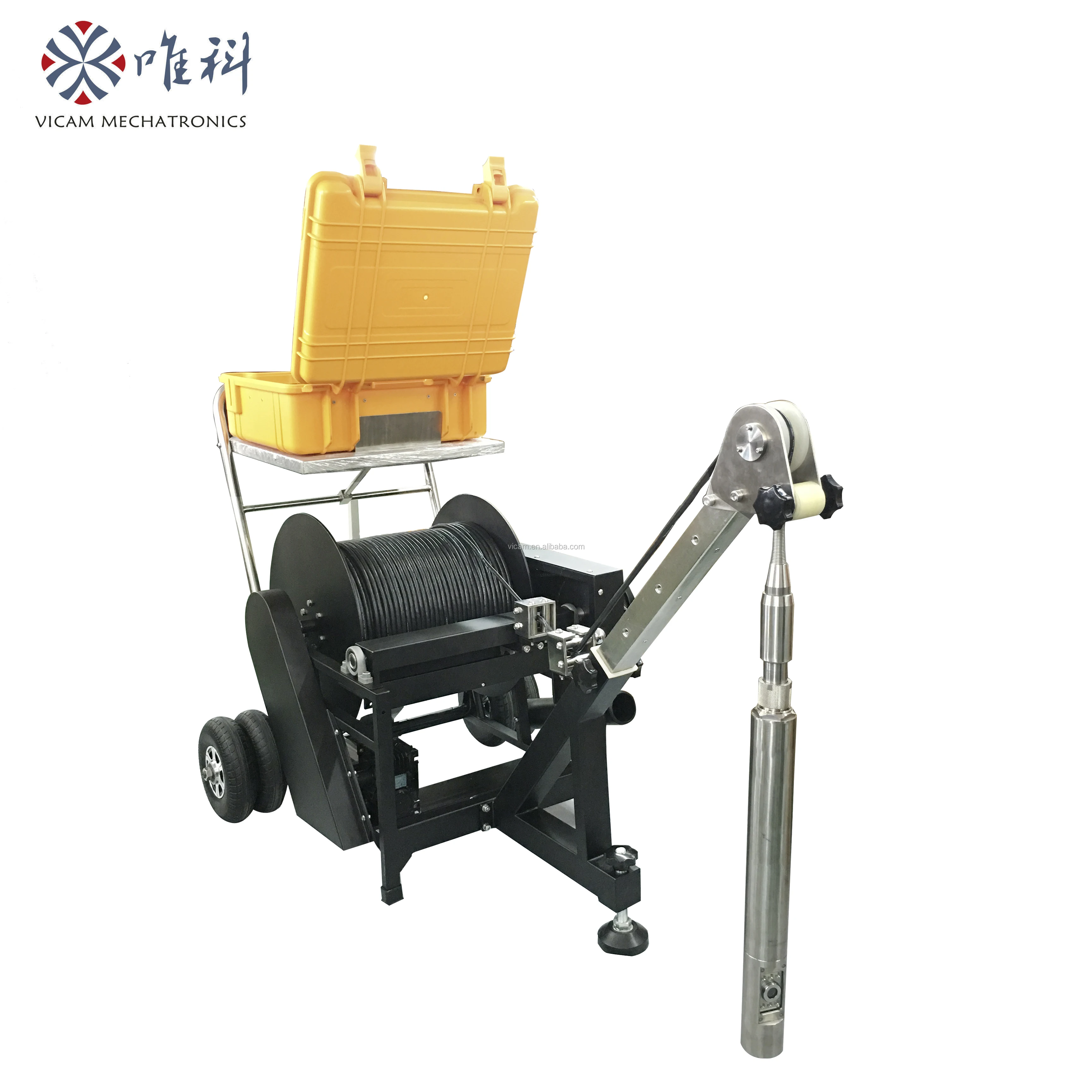

 Borehole Inspection Camera Photos

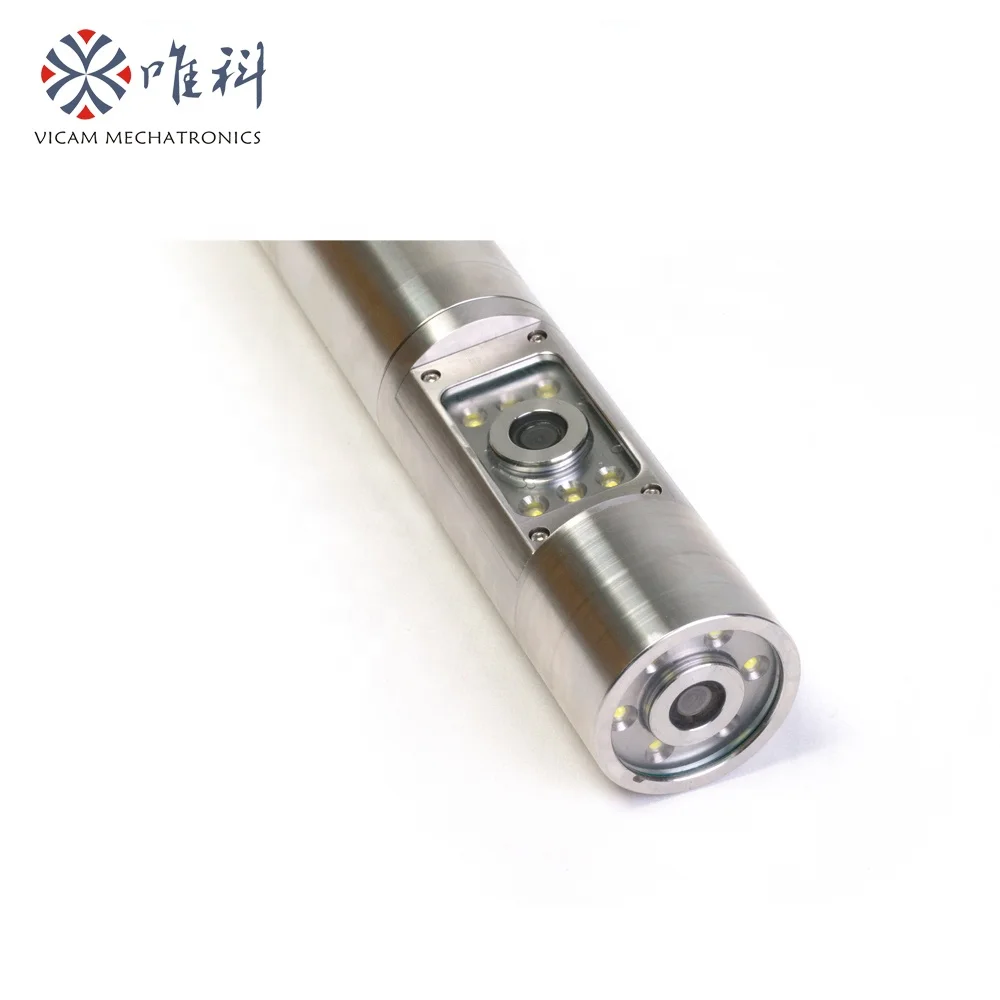

1. Dual camera for down view and side view

4

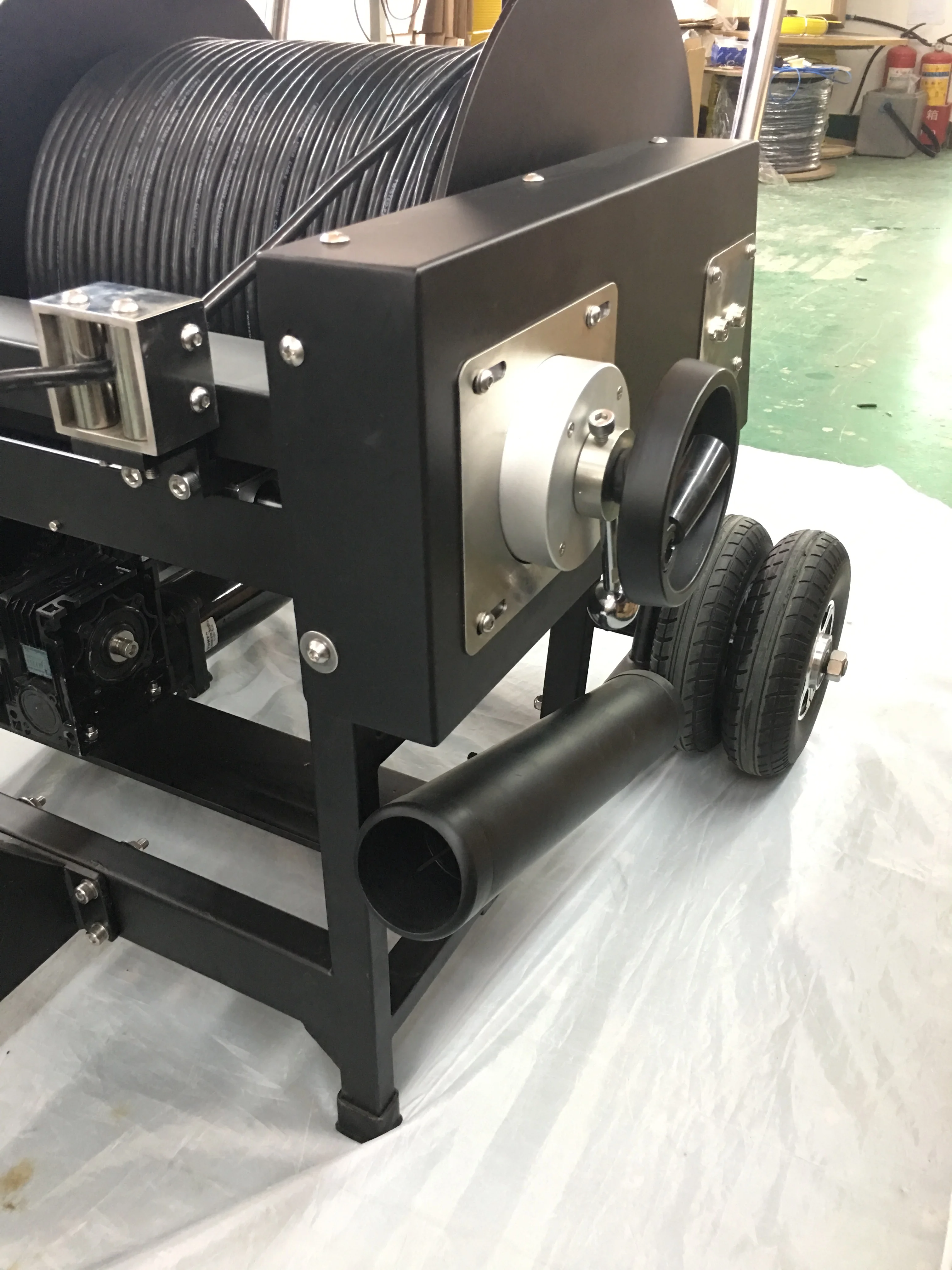

2. Electric Winch

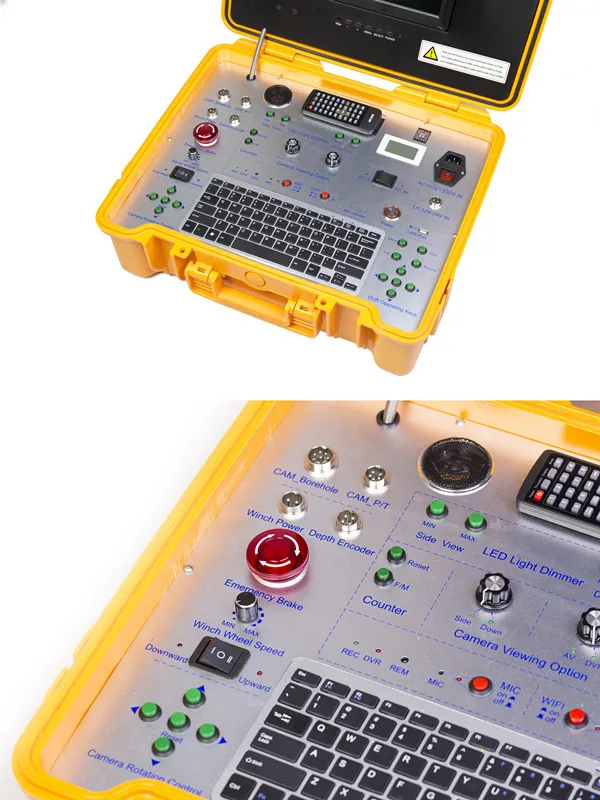

3. Control Unit

 Control box for Borehole camera

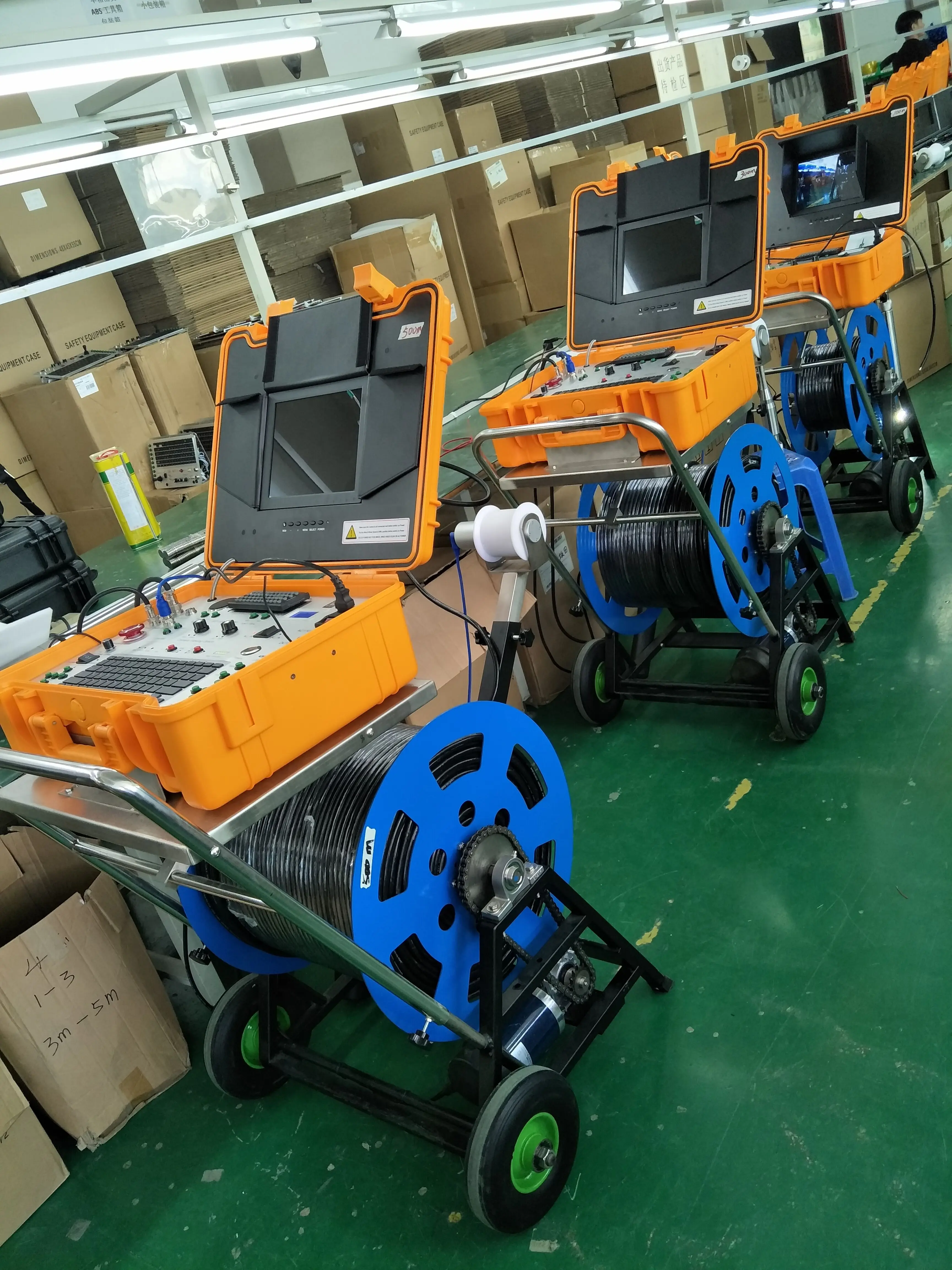

 factory



Packaging & Shipping

  • Packed by wooden case

    DHL, FedEx, EMS, UPS, TNT express

    By air or by sea

    Client forwarders are also available

    All products will be tested & inspected before delivery

    Tracking No. will be sent after delivery

    One year warranty, whole life service





Company Information

VICAM, a professional manufacurer located in Shenzhen China, focus in researching, developing and marketing industrial video inspection system, specially in pipe inspection industry.



For over 8 years development, we have the large-scale production lines for various series inspection camera systems, such as portable pipe camera, heavy-duty pipe camera, mini pipe camera and telescope pipe camera etc.



Now, we still continue to do our best to meet customers' demands, and offer the best service & reasonable prices.

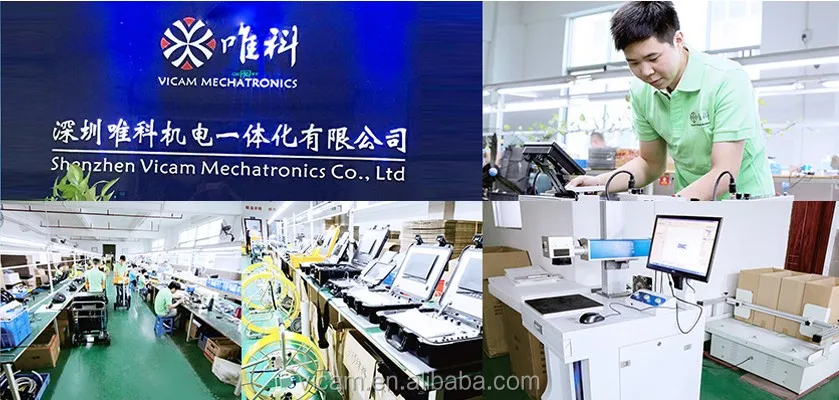

Workshop

12

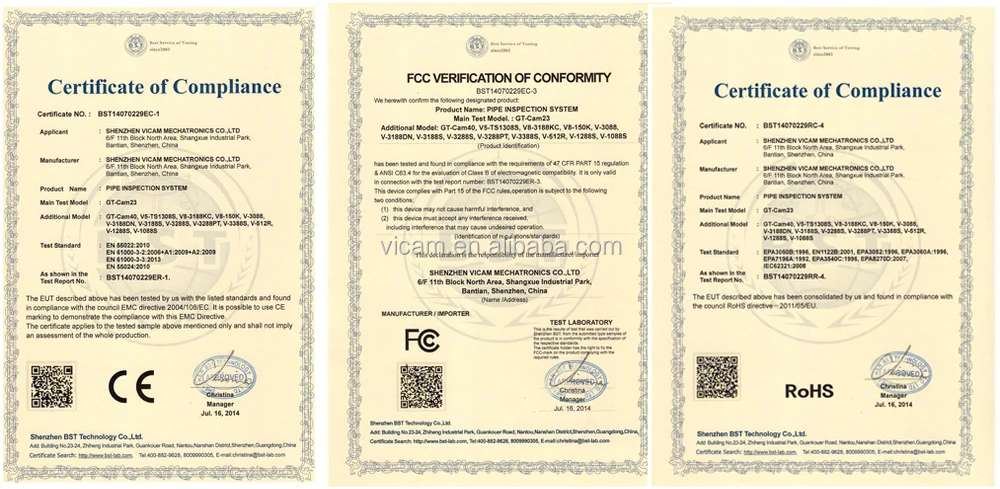

CE/FCC/RoHS Certifications

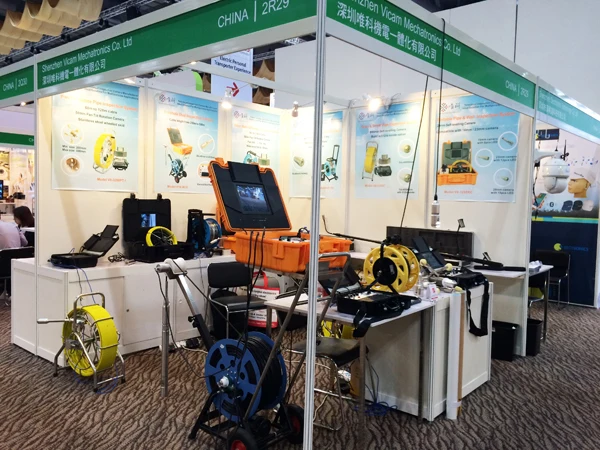

Hong Kong Fair
