Factory Price 210L Hot Air Circulation Drying Oven
- Category: >>>
- Supplier: Huanghua Baoyifeng Import & Export Trading Co. Ltd.
Share on (62442355720):
Product Overview
Description
Product Description

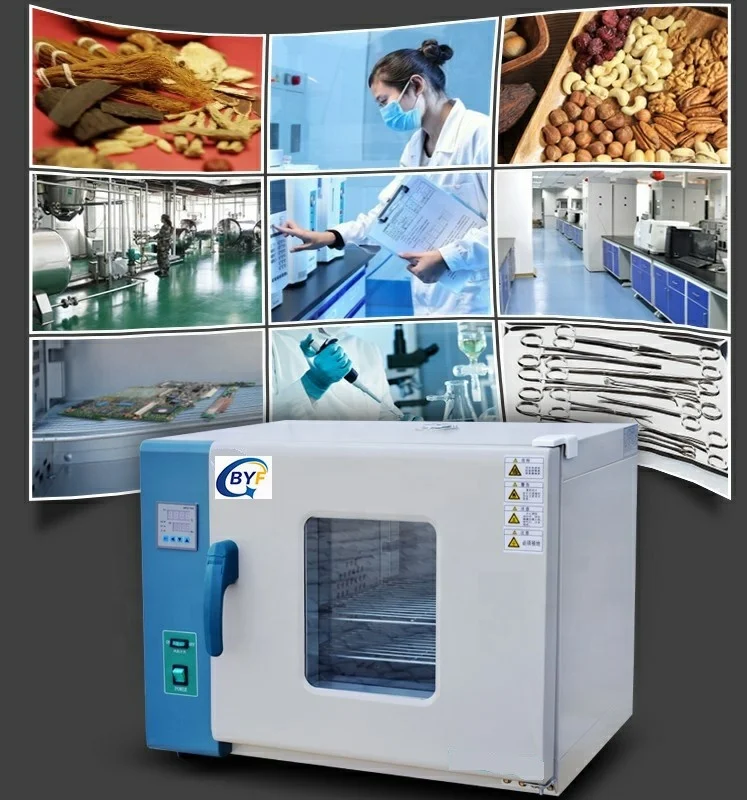

Hot Air Circulating Drying Oven Application Electrothermal Constant Temperature Drying Box
Hot air circulating drying oven is widely used in items drying,baking and heat treatment in the laboratory of industrial and mining enterprises,colleges and universities,scientific research institutes,medicine and health care.
SPECIFICATIONS FOR HOT AIR CIRCULATING DRYING OVEN | ||||||||||||||
Model | Voltage | Power | Tem.range | Tem.resolution | Tem.fluctuation | Inner chamber size (D*W*H) | Exterior size (D*W*H) | |||||||
101-0A | 1000W | 350*350*350 | 470*660*530 | |||||||||||
101-0AB | ||||||||||||||
101-1A | 1500W | 50-250℃ | 1℃ | ±1℃ | 350x450x450 | 470*760*630 | ||||||||
101-1AB | ||||||||||||||
101-2A | 2000W | 450*550*550 | 570*860*730 | |||||||||||
101-2AB | ||||||||||||||
101-3A | 3000W | 500*600*700 | 620*910*880 | |||||||||||
101-3AB | ||||||||||||||
Main Features
1) The shell is made of high quality cold-rolled steel plate,surface electrostatic spraying.
2) Inner chamber is made of stainless steel or galvanized steel plate.
3) A is galvanized steel inner chamber,AB is stainless steel inner chamber.
4) Intelligent digital display PID temperature controller,with the functions of timing,overtemperature alarm
instruction,temperature deviation correction,control temperature self-tuning.
5) Large double layer toughened glass window is convenient to observe the changes of contents in the box.
6) New type synthetic silicone seal,beautiful shape,can run high temperature for long period of time.

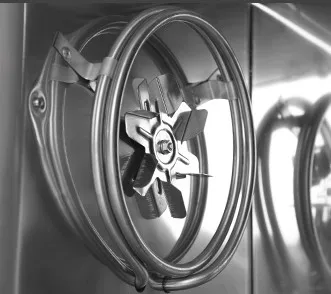

7) Hot air citculation system adopts the double air duct ciculation of the low noise fan.Ensuring that the fan service life
is more longer and the temperature in the box is more uniform.
8) The device is equipped with an independent fan switch that can be turn on or off as needed.
Note: if the customer doesn't need the air blast function,turn off the fan switch or ask to remove the fan to reduce the cost when placing the order.
Detailed Images
Machine Parts

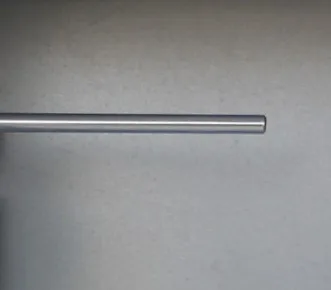

Name: Platinum sensor
Brand: BYF
Original: China
Using PT-100 Platinum sensor,Temperature sensing is more sensitive
Drying Oven Parts
Name: Extra thick insulation
Brand: BYF
Original: China
Sufficient thickness insulation layer to ensure heat effective and insulate heating quickly, good thermostatic effect, especially provide safety when using.
Machine Parts

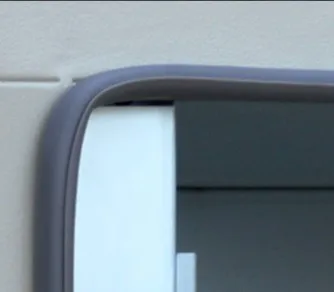

Name: High temperature silicone sealing strip
Brand: BYF
Original: China
High temperature silicone sealing strip used in the box make the constant temperature keep longer time.

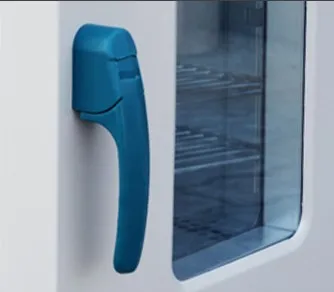

Adjustable Doorknod
Name: New type doorknod
Brand: BYF
Original: China
New type lock catch doorknod is used.This new design is adjustable.Much easier to open and close the door,also make the door more stable and better sealing.
Intelligent Temperature Control Meter
Name: PID Temperature Controller
Brand: BYF
Original: China
Brand: BYF
Original: China
Intelligent temperature control systerm. Digital display,control temperature precisionly.
With the function of over temperature alarm and timing.
The Surface Treatment
Name: New type surface
Brand: BYF
Original: China
Powder coated of the surface to avoid anti. Beatiful,environmental and usable.
