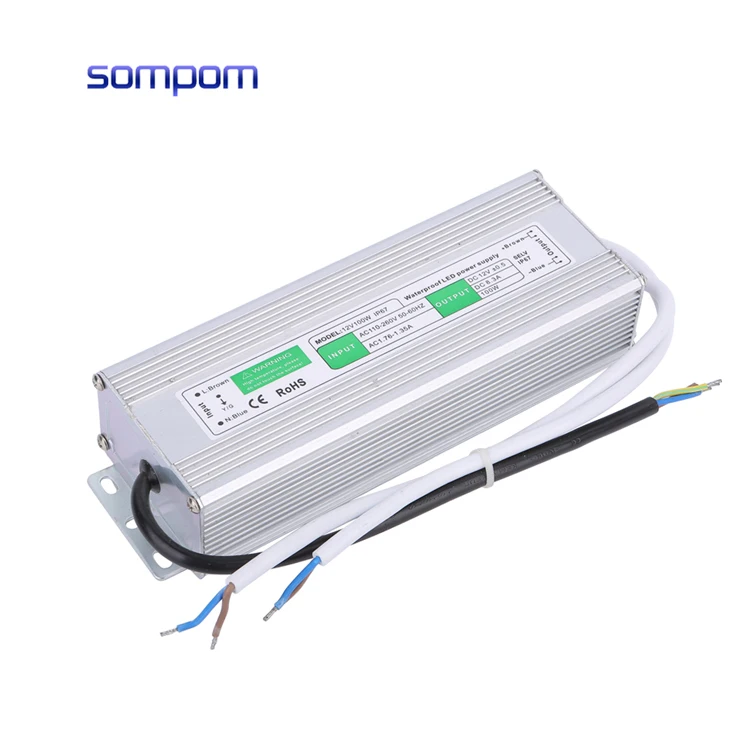

Поставщик из Китая, водонепроницаемая светодиодная лента с постоянным напряжением IP67, уличный светодиодный драйвер 12 в 100 Вт
- Category: >>>
- Supplier: Guangdong Province Sompom Industrial Co. Ltd.
Share on (62442362564):
Product Overview
Description
Product Description

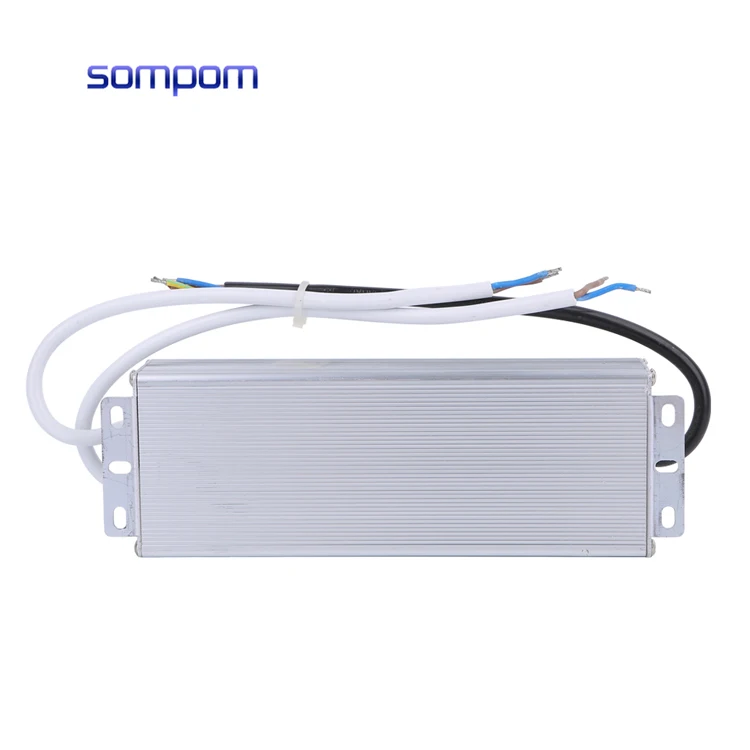

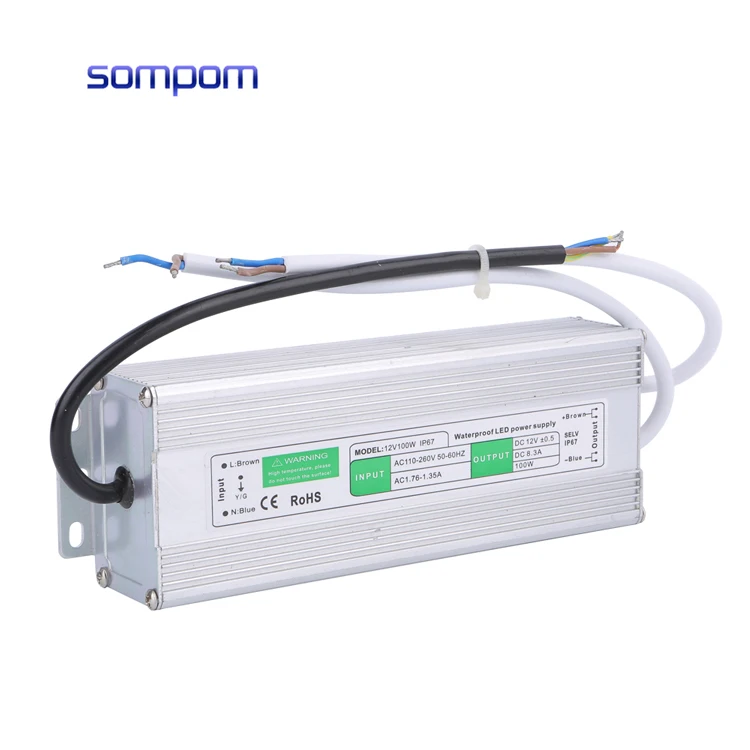

China Supplier Constant Voltage IP67 Waterproof LED Strip Light Power Outdoor LED Driver 12V 100W
| DC Output | DC Voltage: 12V |
| DC Current : 8.3A | |
| Ripple & Noise: 80MV | |
| DC Adjustable Range: ±10% Rated Voltage | |
| Voltage Tolerance: ±2.0% | |
| Line Regulation: ±0.5% | |
| Load Regulation: ±1% | |
| Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC | |
| AC Input | AC Voltage Range: 85-264VAC |
| Frequency Range: 47-63Hz | |
| Efficiency:90% | |
| AC Current: 0.86/115V 0.4A/230V | |
| AC Inrush Current: 20A/115V 40A/230V | |
| Leakage Current< 0.5mA /240VAC | |
| Protection | Over-load: 105%-150% hiccup mode,Auto-recovery |
| Over-voltage: 115%-135% Cut Off the Output,Auto-recovery | |
| Over-temp. : Shut down O/P voltage, Auto-recovery | |
| Environment | Working temp.: -10~ +60C° (Refer to output load derating curve) |
| Working Humidity:20 ~ 90% RH, non-condensing | |
| Storage Temp.: -10~ +60C° | |
| Storage Humidity: 10 ~ 95% RH | |
| Safety | Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH |
| Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
| Safety standards: CE,RoHS,FCC,ISO9001 |
About Us

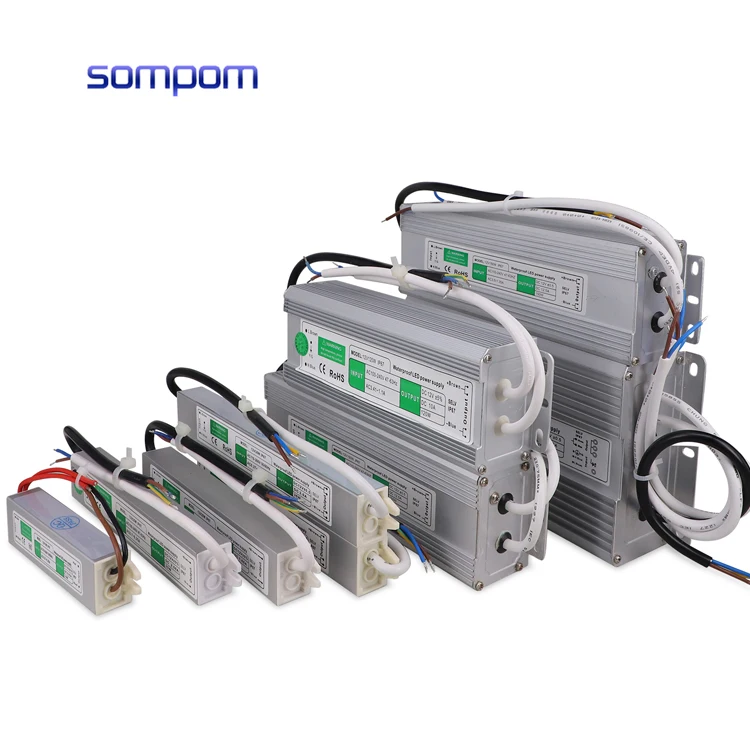

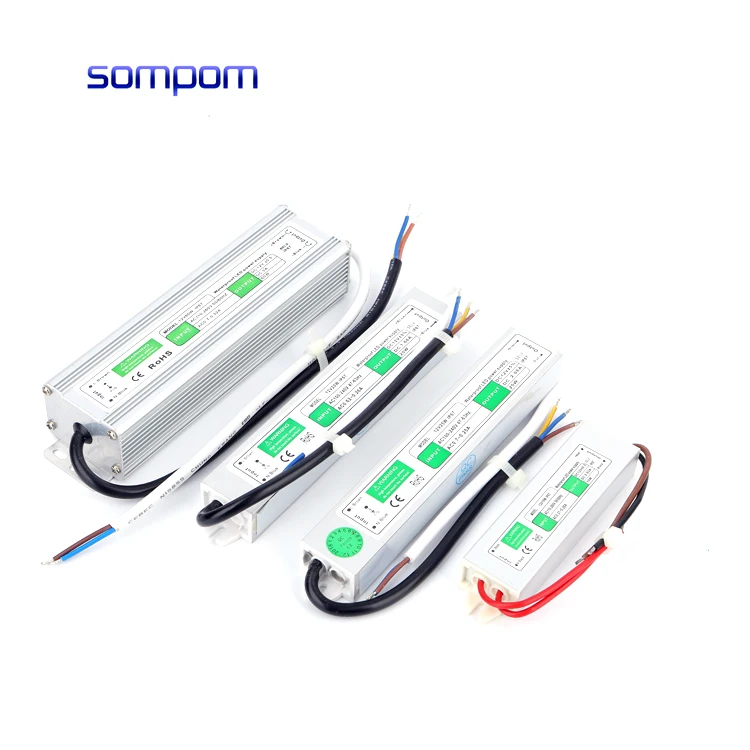

SOMPOM is focusing on offering LED switch power, waterproof switch power,rainproof switch power,AC-DC power adapter and CCTV camera power. Withe the over load protection, over voltage protection and high temperature protection. SOMPOM wins customer’s favor by its high efficiency, reliability and long life span. Each of the switch power is extremely safe and stable after 5 times testing. All of our powers have the ISO9001,CE,FC,ROHS certification. Our switch powers are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting engineering.
Our certificate
Our Factory
 | ADVANCED MACHINE Its brand SOMPOM is well-known at home and abroad. |
| LONG-TIME BURN-IN TEST Each of the switch power is extremely safe and stable after 5 times testing. | |
| OEM&ODM SERVICE This company is engaged in the design, manufacture and sale of switching power series. | |
| OUR CERTIFICATE All of our products have the ISo9001 CE,FC,ROHS certification. |
