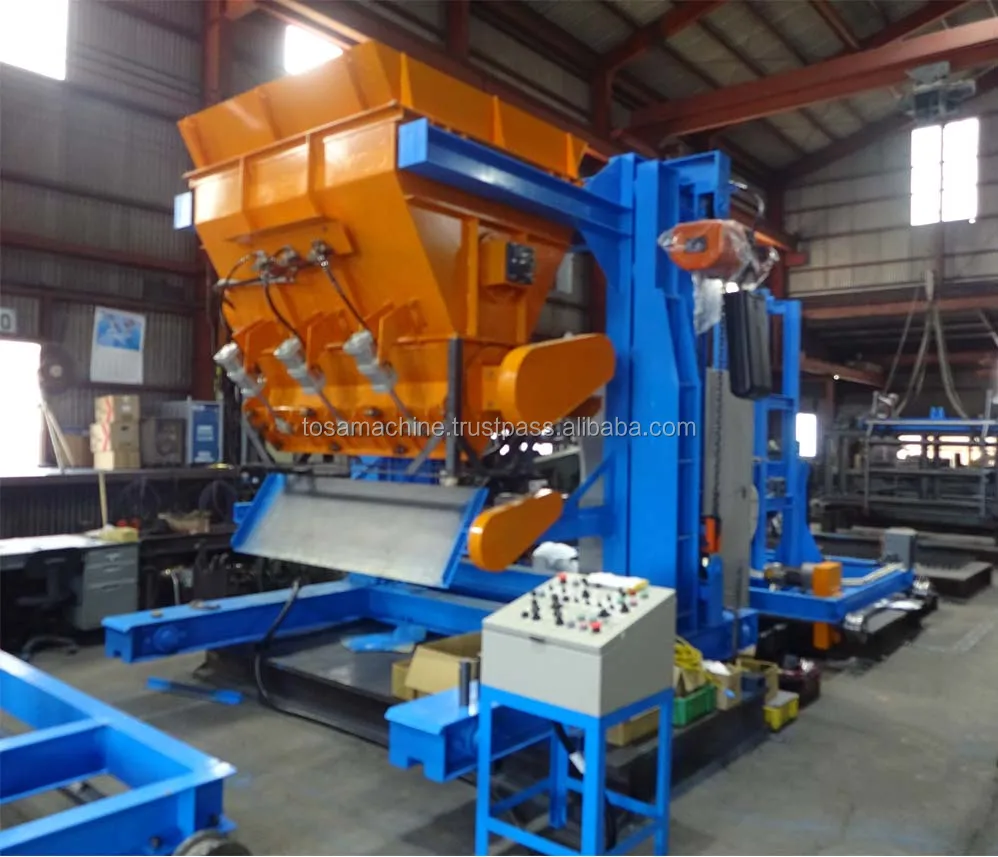

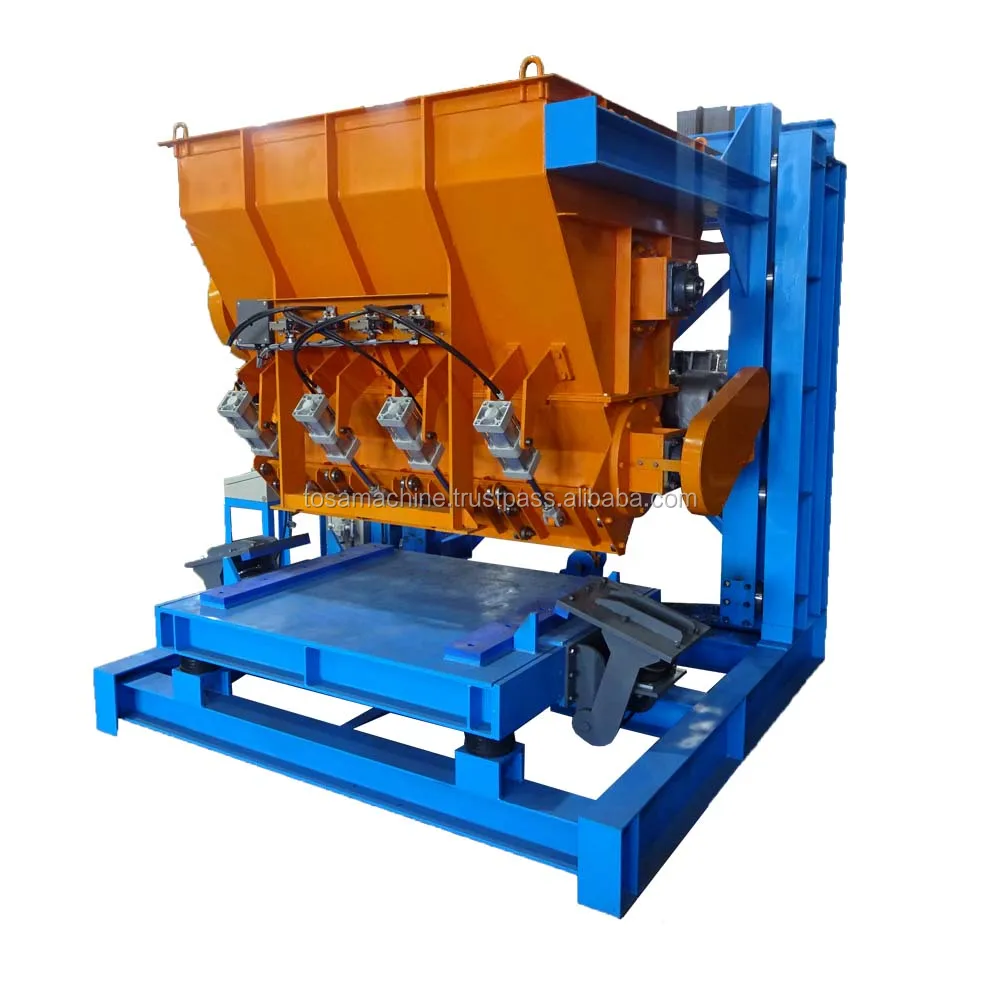

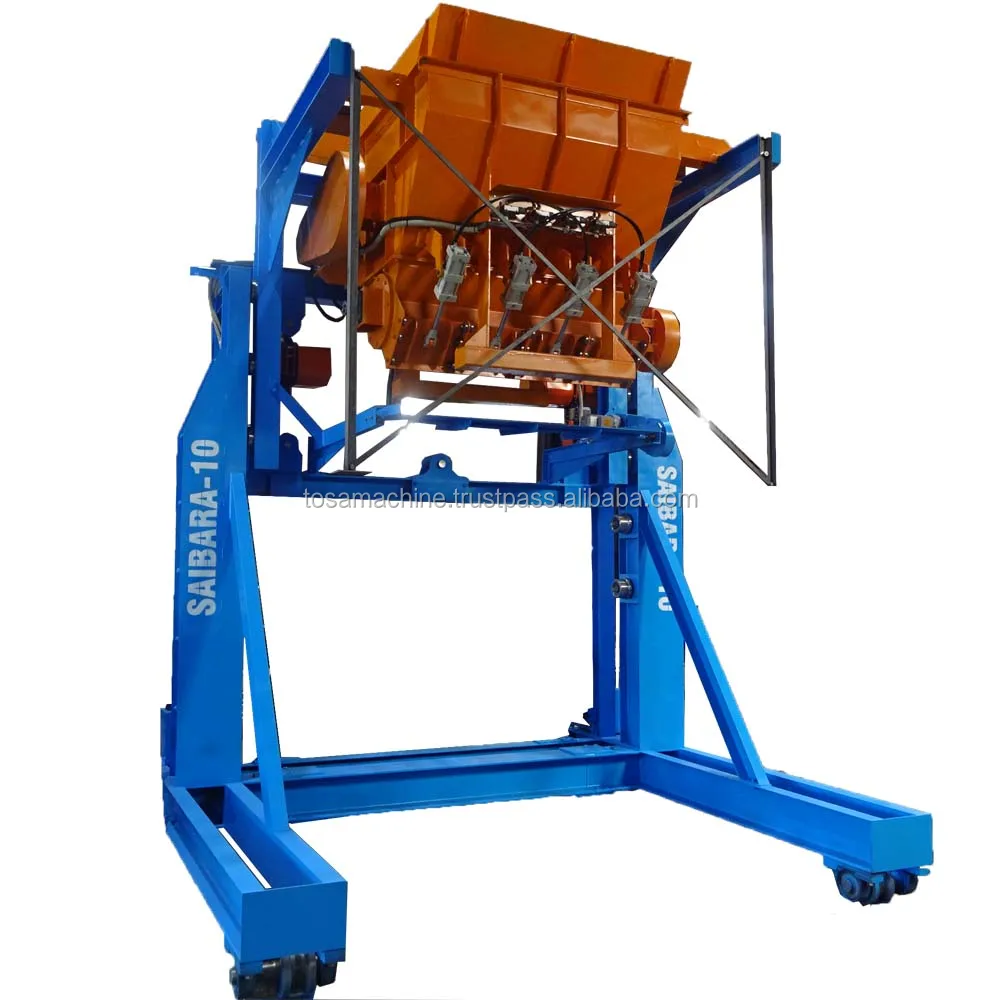

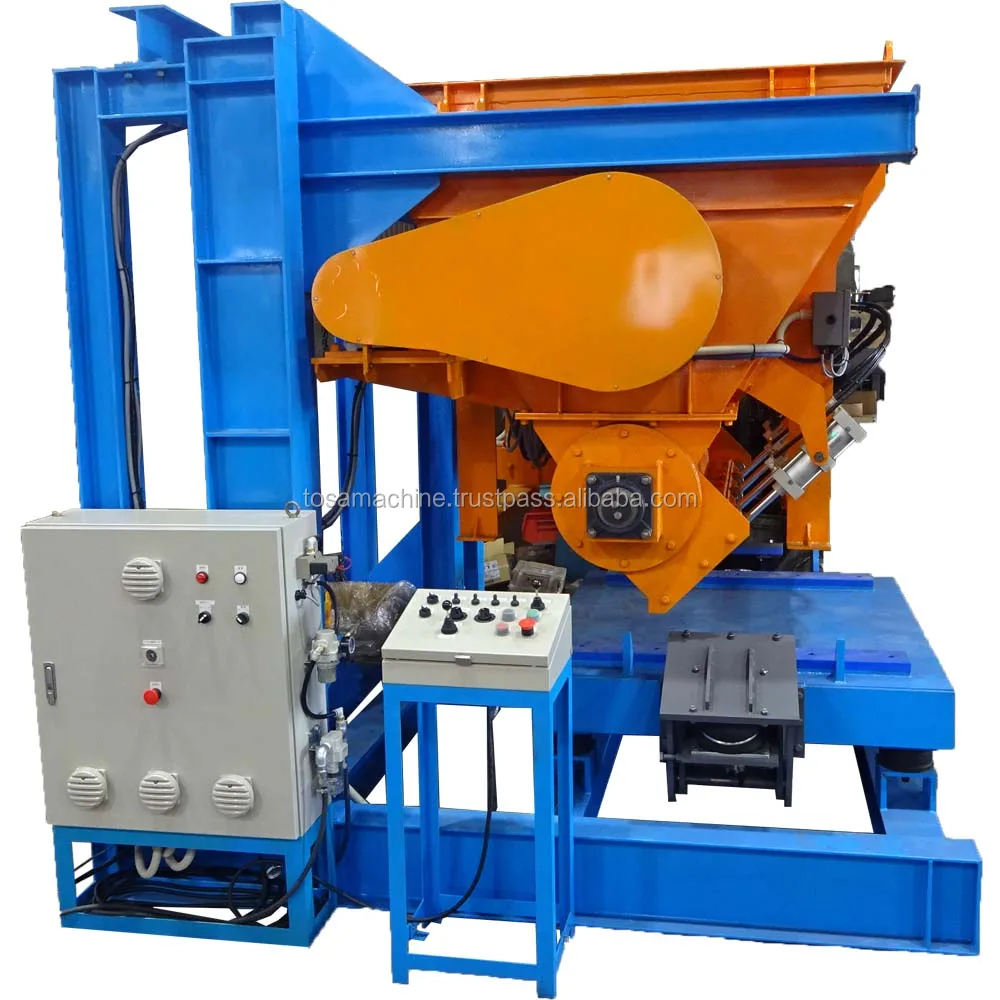

Japanese high spec concrete molding machine that can be control by one person, SAIBARA 10

Product Overview

Description



Unit type concrete molding macine " SAIBARA-10"







SAIBARA-10 is the concrete molding machine that realized possible Compact, High function, Reasonable price.



This machine can be able to molding, filling and supply by only this machine. More over, this machine can be able to contorol with only one person.

















Normal type of equipment specification





Concrete charging equipment



  Size :  L/2,200mm, W/2,200mm, H/2,400mm - 3,400mm



  Weight :  2,800kg



  Can Volume : V=1m3(NET)



  Charging mechanism : Roatally type, Openable gate type, (Quadrisection charging port type, Independent air openable type)(With inverter type )



  Elevating Length : 1,000mm (Max size of possible to manufacturing products: Length/1,500mm, W/2,200mm, H/1,000mm )







Vibration equipment



  Max weight that can be deal: 2,500kg (With inverter)



  With product catch equipment









And, this machine is unit type so that can be able to offer you some merit like as bellow:



 1. Easy to loading and transporting by big and middle trailer.



 2. Easy to installation of machine so, can be able to installation in site with low cost.

 And also we can deal with installation at foreign countries.



 3. Easy to installation and move the machine.



 4. Concrete charging can is possible to divide from machine so, you do not need large supply equipment.



 5. Also easy to introduced to existing facility.



 6. Easy to desorption of vibration equipment.



 7. Easy to concrete placing because of charging port is splited.

 So, this machine can be deal with for many type of products processing.



 8. This concrete charging port has agitate and roataly mechanism so, can be compatible with from normal concrete to high flow concrete.



9. Also can be compatible with work of prevention of disaster and disaster recovery.



10. Can be compatible with many kinds of specification by another option.

 For example, moving type, Large and small can size,  Elevationg length amount change, etc.







Normal type







Back-and-forth movement option







Back-and-forth movement and 2,000mm Elevating option
