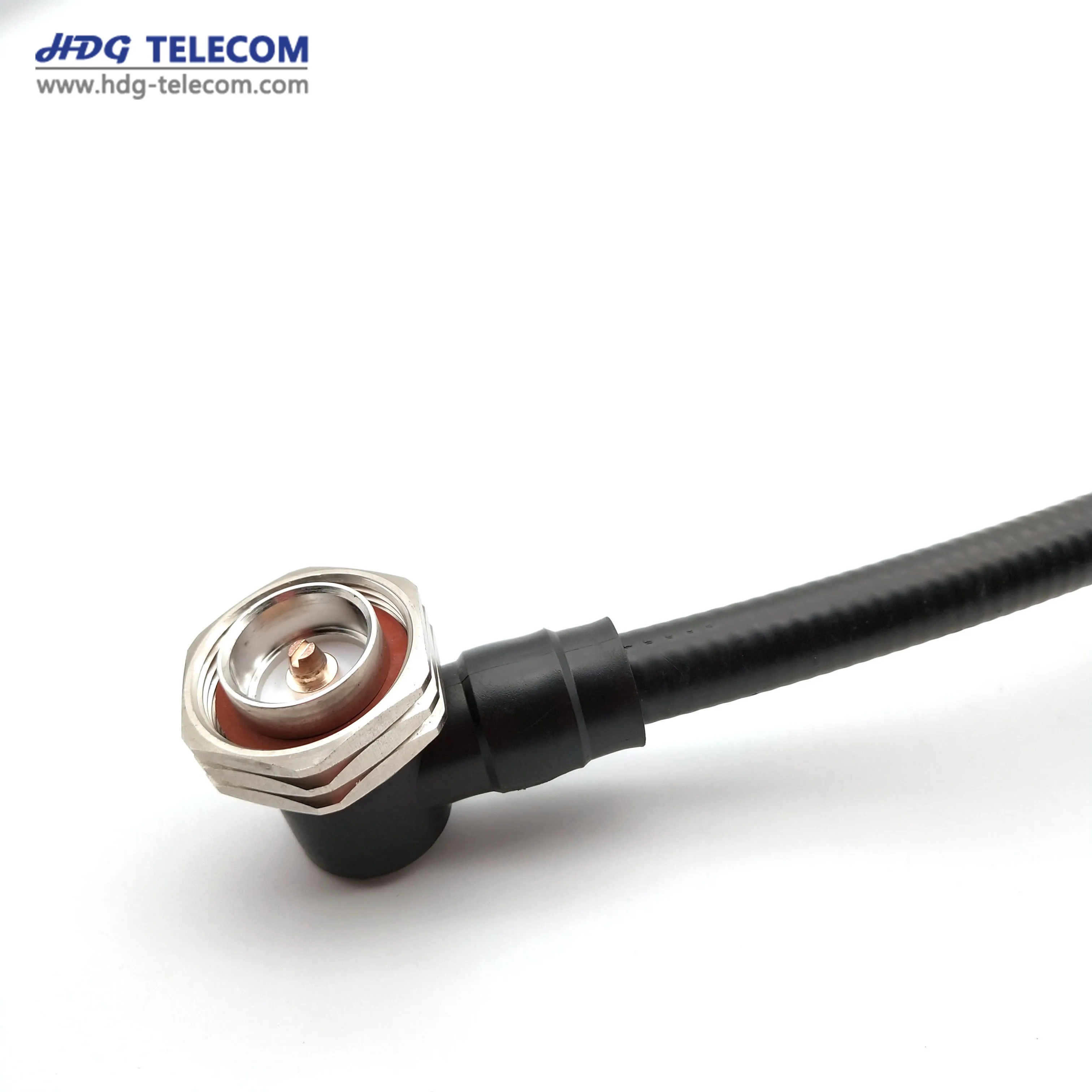

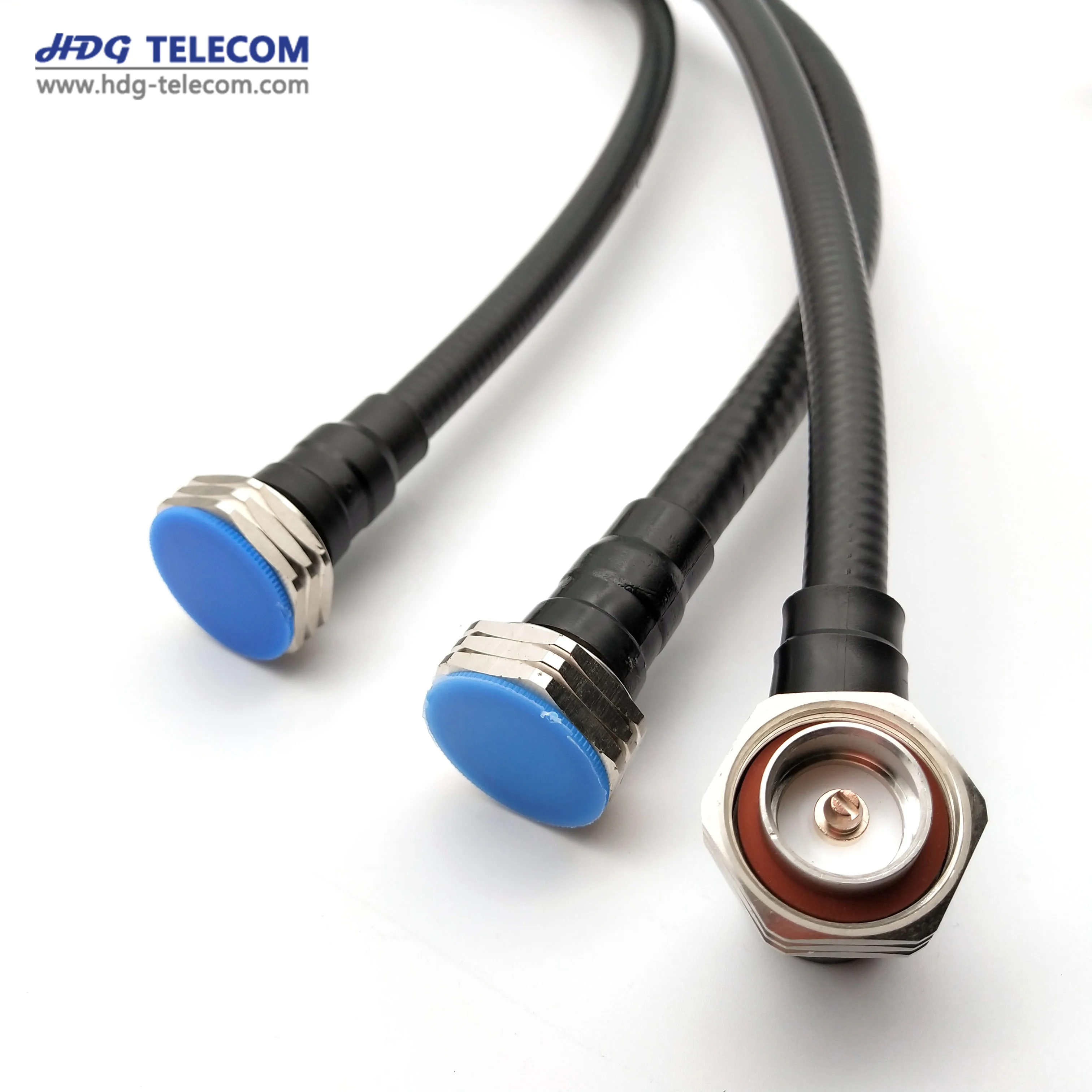

1/2 Feeder RF Coaxial Jumper Cable With 7/16 DIN Male Right Angle Connector

HDG Telecom is a leading manufacturer of coaxial jumper cables and has vast expertise in the design of custom RF coaxial jumper cables. RF coax jumper cables are commonly used to transmit signal and radio frequency (RF) in the multi megahertz range. RF coaxial jumpers can be built with various types of connectors and cable types, with varying lengths depending on the intended use or application.

RF coaxial jumper cables are also referred to as RF jumper cables, or more simply as coax jumpers or RF jumpers.They are also referred to as radio frequency (RF) jumper cables. Sometimes it’s switched to coaxial cable jumpers or RF cable jumpers. The short names are coax jumpers or RF jumpers.
Additional designations include coaxial cable assemblies and RF cable assemblies. All of these terms can be used interchangeably.


Markets for Coax Jumper Cables


* Communications

* RF Signal

* Test Equipment

* Aerospace

* Military

* Transportation

* Sensors


Coaxial Cable Connector Types

* BNC
* TNC
* SMA
* UHF
* NEX10
* BNC
* SMA
* N Type
* 7/16 DIN Type
* 4.3 10 connector
 and so on ...
 other types connectors,welcome to
contact us for details

Interface
Accounding to
IEC60169 - 4
Electrical
Impedance
50ohm
Frequency
DC-7.5Ghz
VSWR
≤1.10(2.7G)
PIM
≤ -160dBc
Dielectric Withstanding Voltage
≥4000V RMS,50Hz,at sea level
Dielectric Resistance
≥5000MΩ
Mechanical
Durability
Mating cycles ≥500
Material and plating
Body
Brass plating Tri-Alloy
Insulator
PTFE
Center conductor
Phosphor bronze
Environmental
Temperature Range
-40℃～+85℃

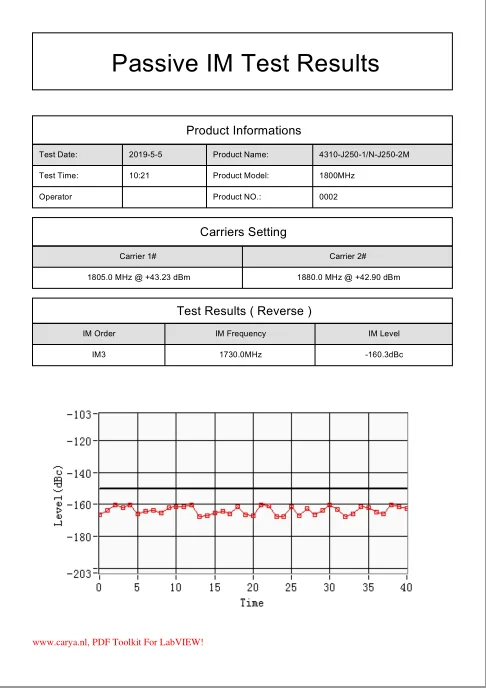

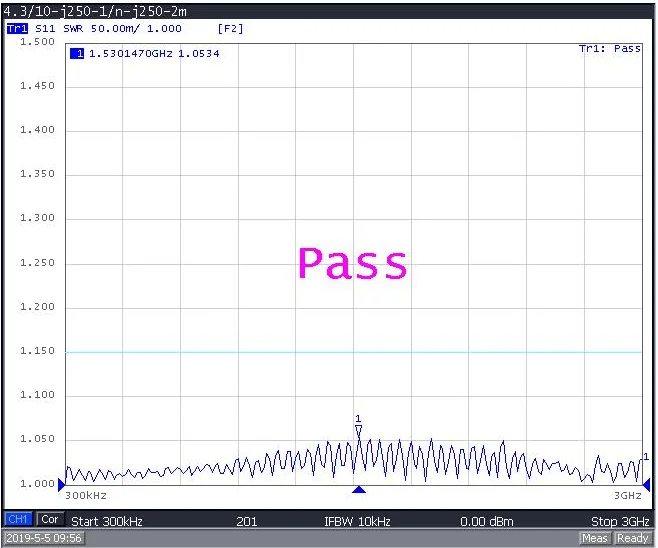

TestReport Scannable
Packing & Delivery

Our usual packing is export carton with tape and packing belt, pallet packing.


Other packing is also available by your requirement.

Samples or small batches delivered by DHL、TNT、FedEx、UPS.


Batch cargo are delivered by air or sea.


Other  transports are available by requirement.
