Китайский поставщик, радиочастотный щит, анаховая камера
- Category: Filters >>>
- Supplier: Changzhou Haozhuo Electronic Co. Ltd.
Share on (62442744201):
Product Overview
Description

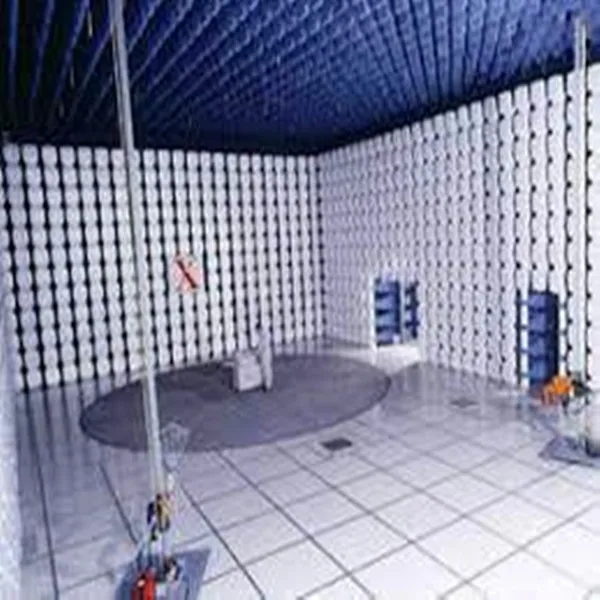

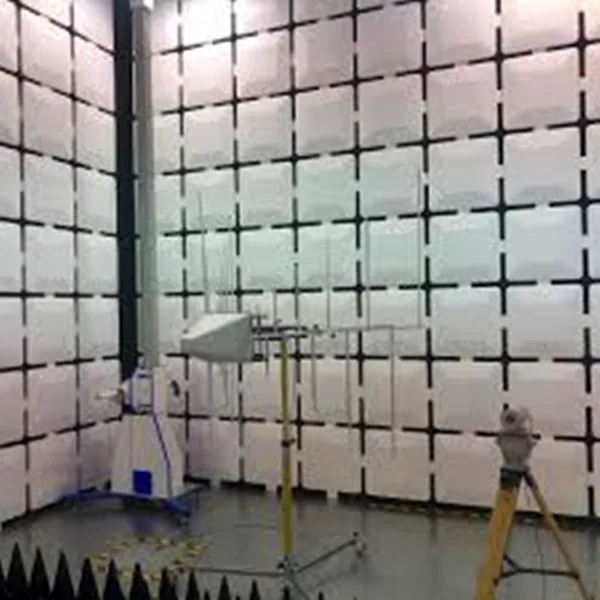

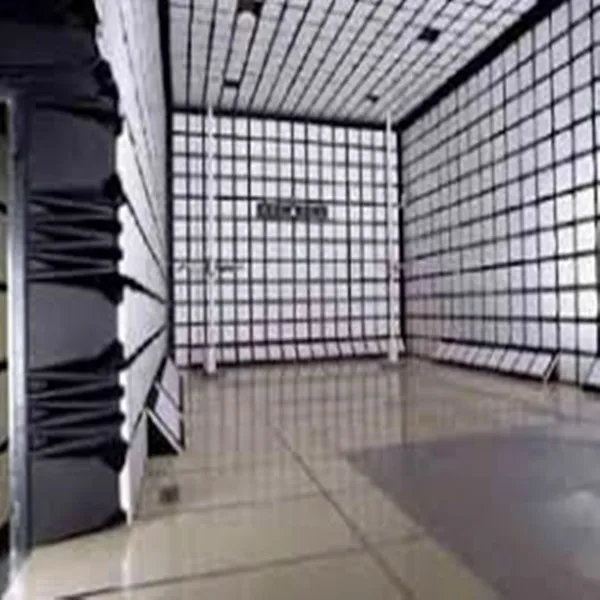

Anechoic Chamber
Anechoic Chamber Description we provide Semi-EMC Chamber and Full EMC Chamber for EMC Testing.
An Anechoic Chamber generally consists of an RF shielded room which is either partially or fully lined with RF absorber material. It is used to perform several types of testing and measurements.
our chambers are typically constructed from the modular shielding system.
EMC anechoic test chambers are used by industry to perform radiated emissions and radiated immunity testing of electrical/electronic equipment to various International specifications such as EN 50147 part 2 / ANSI C63.4 / EN55022 / EN61000-4-3 and various CISPR documents.
Chambers are also designed for EMC testing for testing in accordance with military and avionics specifications such as MIL STD 4612E, DO 160 and DEF STD 59-41.
we offers a fully range of anechoic chambers, including: Antenna EMC Testing Chamber |

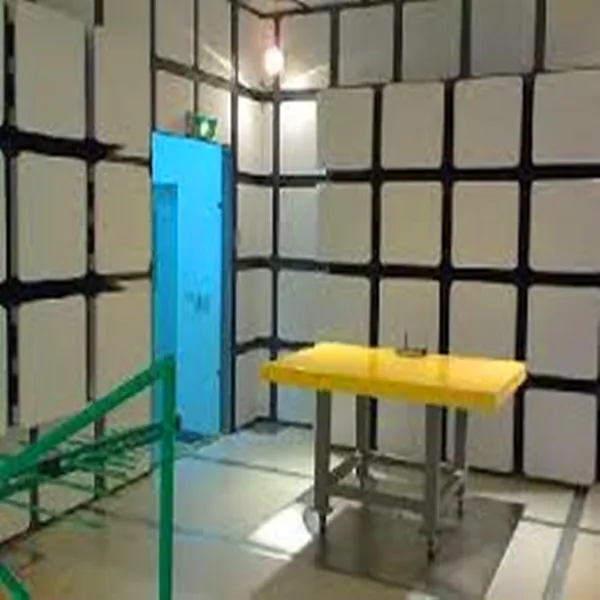

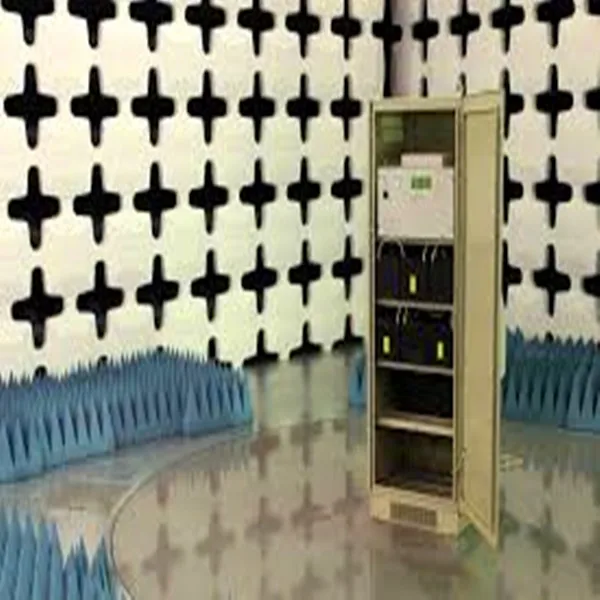

Anechoic chamber room with RF absorber
The types we provided for anechoic chamber room with RF absorber
- Compact chamber
- 3 Meter chamber
- 5 Meter chamber
-10 Meter chamber
- Free space chamber
- MIL-STD chamber
-Customized Anechoic chamber acceptable
Shielding performance for anechoic chamber room with RF absorber
Magnetic field | 14kHz | 75dB |
100KHz | 100dB | |
200KHz | 110dB | |
Plane wave | 50-103MHz | 120dB |
Microware | 1-10GHz | 110dB |
10-20GHz | 100dB | |
20-40GHz | 80dB |
Items 1Module Panel type, 2mm/3mm galvanized steel plate
Items 2RF Shielding Door, Open size:1000*2000mm
Or Customized dimension
Items 3Power Filters
16A/ 32A/50A/63A
Or Customized parameter
Items 4Honeycomb Ventilation panels
300x300x25mm
300x600x25mm
Or Customized dimension
Items 5RF Panel
300*200mm,including waveguide Ø4cm / L220cm x1 BNC*2/N*2/SMA*2
Or Customized dimension
Items 6Floor
Anti-static floor or Laminate flooring
Or customized materials
Items 7Foam RF absorber
Ferrite tile
High power absorber
Items 8Beryllium copper Fingers
Items 9Steel waveguideItems 10EMI Shielding Gasket
RF Shield Room generally consists of an RF shielded room which is either partially or fully lined with RF absorber material. It is used to perform several types of testing and measurements. chambers are typically constructed from the modular panel shielding system. |
RF Shield Room are used by industry to perform radiated emissions and radiated immunity testing of electrical/electronic equipment to various International specifications such as EN 50147 part 2 / ANSI C63.4 / EN55022 / EN61000-4-3 and various CISPR documents. |
EMC LTD offers of RF Shield Room |
A. Compact Chambers B. 3 Meter Chambers C. 5 Meter Chambers D. 10 Meter Chambers E. Free Space Chambers F. MIL-STD Chambers |
G. Customized Anechoic chamber Accepted |
Shielding Effectiveness of RF Shield Room
RF Shield Room Shielding Properties (dB) | ||
Magnetic field | 14kHz | 75dB |
100KHz | 100dB | |
200KHz | 110dB | |
Plane wave | 50-103MHz | 120dB |
Microware | 1-10GHz | 110dB |
10-20GHz | 100dB | |
20-40GHz | 80dB | |
